IMB-A1301 Micro ATX Motherboard

Processor System

CPU	AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors Ryzen 7th:Matisse (3700X,8cores,3.6GHz,65W) Ryzen 5th:Raven Ridge (2400G, QC, 3.6GHz,65W); Matisse (3600,6cores,3.6GHz,65W) Ryzen 3th:Raven Ridge (2200G, QC,3.5GHz,65W )
Chipset	AMD Promontory X470
Socket	AM4
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in)

Memory

Technology	Dual Channel DDR4 3200 MHz (Matisse) Dual Channel DDR4 2933 MHz (Raven Ridge)
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 288-pin Long-DIMM

Graphics

Controller	AMD Radeon™ HD Vega DirectX 12
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 4096x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x16 (PCIe Gen3 x8 for Raven Ridge/ PCIe Gen3 x16 for Matisse) 1 x PCIe x4 (Gen3) 1 x PCIe x1 (Gen3)
M.2	1 x Key E (2230)with PCIe x1 and USB 2.0 for Wireless

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	2 x Intel® I210-AT with 10/100/1000 Mbps
Connector	2 x RJ-45

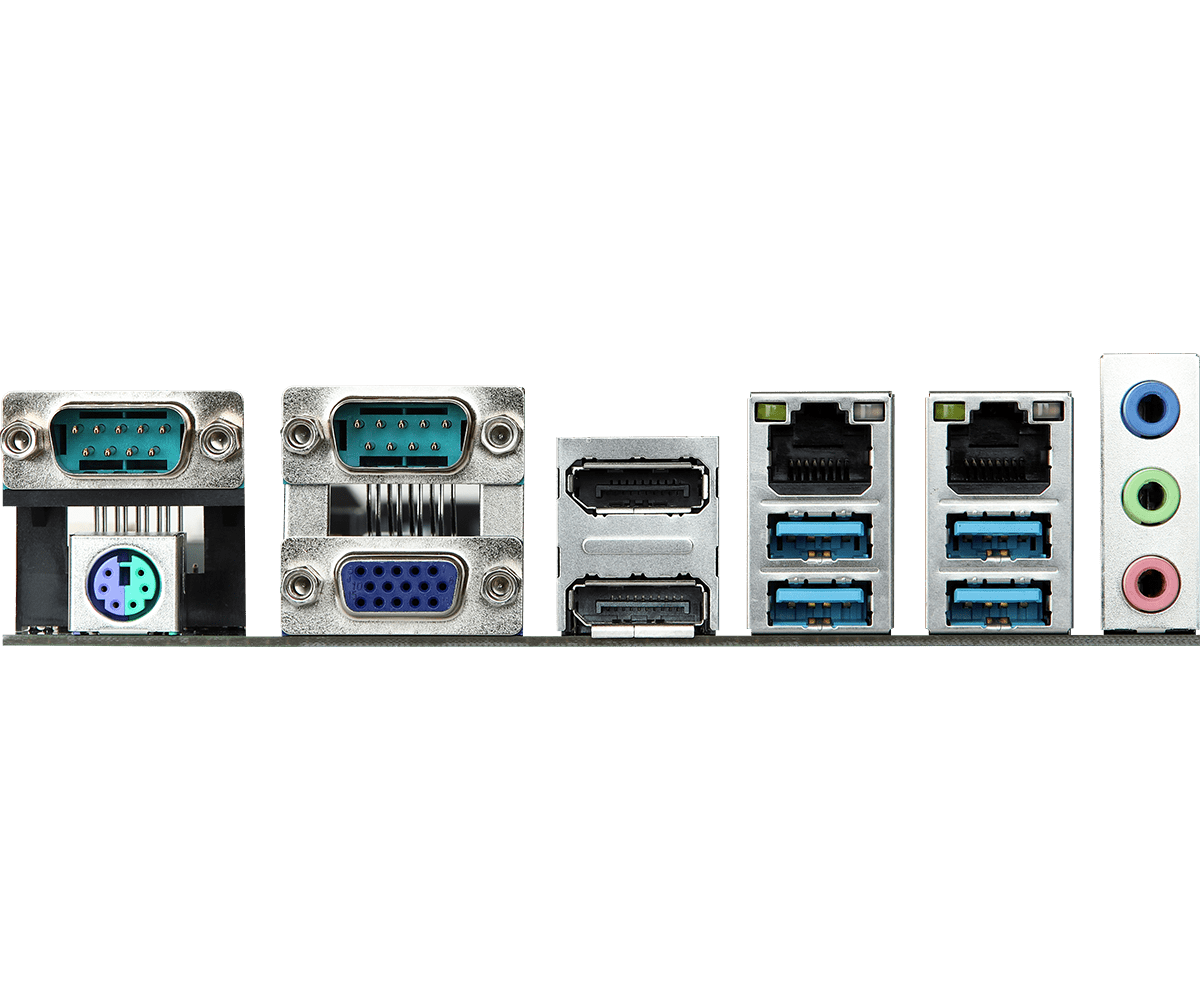

Rear I/O

DisplayPort	2 x DP 1.2++
VGA	1
Ethernet	2 x 1 Gigabit LAN
USB	Matisse: 4 x USB 3.1 (Gen2) Raven Ridge: 4 x USB 3.1 (Gen1)
Audio	3 (Mic-in, Line-in, Line-out)
COM	2 x COM(RS-232/422/485)
PS2	1 x PS/2 combo

Internal Connector

USB	7 x USB 3.1 Gen1 (2 x USB 3.1 header, 3 x Type A) 6 x USB 2.0 (3 x 2.54 pitch header)
COM	4 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard IC
LVDS	N/A
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x Key M (2242/2260/2280) with PCIe x4 and SATA3 for SSD
SATA	8 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
RAID	Support RAID 0/1/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
