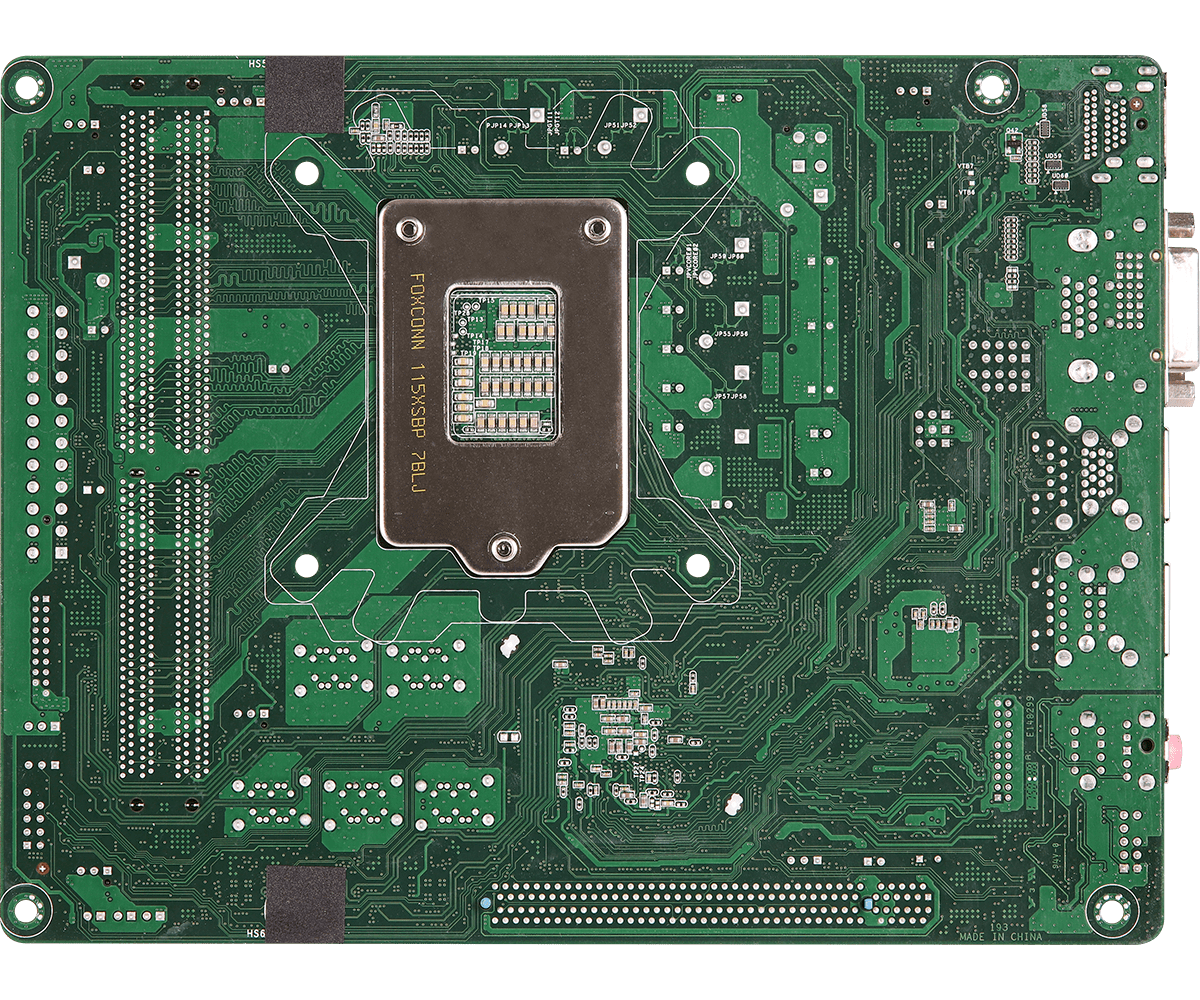

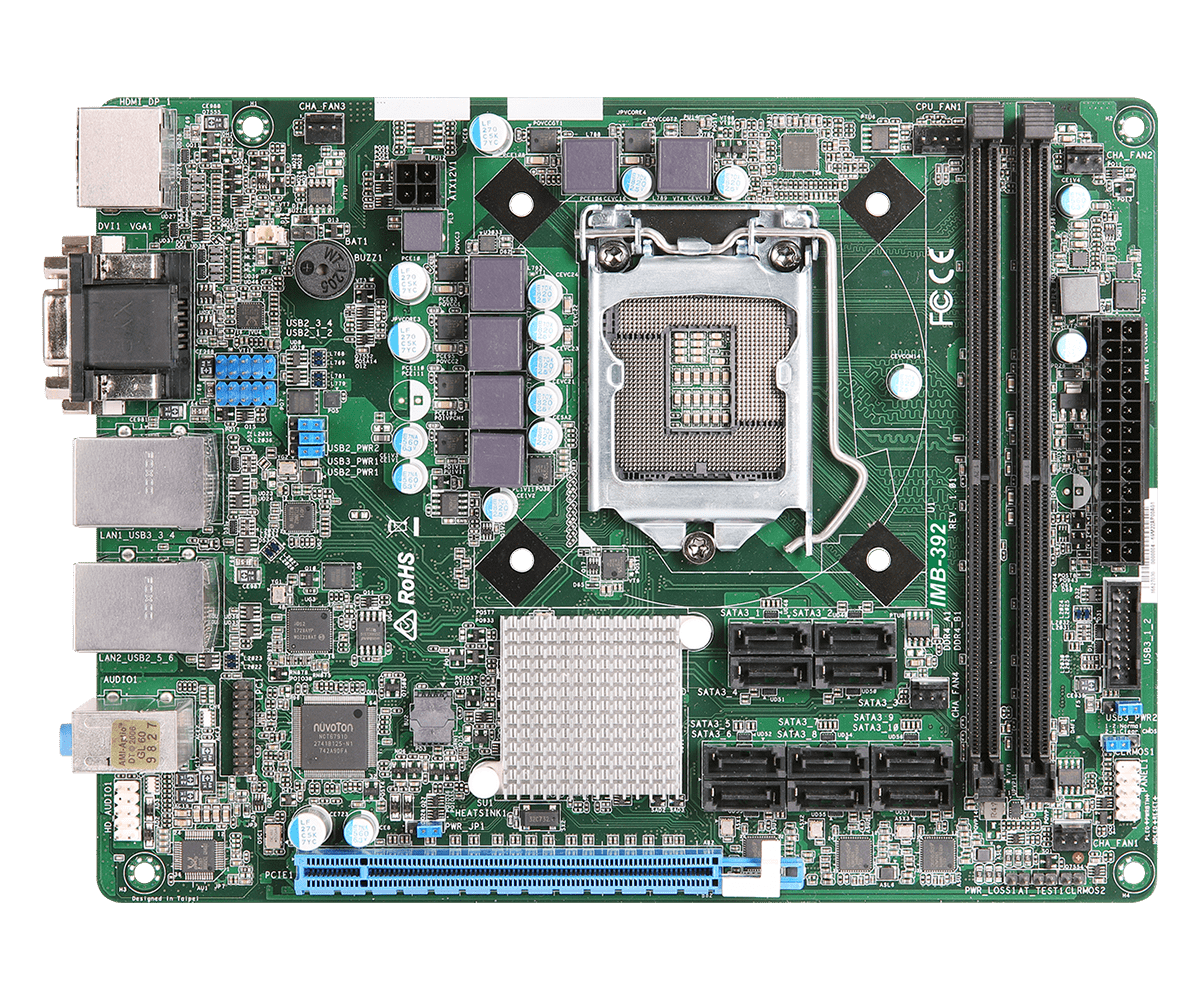

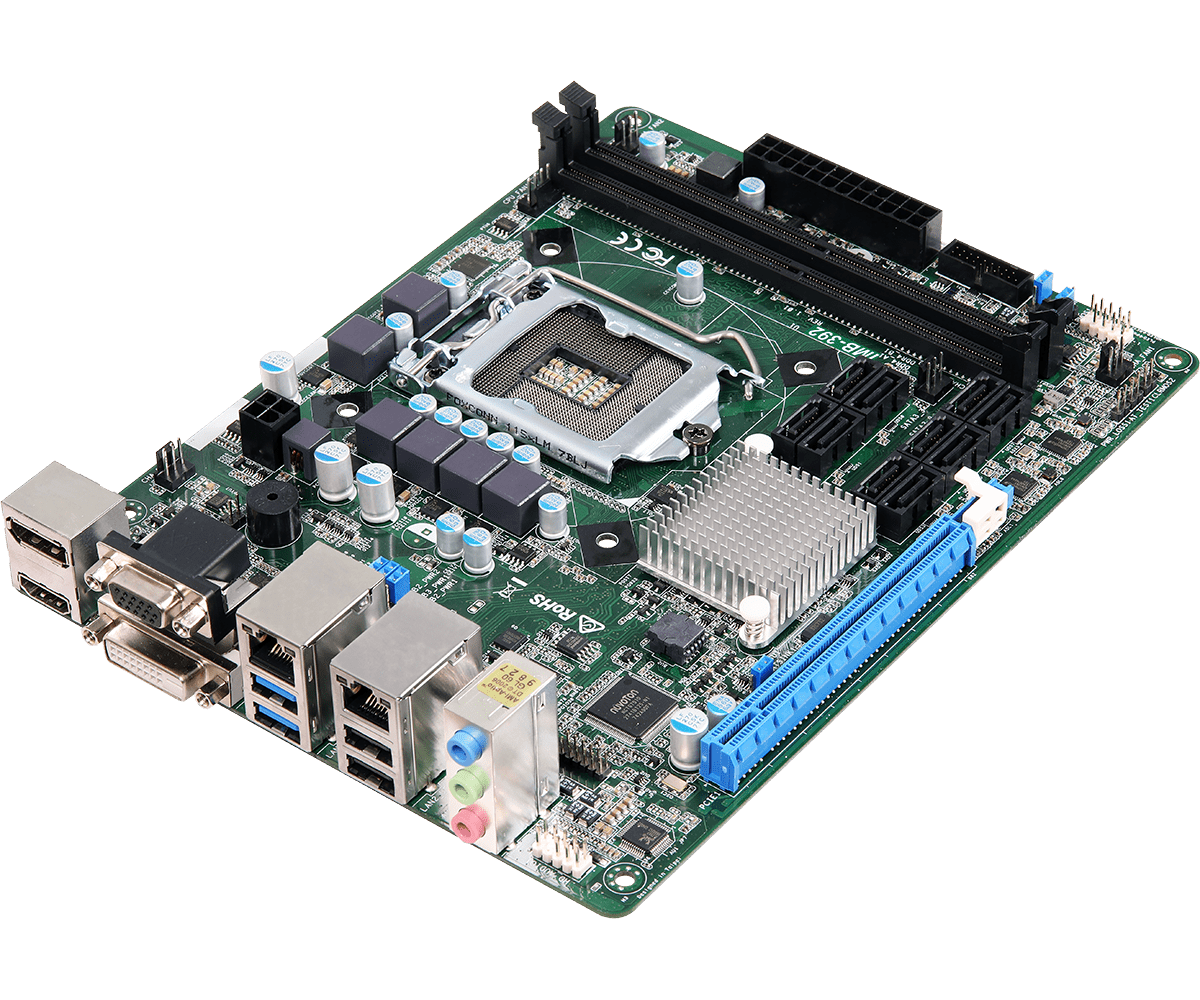

IMB-392 Micro ATX Motherboard

Processor System

CPU	Supports Intel® 6th Gen (Skylake-S) Core™ Processors (Socket 1151)
Chipset	Intel® H110
Socket	LGA1151

Form Factor

Dimensions	Micro-ATX (6.7-in x 8.8-in, 17.0 cm x 22.4 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32GB
Socket	2 x Long-DIMM

Graphics

Controller	Gen9 Intel Graphics, Support for DirectX 12, OpenCL 2.0, OpenGL 4.3 / 4.4 , OpenGL ES
HDMI	Max resolution up to 4096 x 2304 @ 30Hz
DisplayPort	Max resolution up to 4096 x 2304 @ 60Hz
VGA	supported through RTD2168-CG , resolution up to 1920 x 1200
DVI	Max resolution up to 4096 x 2304 @ 30Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x16

Ethernet

Controller/ Speed	LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I219V with 10/100/1000 Mbps

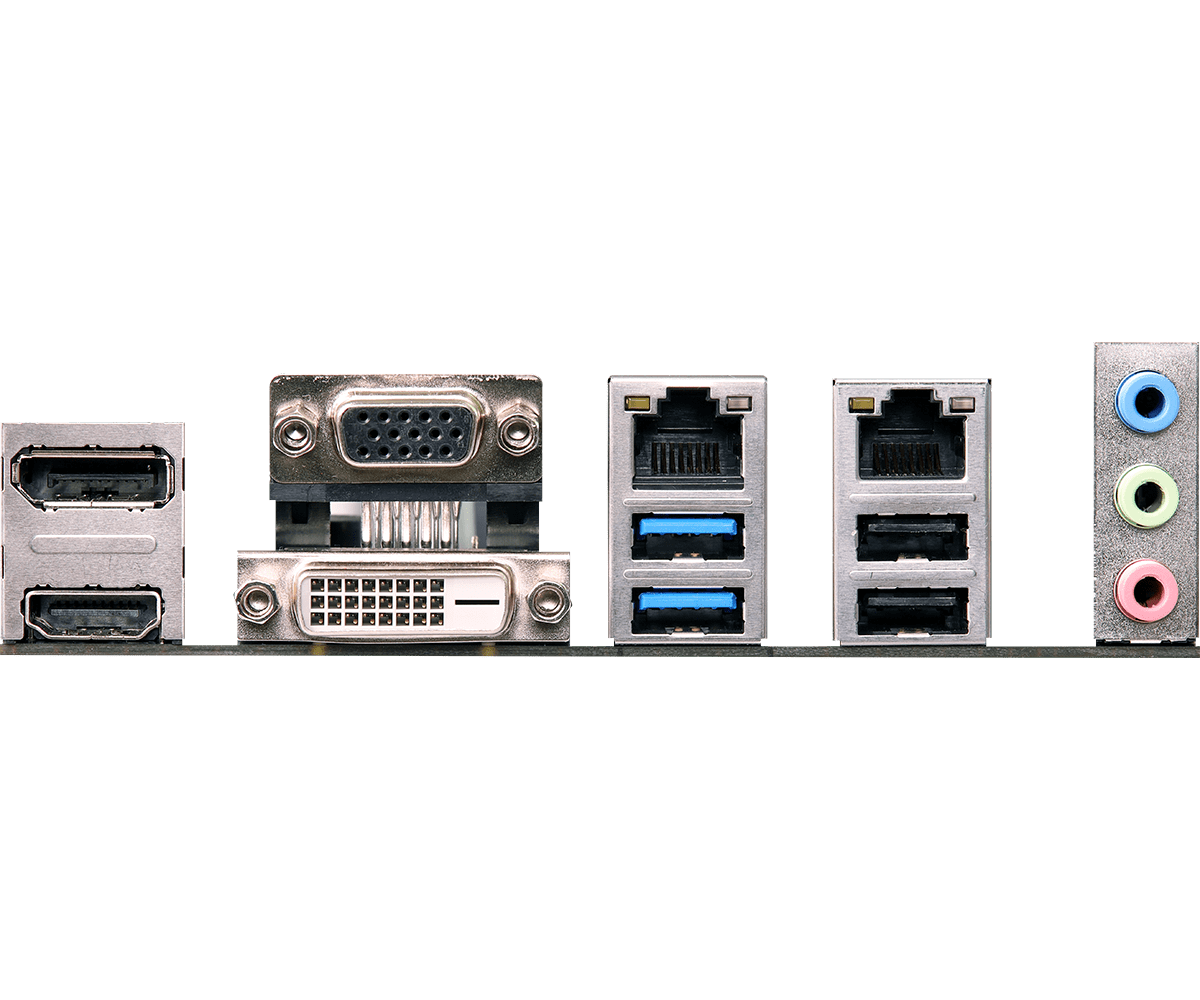

Rear I/O

HDMI	1
DisplayPort	1
VGA	1
DVI	1
Ethernet	2
USB	2 x USB 2.0, 2 x USB 3.0
Audio	3 (Mic-in, Line-in, Line-out)

Internal Connector

USB	4 x USB 2.0 (2 x 2.54 pitch header), 2 x USB 3.0
TPM	1 x Header
Speaker Header	1

Storage

SATA	10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+4-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%
