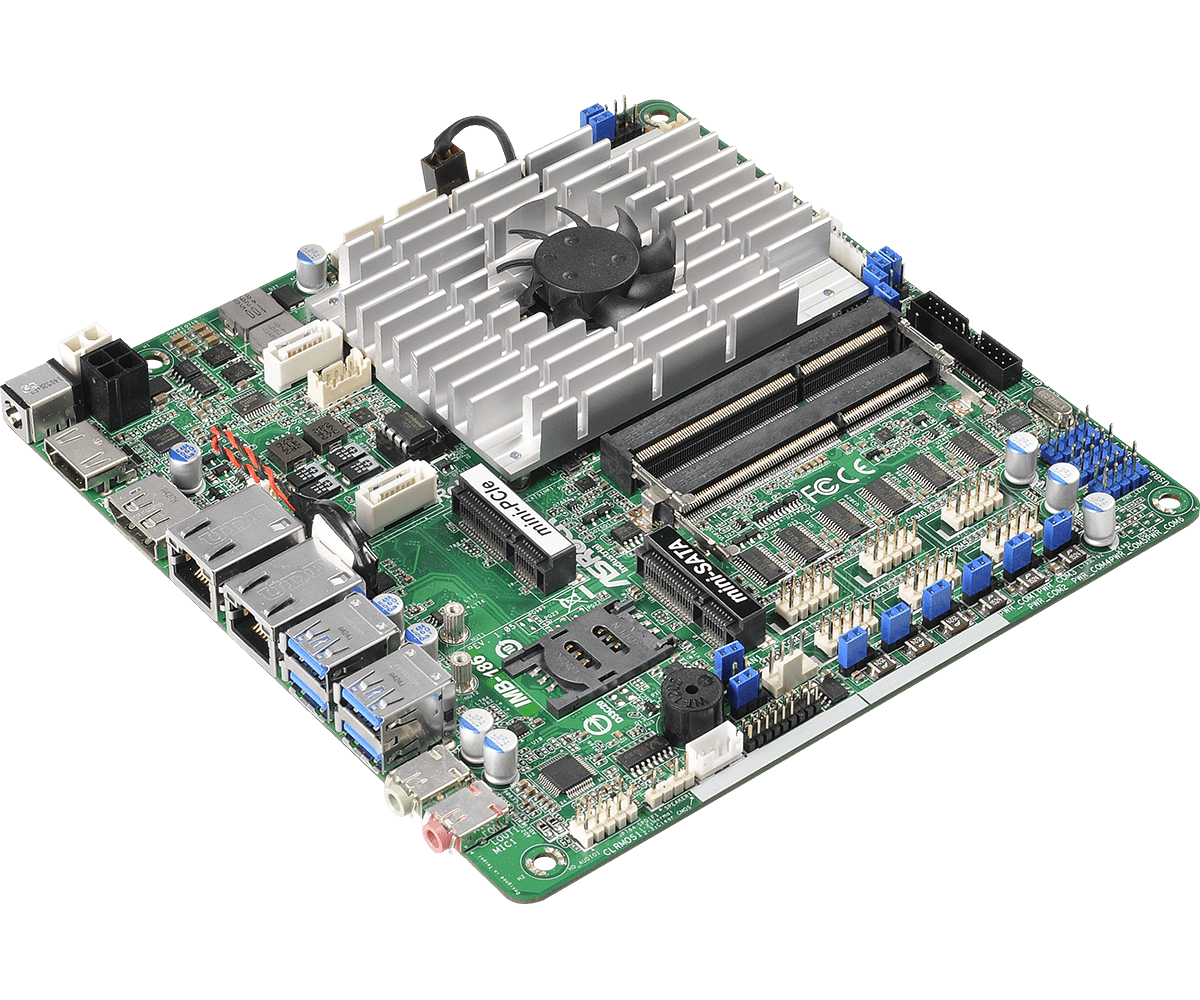

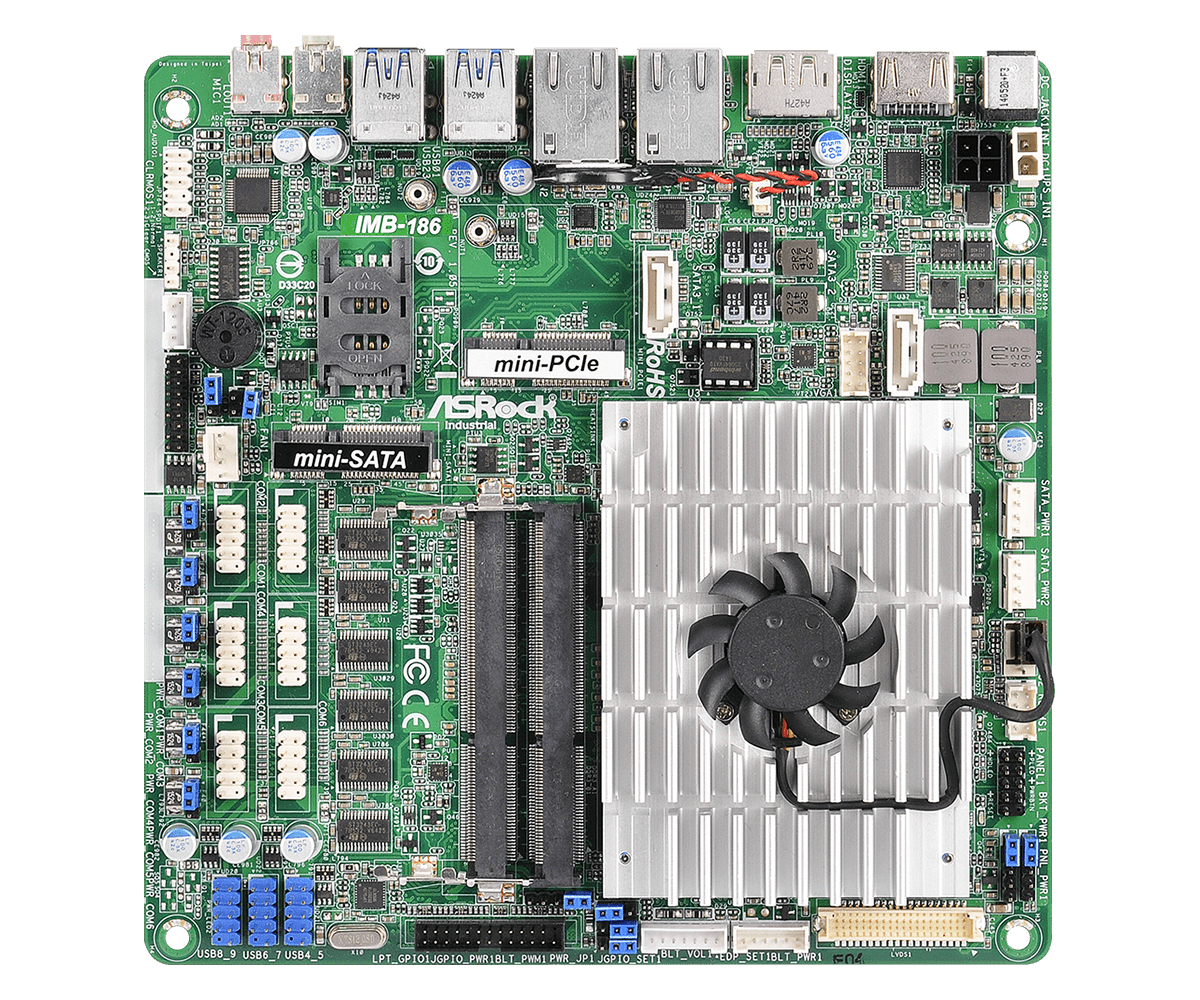

IMB-186 Mini-ITX Motherboard

Processor System

CPU	Intel® 4th Gen (Haswell-U) Core™ MCP Processors -IMB-186P (i7-4650U, QC, 1.70 GHz, 15 W) -IMB-186M (i5-4300U, DC, 1.90 GHz, 15 W) -IMB-186V (i3-4010U, DC, 1.70 GHz, 15 W)
Chipset	SoC

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR3L 1333 / 1600MHz
Capacity	16GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports max resolution up to 4096 x 2304
VGA	1
MultiDisplay	Triple Display
LVDS	1

Expansion Slot

mini-PCIe	1 x Half size with PCIe x 1 and USB 2.0

Ethernet

Controller/ Speed	LAN1: Intel® I218V with 10/100/1000 Mbps LAN2: Intel® I218LM with 10/100/1000Mbps
Connector	2 x RJ-45

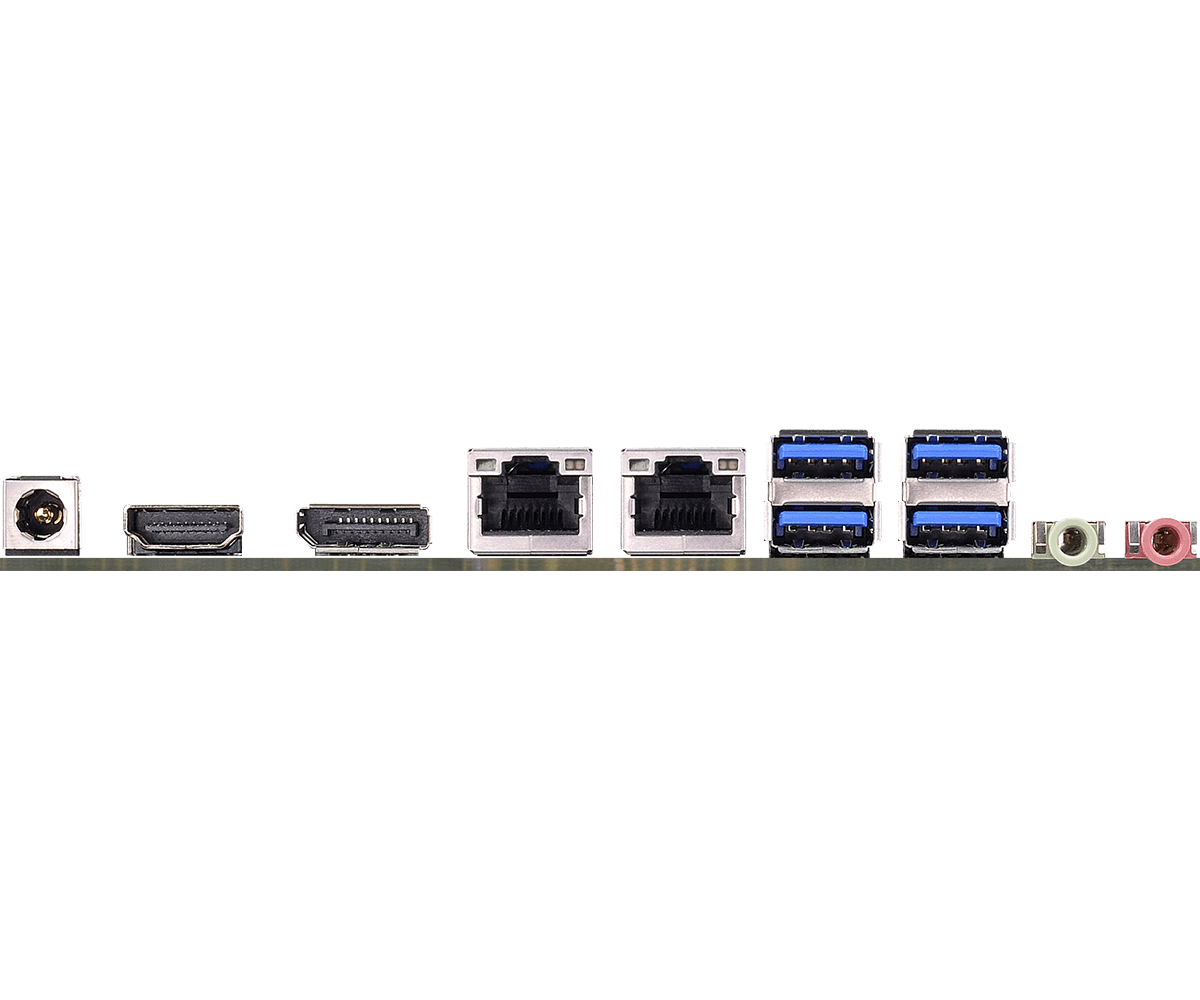

Rear I/O

HDMI	1
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DisplayPort	1
DC Jack	1

Internal Connector

USB	6 x USB 2.0
COM	4 x COM (RS-232), 2 x COM (RS-232/422/485)
GPIO	8 x GPI + 8 x GPO (shared with LPT header)
TPM	1 x Header
LVDS	1
VGA	1
Speaker Header	1
SATA PWR Output	2
Parallel	1 (Co-lay with 8in / 8out DIO)

Storage

SATA	2 x SATA3
mSATA	1 x Full size with SATA3

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	DC 9-19 input
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK) 2 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
