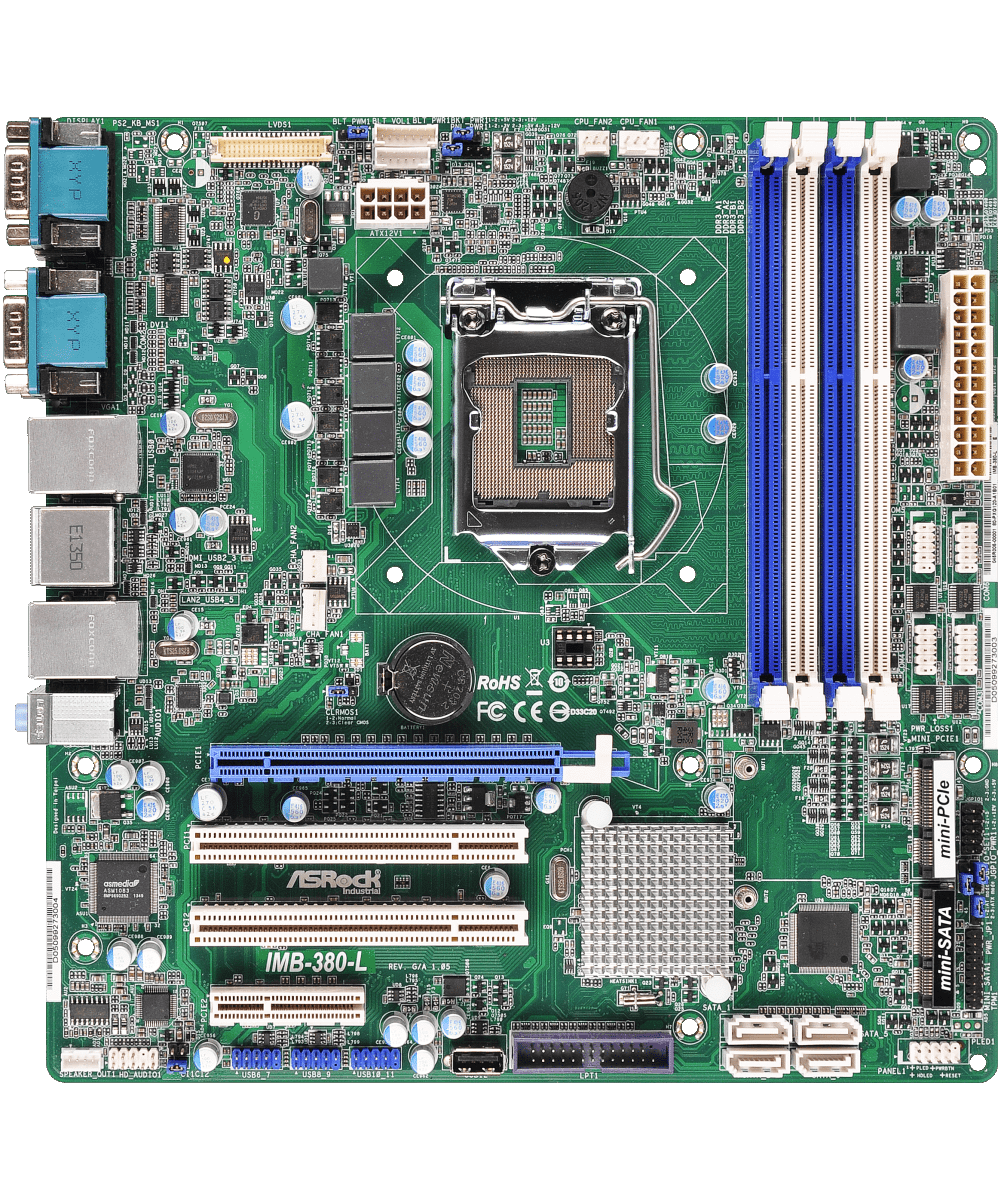

IMB-380-L Micro ATX Motherboard

Processor System

CPU	Socket LGA1150 for Intel Core i7 / i5 / i3 / Celeron (Haswell)
Chipset	Q87
BIOS	UEFI

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	32GB
Socket	4 x Long DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
LVDS	24 bit daul channel
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
DVI	Supports max resolution 1920 x 1200
MultiDisplay	Triple Display

Expansion Slot

PCI	2
mini-PCIe	1 x Full size with PCIe x1 and USB 2.0
PCIe	1 (x16) + 1 (x4)

Ethernet

Controller/ Speed	LAN1:Intel I210 with 10/100/1000 Mbps LAN2:Intel I217LM with 10/100/1000 Mbps, support v-Pro
Connector	2 x RJ-45

Rear I/O

VGA	1
HDMI	1
Ethernet	2
USB	6 (4 x USB 3.0 compliant, 2 x USB 2.0 compliant)
Audio	3 (Mic-In, Line-Out, Line-In)
COM	2 x COM (RS-232/422/485)
PS2	1 (Combo)

Internal Connector

USB	6 (USB 2.0 compliant) 1 Vertical Type A USB Connector
LVDS	1
COM	4 x COM (RS-232)
Parallel	1
GPIO	4 x GPI + 4 x GPO
SATA PWR Output	2
Speaker Header	1

Storage

mSATA	1 x Full size with SATA3
SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	Output from super I/O to drag RESETCON#
Interval	256 Segments, 0,1,2…255 Sec

Power Requirements

Input PWR	ATX PWR (24+4-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020198000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x I/O Shield (13G020199000AK)
