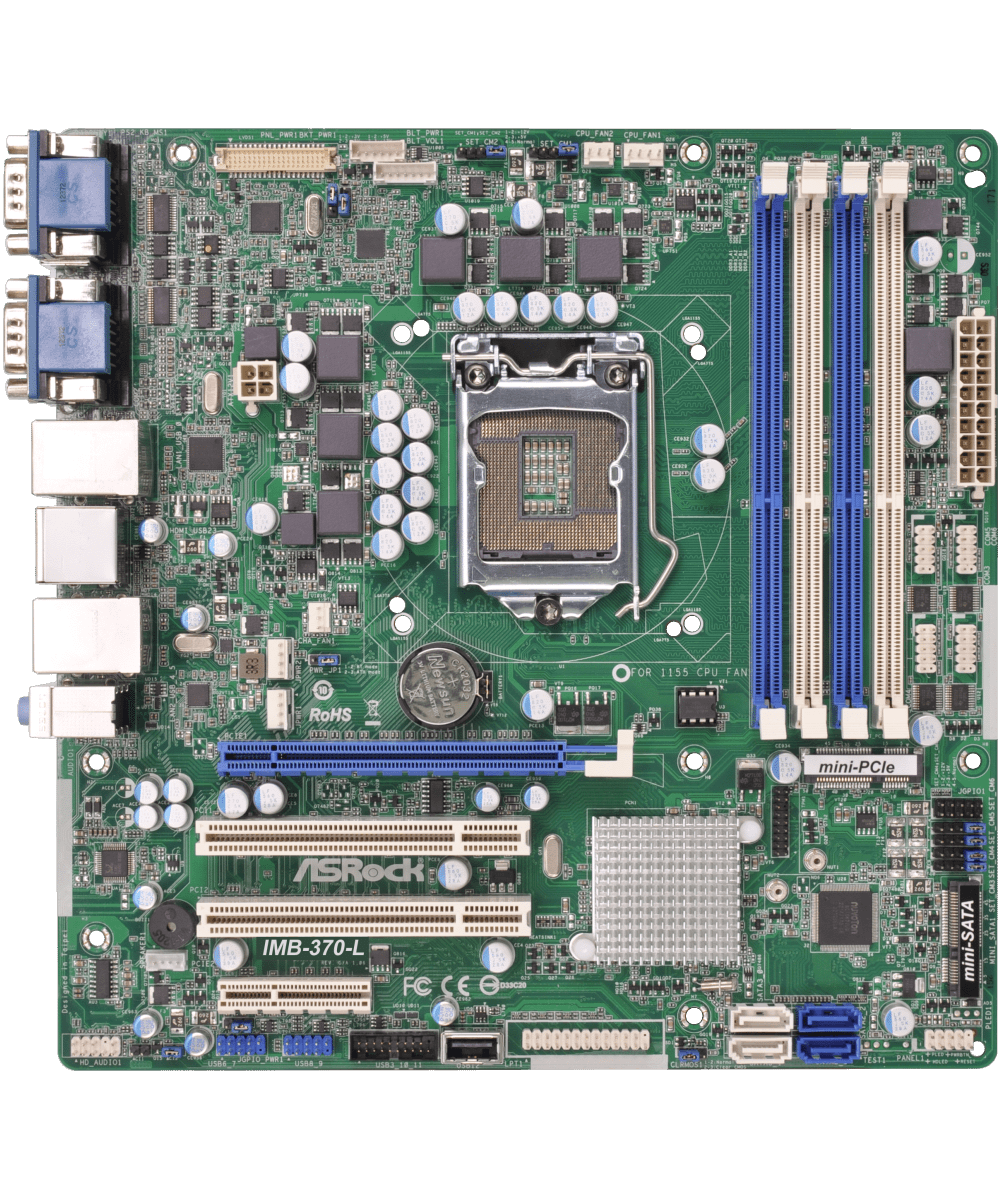

IMB-370-L Micro ATX Motherboard

Processor System

CPU	Socket LGA1155 for Intel Core i7 / i5 / i3 / Celeron (Sandy Bridge and Ivy Bridge)
Chipset	Intel® Q77
BIOS	UEFI

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	32GB
Socket	4 x Long DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
VGA	Supports max resolution 2048 x 1536
LVDS	Supports Dual Channel 24-bit, max resolution 1920 x 1200
MultiDisplay	Yes

Expansion Slot

PCIe	1 (x16) (IVY Bridge: Gen3; Sandy Bridge: Gen2)+ 1 (x4)
PCI	2
mini-PCIe	1 x Half size with PCIe x1

Ethernet

Controller/ Speed	LAN1:Intel 82583V with 10/100/1000 Mbps LAN2: Intel 82579LM with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	1
VGA	1
Ethernet	2
USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant)
Audio	3 (Mic-in, Line-in, Line-out)
COM	2 x COM (RS-232/422/485)
PS2	1 (Combo)

Internal Connector

USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant) 1 Vertical Type A USB Connector
COM	4 x COM (RS-232)
Parallel	1
GPIO	4 x GPI + 4 x GPO
TPM	TPM 2.0 onboard IC
LVDS	1
Speaker Header	1
SATA PWR Output	2

Storage

mSATA	1 x Full size with SATA2 and USB 2.0
SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (20+4-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%
