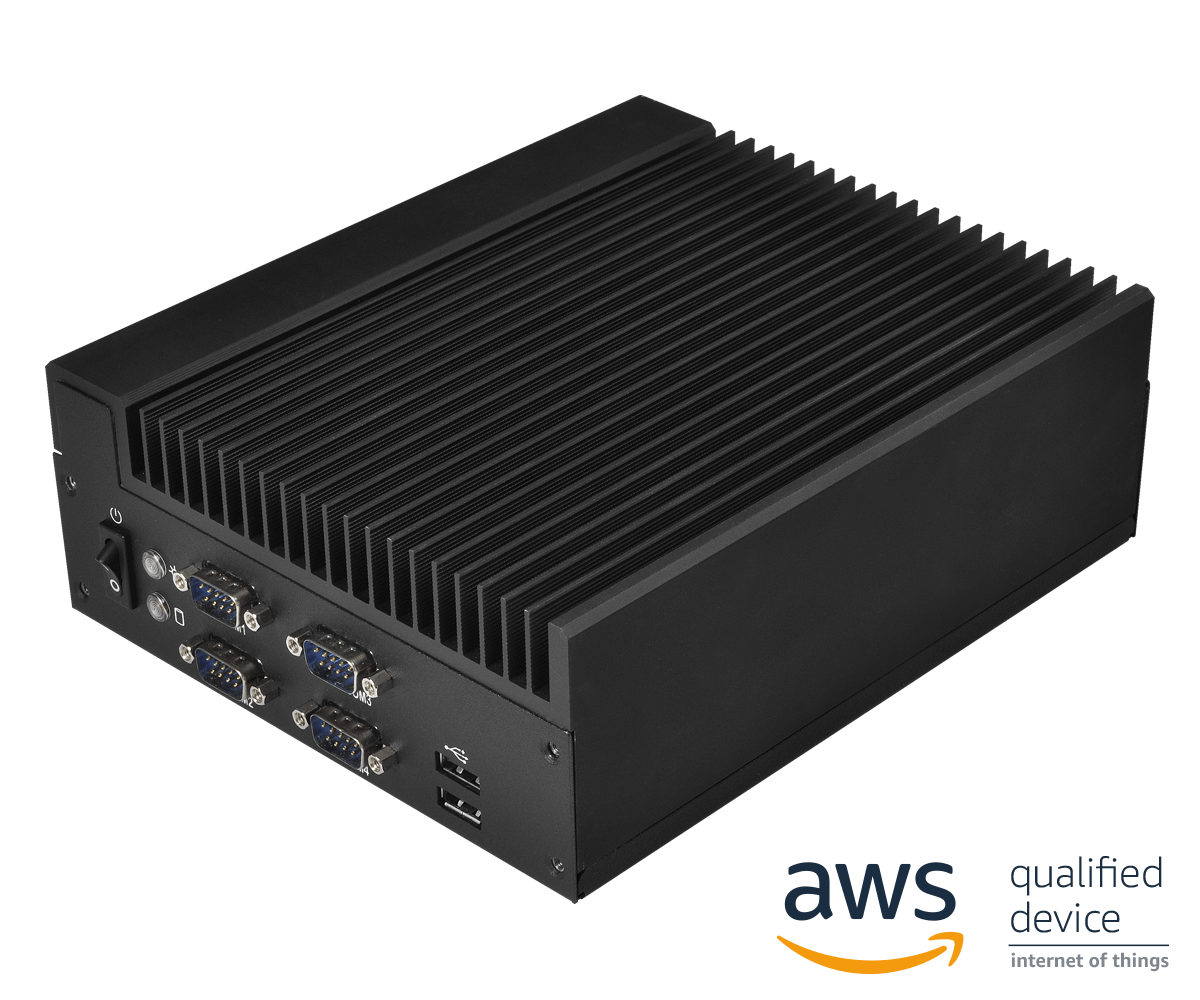

iBOX-310M Fanless Embedded BOX PC

Processor System

CPU	Intel®4th Gen (Haswell) Core™ MCP Processors i5-4300U, QC, up to 2.90 GHz
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Form Factor

Dimensions	170 x 200 x 70mm

Memory

Technology	Dual Channel DDR3L 1600 MHz
Capacity	8 GB (4 GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® HD Graphics 4400
HDMI	HDMI 1.4a Max resolution up to 4096x2304@24Hz
MultiDisplay	Dual Display

Expansion Slot

mini-PCIe	1 x Full/ Half size(Supports PCIe x1 and USB 2.0)
mini-PCIe/mSATA	1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA)

Ethernet

Controller/ Speed	LAN1: 1 x Realtek RTL8111G with 10/100/1000 Mbps LAN2: 1 x Intel® I218LM with 10/100/1000 Mbps, supports AMT/vPro
Connector	2 x RJ-45

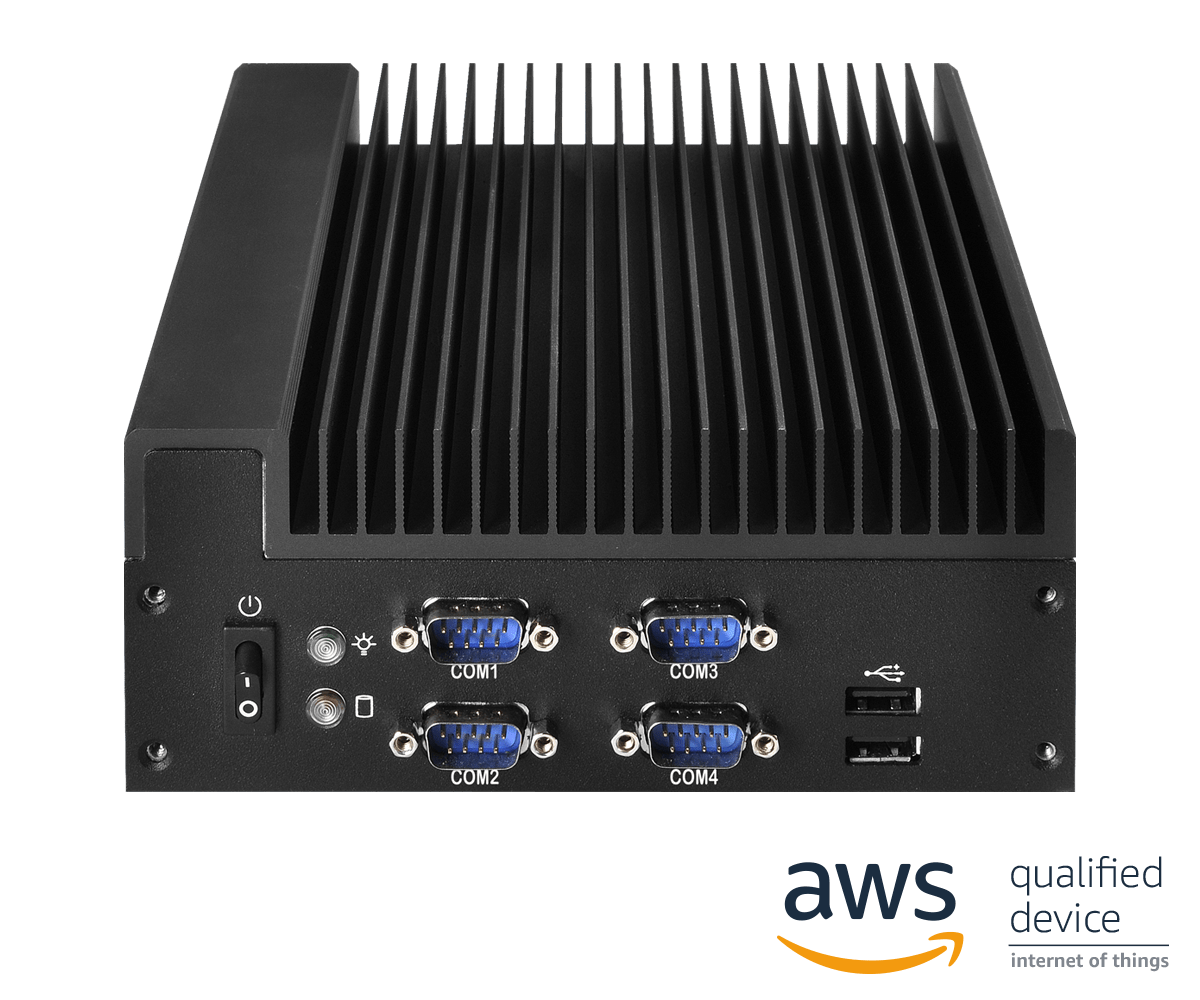

Front I/O

USB	2 x USB 2.0
COM	2 x COM (RS-233/422/485), 2 x COM (RS-232)

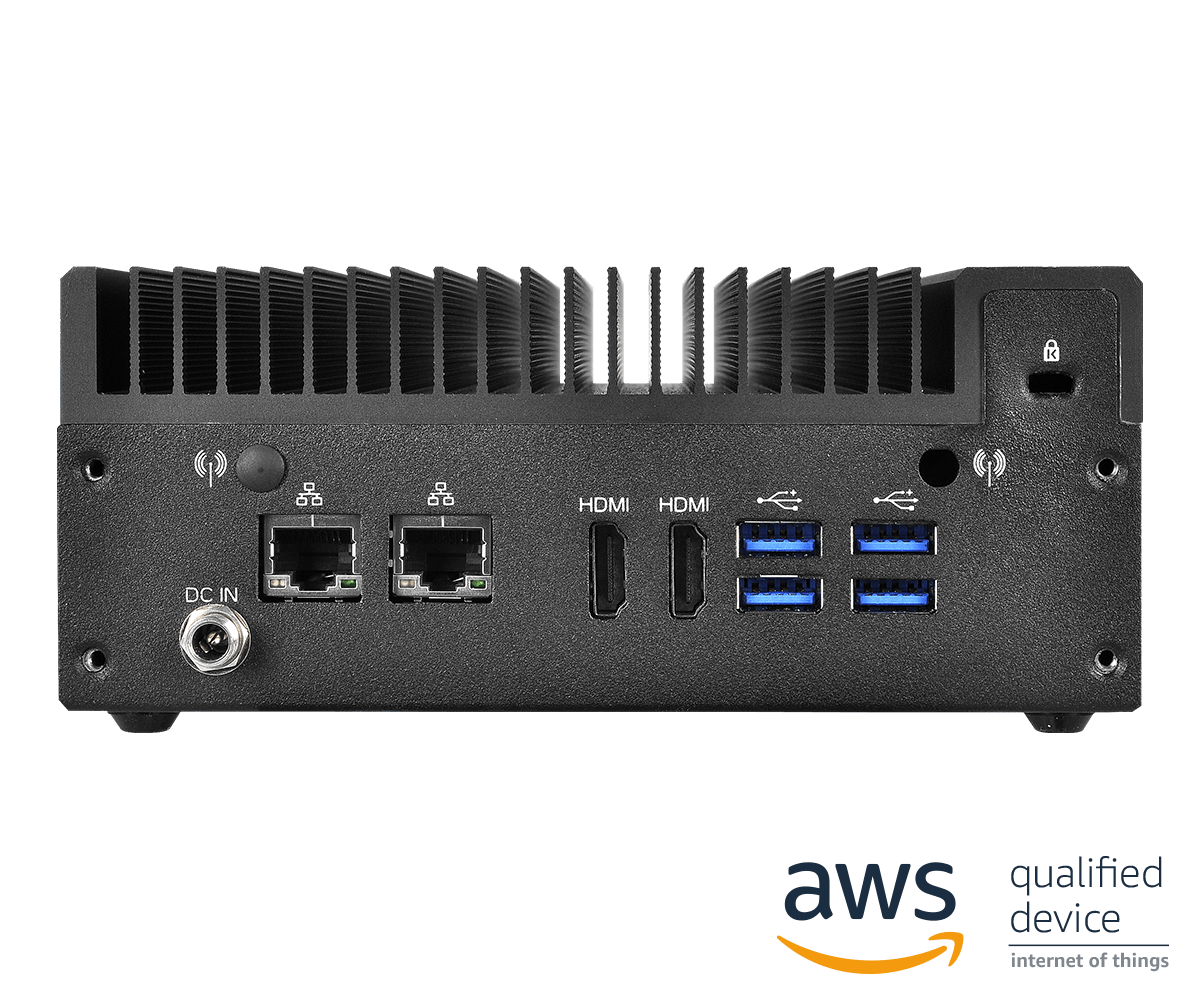

Rear I/O

HDMI	2 x HDMI 1.4a
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.0
DC Jack	1

Storage

mSATA	1 x Half size with USB 2.0 colay with mini-PCIe
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 19V/65W AC-DC power brick adapter
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 50ºC
Storage Temp	-40° C – 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mounting bracket
Dimensions (L x W x H)	170 x 200 x 70mm
Weight	Net Weight:2.2 kg

Others

OS Support	Windows 7, Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 19V/65W Power Adapter 1 x Screw Package 1 x Product DVD

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
