EOL

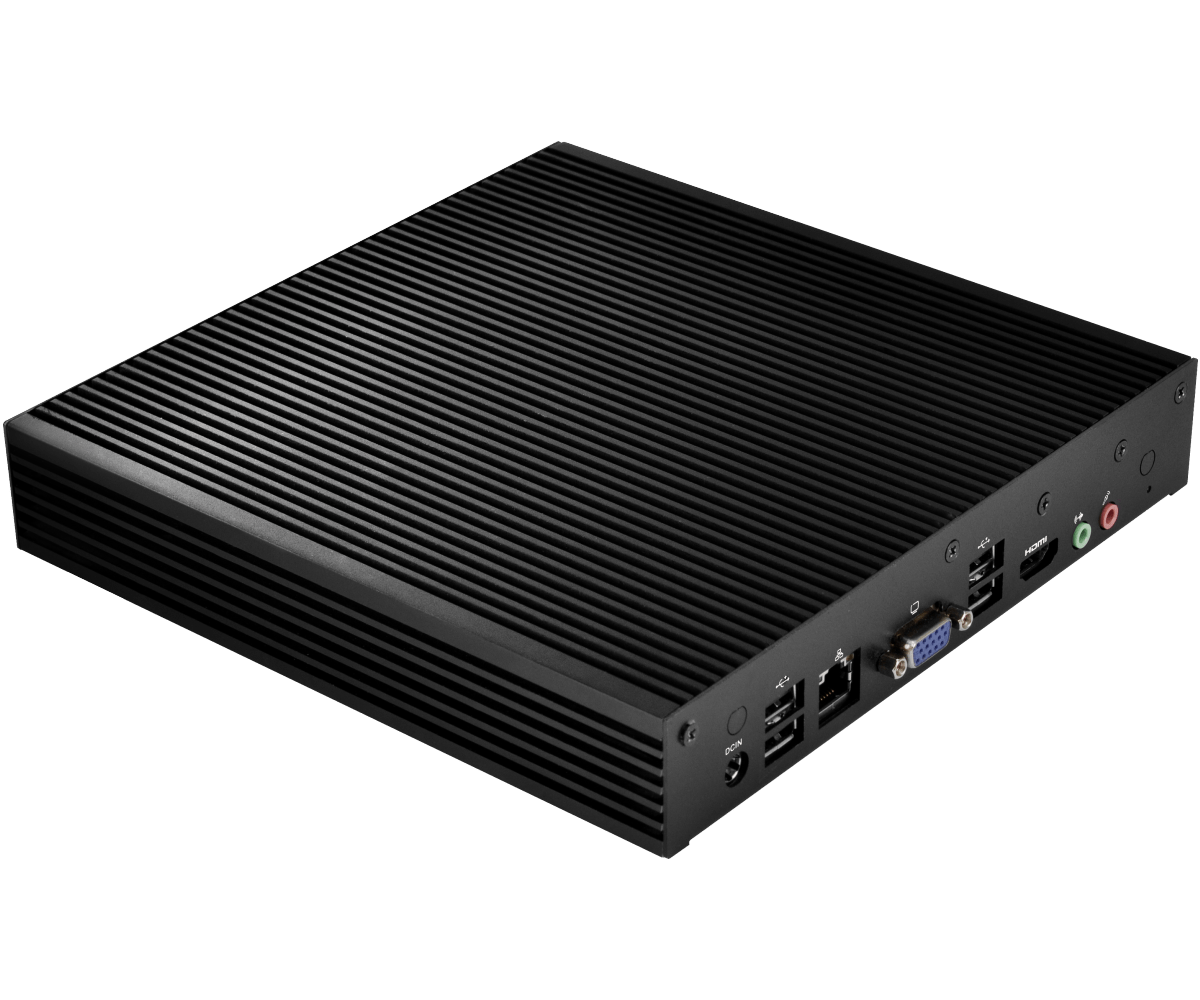

iBOX-280 Fanless Embedded BOX PC
- 1. Intel Cedarview Atom N2800 Dual Core 1.86GHz
- VGA / HDMI
- Supports Embedded OS Window 7 and Linux
- Gigabit LAN
- Slim and Fanless Design
- DC 9-19V power input

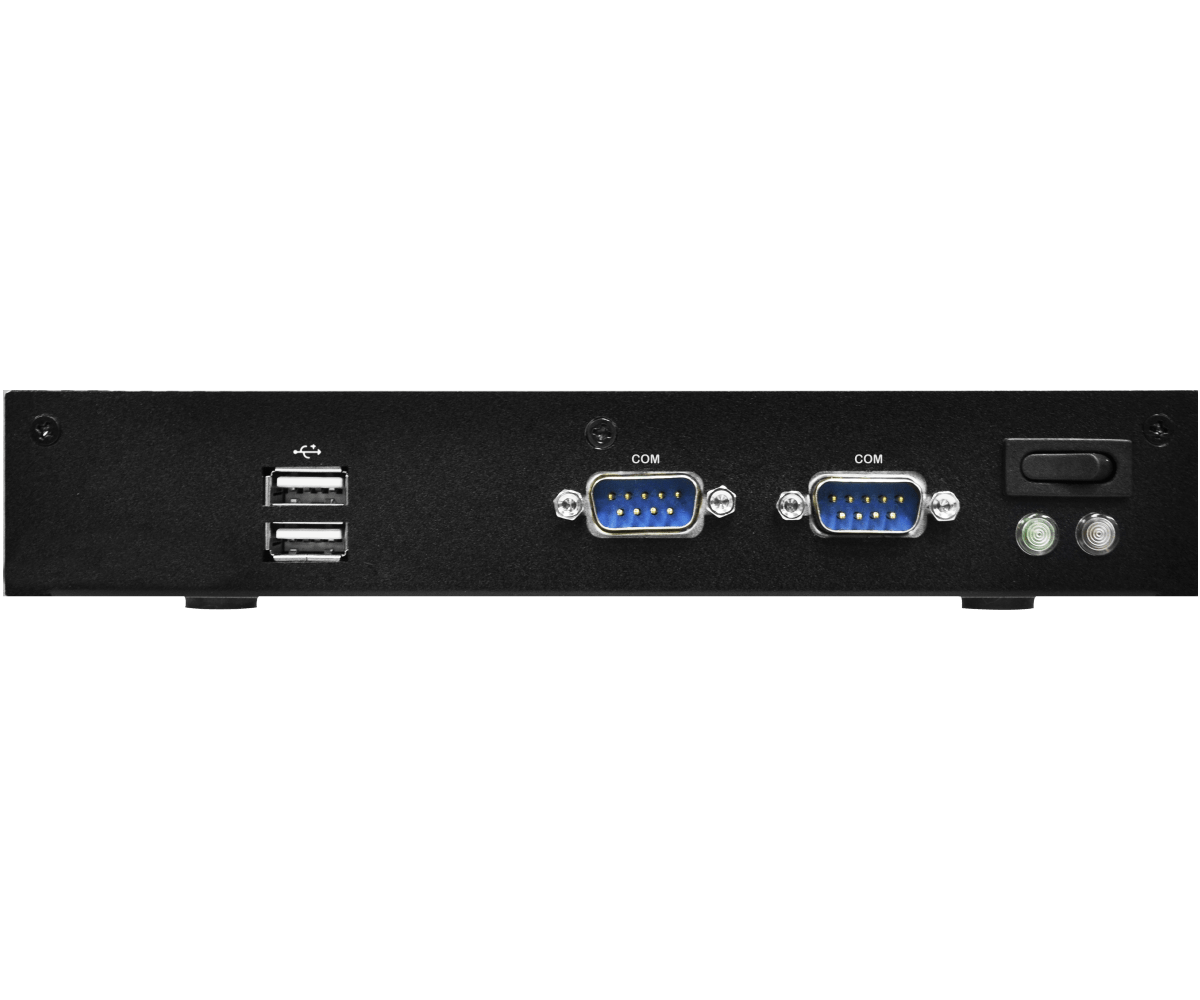

- 2 x COM (RS-232)
Specification
Processor System
| CPU | Intel Cedarview Atom N2800 Dual core 1.86GHz TDP 6.5W |
|---|---|
| Chipset | Intel NM10 |
| BIOS | AMI SPI 64 Mbit |
Form Factor
| Dimensions | 200 x 200 x 35mm (WxDxH) |
|---|
Memory
| Technology | Dual Channel DDR3L 1066 MHz |
|---|---|
| Capacity | 8 GB (4GB per DIMM) |
| Socket | 2 x 204-pin SO-DIMM |
Graphics
| Controller | Intel GMA3650 |
|---|
Expansion Slot
| mini-PCIe | 1 x Full/ Half size(Supports PCIe x1 and USB 2.0) |
|---|---|
| mini-PCIe/mSATA | 1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA) |

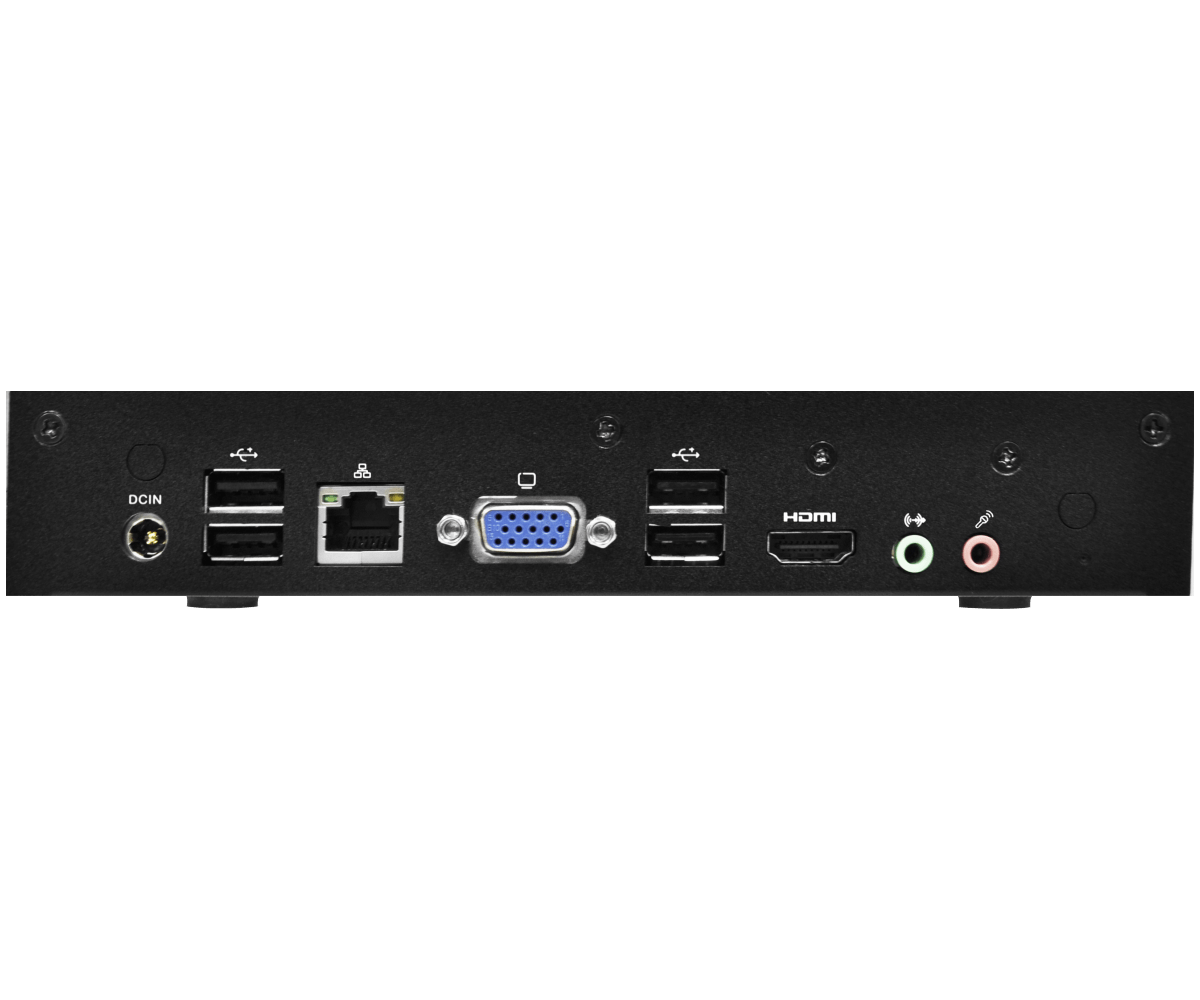

Rear I/O
| VGA | 1 |
|---|---|
| USB | 6 x USB 2.0 |
| Audio | Mic-in/ Line out |
| DC Jack | 1 |
| HDMI | 1 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Environment
| Operating Temp | 0ºC ~ 50ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
Mechanical
| Construction | Aluminum housing |
|---|---|
| Mounting | VESA mounting bracket |
| Dimensions (L x W x H) | 200 x 200 x 35mm |
| Weight | Net Weight:1.8kg |
Others
| OS Support | Windows 7 / Linux |
|---|---|
| Certifications | CE, FCC Class A |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | VGA driver ver:8.0.0.6.1082 | Information | OS | Win 7 | Date | 2020-07-01 | Download | ||
| Description | Intel Rapid Storage Technology driver and utility ver:10.1.0.1008_ad | Information | OS | Win 7 | Date | 2020-07-01 | Download | ||
| Description | COM Port driver ver:1.0.2011.1109 | Information | OS | Win 7 | Date | 2020-07-01 | Download | ||
| Description | Lan driver ver:17 | Information | OS | Win 7 | Date | 2020-07-01 | Download | ||
| Description | INF driver ver:9.2.2.1034 | Information | OS | Win 7 | Date | 2020-07-01 | Download | ||
| Description | CIR receiver driver ver:2.09.1007 | Information | OS | Win 7 | Date | 2020-07-01 | Download | ||
| Description | Realtek high definition audio driver ver:6772 | Information | OS | Win 7 | Date | 2020-07-01 | Download |
