Processor System
| CPU |
Intel® Core Processors Series 3 (Wildcat Lake -U)

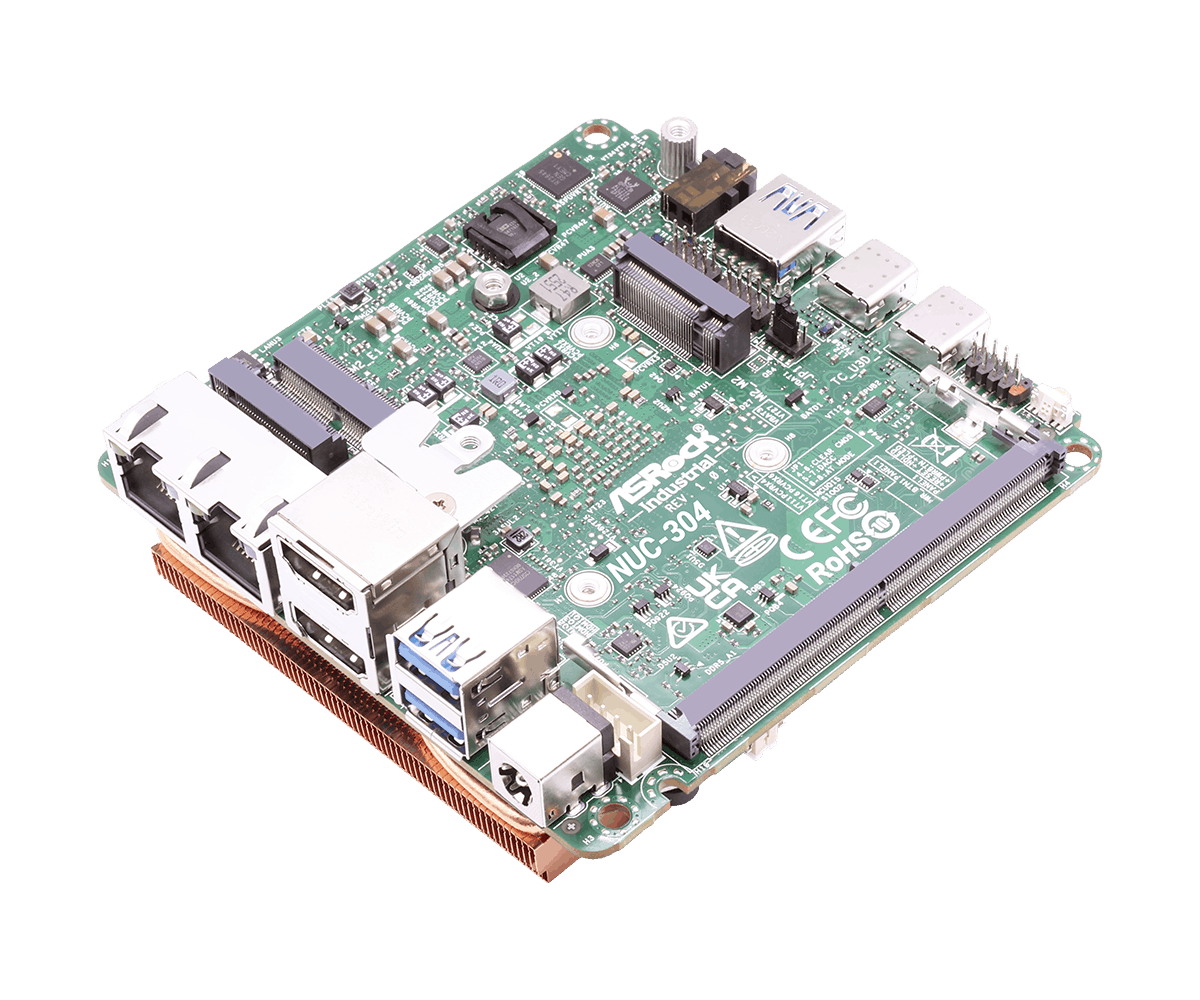

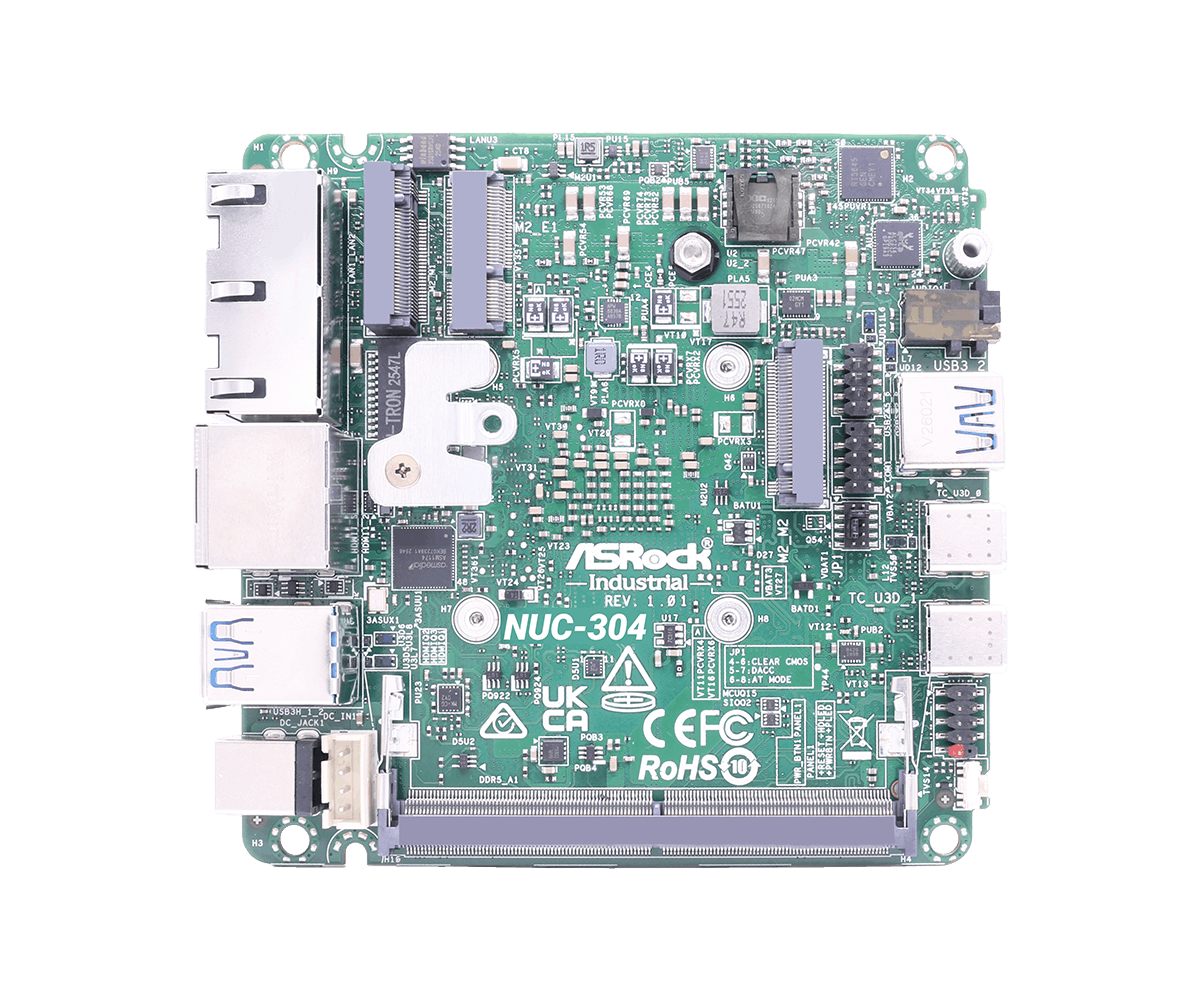

NUC-320 (Core™ 5 320, 2P+4LPE)
NUC-304 (Core™ 3 304, 1P+4LPE)
*All CPU sku can support In-Band ECC |
| Chipset |
MCP |
| BIOS |
AMI SPI 256 Mbit |
Form Factor
| Dimensions |
NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) |
Memory
| Technology |
Single Channel DDR5 6400 MHz |
| Capacity |
64GB |
| Socket |
1 x 262-pin SO-DIMM |
Graphics
| Controller |
Intel® Graphics |
| HDMI |
HDMI 2.1
Max resolution up to 4096x2160@60Hz |
| DisplayPort |
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz |
| MultiDisplay |
Max 3 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface |
Realtek ALC256, High Definition Audio. |
Ethernet
| Controller/ Speed |
LAN1: Intel® I226V with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
| Connector |
2 x RJ-45 |
Front I/O
| USB |
1 x USB 3.2 Gen1 (Type-A)
2 x USB3.2 Gen2x2 (Type-C, 5V/3A, Supports DP1.4a display output) |
| Audio |
1 (headphone & microphone jack) |
Rear I/O
| HDMI |
2 x HDMI 2.1 |
| Ethernet |
2 x 2.5 Gigabit LAN |
| USB |
2 x USB 3.2 Gen1 (Type-A) |
| DC Jack |
1 |
Internal Connector
| USB |
2 x USB 2.0 (1 x 2.00 pitch header) |
| COM |
1 x COM(RS232/422/485) |
Security
Storage
| M.2 |
1 x M.2 (KEY M, 2242) with PCIe Gen4 x1 for SSD
1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x2 for SSD |
| SATA |
1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
12V~24V DC-In Jack |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
-20ºC ~ 70ºC |
| Storage Temp |
-40° C ~ 85° C |
| Operating Humidity |
5% ~ 90% (non-condensing) |
| Storage Humidity |
5% ~ 90% (non-condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
