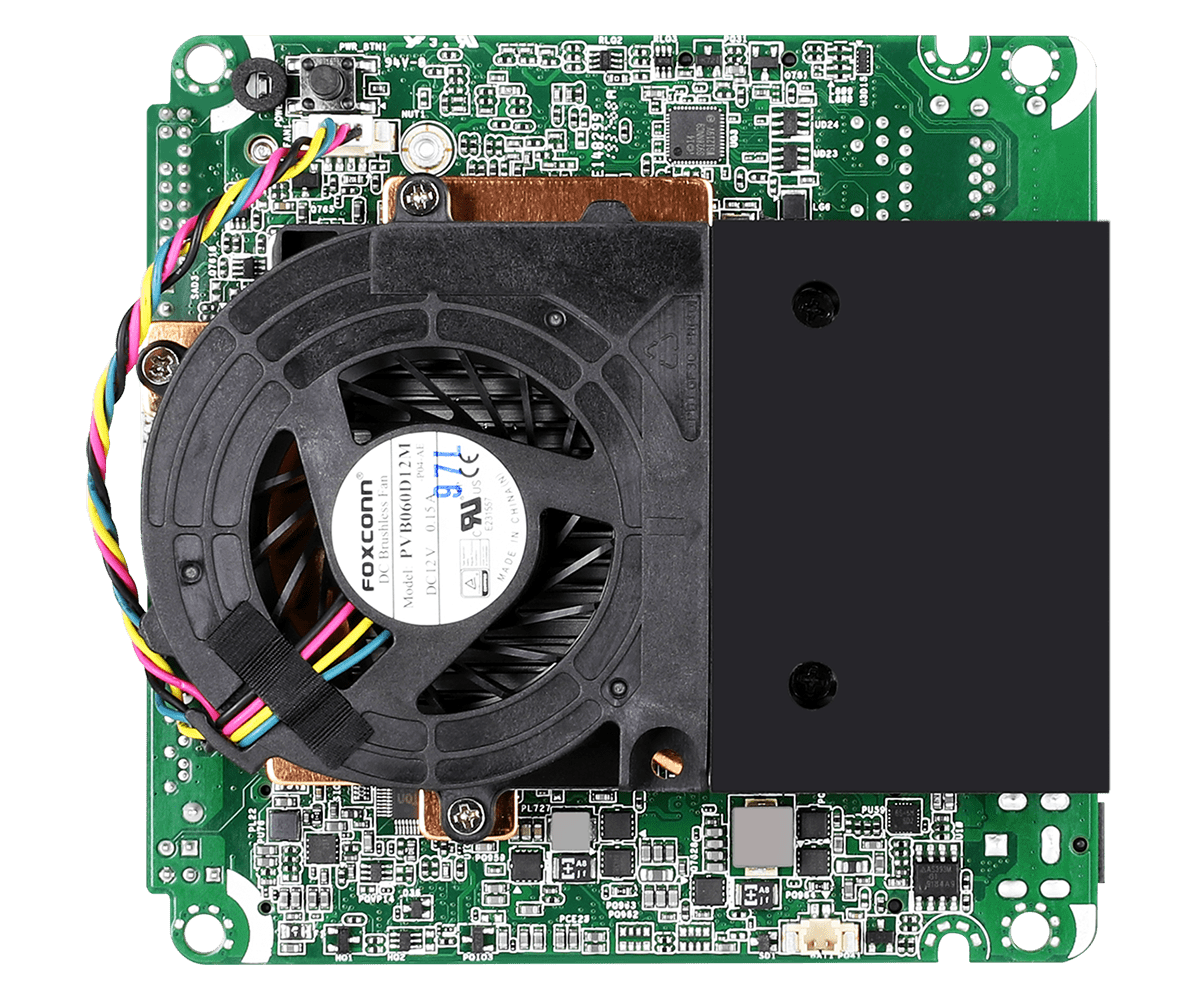

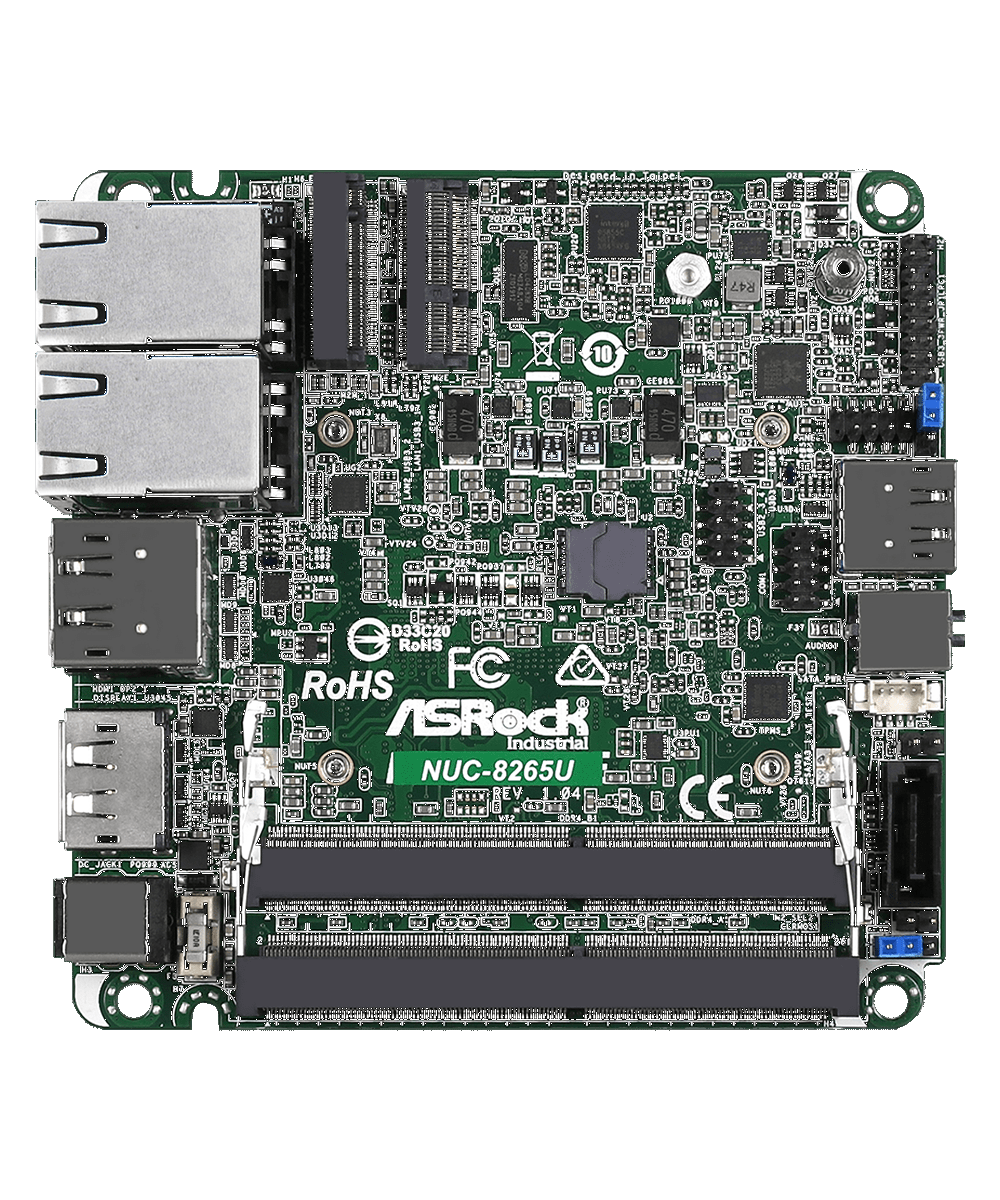

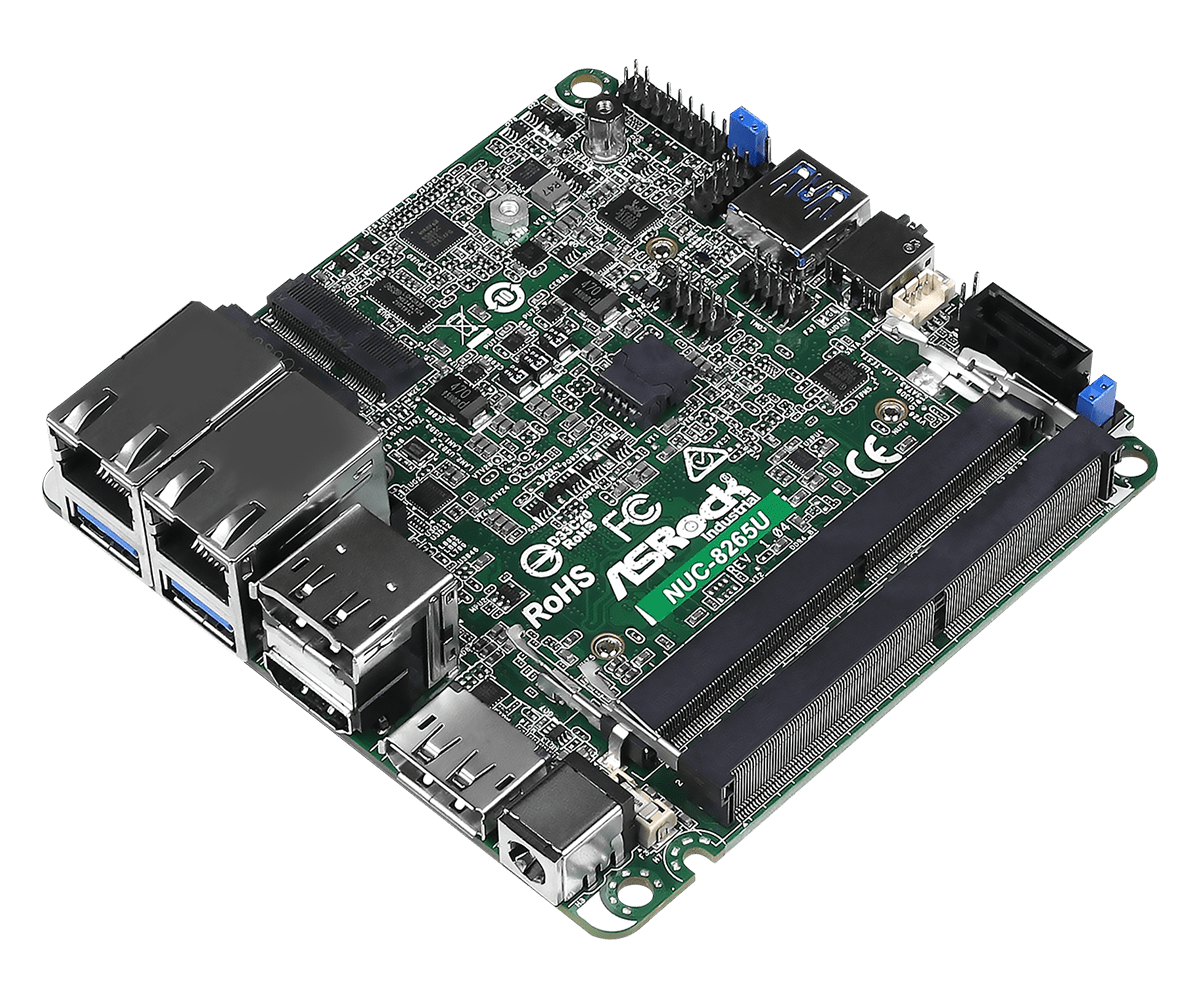

NUC-8265U NUC Motherboard
- Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
- Supports Dual Channel DDR4 SO-DIMM 2400MHz, up to 32GB
- 1 x HDMI, 2 x Displayport
- Supports Triple Display
- 3 x USB 3.1, 2 x USB 2.0
- 1 x Intel LAN, 1 x Realtek LAN
- Supports Intel® RAID 0/1
- 12V DC-in
Specification
Processor System
| CPU | Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors I5-8265U QC, 1.6GHz, 15 W |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | NUC (4.09-inx4.02-in) |
|---|
Memory
| Technology | Dual Channel DDR4 2400 MHz |
|---|---|
| Capacity | 32 GB |
| Socket | 2 x SO-DIMM |
Graphics
| HDMI | Supports max resolution up to 4000 x 2000@30Hz |
|---|---|
| DisplayPort | Supports max resolution up to 3840 x 2160@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| M.2 | 1 x Key E(2230) with PCIe x1 and USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio, Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

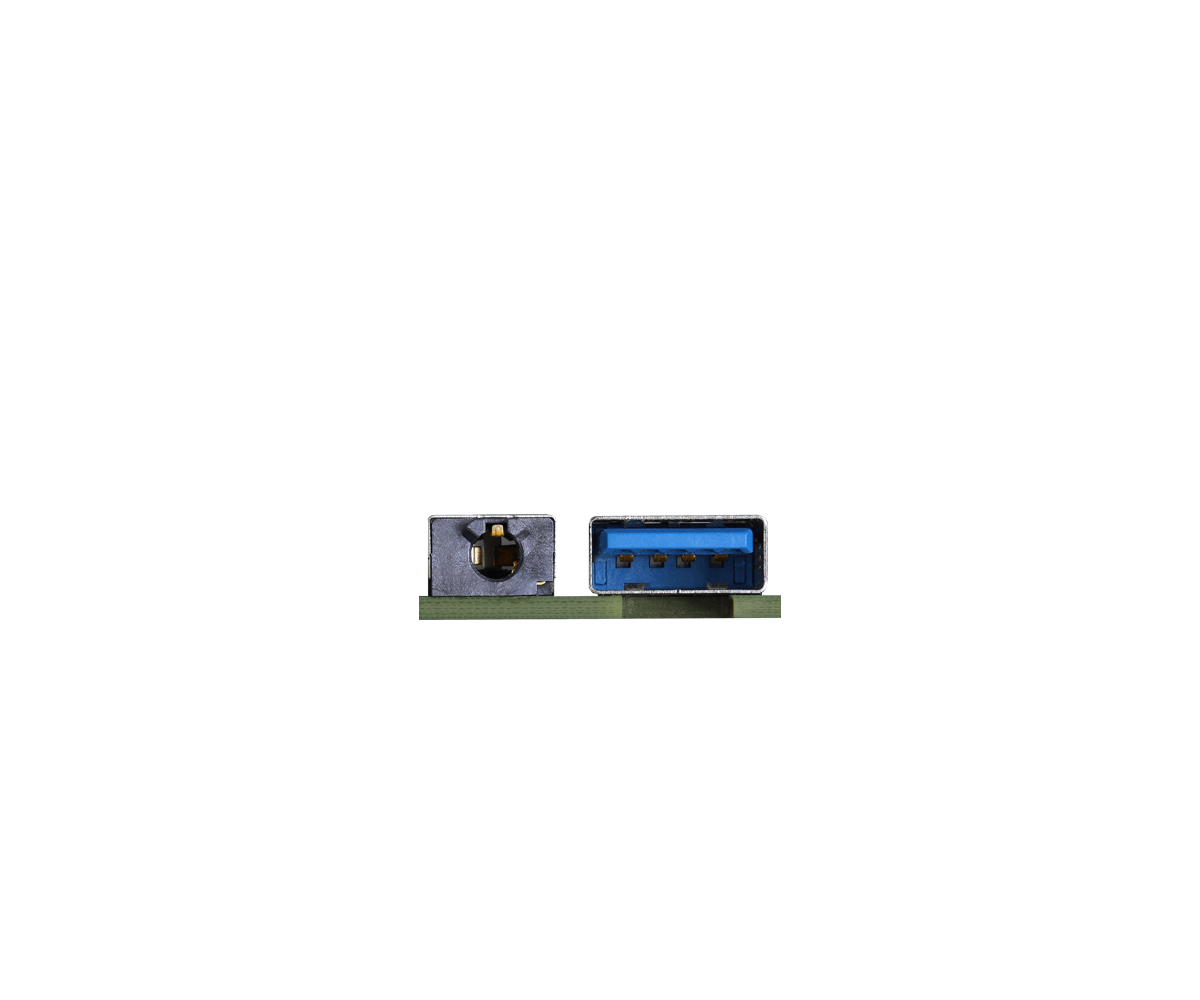

Front I/O
| USB | 1 x USB 3.1 |
|---|---|
| Audio | 1 (Mic-in or Line-out) |

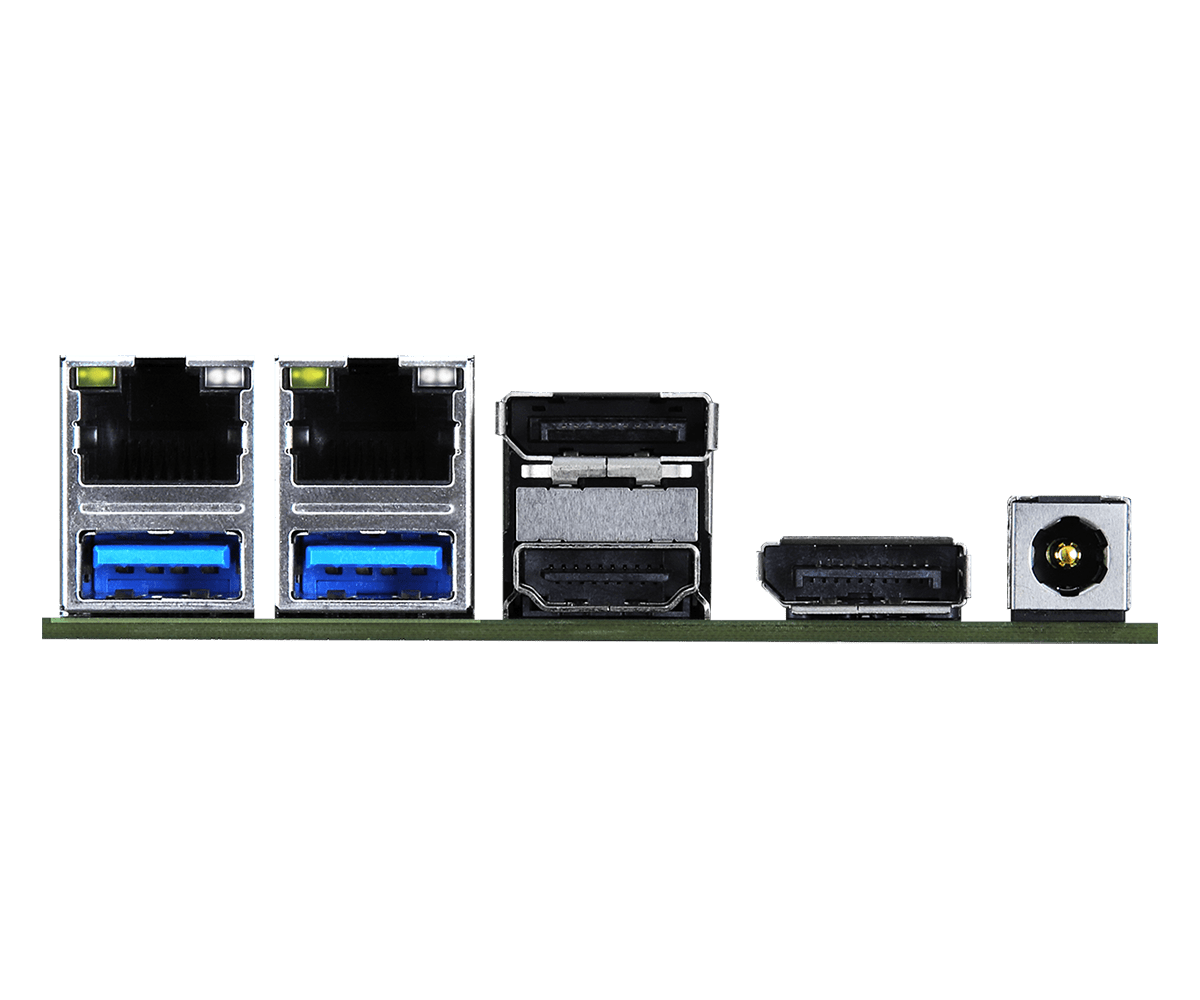

Rear I/O
| HDMI | 1 x HDMI 1.4 |
|---|---|
| DisplayPort | 2 x DP 1.2a |
| Ethernet | 1 |
| USB | 2 x USB3.1 |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | 1 x COM (RS232/422/485) |
| TPM | TPM 2.0 on board IC |
| SATA PWR Output | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD *M.2 Key M 2280 (optional support, by bracket) |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
| RAID | 1 x SATA3 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 12V DC-in(DC Jack) |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Others
| Longivity Support | No |
|---|
Accessories
| Bulk Package | 2 x SCREW M2,D=5 (13G020302031AK) 1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK) 1 x SATA Data/Power Cable (14G000103111AK) |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Realtek Lan driver ver:10047_02232021 | Information | OS | Win 10 x 64 | Date | 2021-04-08 | Download | ||
| Description | Intel Wireless Lan driver ver:20.110.0.3 | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download | ||
| Description | VGA driver ver:25.20.100.6519 | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download | ||
| Description | Intel Rapid Storage Technology driver and utility ver:17.0.0.1072 | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download | ||
| Description | Intel Lan driver ver:23.2_PV | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download | ||
| Description | Realtek Lan driver ver:10031_10232018 | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download | ||
| Description | Intel Management Engine driver ver:12.0.37.1429_Corp | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download | ||
| Description | INF driver ver:10.1.17765.8094_Public | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download | ||
| Description | Realtek high definition audio driver ver:8569 | Information | OS | Win 10 x 64 | Date | 2020-06-16 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.60 | Update BIOS Under / How to Update | BIOS | Description | Enhance LAN compatibility | Information | Date | 2022-07-26 | Download | ||
| Version | 1.60 | Update BIOS Under / How to Update | DOS | Description | Enhance LAN compatibility | Information | Date | 2022-07-26 | Download | ||
| Version | 1.60 | Update BIOS Under / How to Update | Windows | Description | Enhance LAN compatibility | Information | Date | 2022-07-26 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | BIOS | Description | 1. Update Intel microcode 2. Update Realtek Lan FW 3. Enhance system compitibility |
Information | Date | 2021-06-18 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | DOS | Description | 1. Update Intel microcode 2. Update Realtek Lan FW 3. Enhance system compitibility |
Information | Date | 2021-06-18 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | Windows | Description | 1. Update Intel microcode 2. Update Realtek Lan FW 3. Enhance system compitibility |
Information | Date | 2021-06-18 | Download | ||
| Version | 1.20 | Update BIOS Under / How to Update | BIOS | Description | First released. | Information | Date | 2020-05-06 | Download | ||
| Version | 1.20 | Update BIOS Under / How to Update | DOS | Description | First released. | Information | Date | 2020-05-06 | Download | ||
| Version | 1.20 | Update BIOS Under / How to Update | Windows | Description | First released. | Information | Date | 2020-05-06 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | RAID Installation Guide | Language | English | Date | 2020-11-09 | Download | |
| Description | Jumpers and headers setting guide | Language | English | Date | 2020-06-16 | Download | |
| Description | User Manual | Language | English | Date | 2024-03-22 | Download |
