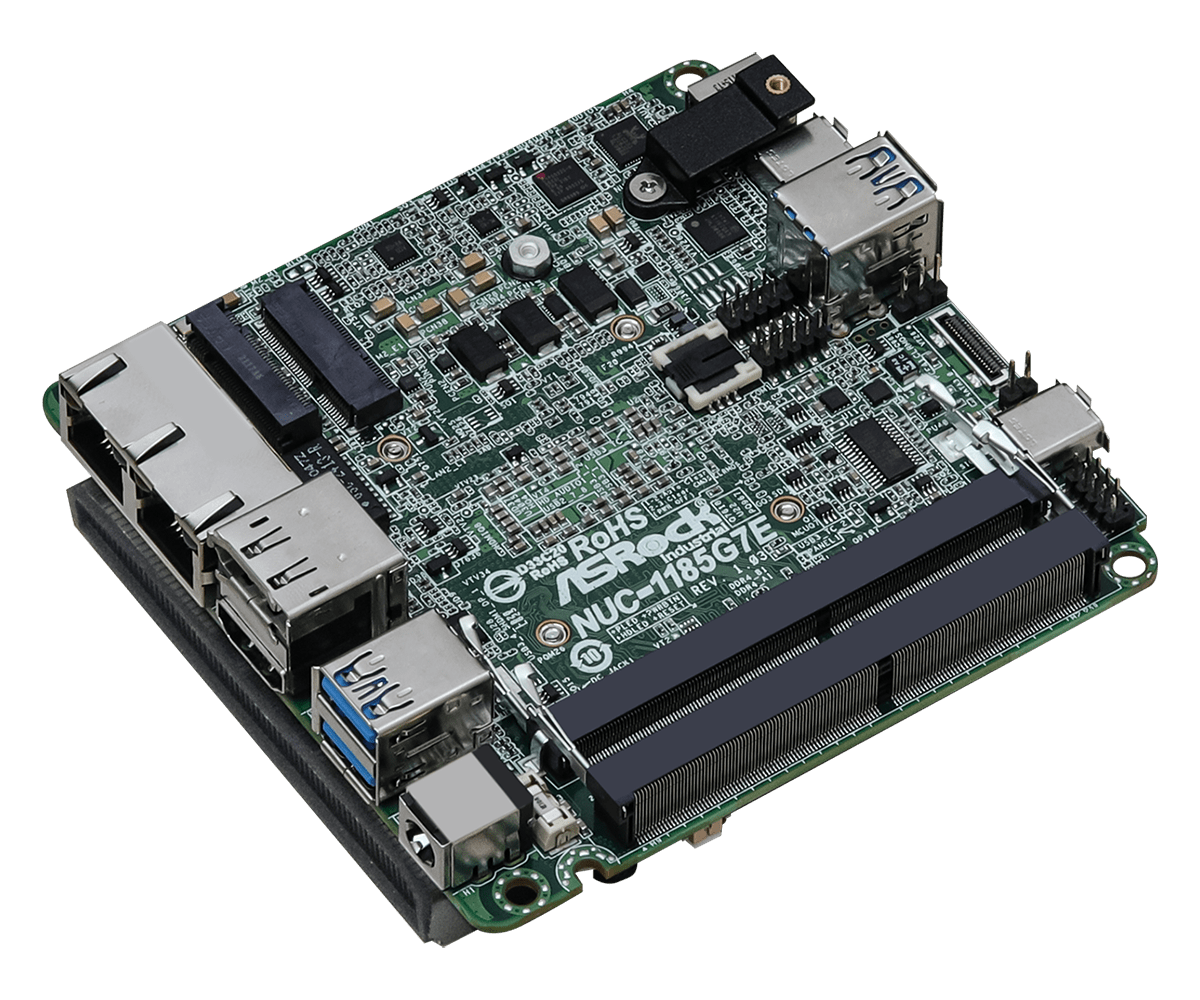

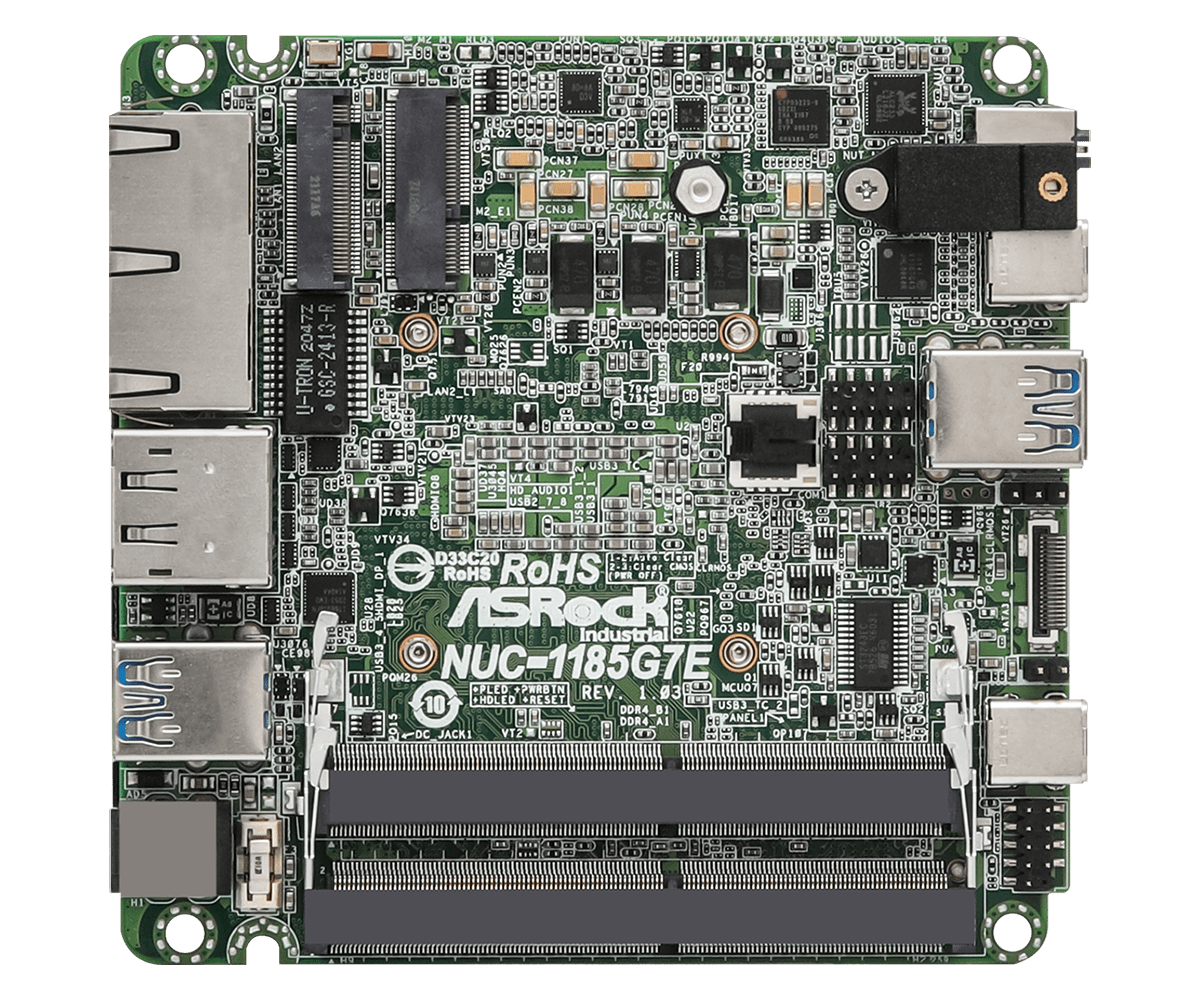

NUC-1185G7E NUC Motherboard

Processor System

CPU	Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors NUC-1185G7E (I7-1185G7E QC, Max Speed up to 4.4GHz)
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	64GB (32 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics for i7/i5 CPU
HDMI	HDMI 2.0a Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.4, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Max 4 display (Included 2 outputs from Type-C)

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface	Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Front I/O

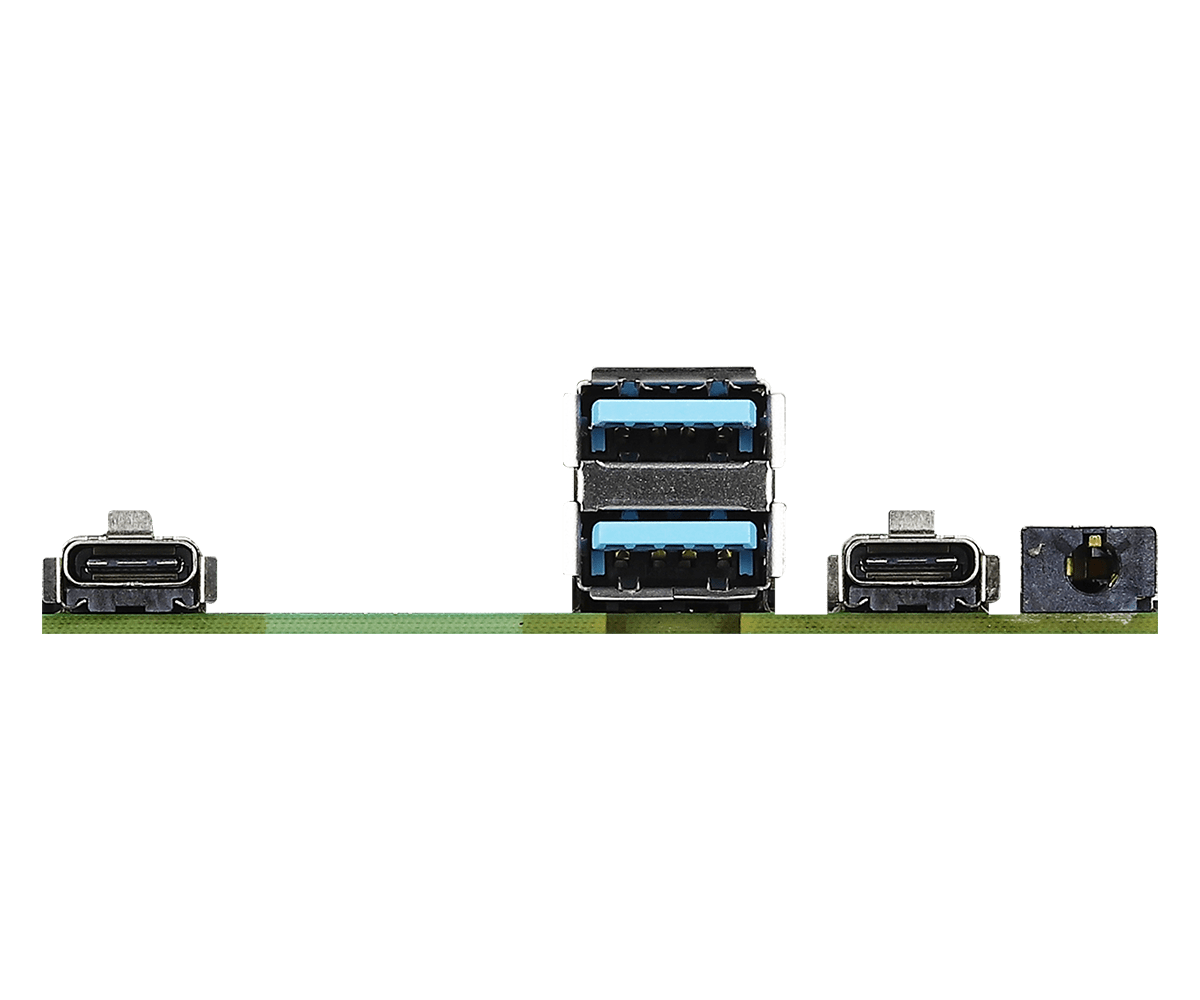

USB	2 x USB 3.2 Gen2 (Type-A) 1 x USB 4/Thunderbolt™ 4 (5V/3A, supports DP1.4 display output) 1 x USB 3.2 Gen2 (Type-C, 5V/3A, supports DP1.4 display output) *For Thunderbolt support, please refer to support list.
Audio	1 (headphone & microphone jack)

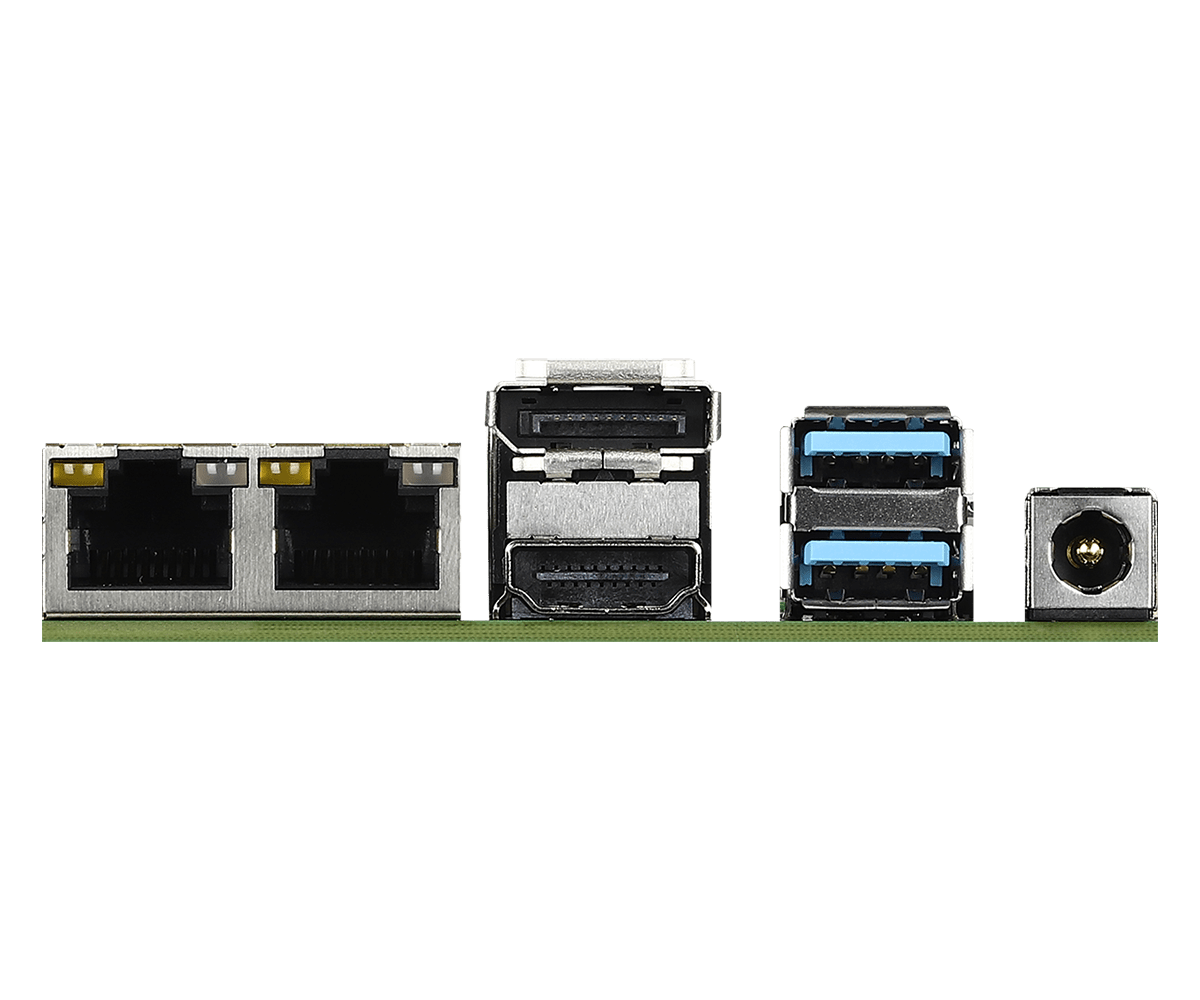

Rear I/O

HDMI	1 x HDMI 2.0a
DisplayPort	1 x DP 1.4
Ethernet	1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB	2 x USB 3.2 Gen2 (Type A)
DC Jack	1

Internal Connector

USB	2 x USB 2.0 (1 x 2.00 pitch header)
COM	1 x COM(RS-232)

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V~19V DC-In Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Bulk Package	2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=5.5mm (13G020195070AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x COM Cable (14G000000340AK) 1 x SATA HDD CABLE (14G000104503AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
