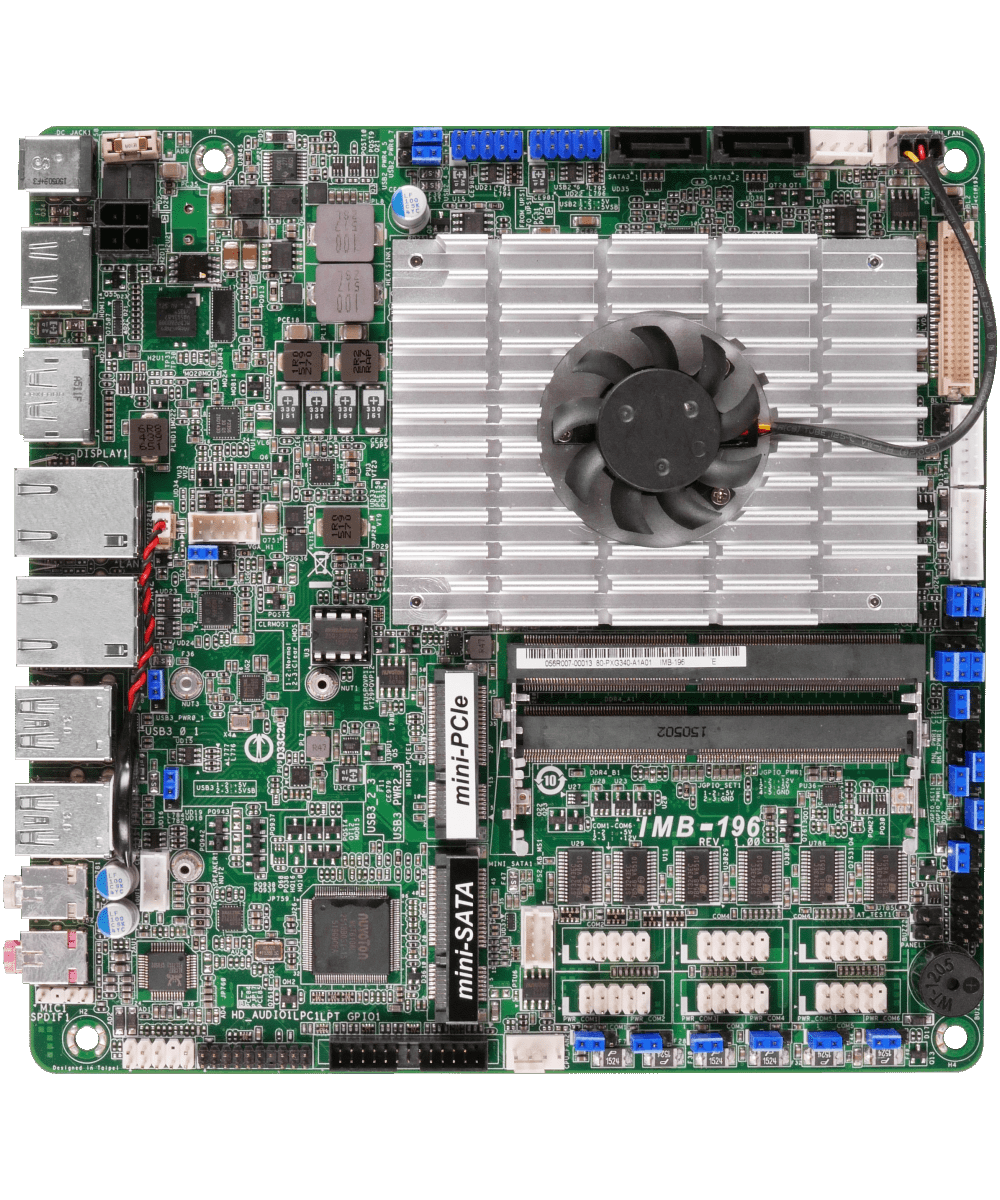

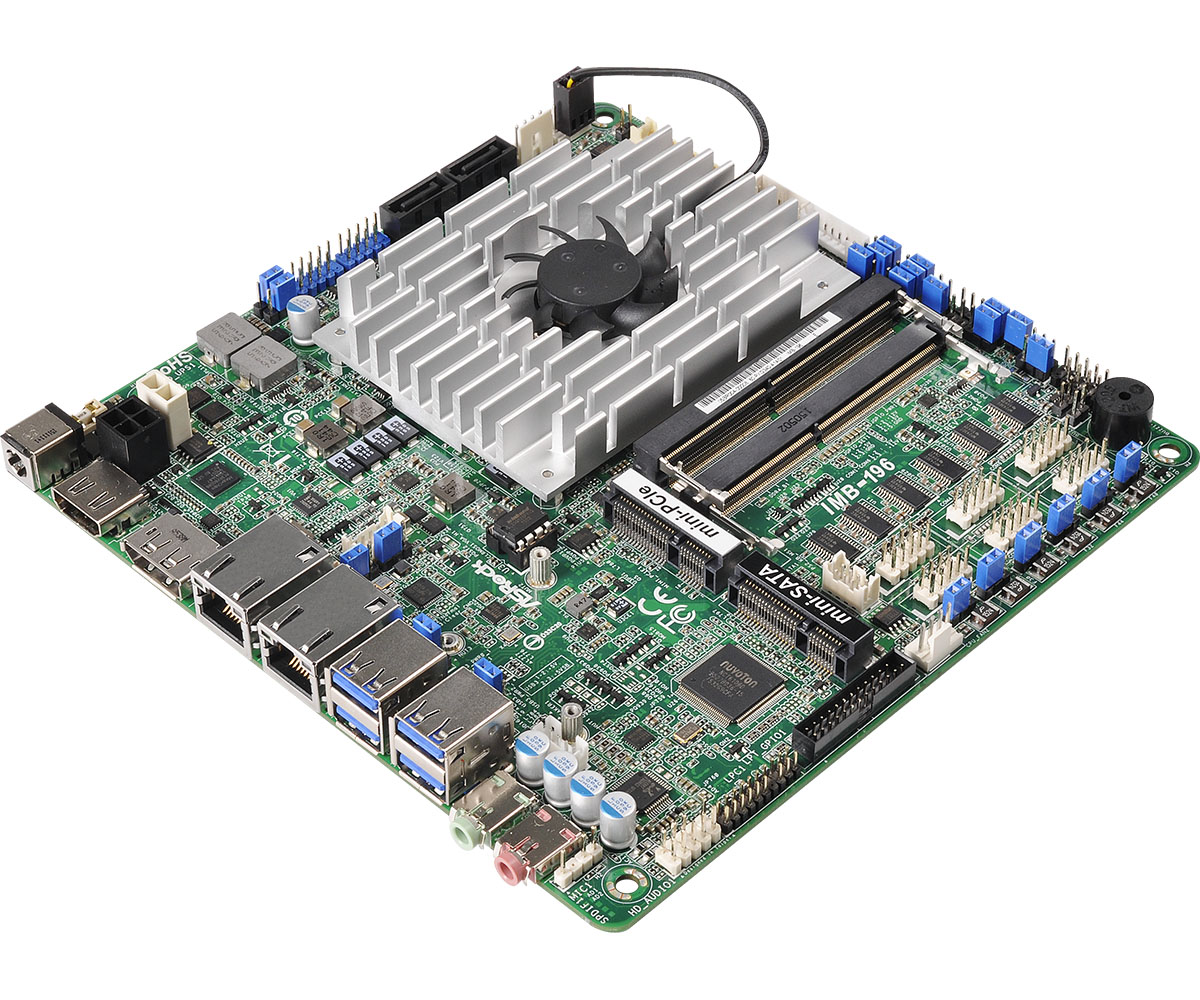

IMB-196 Mini-ITX Motherboard

Processor System

CPU	BGA1356 for Intel® Core i7 / i5 (Skylake-U)
BIOS	UEFI

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 2133MHz
Capacity	32 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL4.3 / 4.4
HDMI	Supports HDMI 1.4a, Max. resolution 4096 x 2160@30Hz
LVDS	Supports max resolution up to 1920 x 1200@60Hz
eDP	Supports Max. resolution 4096 x 2160@60Hz
DisplayPort	Supports DP 1.2, Max. resolution 4096 x 2160@60Hz
VGA	Supports max resolution up to 1920 x 1200
MultiDisplay	Triple Display

Expansion Slot

mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed	1 x Intel® I219LM (vPro) with 10/100/1000 Mbps
Connector	2 x RJ-45

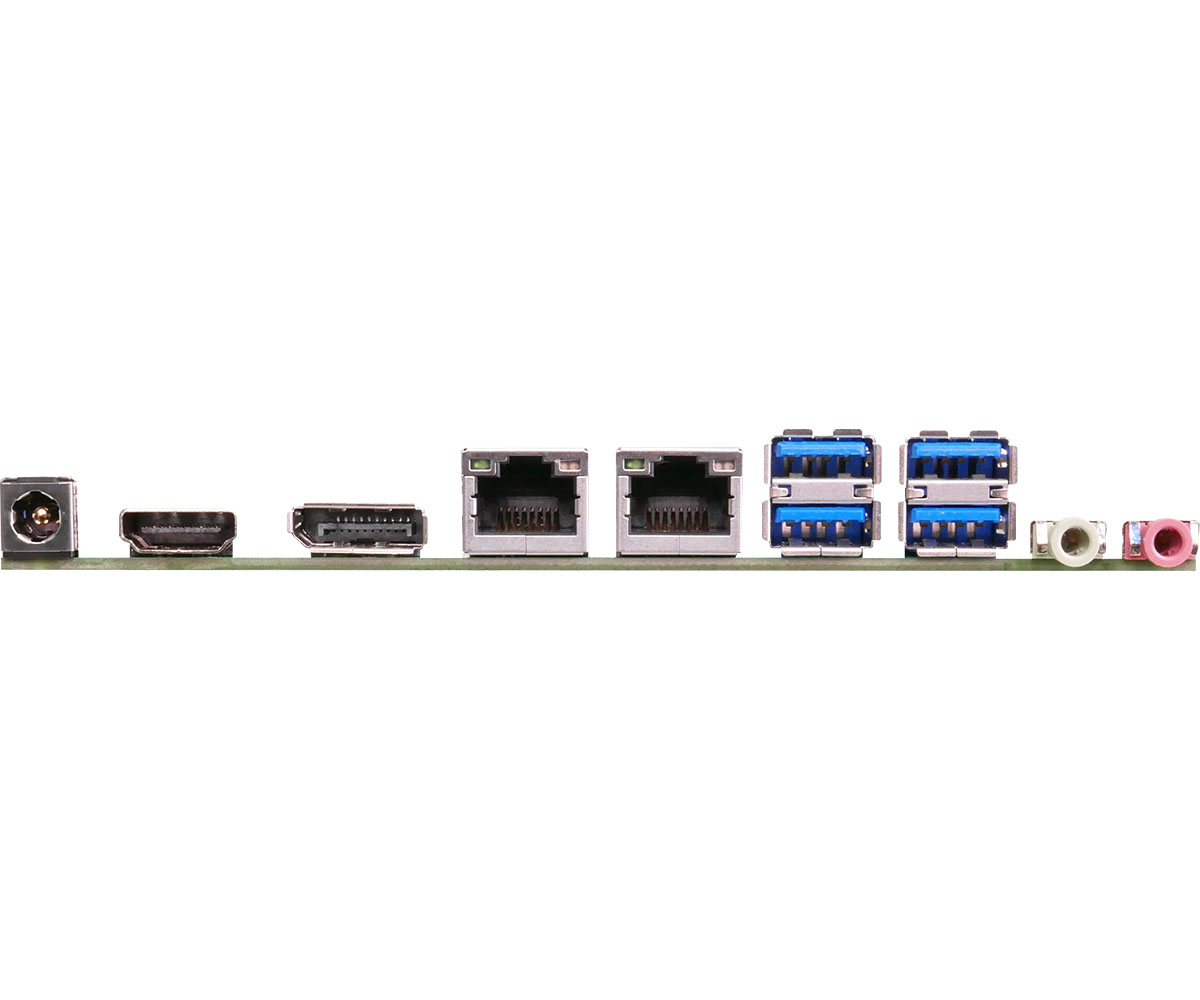

Rear I/O

HDMI	1
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DisplayPort	1
DC Jack	1

Internal Connector

USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	6 x COM (COM1 and COM2 with RS-232/422/485)
LVDS	1
eDP	1
GPIO	8 x GPI, 8 x GPO
VGA	1
Parallel	1 (shared with GPIO)
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA3 (6.0Gb/s)
mSATA	1 x Full size with SATA3 (shared) and USB 2.0

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	+12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
