IMB-184 Mini-ITX Motherboard

Processor System

CPU	Supports Intel® 4th Gen (Haswell-S) Core™ Processors
Chipset	Intel® Q87

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Dual Channel DDR3L 1333 / 1600MHz
Capacity	16GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports max resolution up to 4096 x 2304
VGA	Internal header (share with DVI)
LVDS	1
DVI	Supports max resolution 1920 x 1200
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x4
mini-PCIe	1 x Half size(Supports USB device)

Ethernet

Controller/ Speed	Intel® I217LM with 10/100/1000 Mbps
Connector	1 x RJ-45

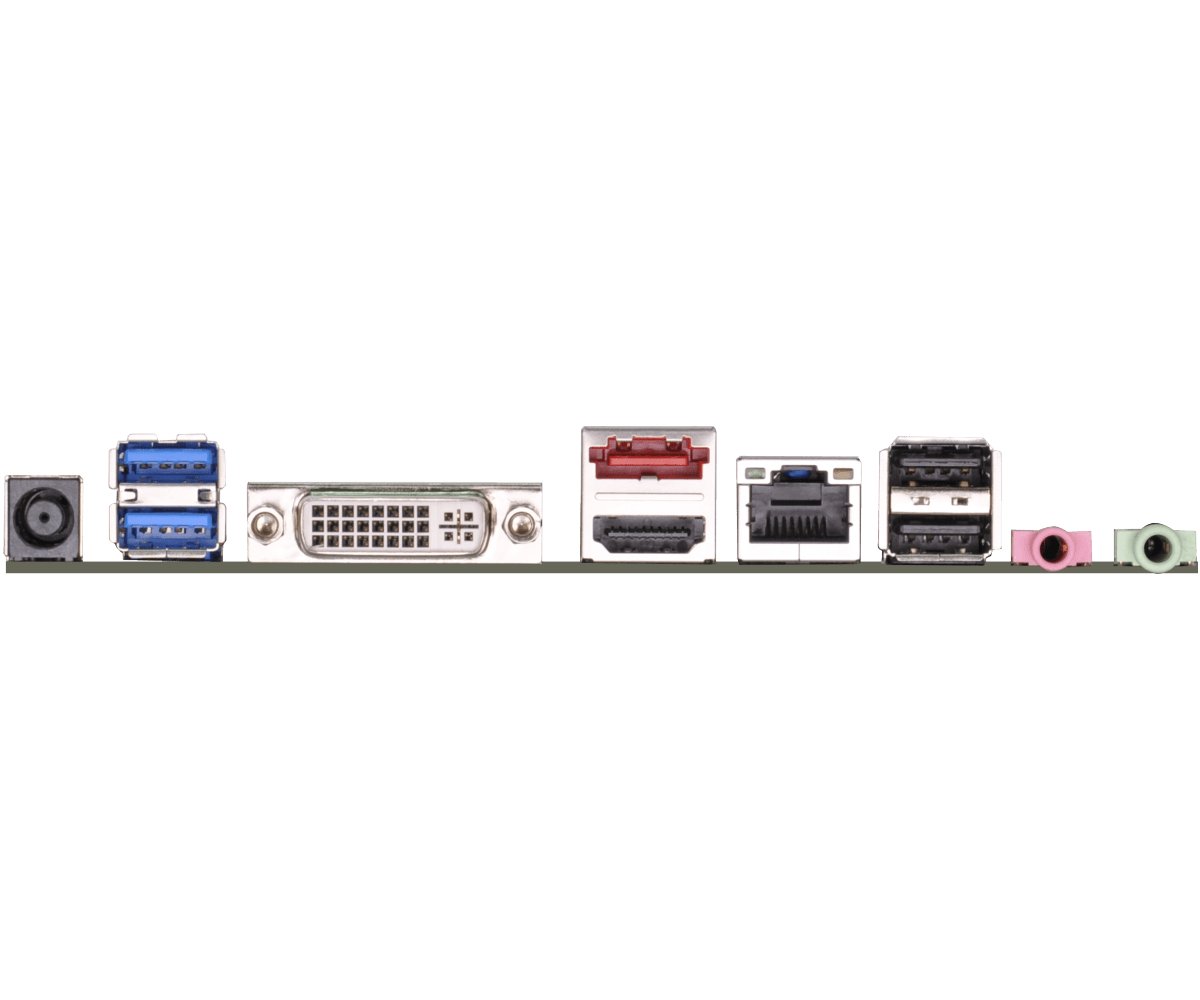

Rear I/O

HDMI	1
Ethernet	1
USB	2 x USB 3.0, 2 x USB 2.0
Audio	2 (Mic-in, Line-out)
DVI	1 (DVI-I)
DC Jack	1

Internal Connector

USB	4 x USB 2.0
COM	3 x COM (RS-232), 1 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
LVDS	1
VGA	1
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA3 (6.0Gb/s)
mSATA	1 x Full size with SATA3 and USB 2.0

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	DC 12-19 input
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020217000AK) 1 x I/O Shield THIN (13G020216000AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000102150AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020217000AK) 1 x I/O Shield THIN (13G020216000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
