iBOX-250J Fanless Embedded BOX PC

Processor System

CPU	Intel® Elkhart Lake SoC Processors iBOX-250J (J6412, QC, Max Speed Up to 2.6GHz, 10W)
Chipset	SoC
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	32 GB (16GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen 11 Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz
MultiDisplay	Dual Display

Audio

Interface	Realtek ALC233/256 HD, High Definition Audio

Ethernet

Controller/ Speed	LAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

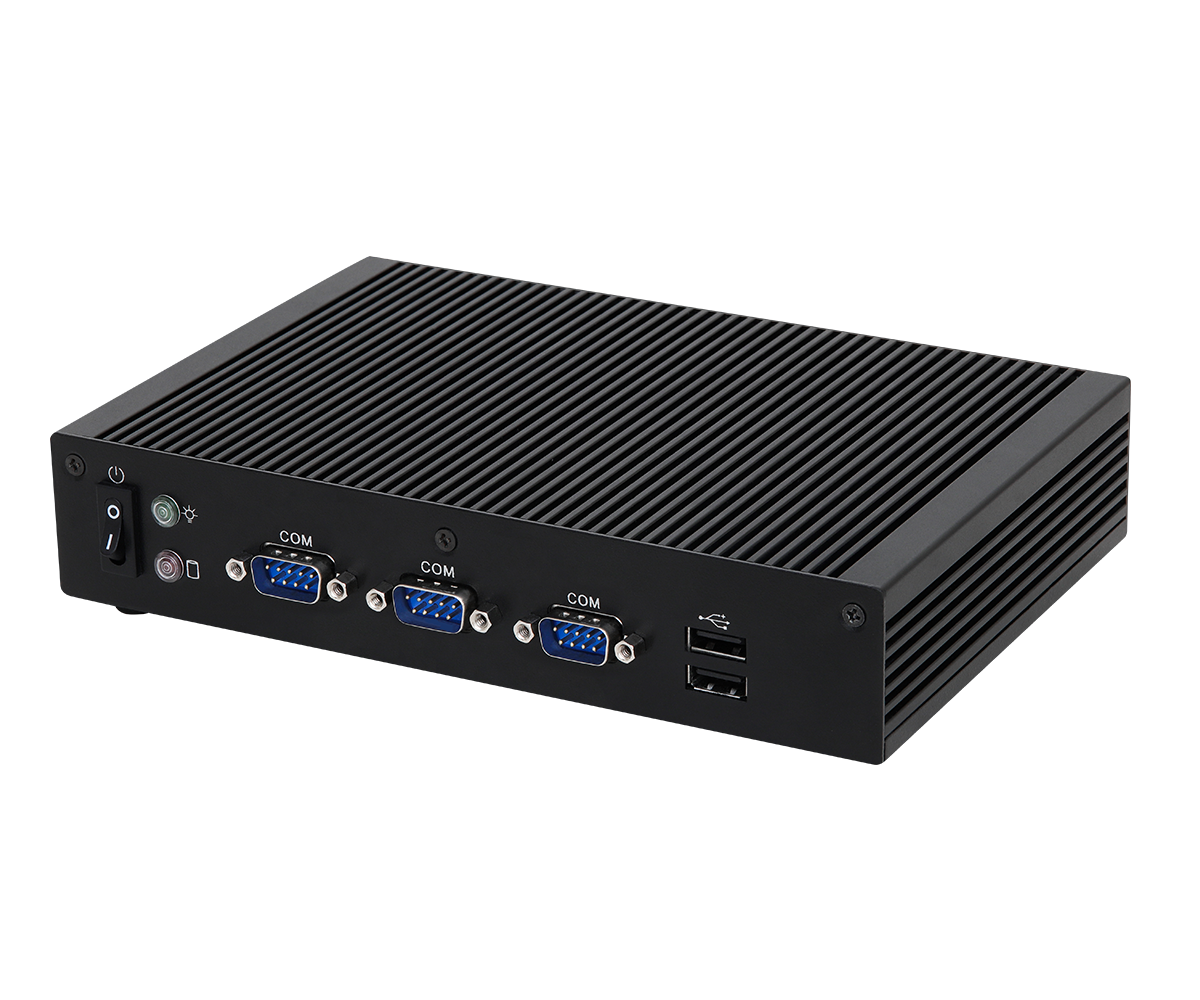

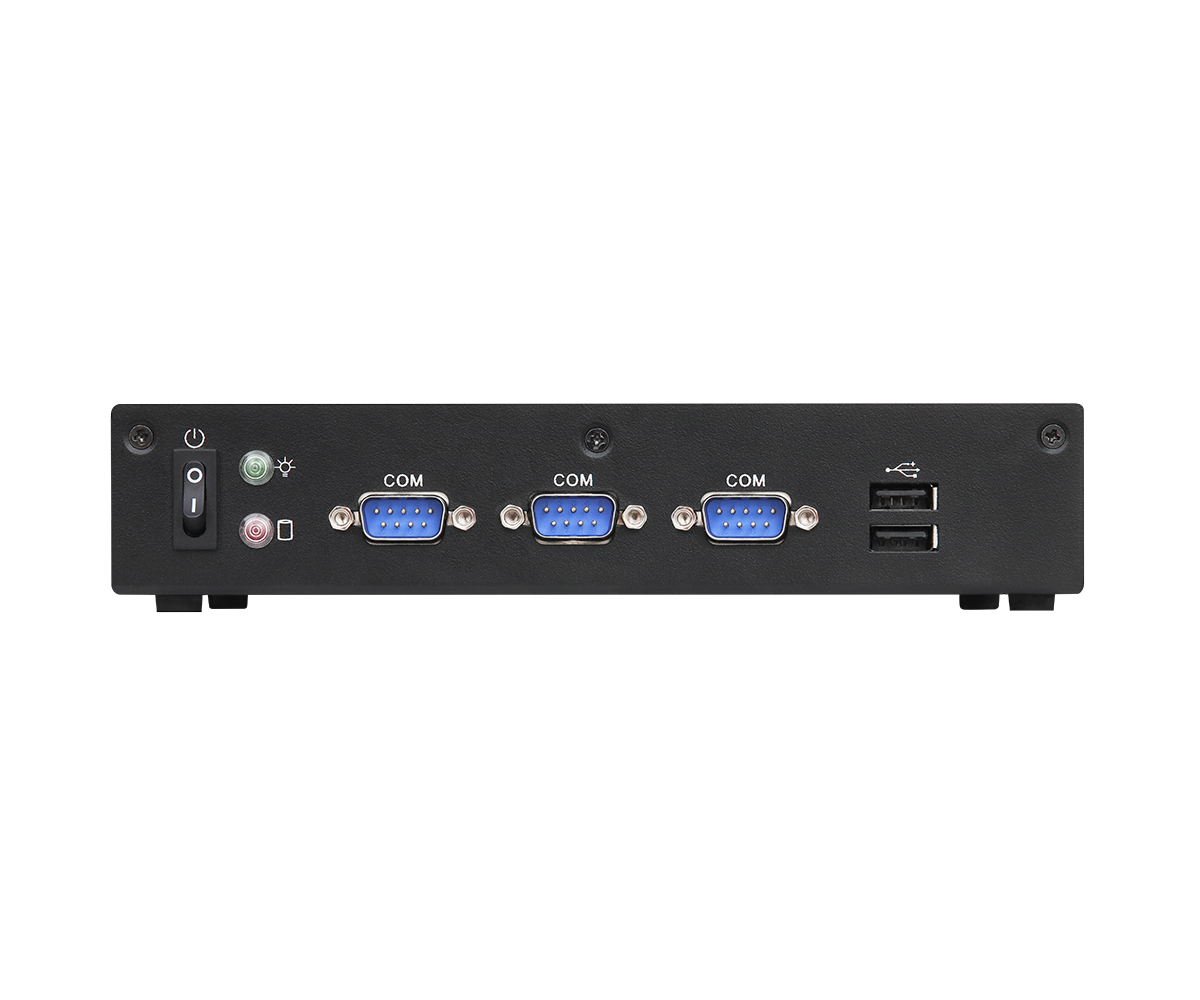

Front I/O

USB	2 x USB 2.0
COM	3 x COM (RS-232)

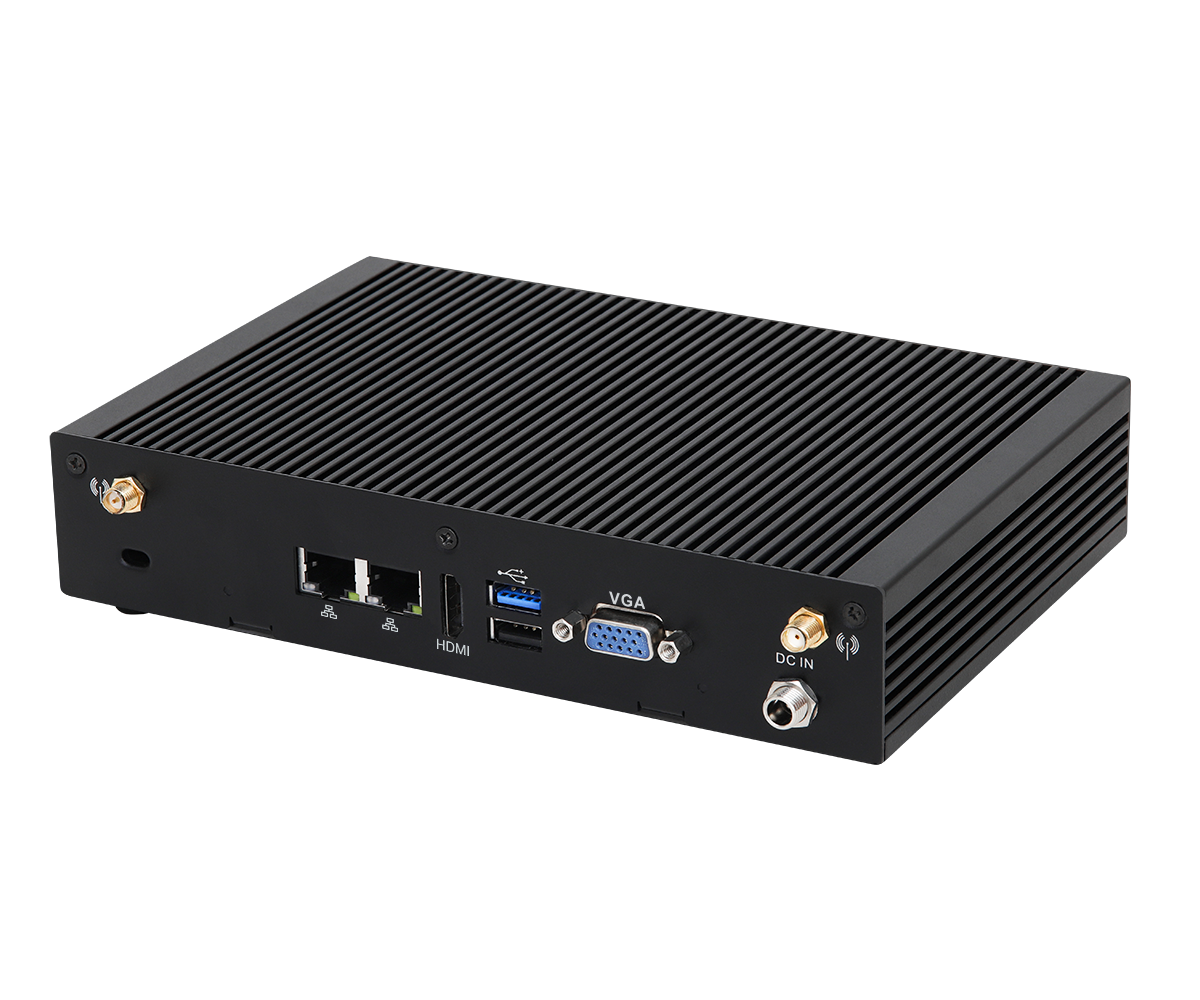

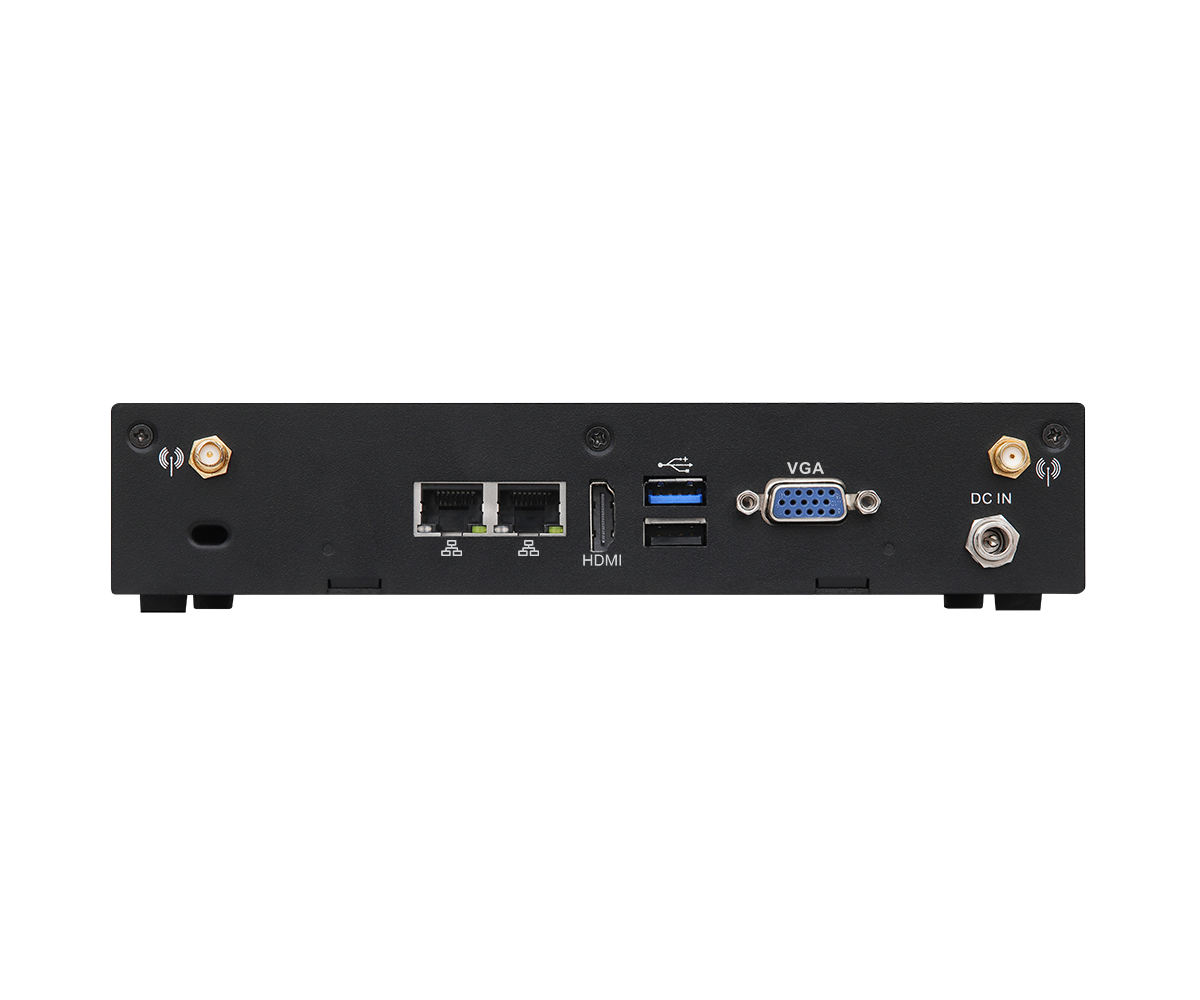

Rear I/O

HDMI	1 x HDMI 2.0b
VGA	1
Ethernet	2 x 2.5 Gigabit LAN
USB	1 x USB 3.2 Gen2, 1 x USB 2.0

Storage

M.2	1 x M.2 (Key M, 3042/3060/2280) with PCIe x1 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	9~36V DC-In
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 50ºC (With extended temp. peripherals)
Storage Temp	-40° C – 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)	200 x 134.5 x 39mm (7.87" x 5.3" x 1.54")
Weight	Net Weight:1.3kg

Others

OS Support	Windows 10/11
Certifications	CE, FCC
Packing List	1 x 19V/65W Power Adapter 1 x Wall mount kit
TPM	TPM 2.0 onboard IC

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
