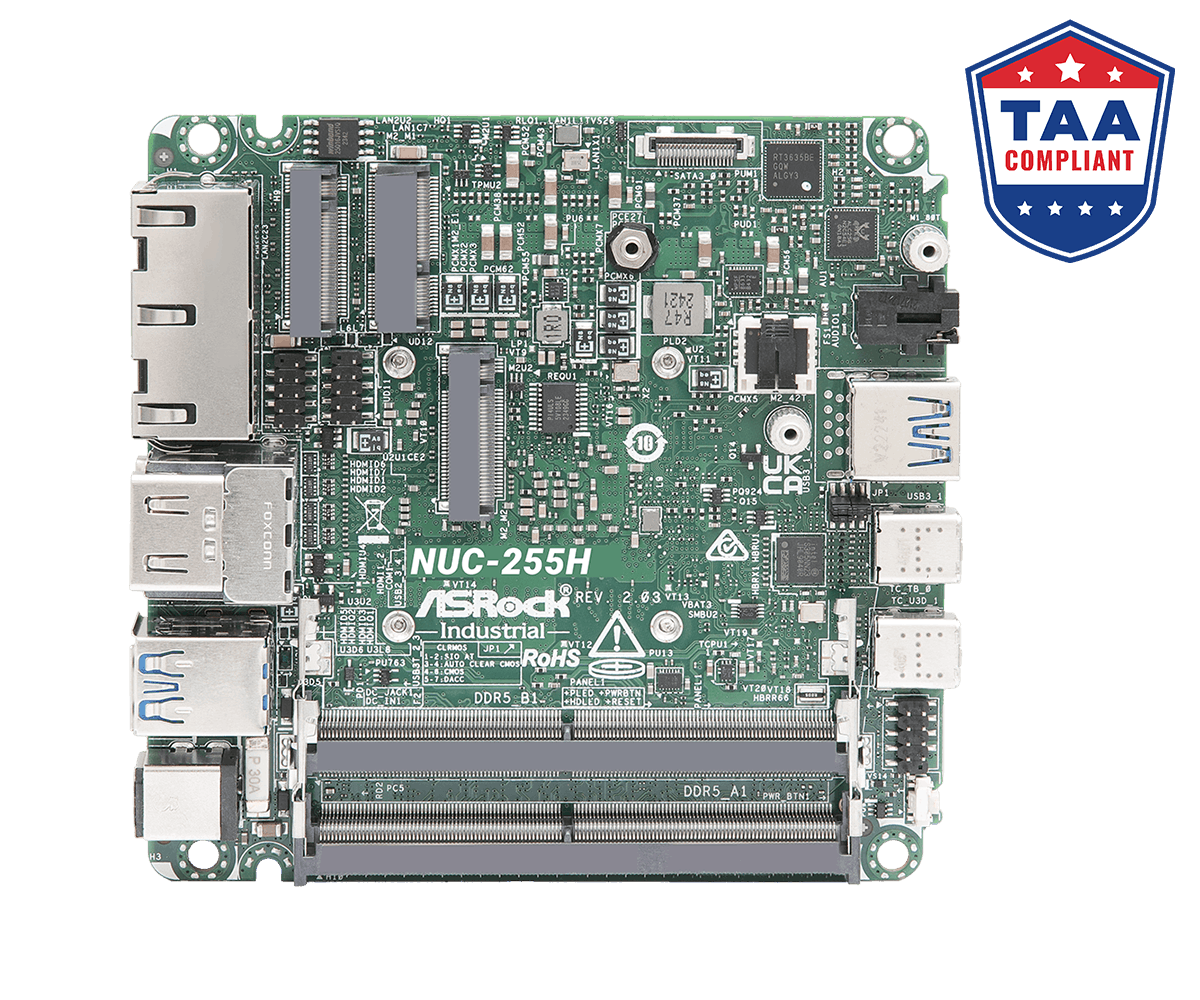

NUC-255H NUC Motherboard
- Intel® Core™ Ultra processors (Arrow Lake-U/H)
- 2 x 262-pin CSO-DIMM DDR5 6400MHz up to 96GB (48GB per DIMM)
- 1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
- Intel® PTT
- Supports Intel® vPro, VMD RAID 0/1
- 12V~24V DC-in
產品規格
Processor System
| CPU | Intel® Core™ Ultra processors (Arrow Lake-H/U) NUC-255H (Ultra 7 255H, 6P+8E) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 6400 MHz |
|---|---|
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Arc™ 140T graphics |
|---|---|
| HDMI | HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi ofr Wireless |
|---|
Audio
| Interface | Realtek ALC256, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226LM with 10/100/1000/2500 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O
| USB | 1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list. |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 2 x HDMI 2.1 TMDS |
|---|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type A) |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00 pitch header) |
|---|---|
| COM | 1 x COM(RS-232/RS-422/RS-485) |
Security
| TPM | Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 ofr SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
| RAID | Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V~24V DC-In Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
