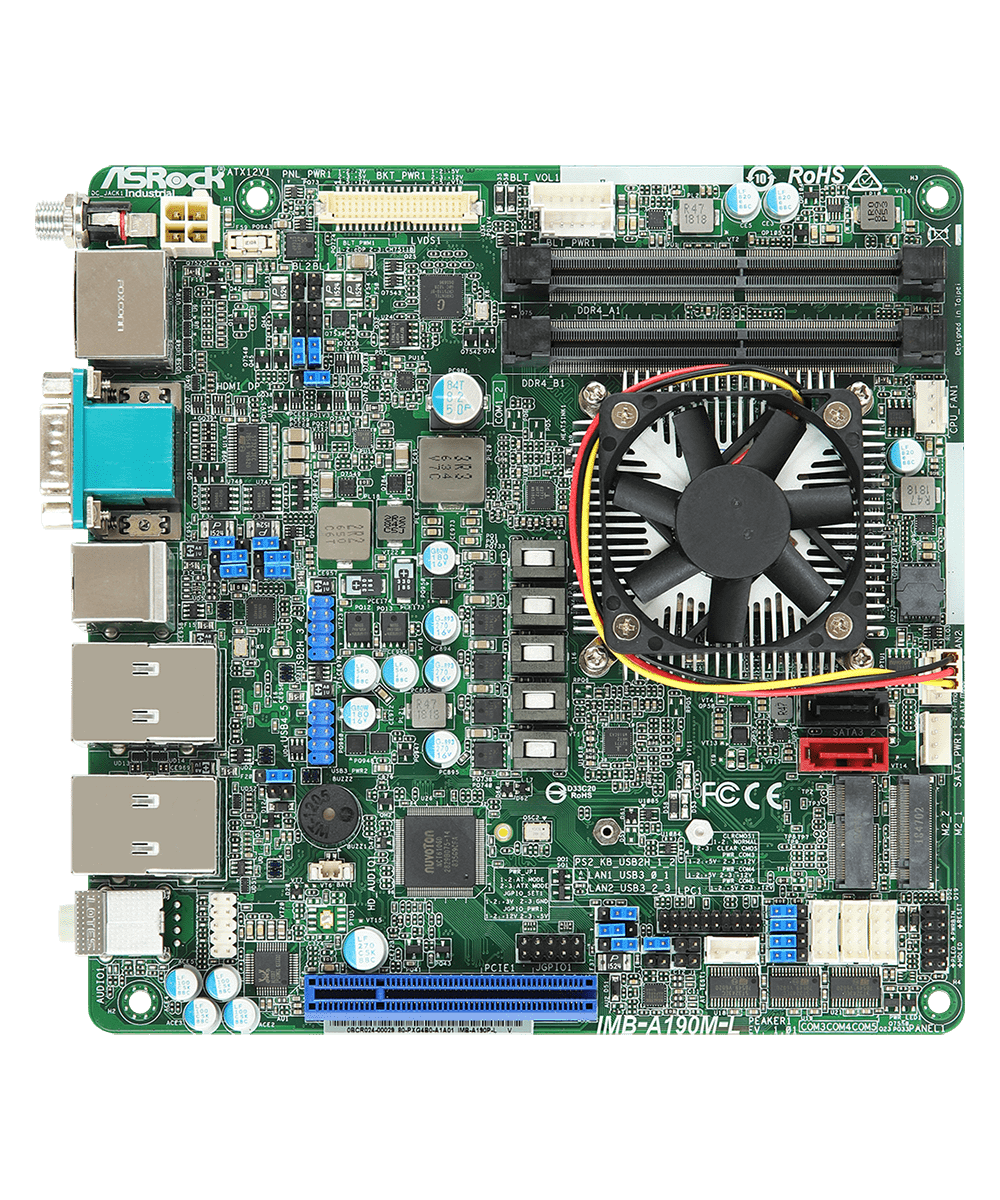

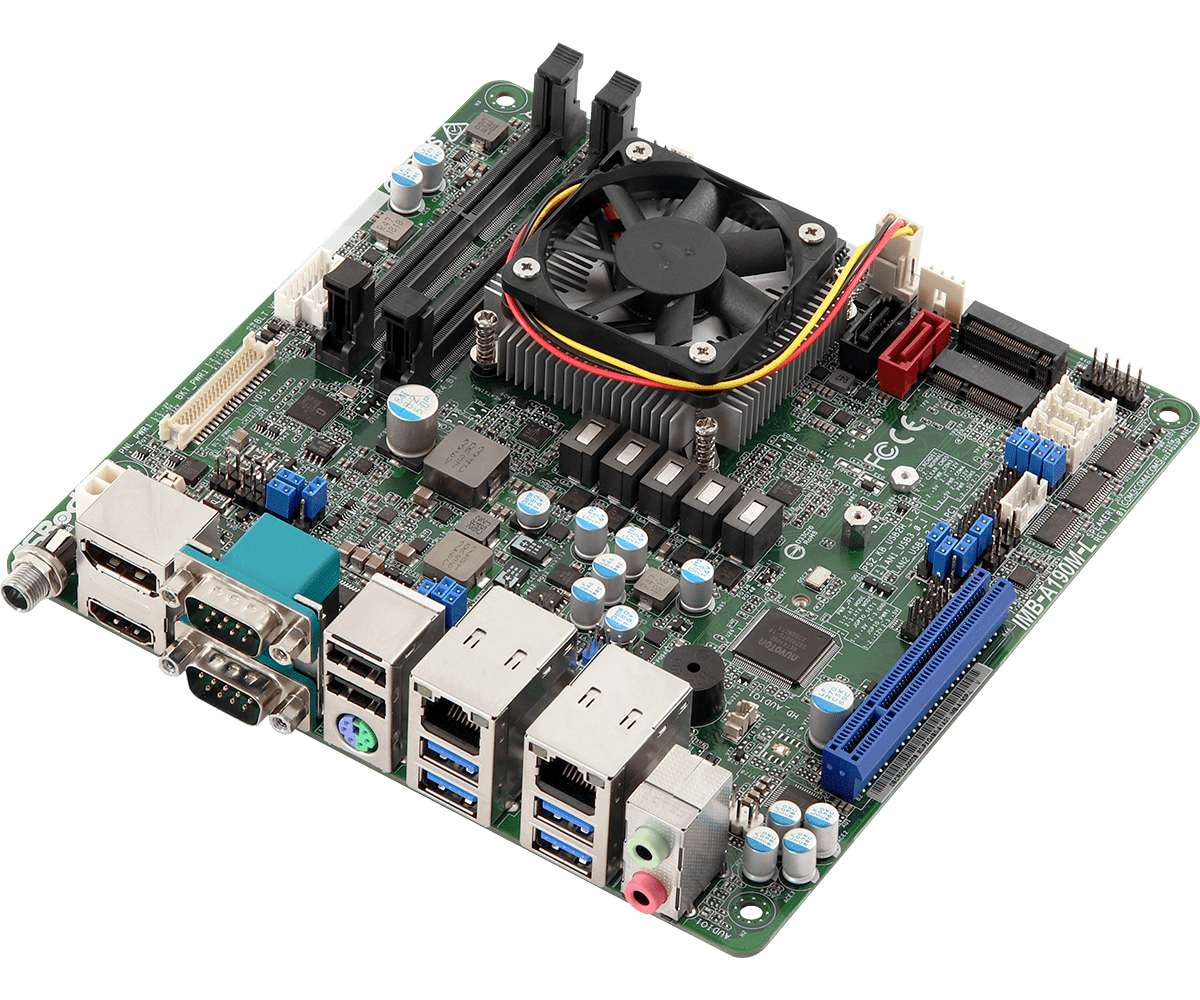

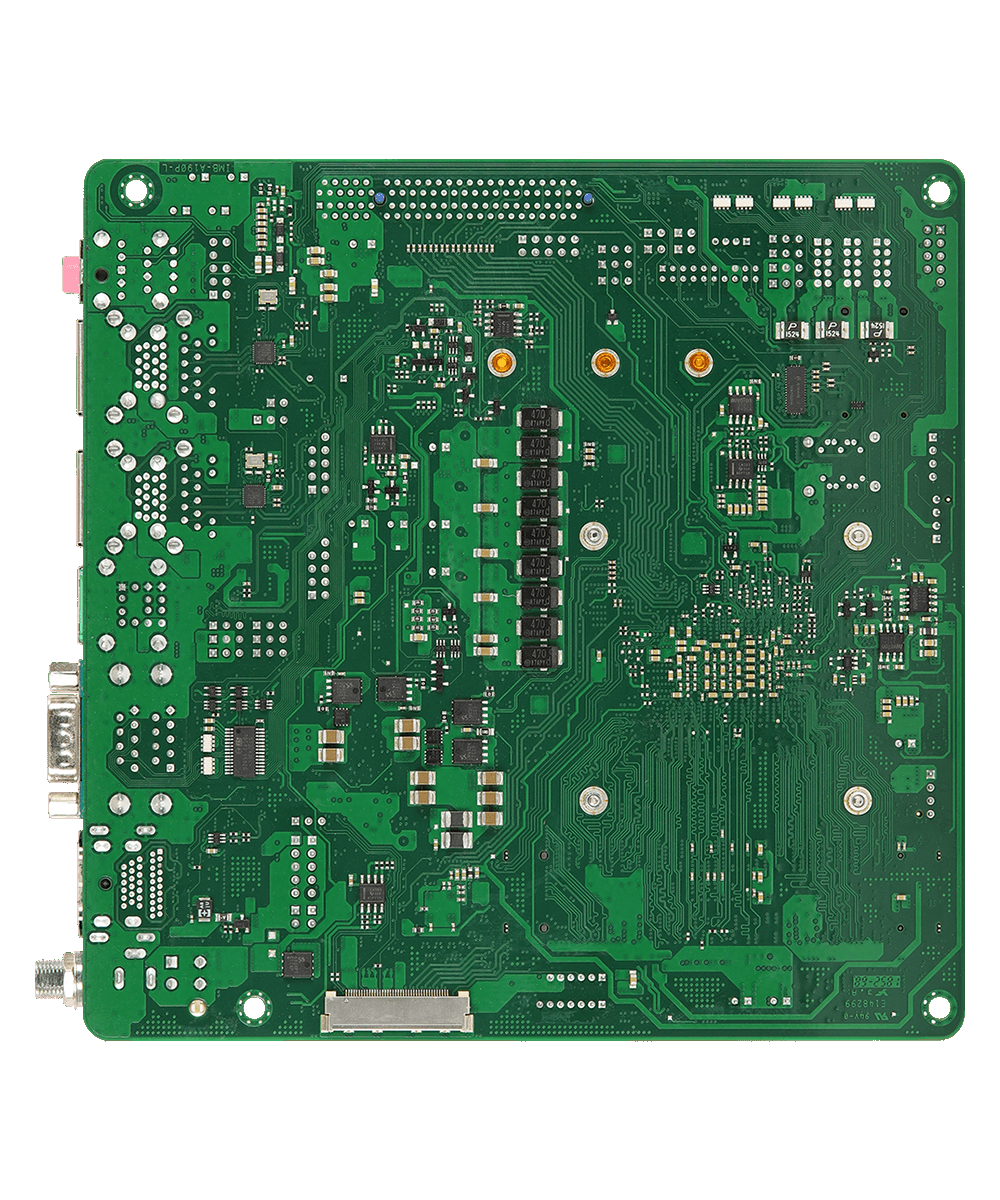

IMB-A190M-L Mini-ITX Motherboard

Processor System

CPU	RX-418GD(QC, 1.8GHz, 12-35W)
Chipset	SoC

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB
Socket	2 x SO-DIMM

Graphics

HDMI	Supports HDMI 1.4a, max resolution 4096 x 2160@24Hz
LVDS	Dual Channel 24-bit, max resolution up to 1920 x 1200@60Hz
MultiDisplay	Dual Display
DisplayPort	DisplayPort++ 1.2 with max resolution up to 4096 x 2160@ 60Hz
eDP	Max resolution up to 4096 x 2160@ 60Hz Max (Optional)

Expansion Slot

PCIe	1 x PCIe x8
M.2	1 x Key E(2230) with PCIe x1 and USB 2.0 for Wireless

Ethernet

Controller/ Speed	2 x Realtek RTL8111G with 10/100/1000 Mbps

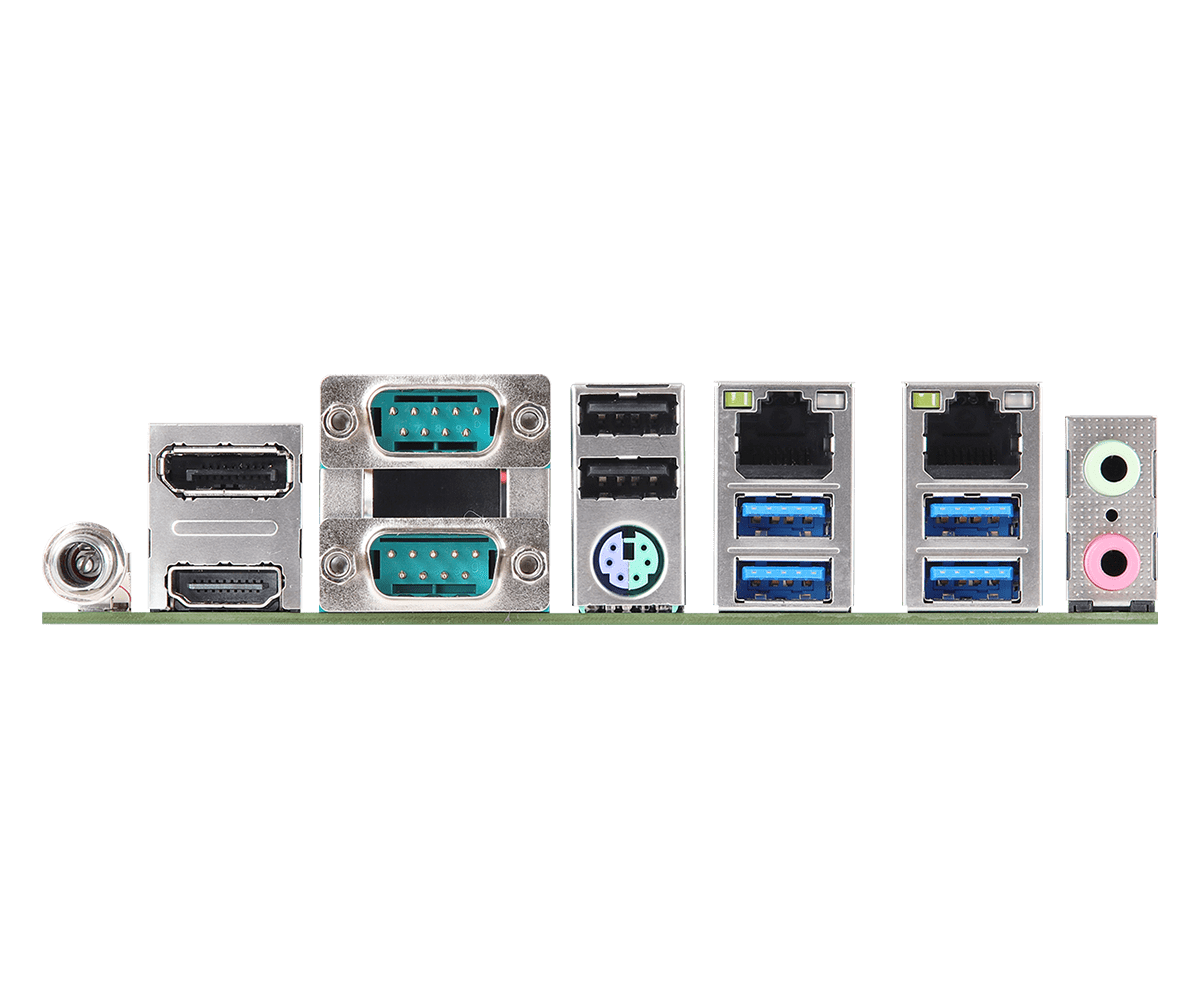

Rear I/O

HDMI	1
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DC Jack	1
DisplayPort	1
COM	1 x COM (RS-232/422/485), 1 x COM (RS-232)
PS2	1 x PS/2 combo

Internal Connector

USB	4 x USB 2.0
COM	3 x COM (RS232)
GPIO	4 x GPI, 4 x GPO
TPM	1 x Header
LVDS	1
SATA PWR Output	1
Speaker Header	1
eDP	1

Storage

SATA	2 x SATA3 (6.0 Gb/s),one is shared with M.2 Key M
M.2	1 x Key M(2242/2260/2280) with PCIe x1 and SATA3 for SSD

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V only or +19V ~+24V DC-In
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%
