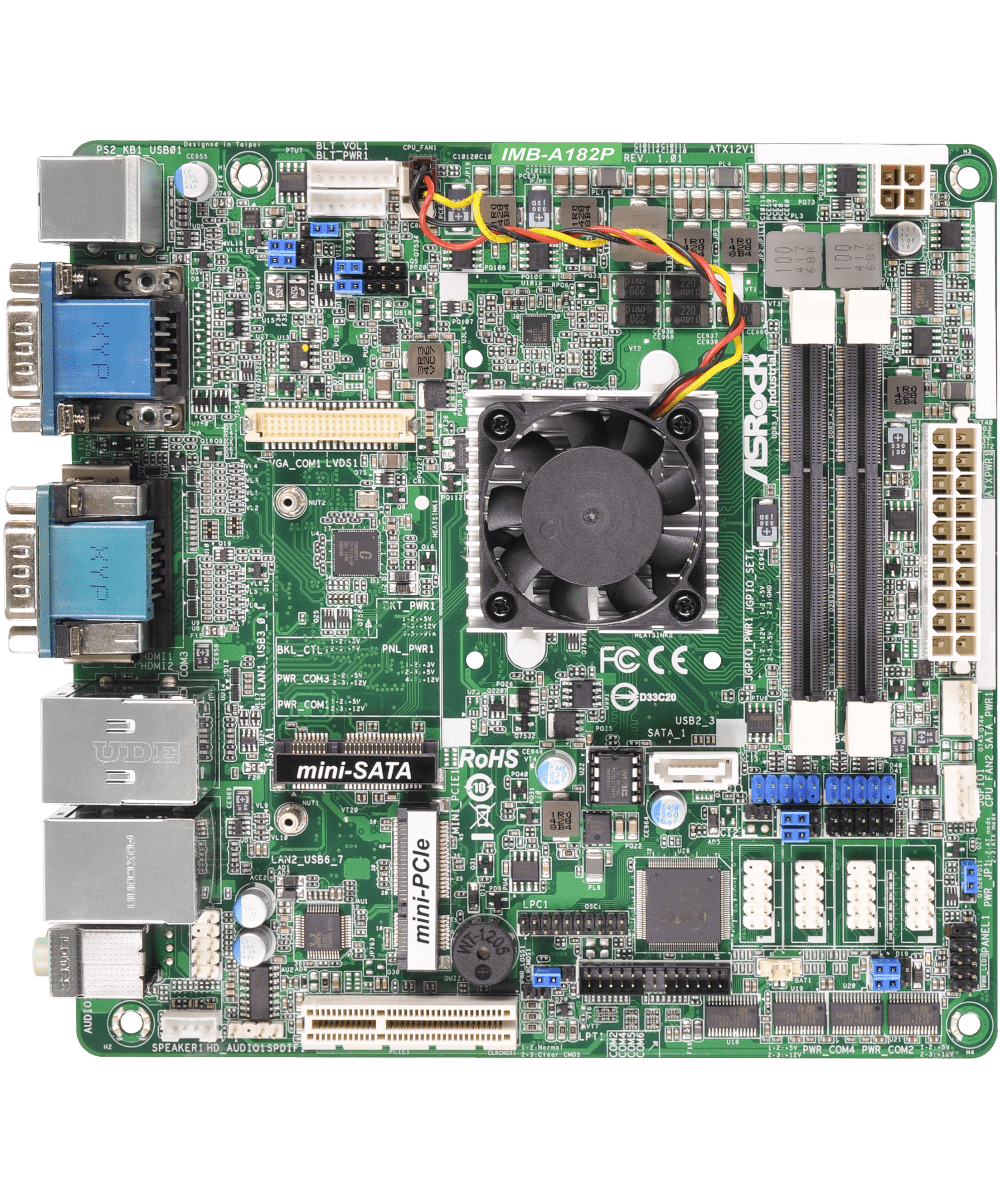

IMB-A182P Mini-ITX Motherboard

Processor System

CPU	GX-424CC, QC, 25W, 2.4GHZ
Chipset	SoC

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Single Channel DDR3 1866 MHz
Capacity	16GB
Socket	2 x SO-DIMM

Graphics

Controller	By CPU
HDMI	1
VGA	1
LVDS	supports 24-bit dual channel LVDS
MultiDisplay	Dual display

Expansion Slot

PCIe	1 x PCIe x4
mini-PCIe	1 (half size)

Ethernet

Controller/ Speed	LAN1: 1 x Realtek RTL8111E with 10/100/1000 Mbps LAN2: 1 x Realtek RTL8111DP with 10/100/1000Mbps
Connector	2 x RJ-45

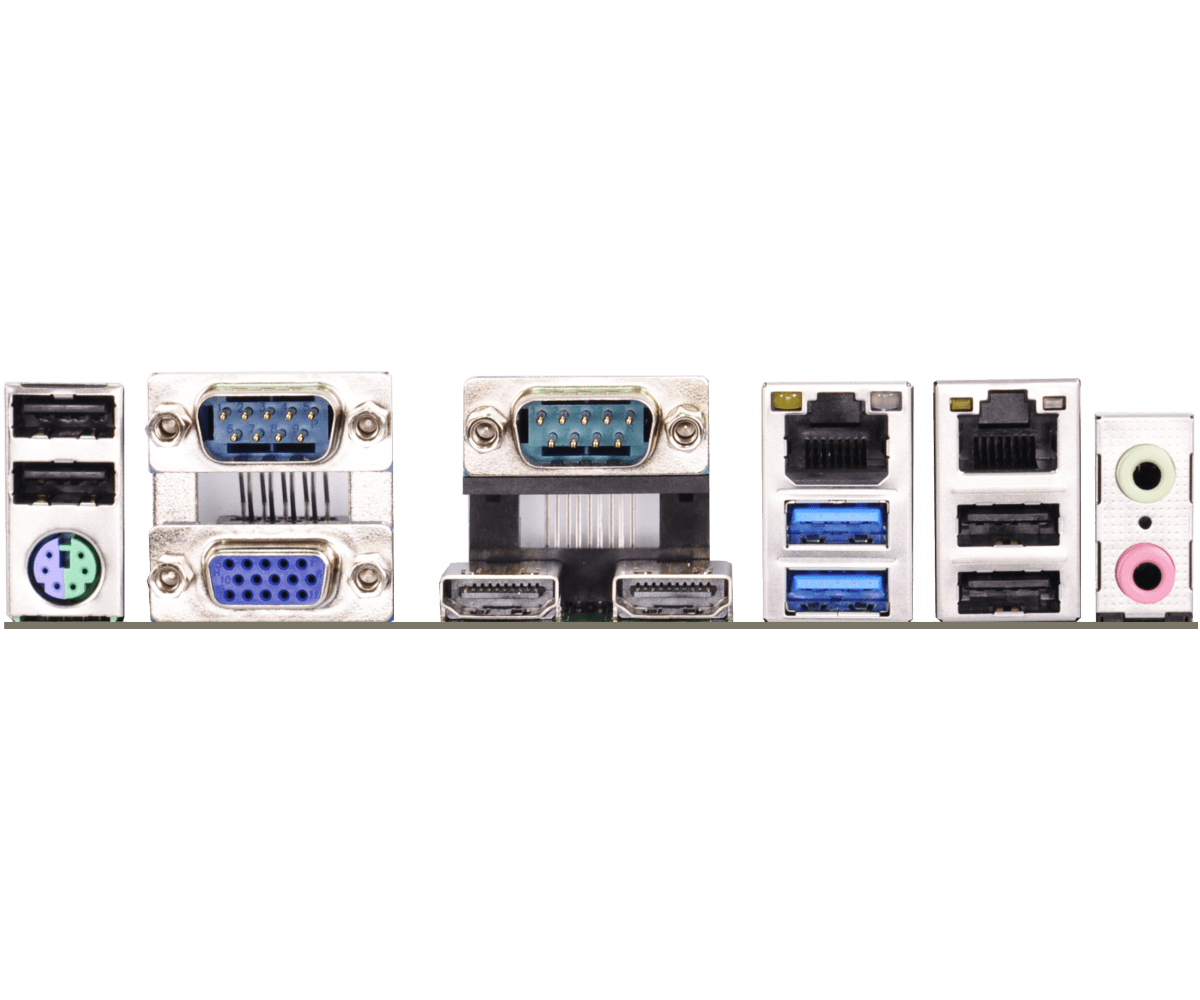

Rear I/O

HDMI	1
Ethernet	2
USB	2 x USB 3.0, 4 x USB 2.0
Audio	2 (Mic-in, Line-out)
COM	2 x COM (RS-232/422/485)
VGA	1
PS2	1 (Combo)

Internal Connector

USB	4 x USB 2.0 (2 x Header)
COM	4 x COM (RS-232)
GPIO	4 x GPI, 4 x GPO
LVDS	1
Speaker Header	1
TPM	1 x Header

Storage

SATA	1 x SATA3
mSATA	1 x m-SATA

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V~24V DC-In (4-pin ATX PWR Con) /20-pin ATX PWR con
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
