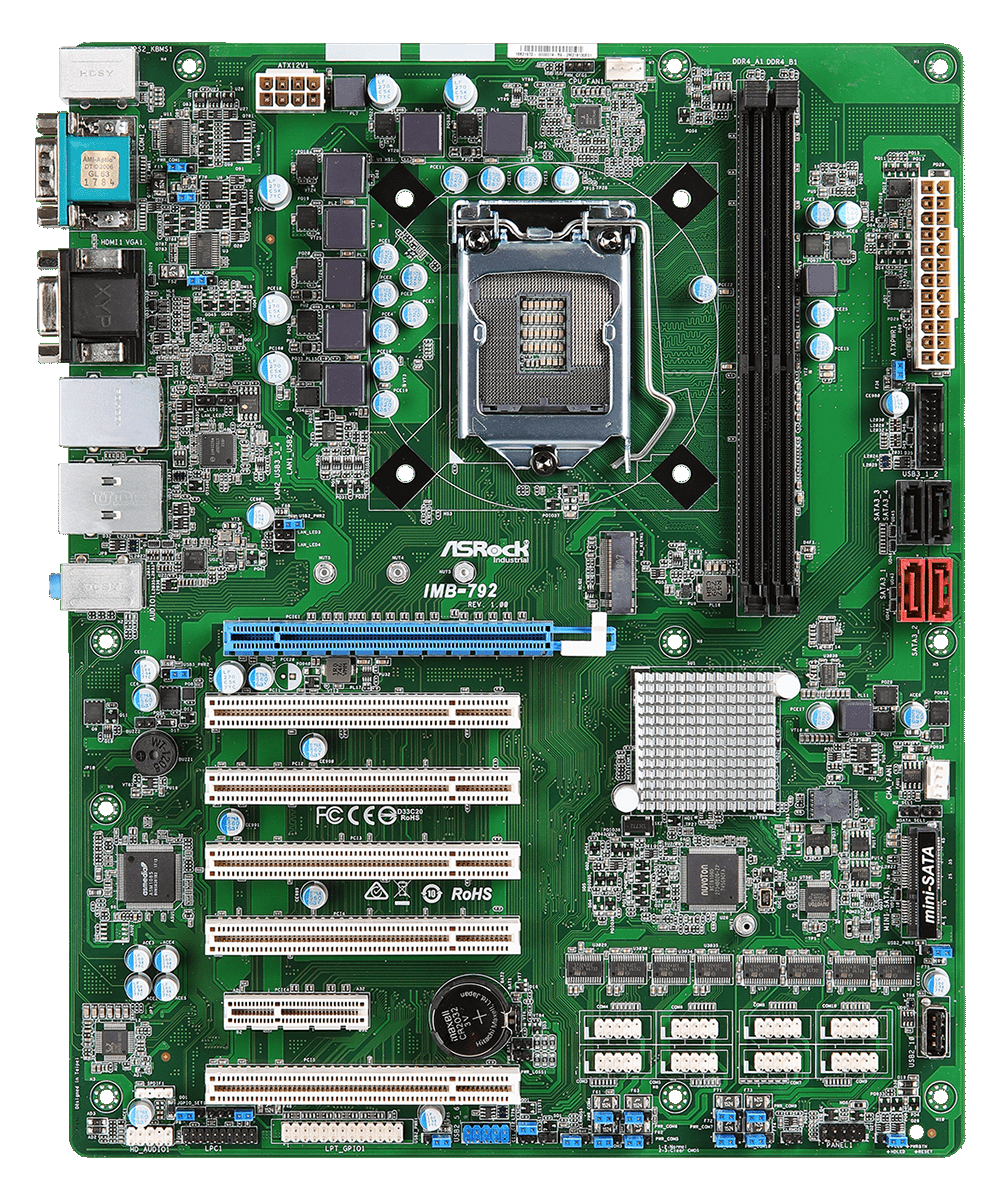

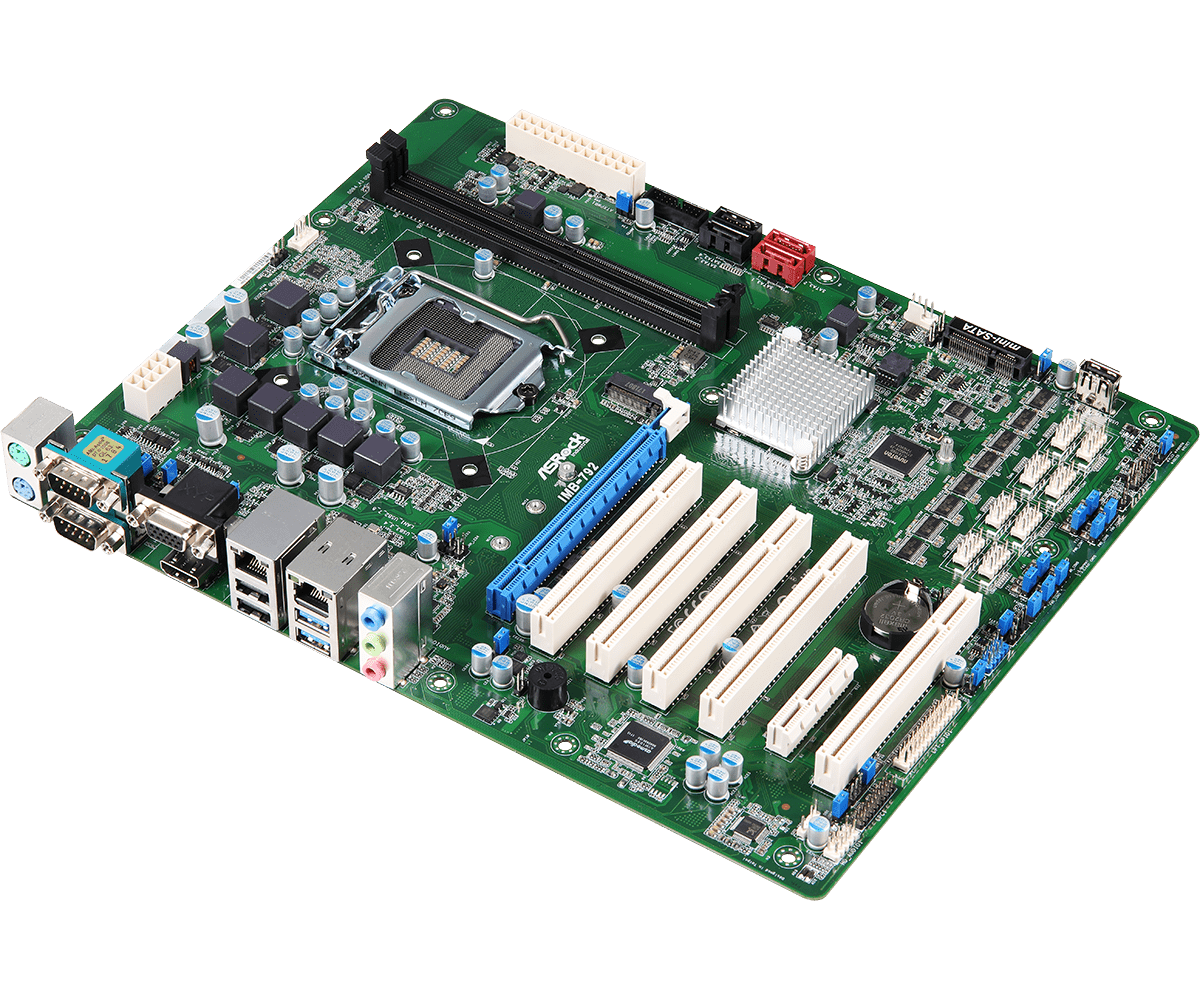

IMB-792 ATX Motherboard

Processor System

CPU	Intel® 7th / 6th Gen (Kabylake-S/Skylake-S) Core™ Processors
Chipset	Intel® H110
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32GB
Socket	2 x Long-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL4.3/4.4
VGA	Supports max resolution up to 1920 x 1200
MultiDisplay	Dual Display
HDMI	Max resolution up to 4096 x 2160@30Hz

Expansion Slot

PCIe	1 x PCIe x16, 1 x PCIe x4
PCI	5

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	Intel® I219V with 10/100/1000 Mbps, Intel I210 with 10/100/1000 Mbps
Connector	2 x RJ-45

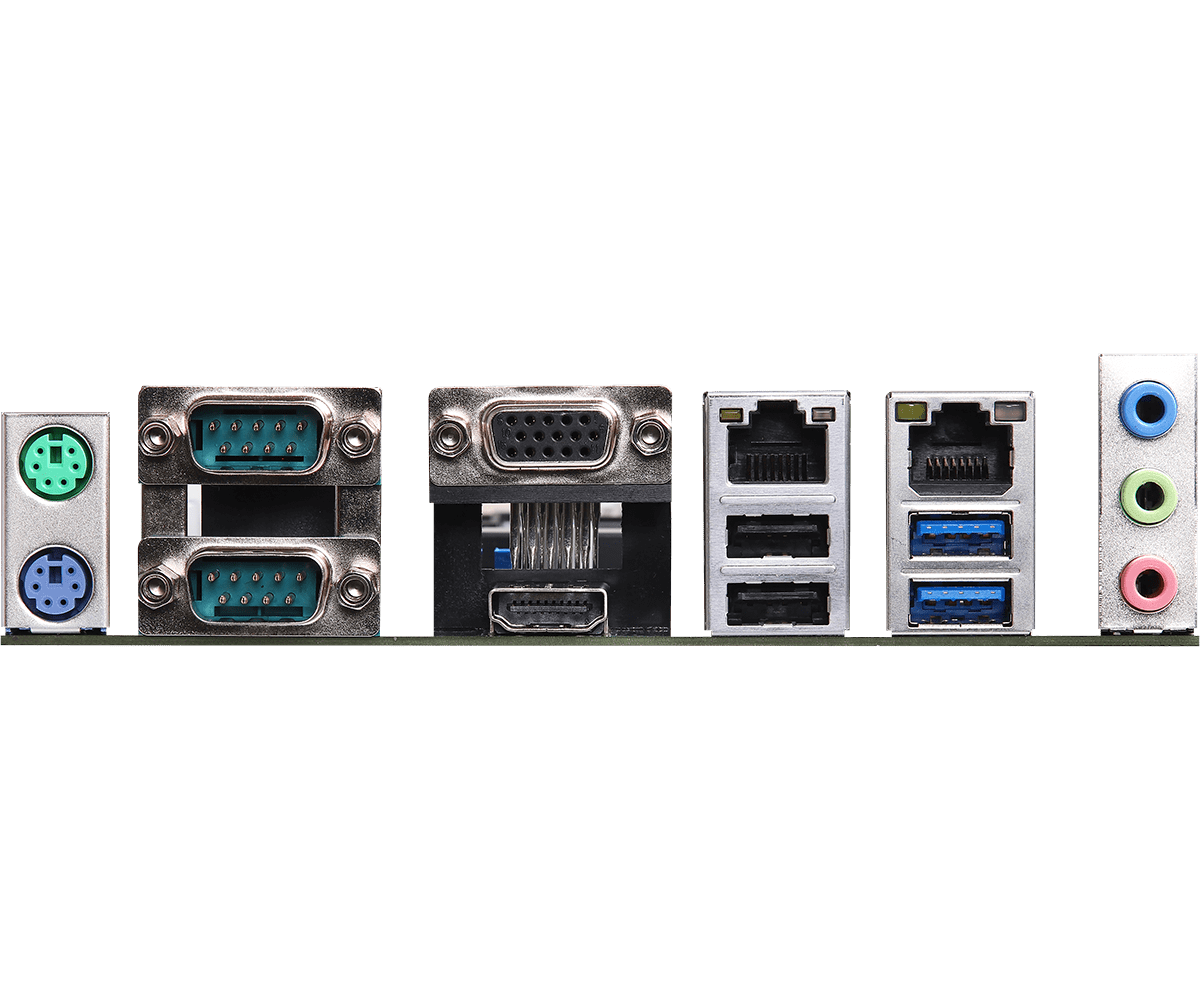

Rear I/O

VGA	1
Ethernet	2
USB	2 x USB3.0, 2 x USB2.0
Audio	3 (Mic-in, Line-in, Line-out)
COM	2 x COM (RS-232/422/485)
PS2	2 (1 x keyboard, 1 x mouse)
HDMI	1

Internal Connector

USB	2 x USB3.0, 3 x USB2.0
COM	8 x COM(RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	1 x Header
Speaker Header	1

Storage

mSATA	1 x Full size with shared SATA3 and USB2.0
SATA	4 x SATA3, one is shared with M.2 Key M, one is shared with mSATA
M.2	1 x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020506000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020506000AK)
