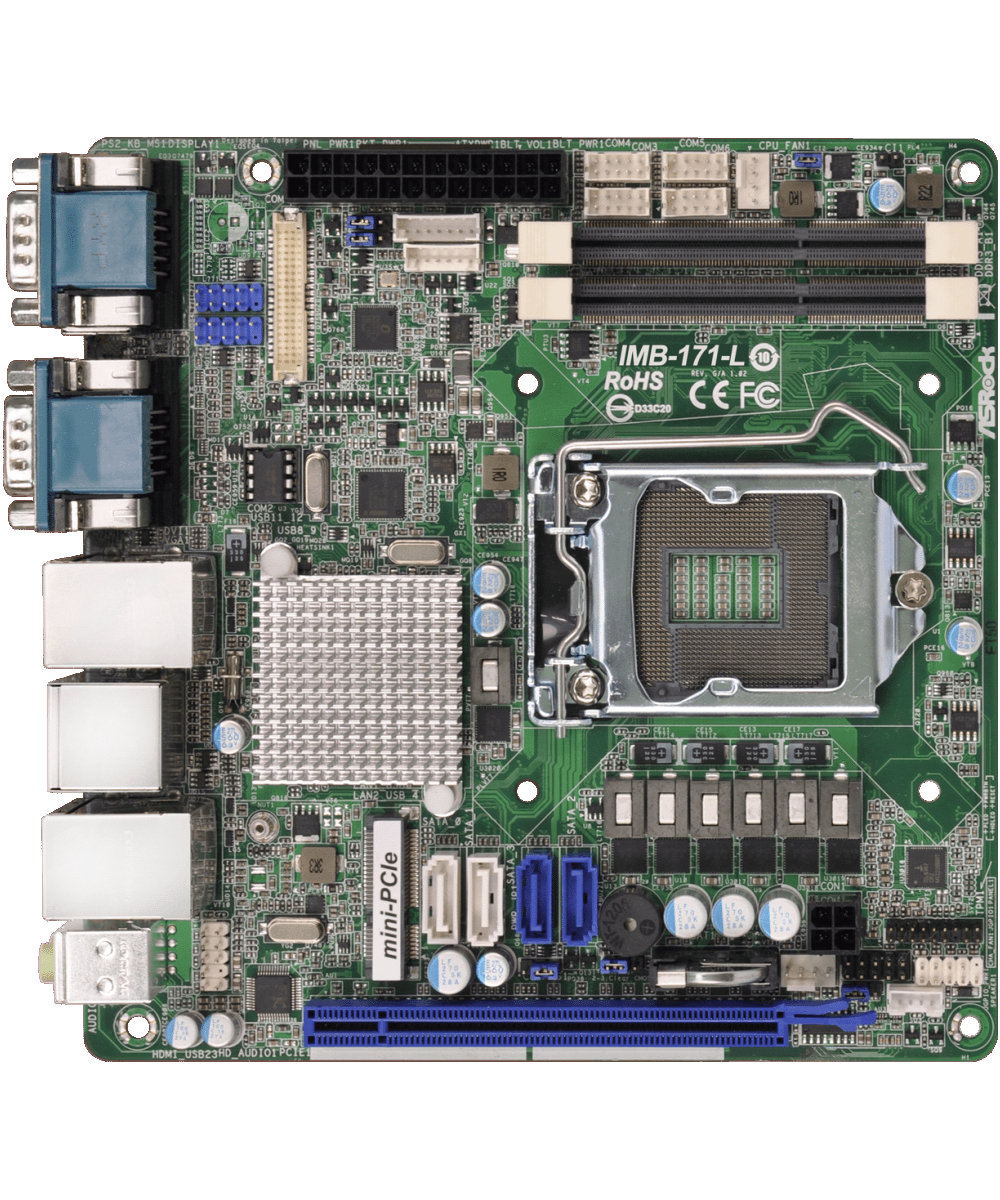

IMB-171-L Mini-ITX Motherboard

Processor System

CPU	Socket LGA1155 for Intel® Core i7 / i5 / i3 / Celeron® (Sandy Bridge and Ivy Bridge)
Chipset	Q77
BIOS	UEFI

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Socket	2 x SO-DIMM
Capacity	16GB

Graphics

Controller	Intel® HD Graphics (By CPU)
VGA	Supports max resolution up to 2048x1536
HDMI	Supports HDMI, max resolution up to 1920x1200
LVDS	Dual Channel 24-bit, support max resolution 1920x1200
MultiDisplay	Yes

Expansion Slot

mini-PCIe	1 (Half Size)
PCIe	1 (IVY Bridge: Gen3; Sandy Bridge: Gen2)

Ethernet

Controller/ Speed	LAN1:Intel® 82583V with 10/100/1000 Mbps, LAN2:Intel® 82579LM with 10/100/1000 Mbps
Connector	1 x RJ - 45

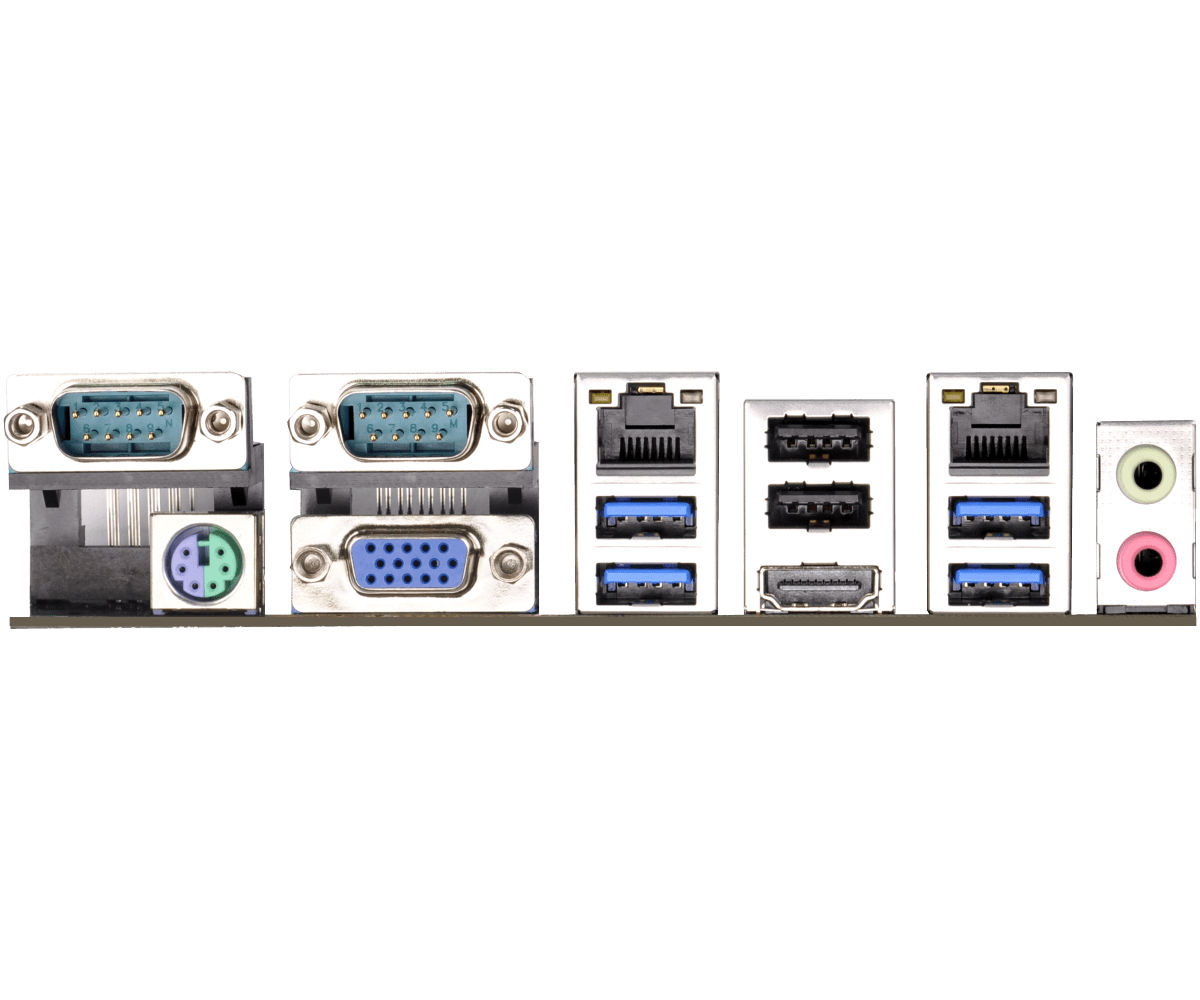

Rear I/O

HDMI	1
VGA	1
Ethernet	2
USB	6 (4 x USB 2.0, 2 x USB 3.0)
Audio	2 (Mic-in, Line-out)
COM	2 x COM(RS-232/422/485)
PS2	1 (Combo)

Internal Connector

USB	4 (USB 2.0)
COM	4 x COM(RS-232)
GPIO	4 x GPI +4 x GPO
LVDS	1

Storage

SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Supports RAID 0/1/5

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+4 pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Others

Packing List	1 x Jumper setting guide 1 x Driver DVD 1 x IO shield 2 x COM cable 2 x SATA cable 2 x Screw for mini card

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
