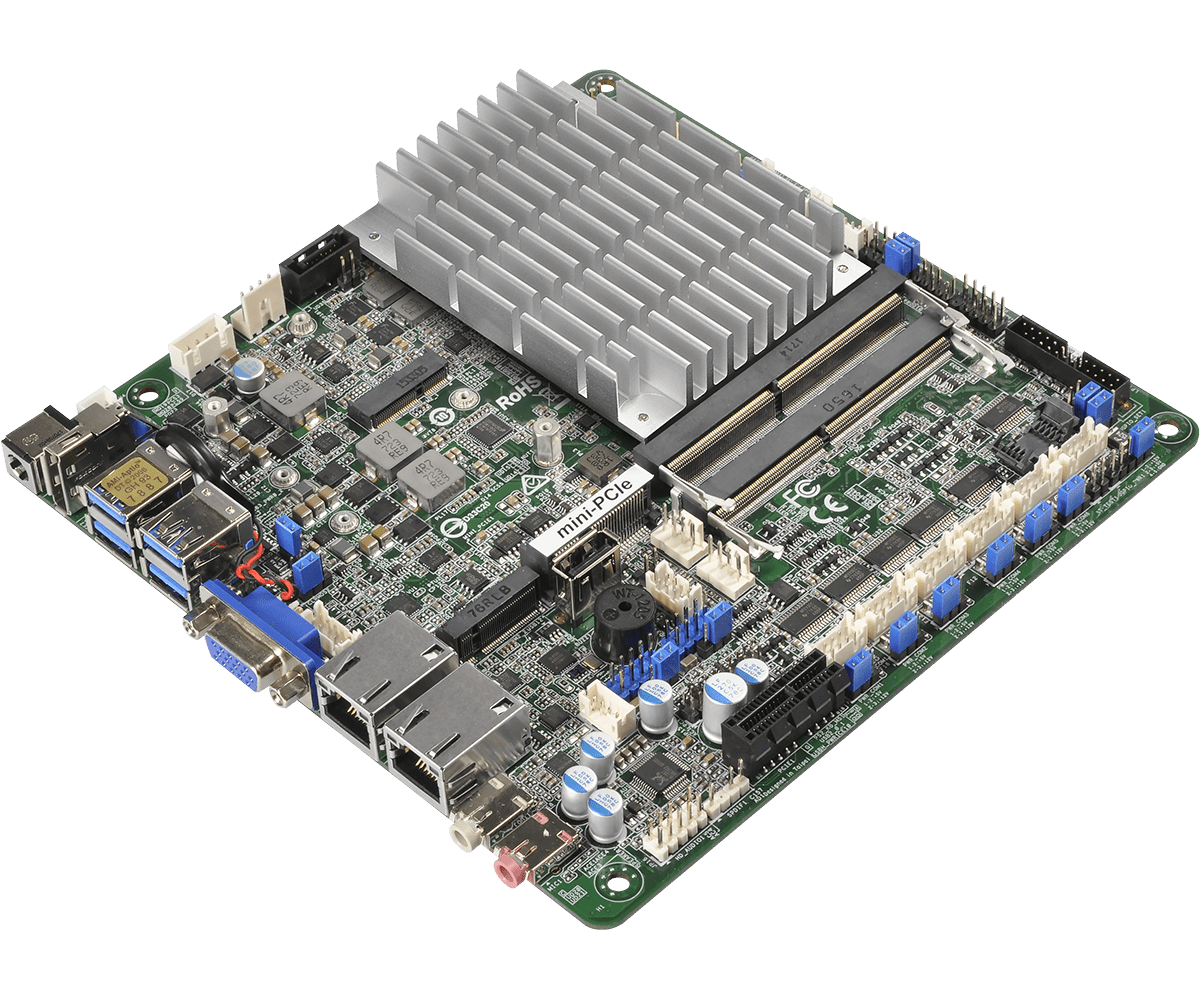

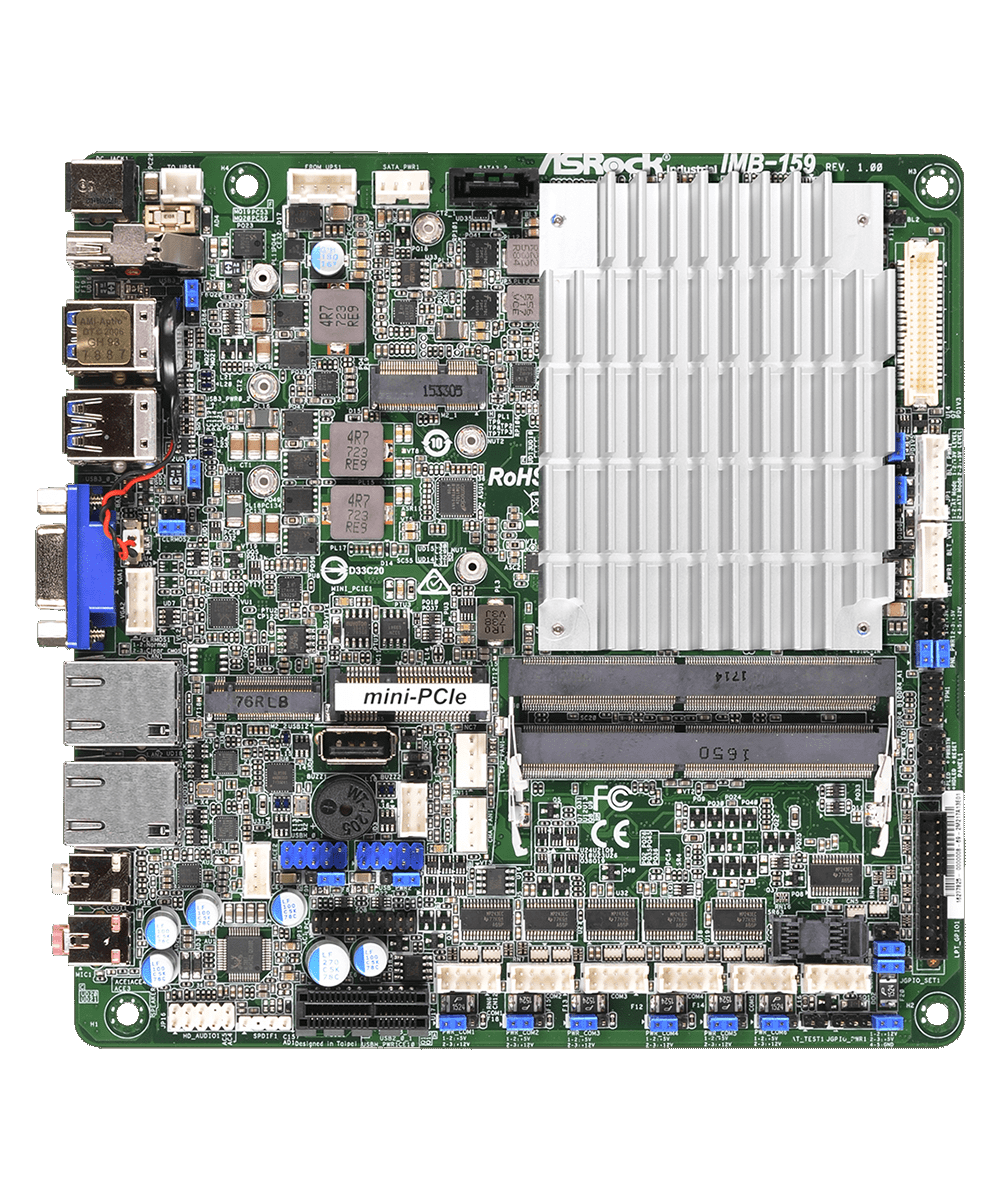

IMB-159NR Mini-ITX Motherboard

Processor System

CPU	Intel® Gemini Lake Refresh SoC Processor N4120, QC, 1.10GHz, 6W
Chipset	SoC

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	8GB
Socket	2 x SO-DIMM

Graphics

VGA	Supports max resolution up to 1920 x 1200
LVDS	Dual Channel 24-bit, max resolution up to 1920 x 1200@60Hz (Shared with eDP, auto detect)
MultiDisplay	Triple Display
eDP	Max resolution up to 4096 x 2160@60Hz (Shared with LVDS, auto detect)
DisplayPort	Max resolution up to 4096 x 2160@60Hz
Controller	Intel HD Graphics

Expansion Slot

PCIe	1 x PCIe x1
mini-PCIe	1 x Full / Half size with PCIe x1 and shared USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB 2.0 for Wireless

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps

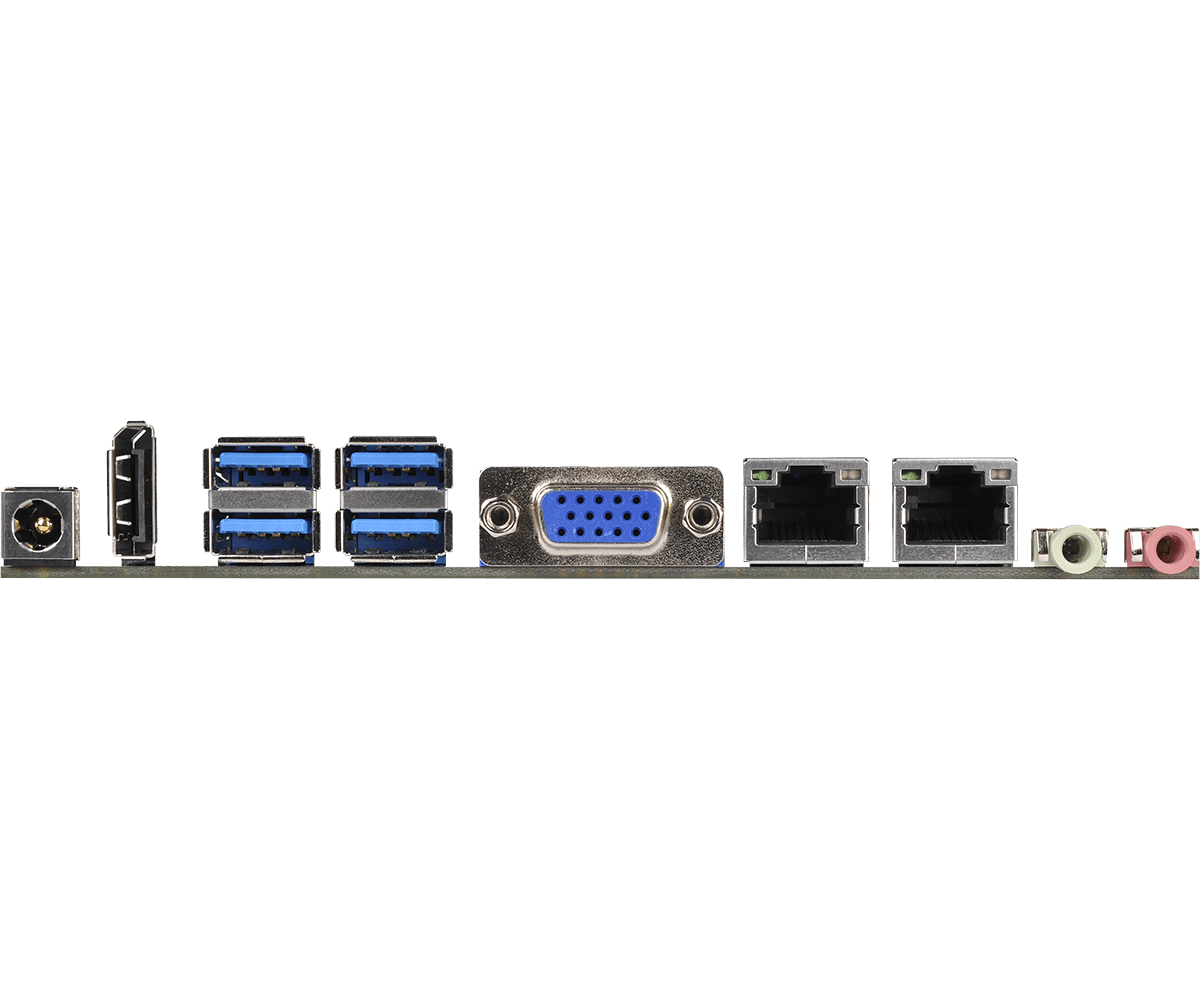

Rear I/O

VGA	1
Ethernet	2
USB	4 x USB 3.0, 2 x USB 2.0
Audio	2 (Mic-in, Line-out)
DisplayPort	1
DC Jack	1

Internal Connector

USB	5 x USB 2.0 (2 x header, 1 x Type A)
COM	4 x COM (RS-232), 2 x COM (RS-232/422/485)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO
TPM	1 x Header
LVDS	1 (shared with eDP, auto detect)
VGA	1 (shared with VGA Con.)
eDP	1 (shared with LVDS, auto detect)
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with SATA3 for SSD
SATA	1 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V / 19V~28V DC-in
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020551000AK) 1 x I/O Shield THIN (13G020551010AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020551000AK) 1 x I/O Shield THIN (13G020551010AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
