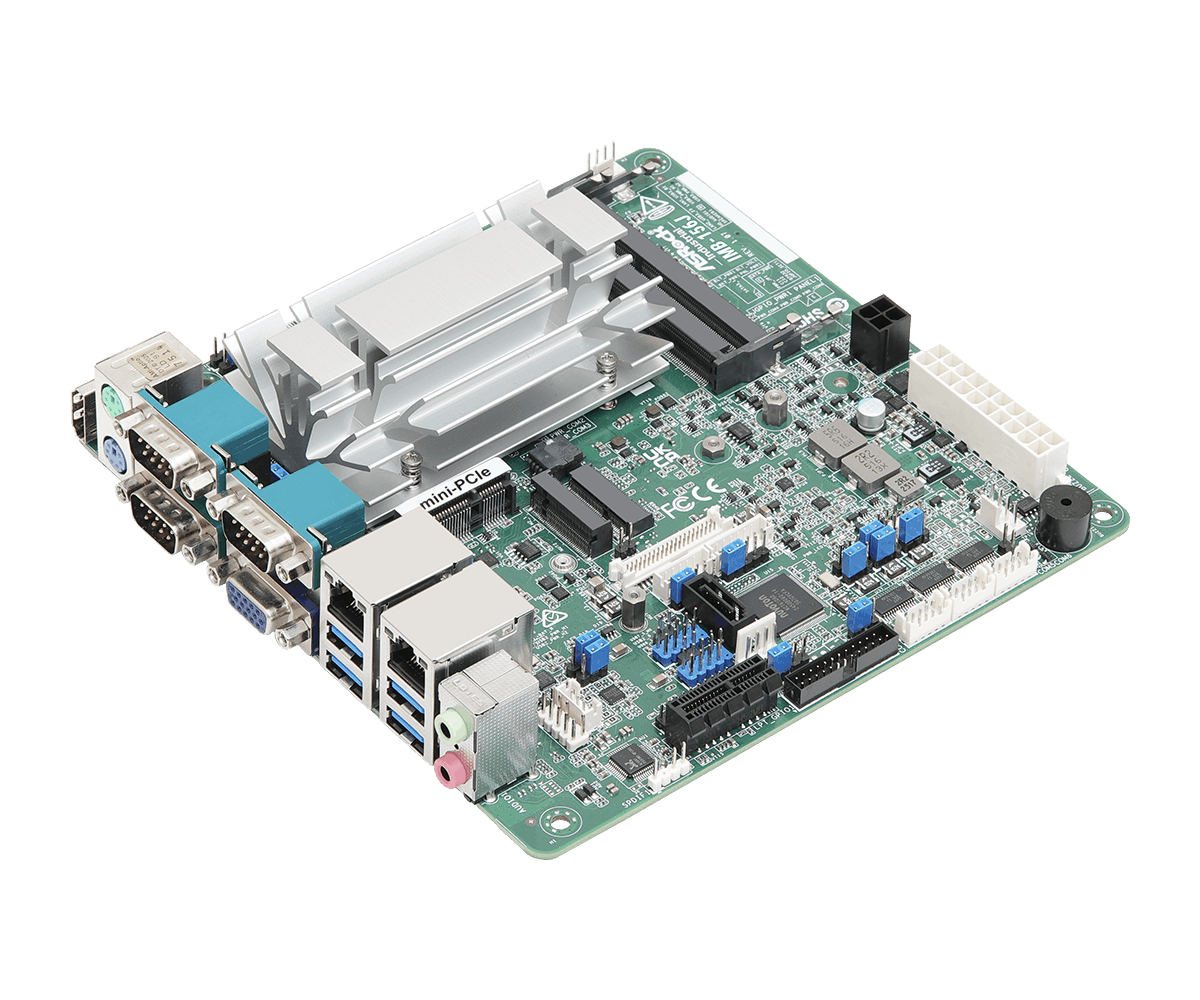

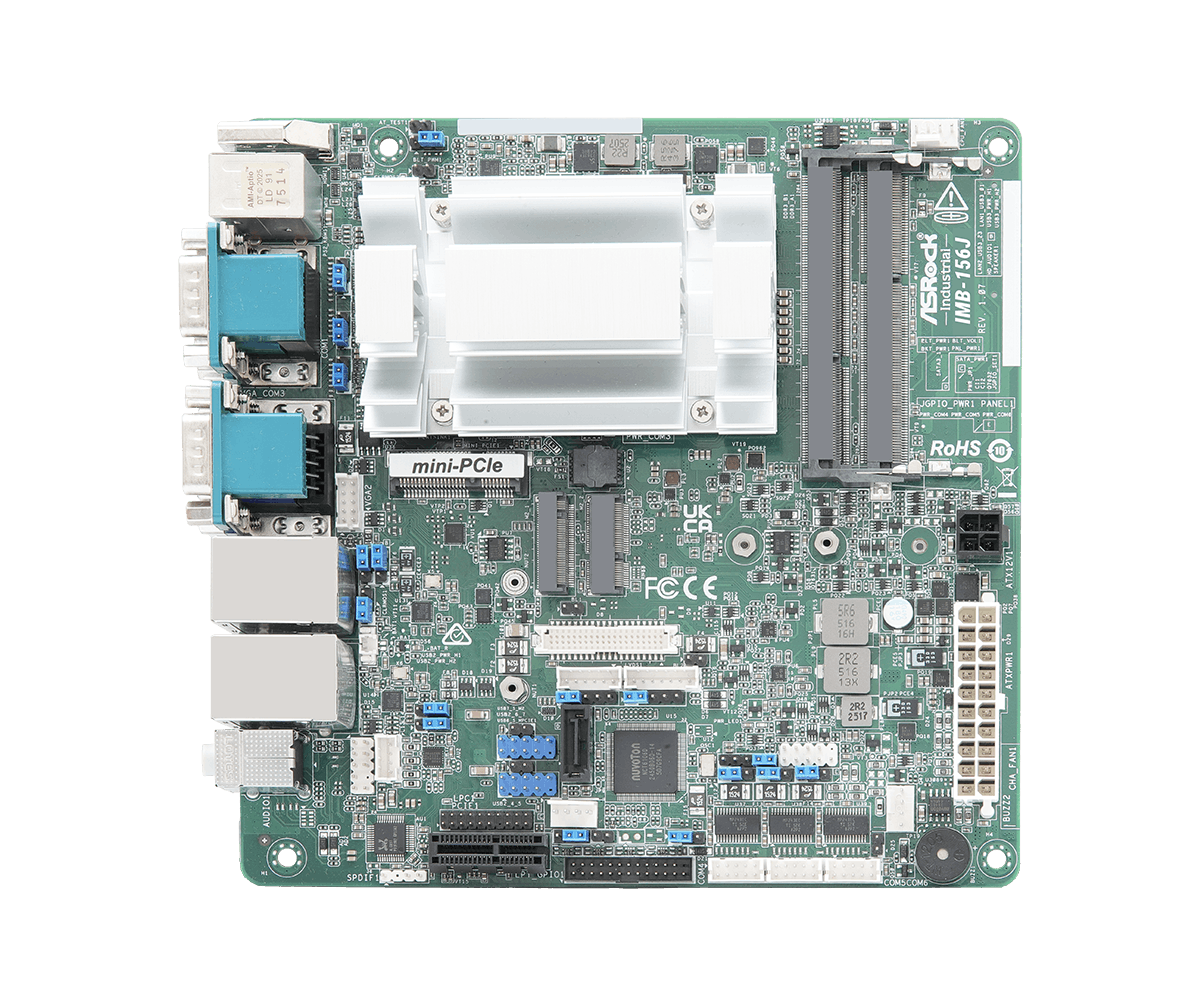

IMB-156J Mini-ITX Motherboard

Processor System

CPU	Intel® Apollo Lake SoC Processor J3455, QC, 1.5 GHz, 10W
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR3L 1866 MHz
Capacity	16 GB (8GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x1 (Gen2)
mini-PCIe	1 x Full size with PCIe x1 and shared USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

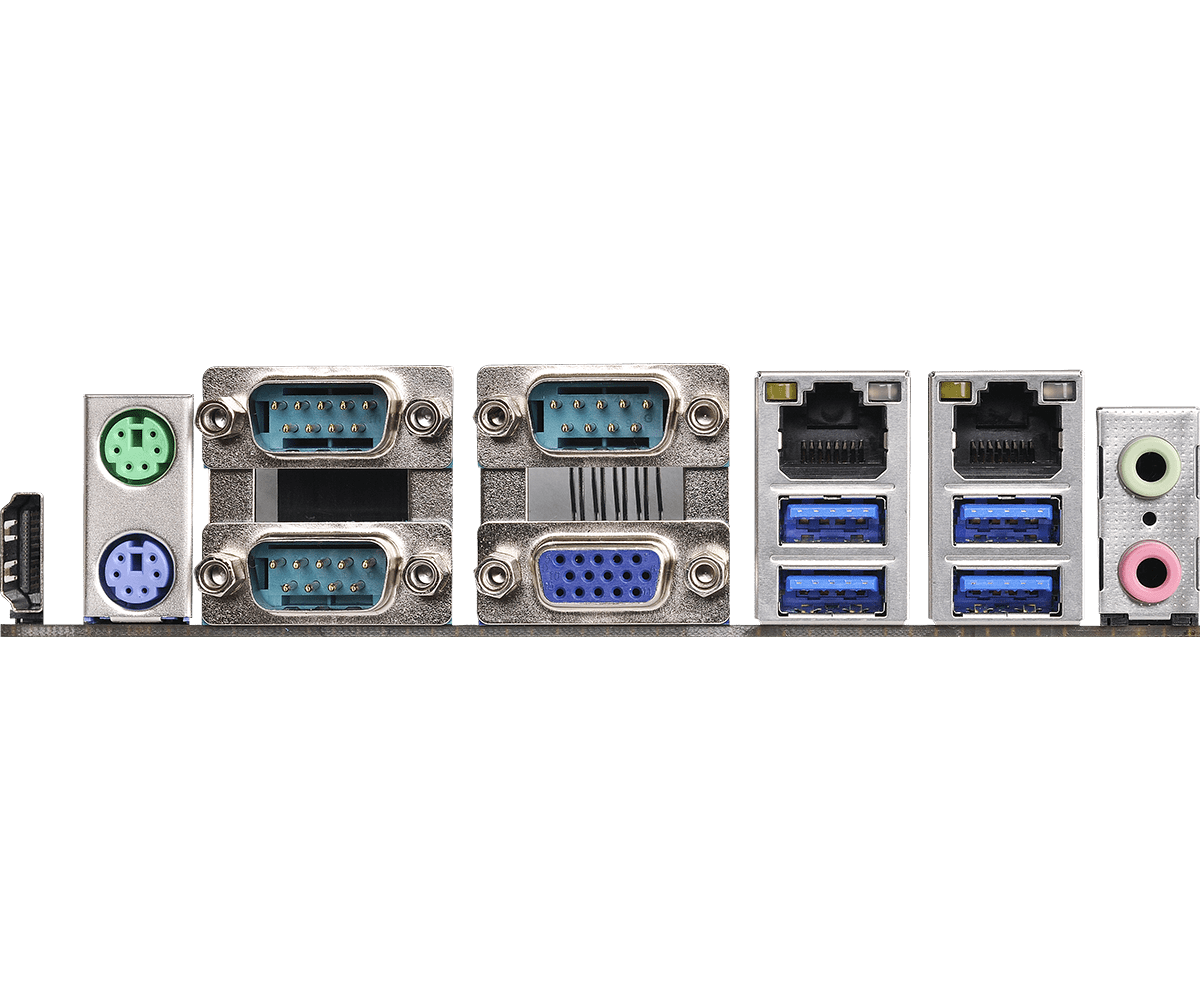

Rear I/O

HDMI	1 x HDMI 1.4b
VGA	1
Ethernet	2 x Realtek 1 Gigabit LAN
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
COM	3 x COM (RS-232/422/485)
PS2	1 x PS / 2 combo

Internal Connector

USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	3 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM Header
LVDS	1
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD
SATA	1 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V or +19V~+24V DC-In / ATX PWR
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
