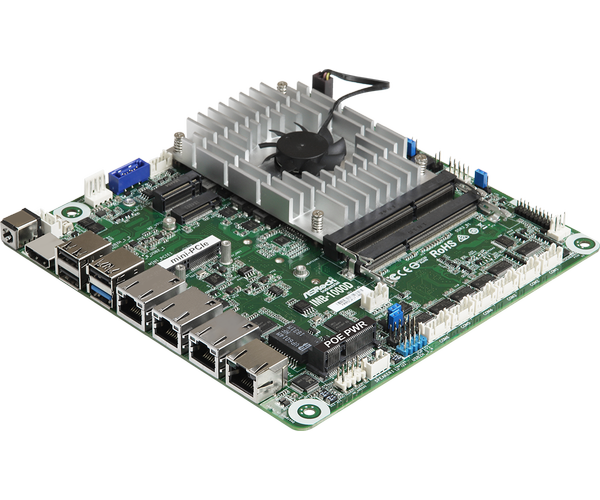

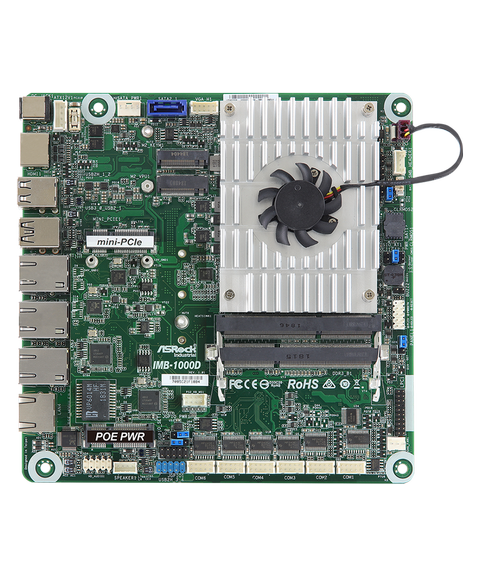

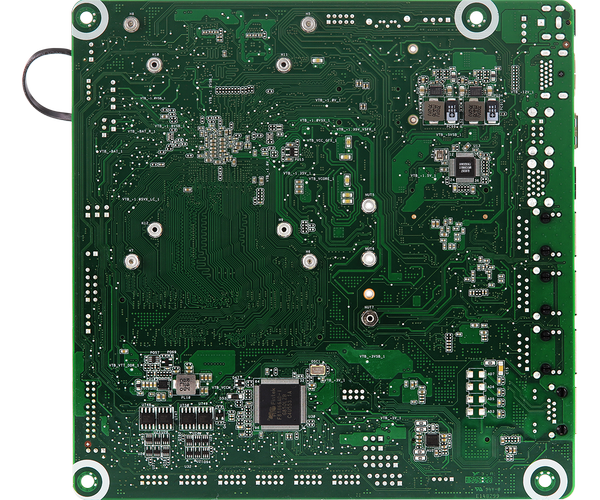

IMB-1000D Mini-ITX Motherboard

Processor System

CPU	Intel® Bay Trail SoC Processor J1900, QC, 2.00GHz, 10W
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR3L 1333 MHz
Capacity	16 GB (8GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen7 Graphics DX 11
HDMI	HDMI 1.4a Max resolution up to 1920x1200@60Hz
VGA	Max resolution up to 1920x1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key M, 2260) with PCIe x1 (Optional for VPU)

Audio

Interface	Realtek ALC887, High Definition Audio Header

Ethernet

Controller/ Speed	LAN1: Realtek RT8119I with 10/100/1000 Mbps LAN2: Realtek RT8119I with 10/100/1000 Mbps LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4: Intel® I210IT with 10/100/1000 Mbps (Optional: LAN4 supports POE function by ASRI PSE module)
Connector	4 x RJ-45

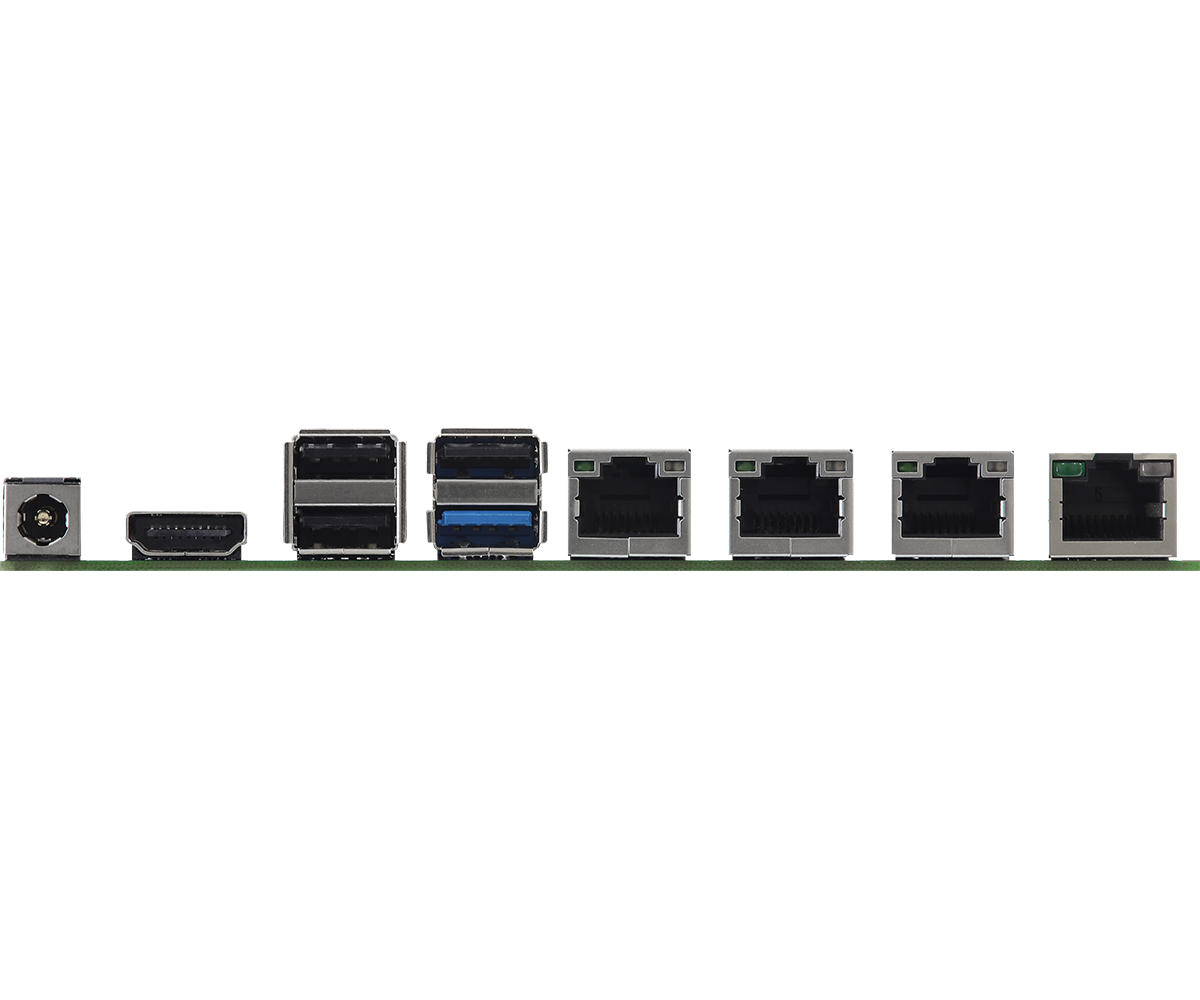

Rear I/O

HDMI	1 x HDMI 1.4a
Ethernet	4 x 1 Gigabit LAN
USB	1 x USB 3.1 (Gen1), 3 x USB 2.0

Internal Connector

USB	2 x USB 2.0 (1 x 2.54 pitch header)
COM	2 x COM(RS232/422/485), 4 x COM(RS-232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	N/A
VGA	1
SATA PWR Output	1
Speaker Header	1
PS/2	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with SATA2 for SSD
SATA	1 x SATA2 (3Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-In (with 4-pin wafer PWR cable or DC Jack)
Power On	AT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
