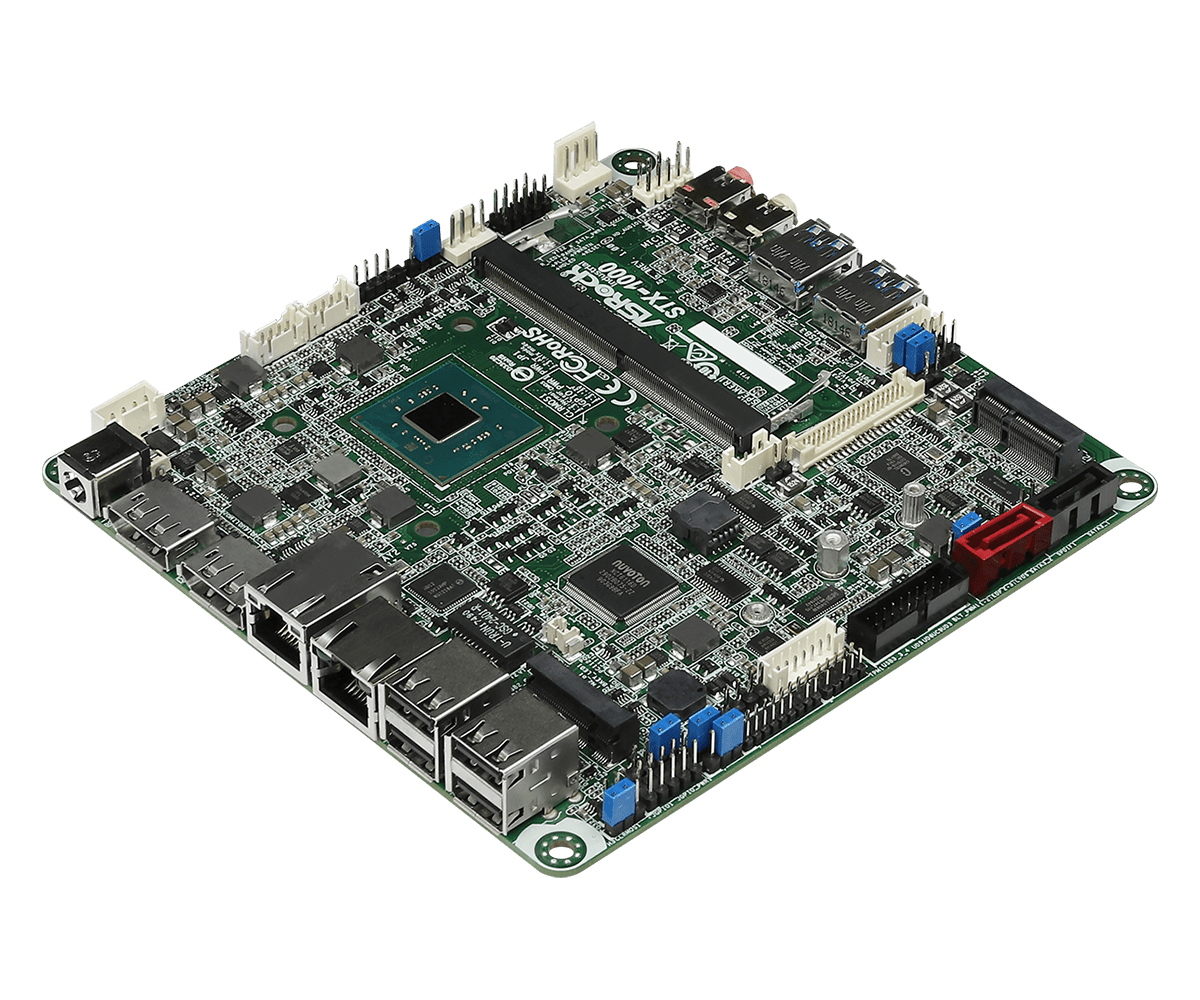

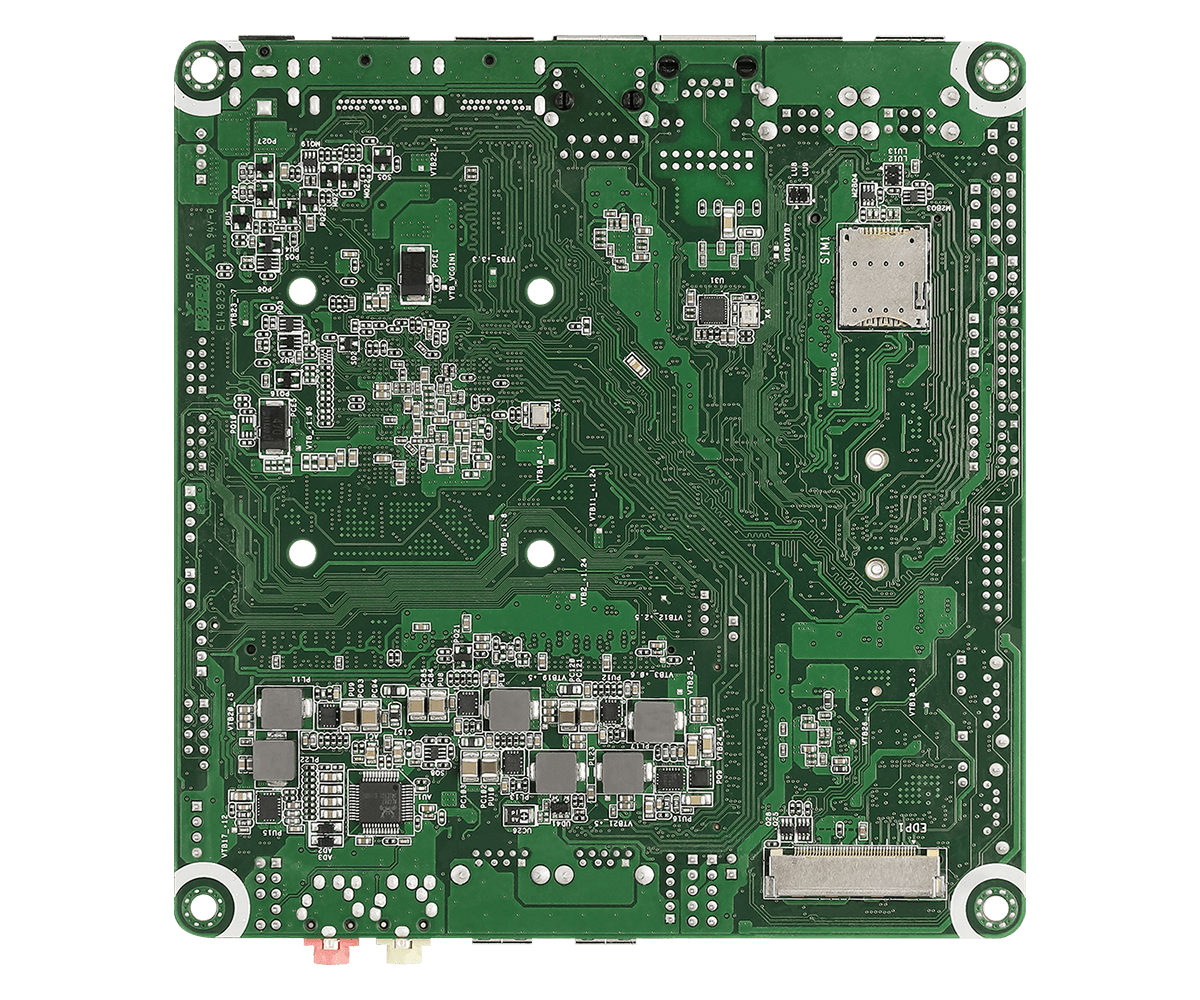

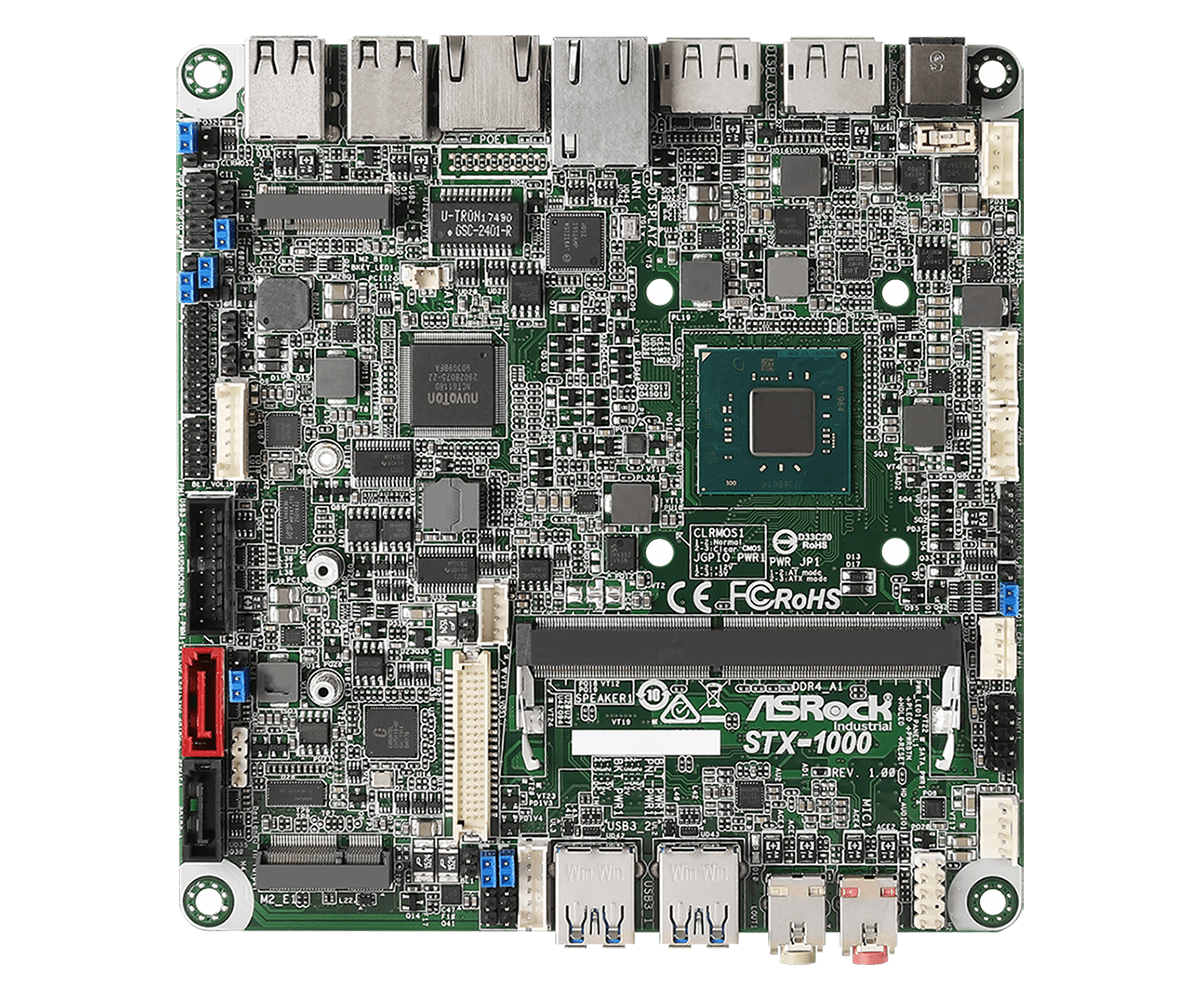

STX-1000 Mini-STX Motherboard

Processor System

CPU	Intel® Gemini Lake SoC Processor -STX-1000B (J4005, DC, 2.0 GHz, 10 W) -STX-1000J (J4105, QC, 1.5 GHz, 10 W) -STX-1000D (J5005, QC, 1.5 GHz, 10 W) Intel® Gemini Lake Refresh SoC Processor -STX-1000BR (J4025, DC, 2.0 GHz, 10 W) -STX-1000JR (J4125, QC, 2.0 GHz, 10 W) -STX-1000DR (J5040, QC, 2.0 GHz, 10 W)
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	Mini-STX (5.5-in x 5.8-in x 1.12-in, 14.0 cm x 14.7 cm x 2.8 cm)

Memory

Technology	Single Channel DDR4 2400 MHz
Capacity	8GB
Socket	1 x 260-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphics
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920X1200@60Hz (shared with eDP)
eDP	eDP 1.4 (shared with LVDS) Max resolution up to 4096X2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe x1, CNVi and USB 2.0 for WiFi+BT
SIM Socket	1 x Socket connected to M.2 Key_B

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	LAN1: Intel I210AT with 10/100/1000 Mbps LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000Mbps
Connector	2 x RJ-45

Front I/O

USB	2 x USB 3.1 (Gen1)
Audio	2 (Mic-in, Line-out)

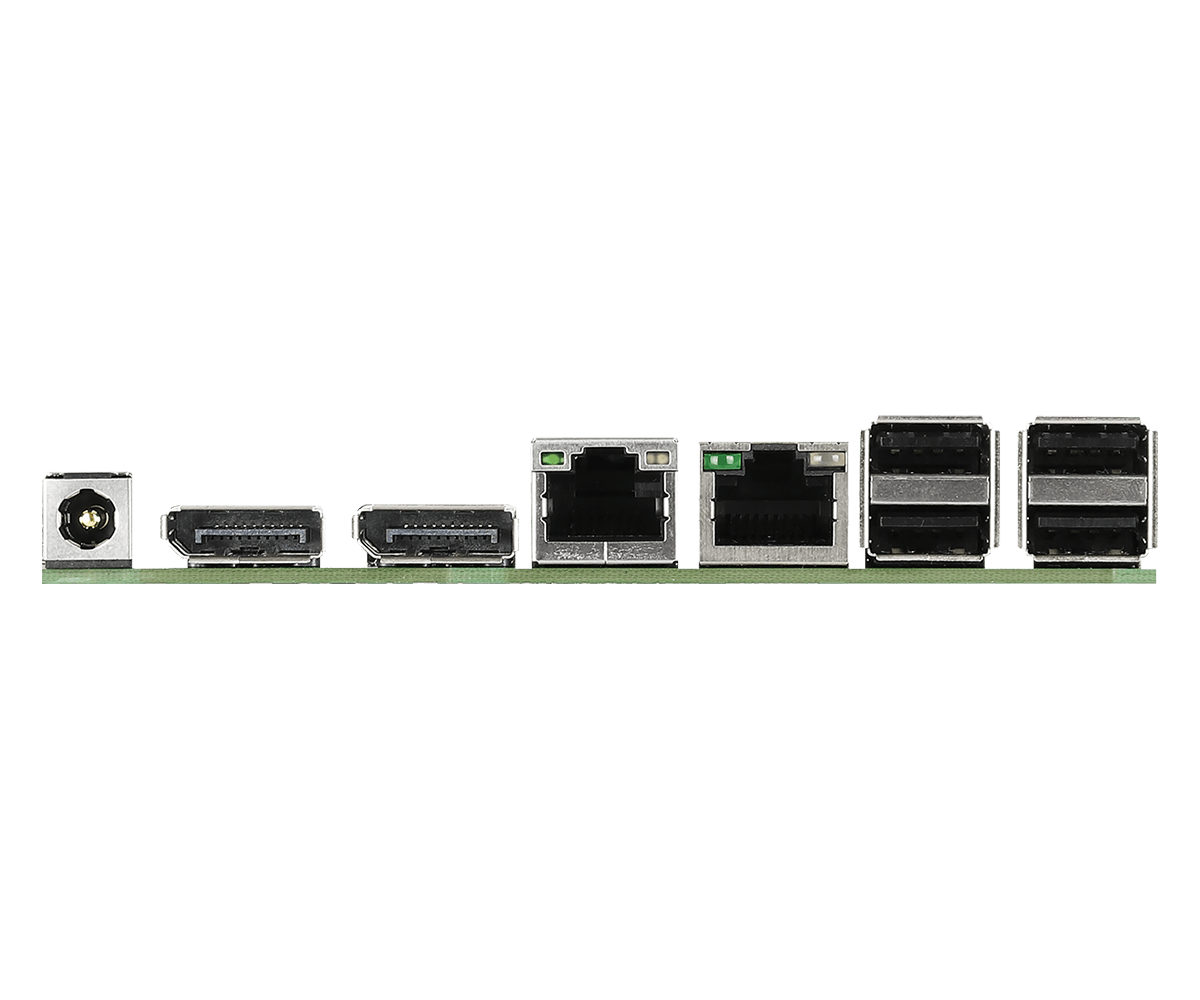

Rear I/O

DisplayPort	2 x DP 1.2
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 2.0
DC Jack	1

Internal Connector

USB	2 x USB 3.1 Gen1 (1 x USB 3.1 header) 1 x USB 2.0 (1 x 2.54 pitch header)
COM	COM3(RS232/422/485) COM2(RS232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1 (shared with eDP)
eDP	1 (shared with LVDS)
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key B, 2242/2260/2280) with PCIe x1, USB 2.0 and SATA3
SATA	2 x SATA3 (6Gb/s), SATA3_2 shared with M.2 Key B

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	9~24V DC-In with 4-pin wafer PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Others

Longivity Support	No

Accessories

Gift Package	2 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020600000AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK)
Bulk Package	2 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020600000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
