Processor System
| CPU |
Intel® Core Processors Series 3 (Wildcat Lake -U)

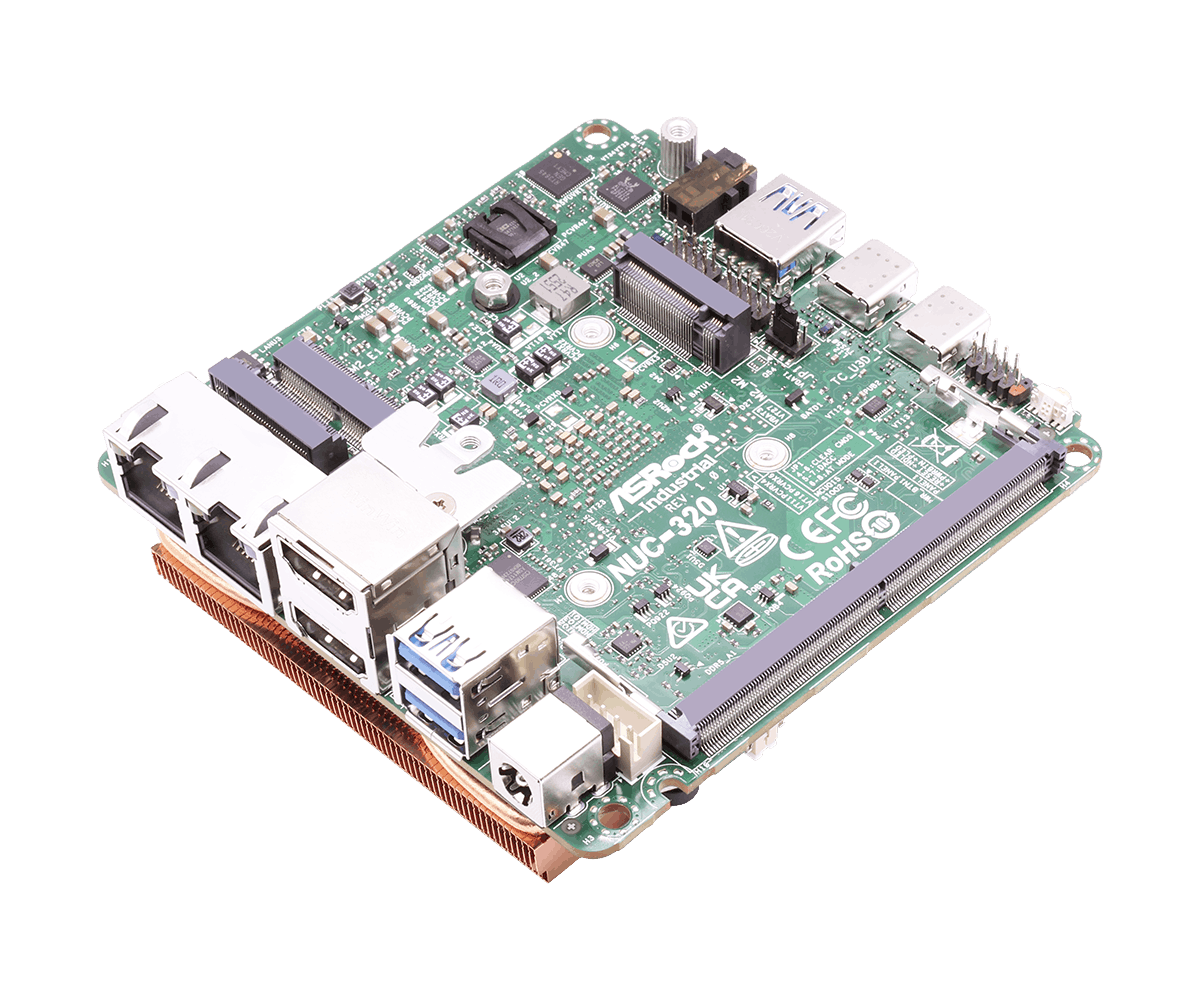

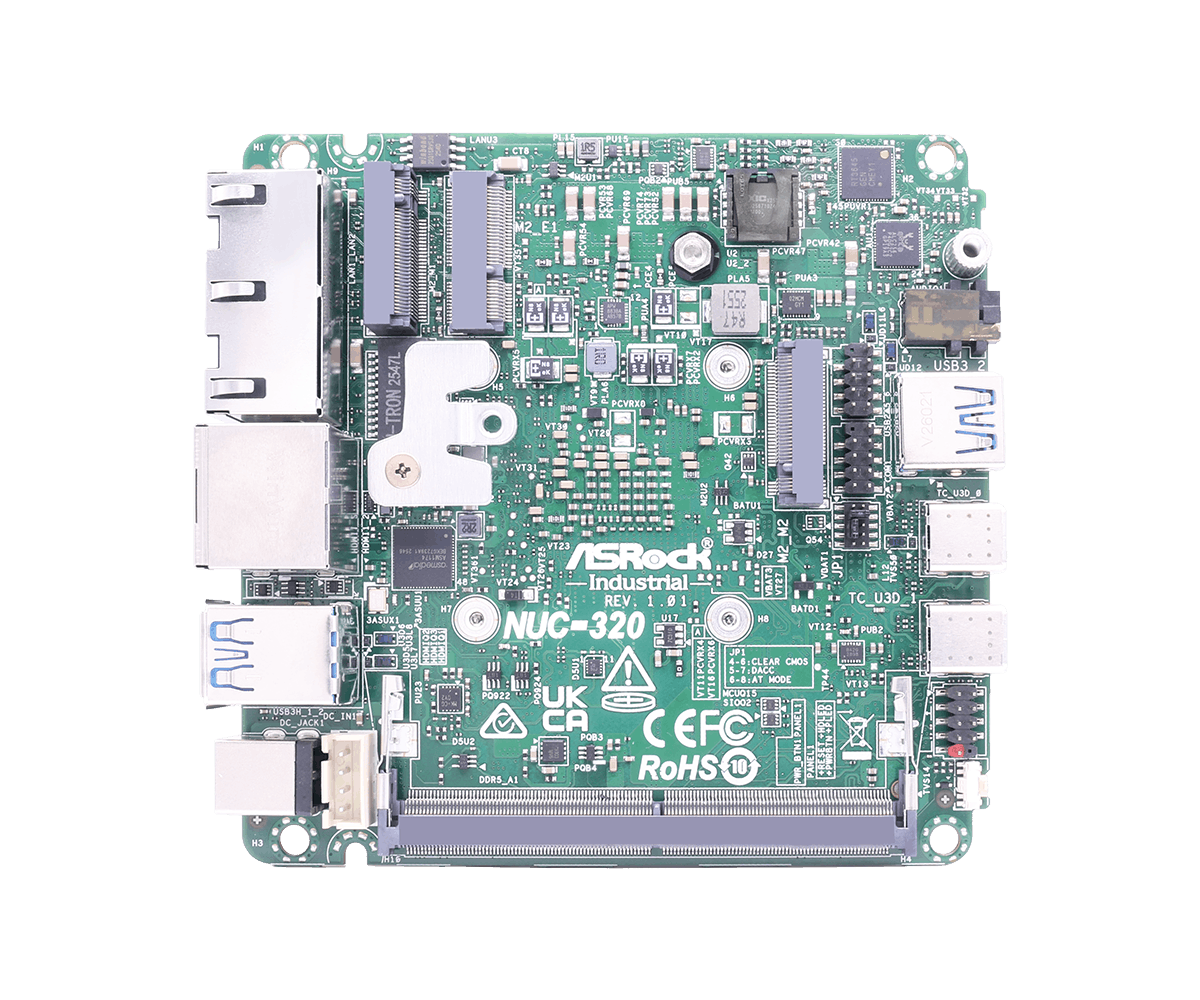

NUC-320 (Core™ 5 320, 2P+4LPE)
NUC-304 (Core™ 3 304, 1P+4LPE)
*All CPU sku can support In-Band ECC |
| Chipset |
MCP |
| BIOS |
AMI SPI 256 Mbit |
Form Factor
| Dimensions |
NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) |
Memory
| Technology |
Single Channel DDR5 6400 MHz |
| Capacity |
64GB |
| Socket |
1 x 262-pin SO-DIMM |
Graphics
| Controller |
Intel® Graphics |
| HDMI |
HDMI 2.1
Max resolution up to 4096x2160@60Hz |
| DisplayPort |
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz |
| MultiDisplay |
Max 3 display (Included 2 outputs from Type-C) |
Expansion Slot
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface |
Realtek ALC256, High Definition Audio. |
Ethernet
| Controller/ Speed |
LAN1: Intel® I226V with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
| Connector |
2 x RJ-45 |
Front I/O
| USB |
1 x USB 3.2 Gen1 (Type-A)
2 x USB3.2 Gen2x2 (Type-C, 5V/3A, Supports DP1.4a display output) |
| Audio |
1 (headphone & microphone jack) |
Rear I/O
| HDMI |
2 x HDMI 2.1 |
| Ethernet |
2 x 2.5 Gigabit LAN |
| USB |
2 x USB 3.2 Gen1 (Type-A) |
| DC Jack |
1 |
Internal Connector
| USB |
2 x USB 2.0 (1 x 2.00 pitch header) |
| COM |
1 x COM(RS232/422/485) |
Security
Storage
| M.2 |
1 x M.2 (KEY M, 2242) with PCIe Gen4 x1 for SSD
1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x2 for SSD |
| SATA |
1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
12V~24V DC-In Jack |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
-20ºC ~ 70ºC |
| Storage Temp |
-40° C ~ 85° C |
| Operating Humidity |
5% ~ 90% (non-condensing) |
| Storage Humidity |
5% ~ 90% (non-condensing) |
