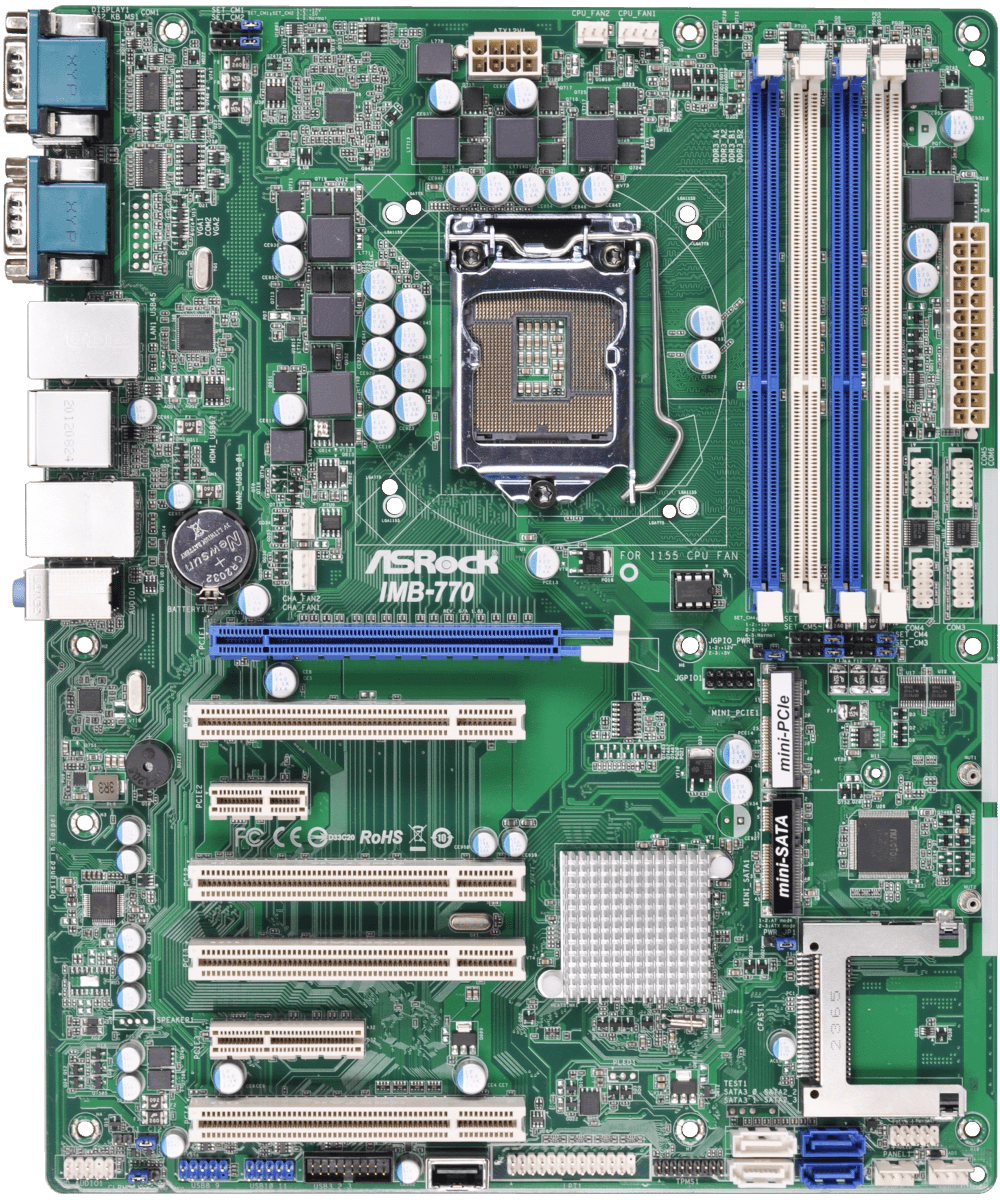

IMB-770 ATX Motherboard

Processor System

CPU	Socket LGA1155 for Intel Core i7 / i5 / i3 / Celeron (Sandy Bridge and Ivy Bridge)
Chipset	Intel® Q77
BIOS	UEFI

Form Factor

Dimensions	ATX (9.6-in x 12-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	32GB
Socket	4 x Long-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
DisplayPort	Supports max resolution 2560 x 1600
VGA	Supports max resolution 2048 x 1536
MultiDisplay	Yes
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200

Expansion Slot

PCIe	1 (x16) (Ivy Bridge: Gen3; Sandy Bridge: Gen2) + 1 (x1) + 1 (x4)
PCI	4
mini-PCIe	1 x Full size with PCIe x1 and USB 2.0

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out, Mic-in, Line-in

Ethernet

Controller/ Speed	LAN1:Intel® 82583V with 10/100/1000 Mbps LAN2: Intel® 82579LM with 10/100/1000 Mbps
Connector	2 x RJ-45

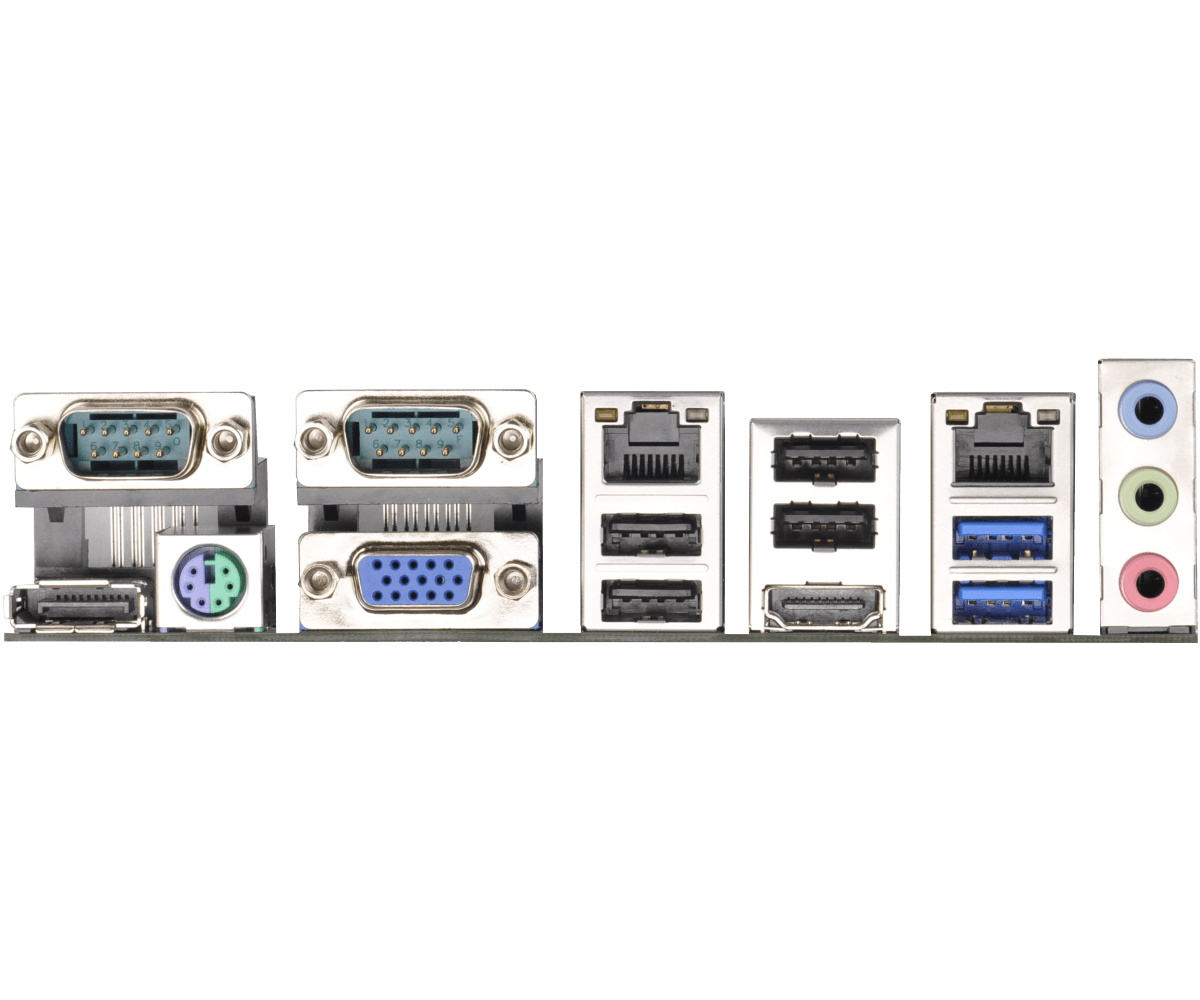

Rear I/O

DisplayPort	1
VGA	1
Ethernet	2
USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant)
Audio	3 (Mic-In, Line-Out, Line-In)
COM	2 x COM (RS-232/422/485)
PS2	1 x PS / 2 combo
HDMI	1

Internal Connector

USB	7 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant) 1 Vertical Type A USB Connector
COM	4 x COM (RS-232)
Parallel	1
GPIO	4 x GPI + 4 x GPO
SATA PWR Output	2

Storage

mSATA	1 x Full size with SATA2
SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
