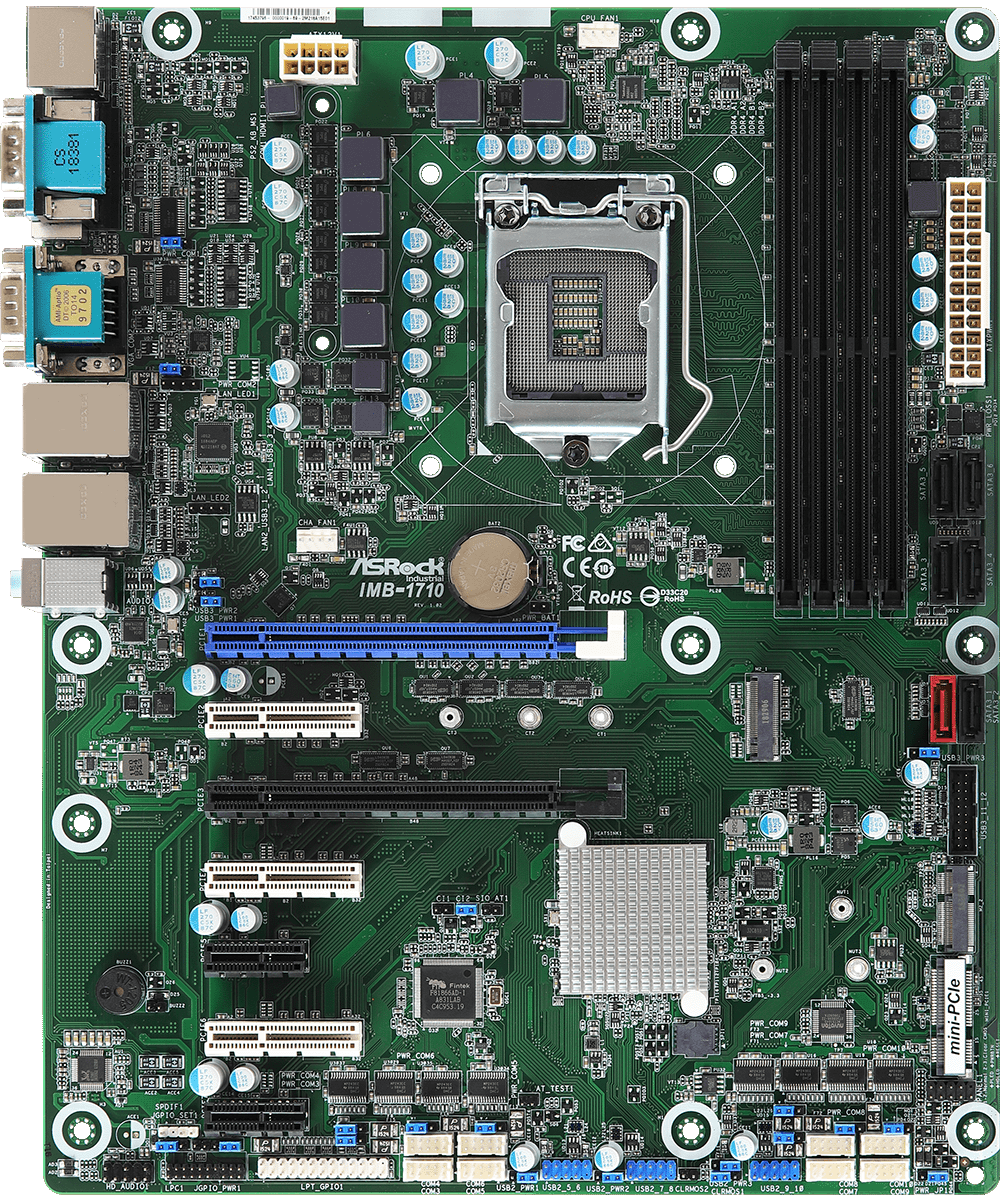

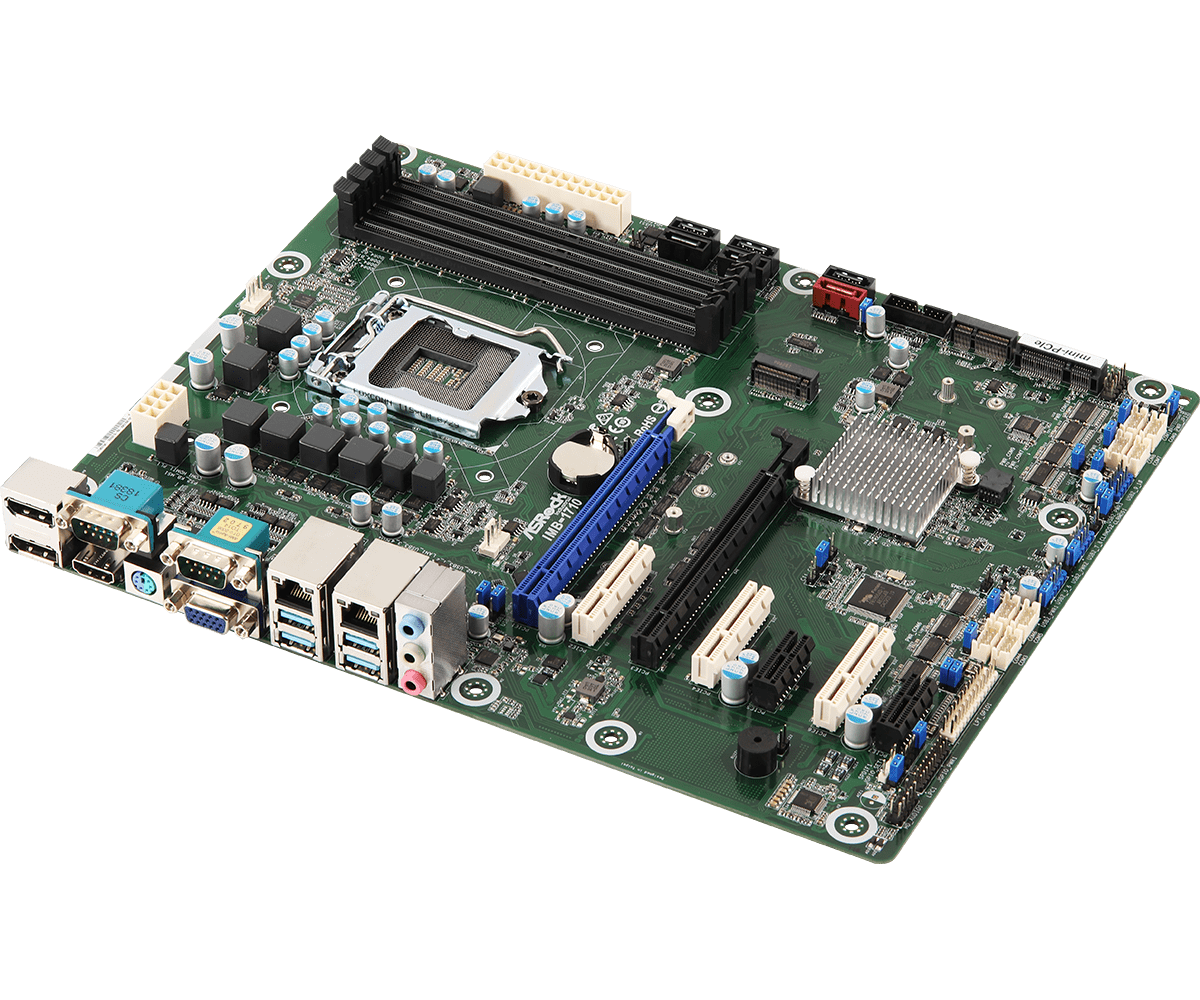

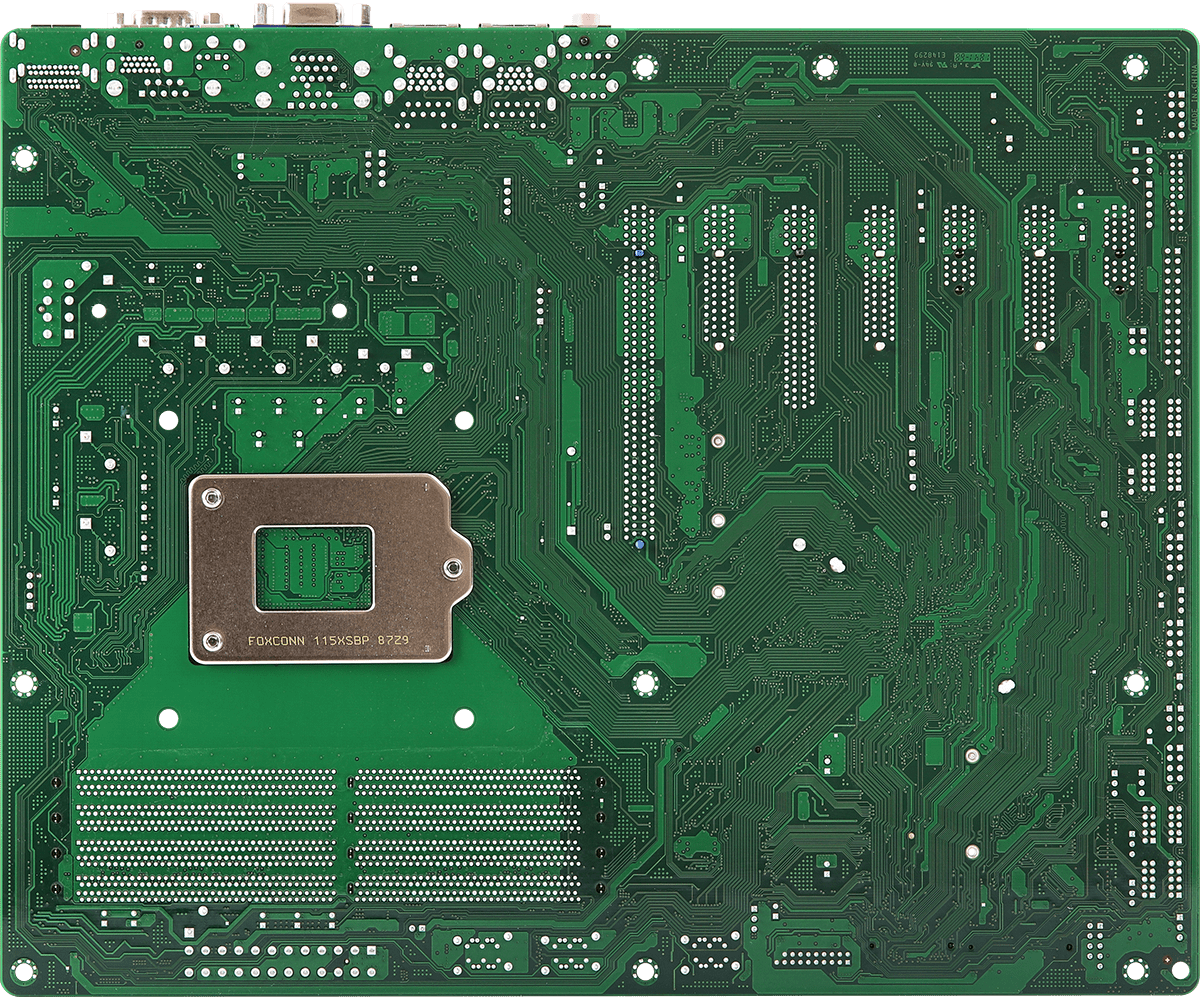

IMB-1710 ATX Motherboard

Processor System

CPU	Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 95W
Chipset	Intel® Q370
Socket	LGA1151
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2666 MHz
Capacity	128GB* * Intel Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM))
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Coffee Lake integrated graphics
HDMI	HDMI 1.4 Max resolution up to 4096x2160@24Hz
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2304@60Hz
VGA	Max resolution up to 1920x1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	3 x PCIE 3.0 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3) ) 2 x PCIE 3.0 x4 Slots (PCIE4) (PCIE6) 2 x PCIE 3.0 x1 Slots (PCIE5) (PCIE7)
mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector	2 x RJ-45

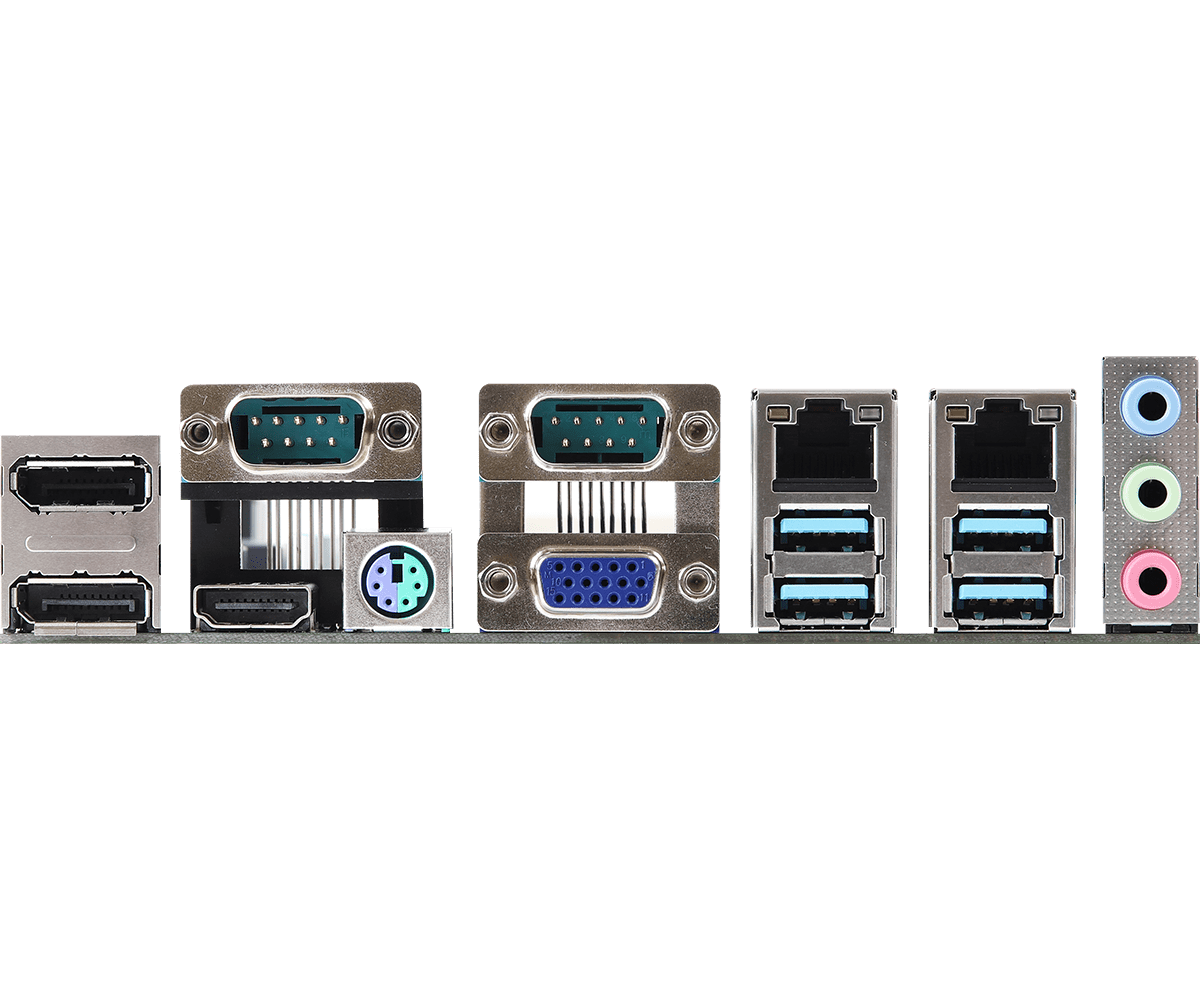

Rear I/O

HDMI	1 x HDMI 1.4
DisplayPort	2 x DP 1.2
VGA	1
Ethernet	2 x 1 Gigabit LAN
USB	4 x USB 3.0
Audio	3 (Mic-in, Line-in, Line-out)
COM	COM1, 2(RS-232/422/485)
PS2	1 x PS/2 combo

Internal Connector

USB	2 x USB 3.1 Gen1 (1 x USB 3.1 header) 6 x USB 2.0 (3 x 2.54 pitch header)
COM	8x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard IC
LVDS	N/A
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD
SATA	6 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M
RAID	Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec/min

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW M2,D=5.3 (13G020302010AK) 1 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020505000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	2 x SCREW M2,D=5.3 (13G020302010AK) 1 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020505000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
