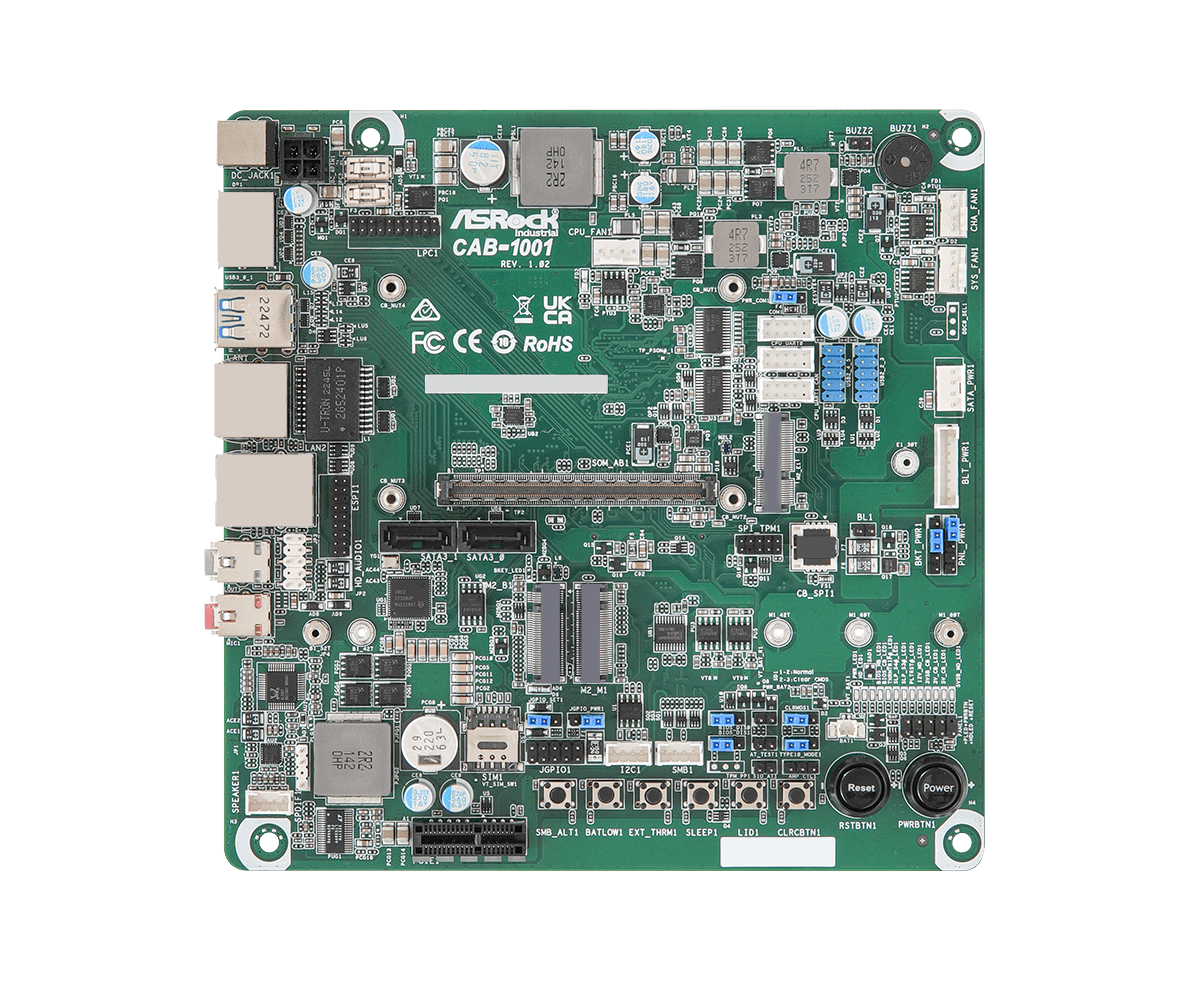

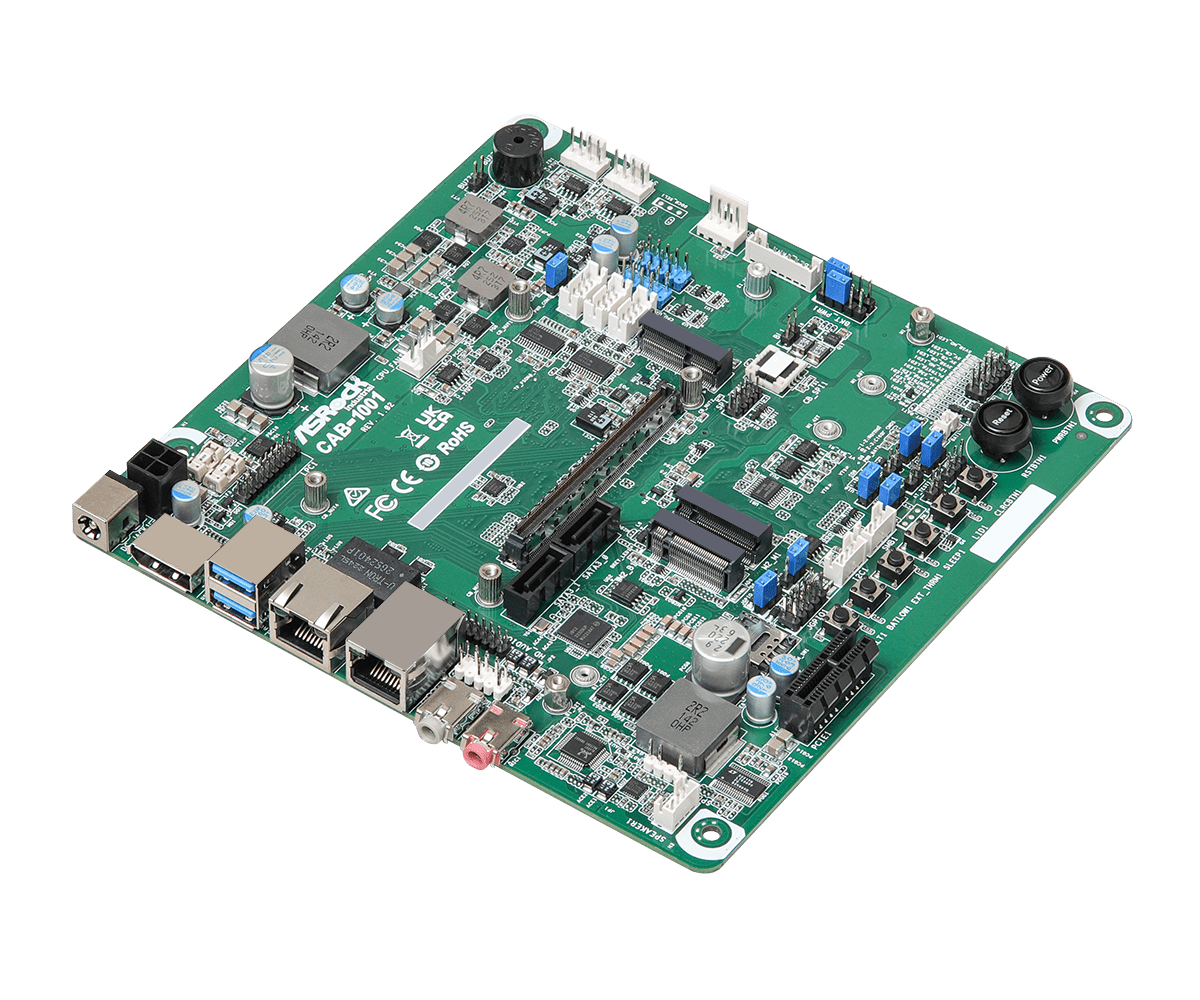

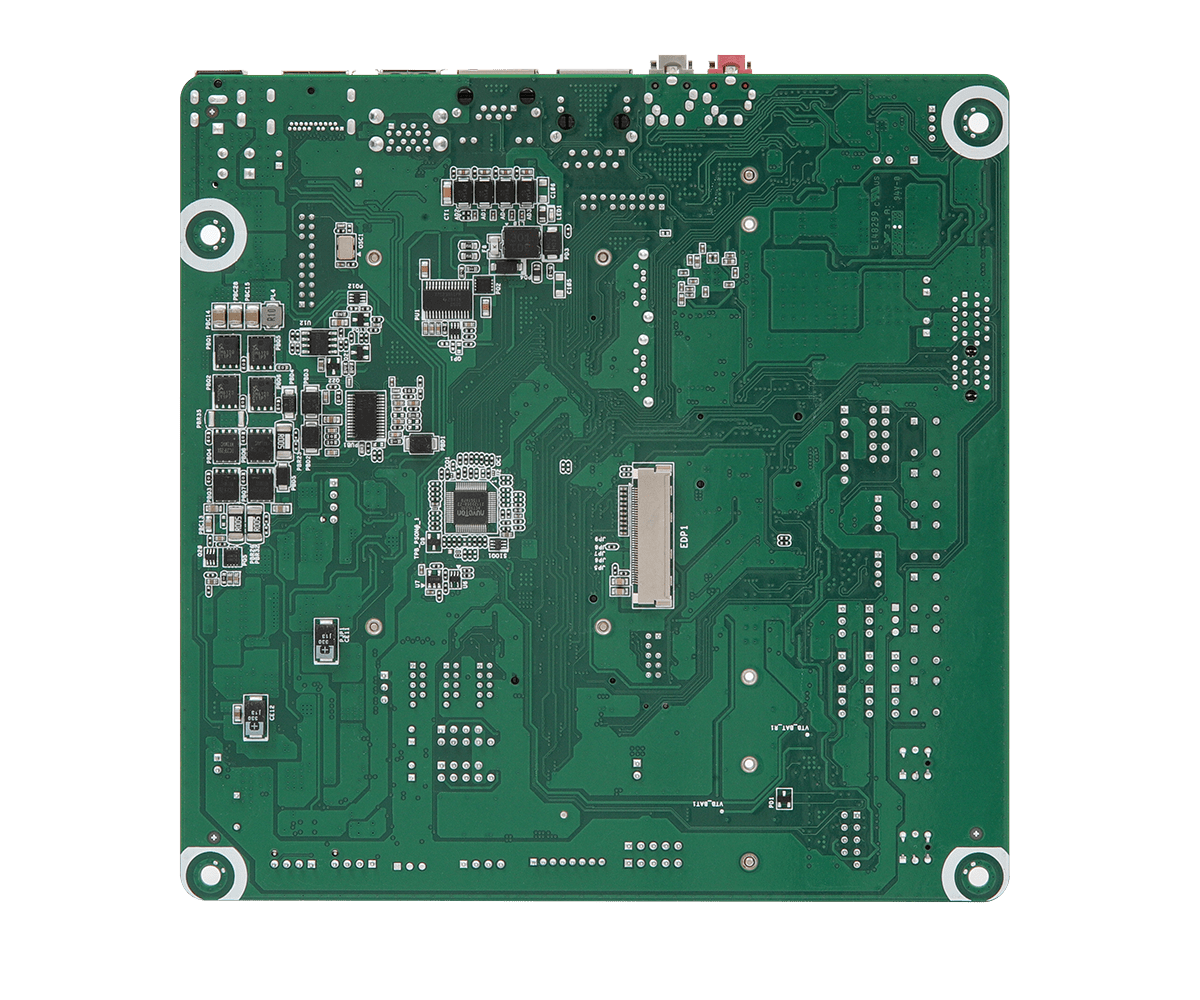

CAB-1001 COM Express Motherboard
- COM Express Type 10 Pin Out
- Supports COM Express Mini Module
- Supports Dual Digital Display Interfaces (DDI0) with DisplayPort and eDP output
- 4 x USB 2.0, 2 x USB 3.2 Gen2, 1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 2 x SATA3
- 1 x Intel 1 Gigabit LAN
- TPM Header
- 9V~20V DC-In (4-pin DC Jack)
产品规格
Form Factor
| Dimensions | mini-ITX (6.7-in x 6.7-in x 0.82-in, 17.0 cm x 17.0 cm x 2.1 cm) |
|---|
Expansion Slot
| PCIe | 1 x PCIex1 (Option) |
|---|---|
| M.2 | 1 x M.2 (Key B, 3042/3052) with PCIex1 and USB 2.0 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 |
| SIM Socket | 1x SIM socket |
Audio
| Interface | Realtek ALC897 HD, High Definition Audio. Mic-In, Line-Out |
|---|
Ethernet
| Controller/ Speed | LAN1: 1 x slot 10/100/1000/2500 Mbps LAN2: Intel® I210AT with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

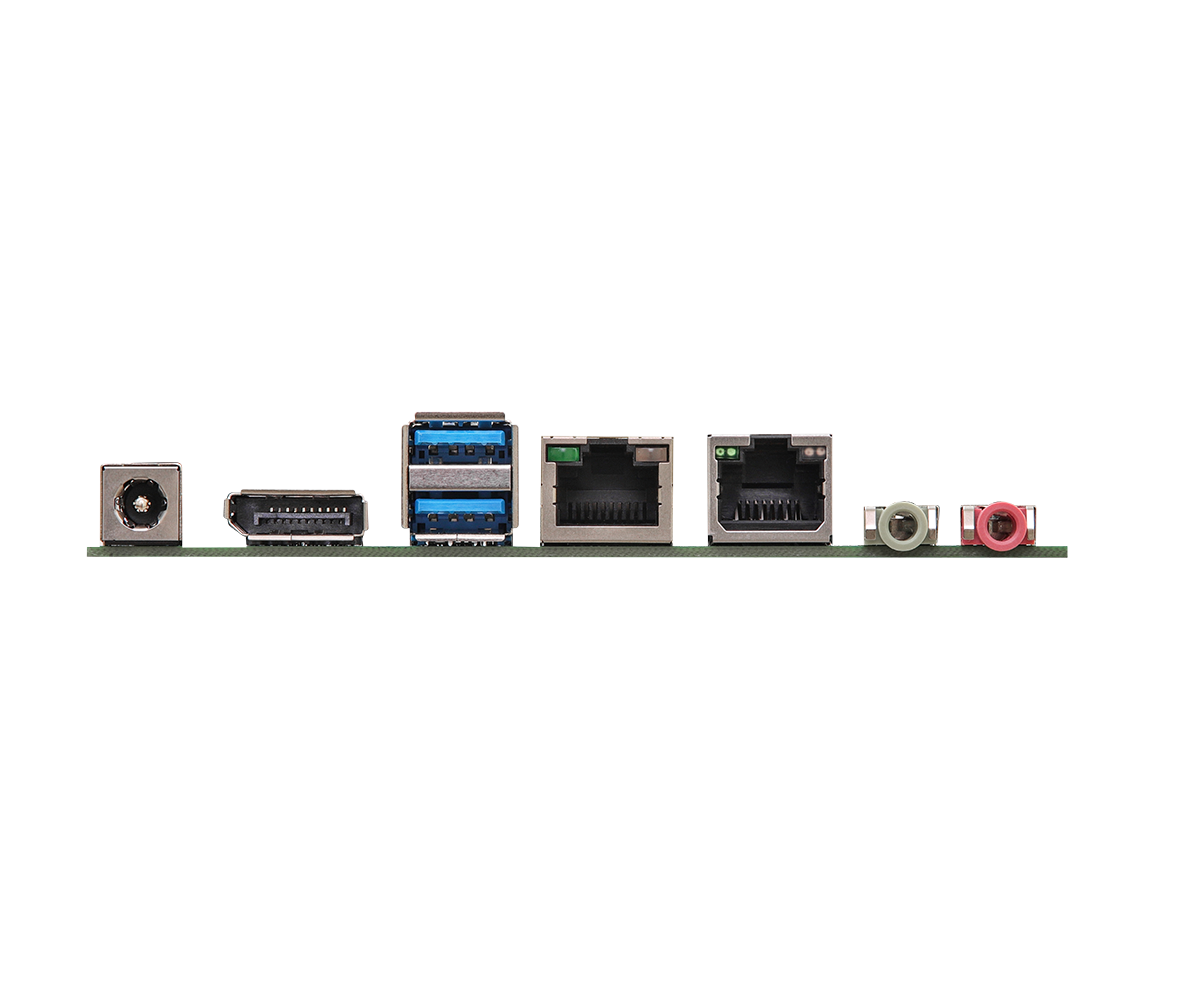

Rear I/O
| DisplayPort | 1 x DP 1.4 |
|---|---|
| Ethernet | 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 |
| Audio | 2 (Mic-in, Line-out) |
| DC Jack | 1 x DC in |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | 1 x COM1(RS-232), 2 x TX / RX / GND |
| GPIO | 4 x GPI, 4 x GPO |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| CAN Bus | 1 x CAN Bus (1 x 2.00 pitch header) |
Security
| TPM | TPM Header |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 3042/3060/2280) with PCIe x1 |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~20V DC-In (4-pin DC Jack) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
