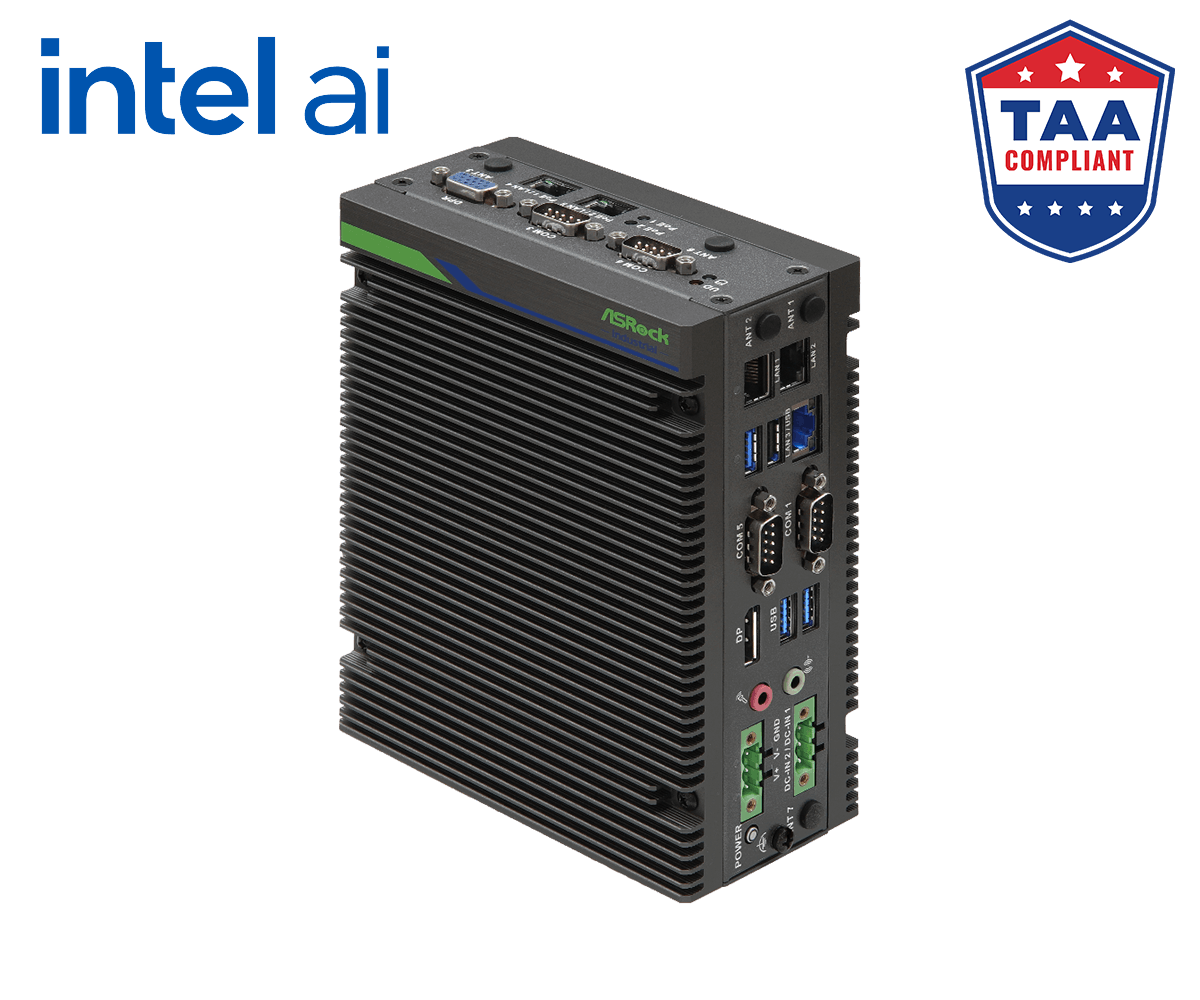

iEP-7030E Series Industrial IoT Controller

Intel® Core™ Ultra 155H Processor (Meteor Lake-H)
High-Performance Intel® Arc™ Graphics
Integrated NPU for Dedicated AI Acceleration
Fan-less and Rugged Design
Operating Temperature: -25°C to 50°C
Dual 9V/19V to 36V Wide-Range DC Power Input
3 x Intel® i226-IT LAN
2 x Intel® i210-AT LAN, Supports IEEE 802.3af for PoE SKU
8DIs/8DOs with sink/source isolation 36V for 8DIO SKU
Support Intel® IN-Band ECC
TAA Compliant

データシート

製品概略

製品仕様

Processor System

CPU	Intel® Core™ Ultra processors 155H, 6P+8E, 28W
BIOS	AMI SPI 256 Mbit
Chipset	MCP

Memory

Technology	Dual Channel DDR5 5600 MHz
Capacity	Up to 64GB
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Arc™ graphics
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz

Expansion Slot

M.2	1 x M.2 3042/3052 Key B (PCIe Gen3x1/USB3.2 mode) - Support 4G LTE/5G module 1 x M.2 2230/2260 Key E (CNVi/PCIe Gen3x1/USB2.0 mode) - Support Wifi/BT module
RF& Antenna	7 x SMA connector hole reserved, support for Basic/5G SKU 5 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU

Audio

Interface	Realtek ALC897, High Definition Audio

Ethernet

Controller/ Speed	LAN1/LAN2/LAN3 : Intel® I226IT with 10/100/1000/2500 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector	RJ45

Front I/O

Audio	1 x Mic-in 1 x Line-out
COM	2 x RS-232/422/485
Ethernet	3 x 2.5G LAN
HDMI	1 x HDMI 2.0b
USB	3 x USB 3.2 Gen2x1 1 x USB 2.0
LED	2 x Diagnostic LED 2 x DC-IN LED
DC-IN	2 x 3-pin Phoenix type
Power Button	1 (with LED)

Rear I/O

SIM Card	1 x Nano SIM Card slot
Micro SD Card	1 x Micro SD card slot (Support SD specification v3.0 UHS-I: SDR25/SDR50)

Manageability / Security

Manageability	Intel® In-Band Manageability
Security	TPM2.0

Top I/O

COM	1 x RS-232/422/485
Ethernet	2 x 1G LAN for 5LAN SKU only
PoE	2 x 1G LAN, support IEEE 802.3AF for PoE SKU only
LED	2 x PoE LED for PoE SKU only
Digital I/O	4DIs/4DOs for all SKU (15-pin D-sub connector) 8DIs/8DOs with sink/source isolation 36V for 8DIO SKU only (2x10-pin connector)

Storage

M.2	1 x M.2 2280 Key M (PCIe Gen4 x4)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

DC Input	For Basic/5LAN/5G/8DIO SKU : DC 9V to 36V, Redundant Power Input For PoE SKU : DC 19V to 36V, Redundant Power Input OVP, UVP, OCP, plus 80V surge protection
AC to DC Adaptor (Option)	Adapter 120W for Basic/5LAN/5G SKU - AC input 100-240Vac, 1.8A 50-60Hz, DC output 19V, 6.32A, Adapter 330W for PoE SKU only - AC input 100-240Vac, 4.2A 50-60Hz, DC output 24V, 13.75A
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground

Environment

Operating Temp	-25°C~50°C (-13°F~122°F) (with airflow 0.5~0.8m/s)
Storage Humidity	-40°C ~ 85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)

Mechanical

Construction	Aluminum
Dimensions (L x W x H)	For Basic/8DIO SKU : 55 x 170 x 134 mm For PoE/5LAN/5G SKU : 68 x 170 x 134 mm
Mounting (Option)	For Basic/8DIO SKU : DIN-Rail, Wall Mount, VESA Mount For PoE/5LAN/5G SKU: Wall mount, Din Rail
Net Weight	TBD

Standards and Certifications

Safety	EN 62368-1 (LVD)
EMC	EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A
EMS	IEC 61000-4-2, ESD protection Level 4 : Contact +/-8 KV, Air +/-15
Shock	IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD
Vibration	IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD

Others

OS Support	Windows 11 / Linux
Packing List	3 x M2*2 Screw Package 2 x 3-pin phoenix connector 1 x System QIG
Optional Items	(1) 19V/120W Power Adapter for Basic/5LAN/5G/8DIO SKU (2) 24V/330W Power Adapter for PoE SKU (3) WIFI Kits (include WIFI Module, Antenna and SMA Cable) (4) 4G Kits (include 4G Module, Antenna and SMA Cable) (5) 5G Kits (include 5G Module, Antenna and SMA Cable) (6) DIN Rail Kit (7) Wall Mount Kit (8) VESA Mount Kit

上記製品は事前通知がないまま仕様変更する可能性はあります。製品のブランドと製品名は商標としてアスロックインダストリアルが所有、ユザー側より製品の既存仕様に対して変更を行われた場合弊社側一切保証を付けません。

サポート

OS:

説明	情報	OS	Date	ダウンロード
説明	NPU driver ver: 32.0.100.4778	情報	Size: 92 Mib Version:32.0.100.4778 SHA256:a36d9e7285cc9d4a380f27a79ebb117aace4f4b5585041e8dd5ee2d4e8083afd Filename:NPU driver ver 32.0.100.4778 Release Note	OS	Win 11 x 64	Date	2026-08-05	ダウンロード	Global 中国
説明	VGA Driver ver: 32.0.101.8860	情報	Size: 875 Mib Version:32.0.101.8860 SHA256:625b1da0c9d48b1de1d73bd7c94cfc711355ce65d01b57750ff80a6a480d9710 Filename:VGA Driver ver 32.0.101.8860.zip Release Note	OS	Win 11 x 64	Date	2026-08-05	ダウンロード	Global 中国
説明	Bluetooth driver ver:24.50.0-64UWD	情報	Size: 27 Mib Version:24.50.0-64UWD SHA256:225101c3e31194a710e986fe2796eaf28ee32dddccd7670644abf0bfffb339df Filename:Bluetooth driver ver24.50.0-64UWD Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2026-08-05	ダウンロード	Global 中国
説明	Intel Rapid Storage Technology driver and utility ver:20.2.6.1025.3	情報	Size: 8680 Kib Version:20.2.6.1025.3 SHA256:0febde3ef6c0d3252e10052041e0bc6c40e902567732296de59e8c0d5978ca77 Filename:Intel Rapid Storage Technology driver and utility ver20.2.6.1025.3.zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2026-08-05	ダウンロード	Global 中国
説明	[Beta] HD Audio Driver(10007.1_WHQL)	情報	Size: 77 Mib Version:10007.1_WHQL SHA256:7df3bc97b56fa678a1d1e495b75266b27d3cccc75466998d67a7dfc9ef979eb6 Filename:HD Audio Driver(10007.1_WHQL).zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2026-08-05	ダウンロード	Global 中国
説明	Intel Lan driver ver:31.2.1	情報	Size: 1107 Mib Version:31.2.1 SHA256:37c82af32c36d41b112dc2f37e35c94b9c7342b2b9fd18c02fa3fdd5e4e81154 Filename:Intel I210 Lan driver ver31.2.1.zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2026-08-05	ダウンロード	Global 中国
説明	Intel Management Engine driver ver:2618.9.30.0	情報	Size: 1210 Mib Version:2618.9.30.0 SHA256:7bb85b5f773cfa998dfd31ea1ce5dcf72baa69fa9e1832eebd5fd9f5813906c2 Filename:Intel Management Engine driver ver2618.9.30.0.zip Release Note	OS	Win 11 x 64 , Win 10 x 64	Date	2026-08-04	ダウンロード	Global 中国
説明	[Beta] Intel WLAN Driver ver:23.100.0	情報	Size: 40 MiB Version: 23.100.0 SHA256: b03e5c219907056c17217f9f1d101ceeac33a037dd7df5322b828eb89920b561 Filename: Intel_WLAN(23.100.0).zip Release Note	OS	Win 11 x 64	Date	2025-03-26	ダウンロード	Global 中国
説明	[Beta] COM Port driver ver:220211	情報	Size: 3101Kib Version:v220211 SHA256: 4b40a318bec45a4e7c5def62a38f415337900acc5c9e5382a9066e00ec4c964e Filename:COM(v220211).zip	OS	Win 11 x 64	Date	2025-03-25	ダウンロード	Global 中国
説明	[Beta] GNA ver: 03.05.00.1574	情報	Size: 1186Kib Version: 03.05.00.1574 SHA256: a7273bfe3bee1599bd5805fecdd5f84a1eca117b9e50ca37fc6718d12efe55fb Filename: GNA(v03.05.00.1574).zip Release Note	OS	Win 11 x 64	Date	2025-03-25	ダウンロード	Global 中国
説明	[Beta] Intel HID Event Filter ver: 2.2.2.5 PV	情報	Size: 47Mib Version: 2.2.2.5 PV SHA256: ecced5ac656afc93789dcdbf180736e13621ce85dd6e1ac59225865ae51aec5d Filename: Intel HID Event Filter ver(v2.2.2.5 PV).zip Release Note	OS	Win 11 x 64	Date	2025-03-25	ダウンロード	Global 中国
説明	[Beta] PMT ver: 3.1.2.2	情報	Size: 1180Kib Version: 3.1.2.2 SHA256: d850dad52522642936b7705206d49490178269848a44d526c86dad5db5c4cbf5 Filename: PMT(v3.1.2.2).zip Release Note	OS	Win 11 x 64	Date	2025-03-25	ダウンロード	Global 中国
説明	[Beta] Intel Serial IO driver ver: 30.100.2318.58	情報	Size: 2623Kib Version: 30.100.2318.58 SHA256: f56c657f8c565f46fbdfb85aa2d5a1abb9185de625ef810619cd82bceb9ee59a Filename: Intel Serial IO driver ver(v30.100.2318.58).zip Release Note	OS	Win 11 x 64	Date	2025-03-25	ダウンロード	Global 中国
説明	[Beta] Chipset Driver ver: 10.1.19627.8423-Public-MUP	情報	Size: 5172Kib Version:10.1.19627.8423-Public-MUP SHA256: dc7f9581ac8cfdf8b7c6979b2d3fc8ff303c697972d6bf13f206ee0cf1b75fe0 Filename:Chipset(v10.1.19627.8423-Public-MUP).zip Release Note	OS	Win 11 x 64	Date	2025-03-25	ダウンロード	Global 中国

バージョン	BIOSの更新方法 / どうやってBIOSを更新する	説明	情報	Date	ダウンロード
バージョン	1.40	BIOSの更新方法 / どうやってBIOSを更新する	BIOS	説明	Add Power Limit 1 BIOS item for customer to adjust for final solution	情報	Size: 11 MiB SHA256: 750b2926a4ba2810d7b5cd8c55077a12486ae8abd955c7ed0940e41e774f282e	Date	2025-11-13	ダウンロード	Global 中国
バージョン	1.40	BIOSの更新方法 / どうやってBIOSを更新する	Windows	説明	Add Power Limit 1 BIOS item for customer to adjust for final solution	情報	Size: 11 MiB SHA256: 220f2bf82f63293ca88a14b593e6a803f3610f634bbcf44ac6121d350709d529	Date	2025-11-13	ダウンロード	Global 中国
バージョン	1.30	BIOSの更新方法 / どうやってBIOSを更新する	BIOS	説明	Enhance system compatibility	情報	Size: 11 MiB SHA256: 49200798813eee84f9e1213a86b9dbe3f598d1df26d4787a5c18e8c27e9e541b	Date	2025-08-22	ダウンロード	Global 中国
バージョン	1.30	BIOSの更新方法 / どうやってBIOSを更新する	Windows	説明	Enhance system compatibility	情報	Size: 11 MiB SHA256: 11cf4ebb0c1005b0e5a4f54f98dc04d44307d971b94a8793ef1ecf84aa0e7531	Date	2025-08-22	ダウンロード	Global 中国
バージョン	1.20	BIOSの更新方法 / どうやってBIOSを更新する	BIOS	説明	First release	情報	Size: 11 MiB SHA256: 943e4b0d697cb53435c5507d04a2eda98679a278da5b765881aa2159a849702c	Date	2025-03-27	ダウンロード	Global 中国
バージョン	1.20	BIOSの更新方法 / どうやってBIOSを更新する	Windows	説明	First release	情報	Size: 11 MiB SHA256: 590ef01adec381bbe2c3b9a60e389266d7eb6604b1f1488bbcba1b25564803d4	Date	2025-03-27	ダウンロード	Global 中国

この書類はPDFフォーマット. Adobe Acrobat Readerまた持っていないお方はAdobe経由でダウンロード可能です。

説明	言語	Date	ダウンロード
説明	Quick Installation Guide	言語	English	Date	2025-03-06	ダウンロード	Global 中国
説明	User Manual	言語	English	Date	2025-03-06	ダウンロード	Global 中国

発注情報

品名/型式	型番	製品説明
品名/型式	iEP-7030E-020	型番	90PXGCU0-00000000	製品説明	Basic SKU CPU : Intel Core Ultra 155H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20°C~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
品名/型式	iEP-7030E-021	型番	90PXGCU0-10000000	製品説明	PoE SKU CPU : Intel Core Ultra 155H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
品名/型式	iEP-7030E-022	型番	90PXGCU0-20000000	製品説明	5LAN-WIFI SKU CPU : Intel Core Ultra 155H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
品名/型式	iEP-7030E-023	型番	90PXGCU0-30000000	製品説明	5LAN-5G SKU CPU : Intel Core Ultra 155H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
品名/型式	iEP-7030E-024	型番	90PXGCU0-40000000	製品説明	5G-WIFI SKU CPU : Intel Core Ultra 155H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
品名/型式	iEP-7030E-025	型番	90PXGCU0-50000000	製品説明	8DIO SKU CPU : Intel Core Ultra 155H Processor w/o Memory, Storage, Adapter System Operating Temperature is up to -20~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
品名/型式	ADAPTER 120W 19V	型番	04G266001001AI	製品説明	FSP/FSP120-ABAN3/9NA1208545 for Basic, 5LAN, 5G, 8DIO SKU
品名/型式	ADAPTER 330W 24V	型番	04G266001200AI	製品説明	FSP/FSP330-AAAN3/9NA3300215 for PoE SKU
品名/型式	US PWR CORD	型番	14G110001100AK	製品説明	L:1.5M BLACK
品名/型式	EU/KR PWR CORD	型番	14G110001800AK	製品説明	L:1.5M BLACK
品名/型式	WALL MOUNT KIT	型番	13G0207860A0AI	製品説明	Horizontal Positions for Basic SKU
品名/型式	VESA MOUNT KIT	型番	13G020554010AI	製品説明	Horizontal Positions for Basic SKU
品名/型式	WALL MOUNT KIT	型番	13G020760000AI	製品説明	Vertical Positions for all SKU
品名/型式	DIN RAIL KIT	型番	13G020761000AI	製品説明	Vertical Positions for all SKU
品名/型式	iEP-7030E SERIES WIFI KITS	型番	90PCA2P0-00000000	製品説明	WIFI Module (INTEL/AX210.NGWG.NV/999M85) x1 Antenna x2 SMA Cable 185mm x2
品名/型式	iEP-7030E SERIES 5G KITS	型番	90PCA2P0-00000003	製品説明	5G Module (QUECTEL/RM520NG) x1 Antenna x4 SMA Cable 220mm x2 SMA Cable 300mm x2
品名/型式	iEP-7030E SERIES 4G LTE KITS	型番	90PCA2P0-00000004	製品説明	4G LTE Module (QUECTEL/EM05) x1 Antenna x2 SMA Cable 220mm x1 SMA Cable 300mm x1
