Preliminary

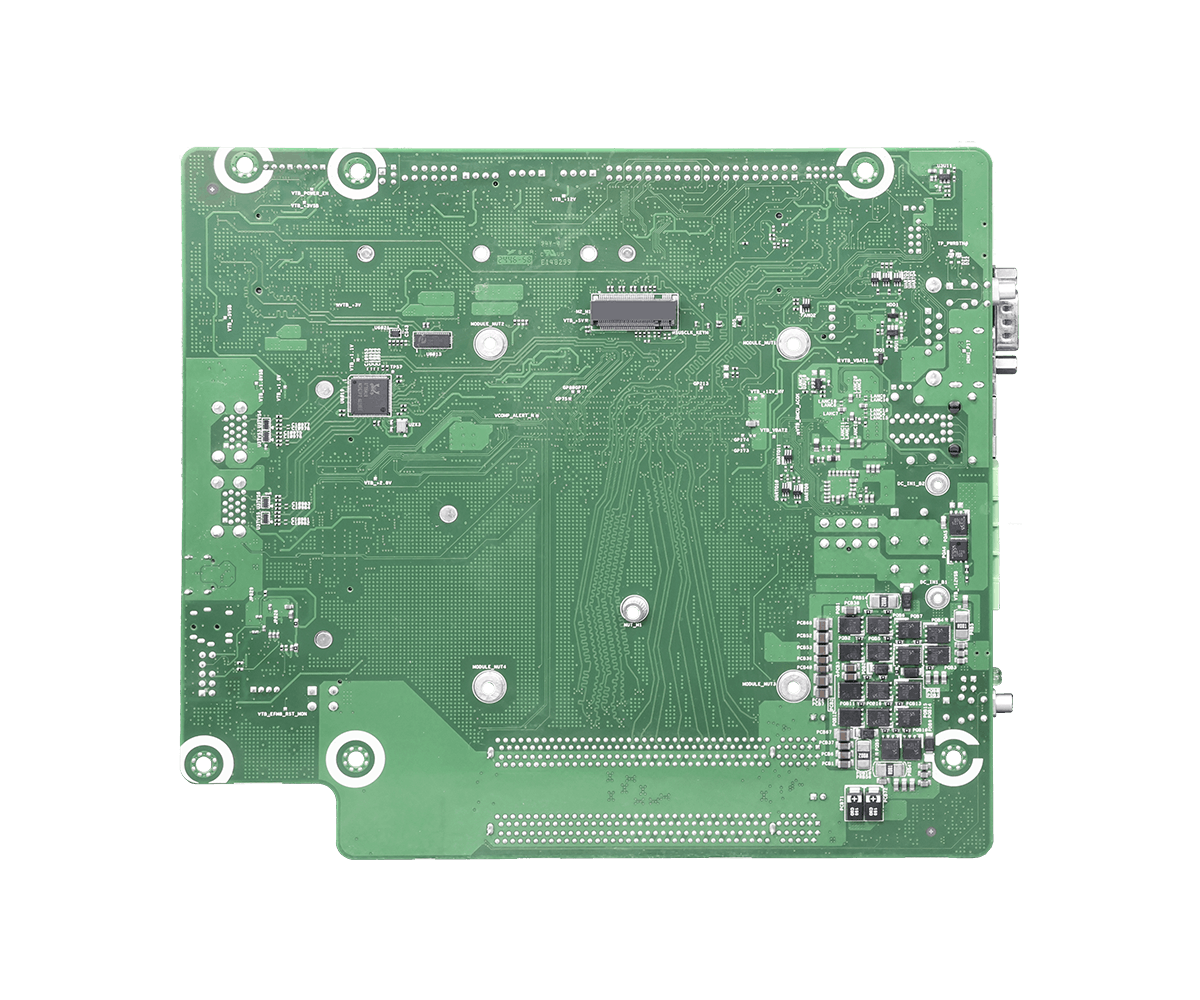

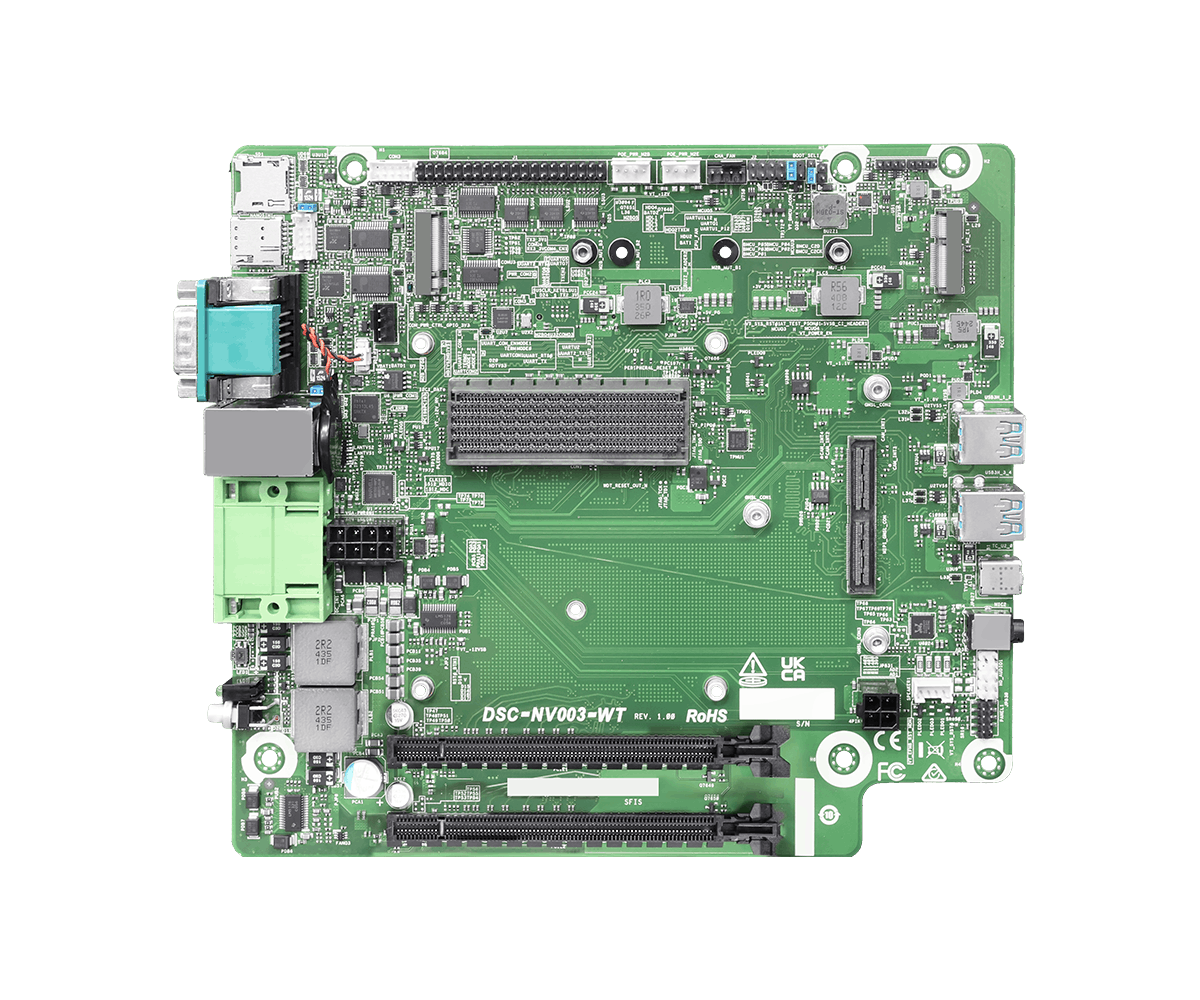

NVIDIA Jetson AGX Orin Developer Kit Industrial IoT Controller
- NVIDIA Jetson AGX Orin Industrial (JAOi) SOM support, up to 248 TOPs (INT8)
- NVIDIA Jetson AGX Orin 64GB (JAO 64GB) SOM support, up to 275 TOPs (INT8)
- NVIDIA Jetson AGX Orin 32GB (JAO 32GB) SOM support, up to 200 TOPs (INT8)
- Wide Range Operating Temperature (-25 to 50°C )
- 12-48V Phoenix type DC IN support
- Carrier board support MIPI 120-pin connector and support up to 4 × 4 lane MIPI cameras or support up to 4 × 4 lane GMSLII cameras via FARKA connector
- 2 x PCIe Gen4 x8 signal on 2 x PCIe x16 Connectors
- 1 x M.2 Key M 2280 (PCIe Gen4x4) and 1x Micro SD card for Storage
- 1 x M.2 Key B 3042/3052/2280 (USB3.2 Gen2/ USB2.0 x1 / PCIe Gen3x1) w/Nano SIM Socket for 4G LTE/5G, POE or storage
- 1 x M.2 Key E Type 2230/2260 (PCIe Gen3x1 + USB2.0) for Wifi or POE, PCIe signal share with LAN2 I226IT
- Up to 12*POE support via M.2 E Key and B Key module, and PCIE-2.5GPoE-4P add on cards. (each port support up to IEEE 802.3af)
- 1 x SPEAKER-OUT-L/R Wafer with 2W/2W design and 1 x MIC IN
- 1 x 40 pin expansion header for I2S/I2C/SPI/UART/CAN/PWM/GPIO
Overview
Specification
Processor System
| System on Module | -Jetson AGX Orin Industrial (JAOi):Ampere GPU + Arm Cortex-A78AE CPU + 64GB LPDDR5 (+ECC) + 64GB eMMC 5.1 -Jetson AGX Orin 64GB (JAO 64GB):Ampere GPU + Arm Cortex-A78AE CPU + 64GB LPDDR5 + 64GB eMMC 5.1 -Jetson AGX Orin 32GB (JAO 32GB):Ampere GPU + Arm Cortex-A78AE CPU + 32GB LPDDR5 + 64GB eMMC 5.1 |
|---|---|
| Video | 1 x HDMI 2.0 |
| Memory | -JAOi: 64GB 256-bit LPDDR5 DRAM with ECC Support -JAO 64GB: 64GB 256-bit LPDDR5 DRAM -JAO 32GB: 32GB 256-bit LPDDR5 DRAM |
| TPM | TPM2.0 |
I/O

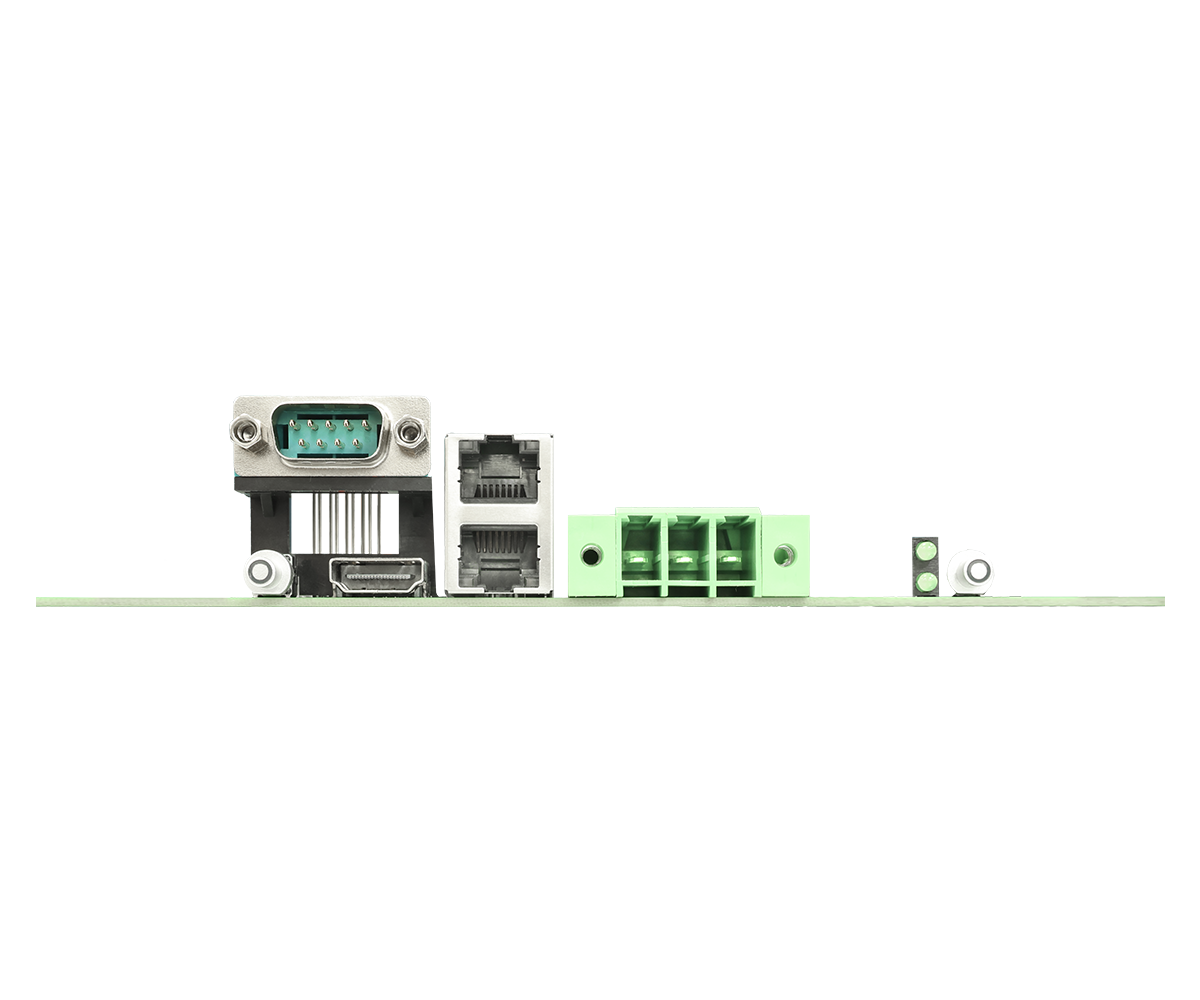

| Ethernet | 2 x RJ-45 connector with transformer inside & LED -LAN1: Marvell_88E1512-A0-NNP2C000 Gigabit Ethernet PHY -LAN2: I226IT(PCIe Ethernet Controller) |
|---|---|
| PoE (Option) | Up to 12*POE support via M.2 E Key and B Key module, and PCIE-2.5GPoE-4P add on cards. (each port support up to IEEE 802.3af) |
| Serial Port | 2 x RS-232/422/485 (1*DB9 connector, 1*on board wafer) |
| Proprietary IO | The 40-pin expansion connector includes -Audio: I2S, Digital Mic, Clock and Control -I2C (2x), SPI, UART, CAN(2x), and PWM (2x) -GPIO Automation Header includes: -Force Recovery Strap -System Reset -Power Button On -Auto-Power-On -Carrier board sleep -System Overcurrent indicator -Wake on LAN (I226IT) -Ground |

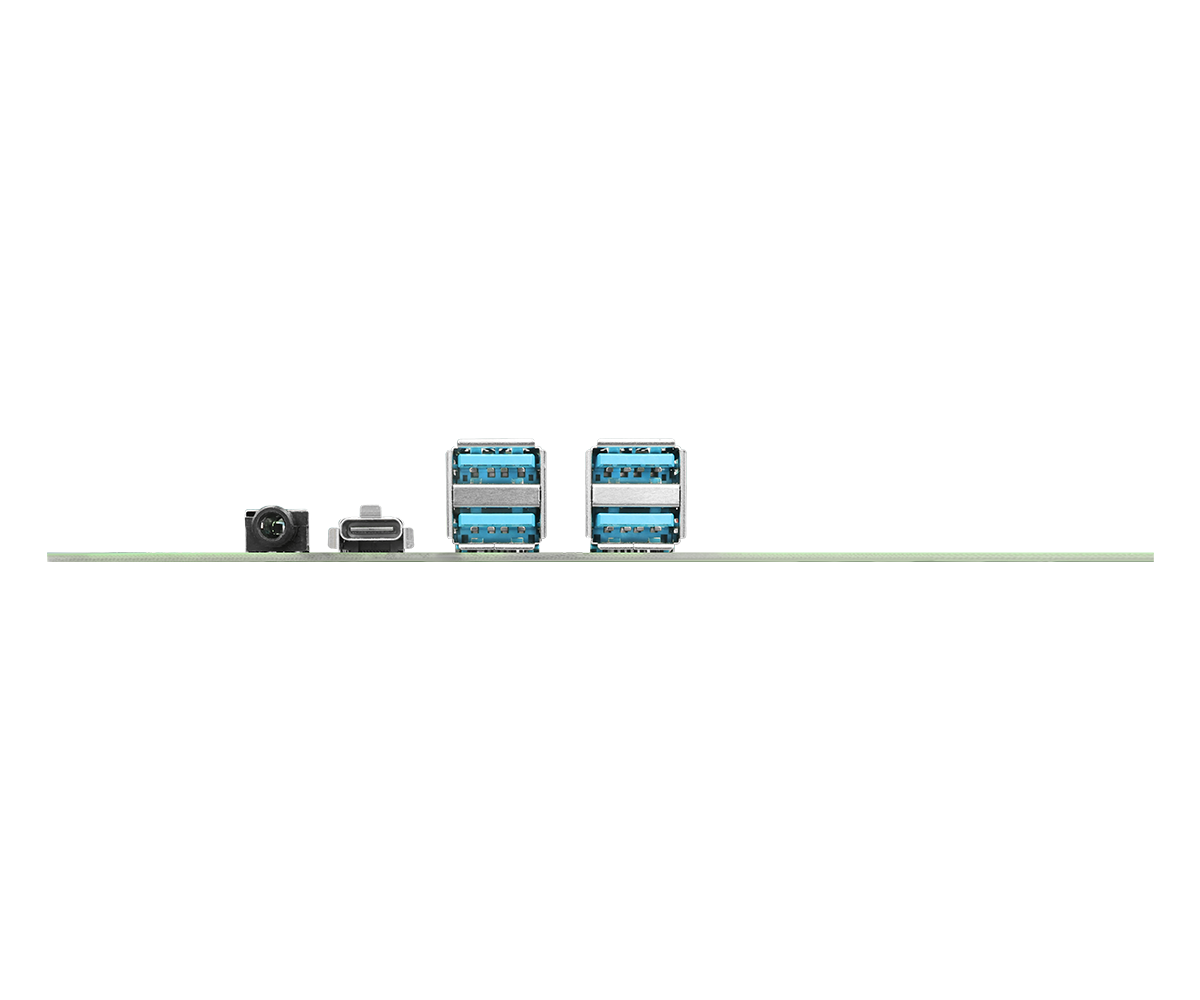

| USB | 4 x USB3.2 Gen2x1 Type A (options:2 x USB3.2 Gen2x1 Type A with lock and 2 x USB3.2 Gen2x1 Type A without lock), 1x Type C USB 2.0 (Device mode only, for OS Flash) |
| Audio | 1 x MIC IN connector SPEAKER-OUT-L+SPEAKER-OUT-R Wafer*1: 2W+2W output 1x audio panel header reserved for MIC IN/LINE OUT |
Add-on Feature / OS Support
| OS Support | NVIDIA JetPack 6.2 *(e) |
|---|
Expansion
| SIM | 1 x Nano SIM Card slot |
|---|---|
| RF& Antenna (Option) | up to 4 x 5G/4G LTE antenna + 2 x Wi-Fi antenna |
| M.2 Socket | 1 x M.2 (Key B, 3042/3052/2280) -For PCIe Gen3 x1 / USB3.2 Gen2x1 5G module (Option) -For PCIe Gen3 x1 / USB3.2 Gen2x1 4G LTE module (Option) -For PCIe Gen3 x1 M.2 B Key 3052 POE module (Option) -For PCIe Gen3 x1 M.2 B Key 2280 SSD module (Option) 1 x M.2 (Key E, 2230) for PCIe Gen3 x1 Wi-Fi and USB2.0 Bluetooth module (Option) or 1 x M.2 (Key E, 2260) for PCIe Gen3 x1 POE module (Option) |
| PCIe | 2*PCIe Gen4 x8 signal on 2*PCIe x16 Connectors |
| MIPI | Carrier board support MIPI 120-pin connector and support up to 4 ×4 lane MIPI cameras or support up to 4 × 4 lane GMSLII cameras via FARKA connector |
Storage
| M.2 | 1 x M.2 (Key M, 2280) for wide temperature PCIe Gen3 x 4 NVMe SSD module (System Operating temperature TBD) or 1 x M.2 (Key M, 2280)for wide temperature PCIe Gen4 x 4 NVMe SSD module (System Operating temperature TBD) (w/ air flow 0.5~0.8m/s) |
|---|---|
| Micro SD Card slot | 1 x Micro SD Card Slot (UHS-I/SDR-50) |
Power Requirements
| DC Input | 12V~48V DC input, 80V Surge Protection. OVP, UVP, OCP, Reverse Protection, Phoenix type connector |
|---|---|
| AC to DC Adaptor (Option) | 120W Adapter, AC input 100-240Vac, 1.8A 50~60Hz, DC output 19V, 6.32A For POE/5G SKU: 330W Adapter, AC input 100-240Vac, 4.2A 50~60Hz, DC output 24V, 13.75A |
Environment
| Operating Temp | -25 to 50°C @60W , (w/ air flow 0.5-0.8m/s)*(e) *(e) means estimation. |
|---|---|
| Storage Temp | -40°C~85°C ( -40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing)*(e) |
Mechanical
| Dimensions | 190.32 (W) x 210.31(D) mm |
|---|---|
| Indicator | 1 x Storage LED 1 x User Define LED |
| Function | Power on button with LED, OS Flash Button, Reset Tact Switch Enable/Disable Auto power on jumper |
| Net Weight | TBD |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
