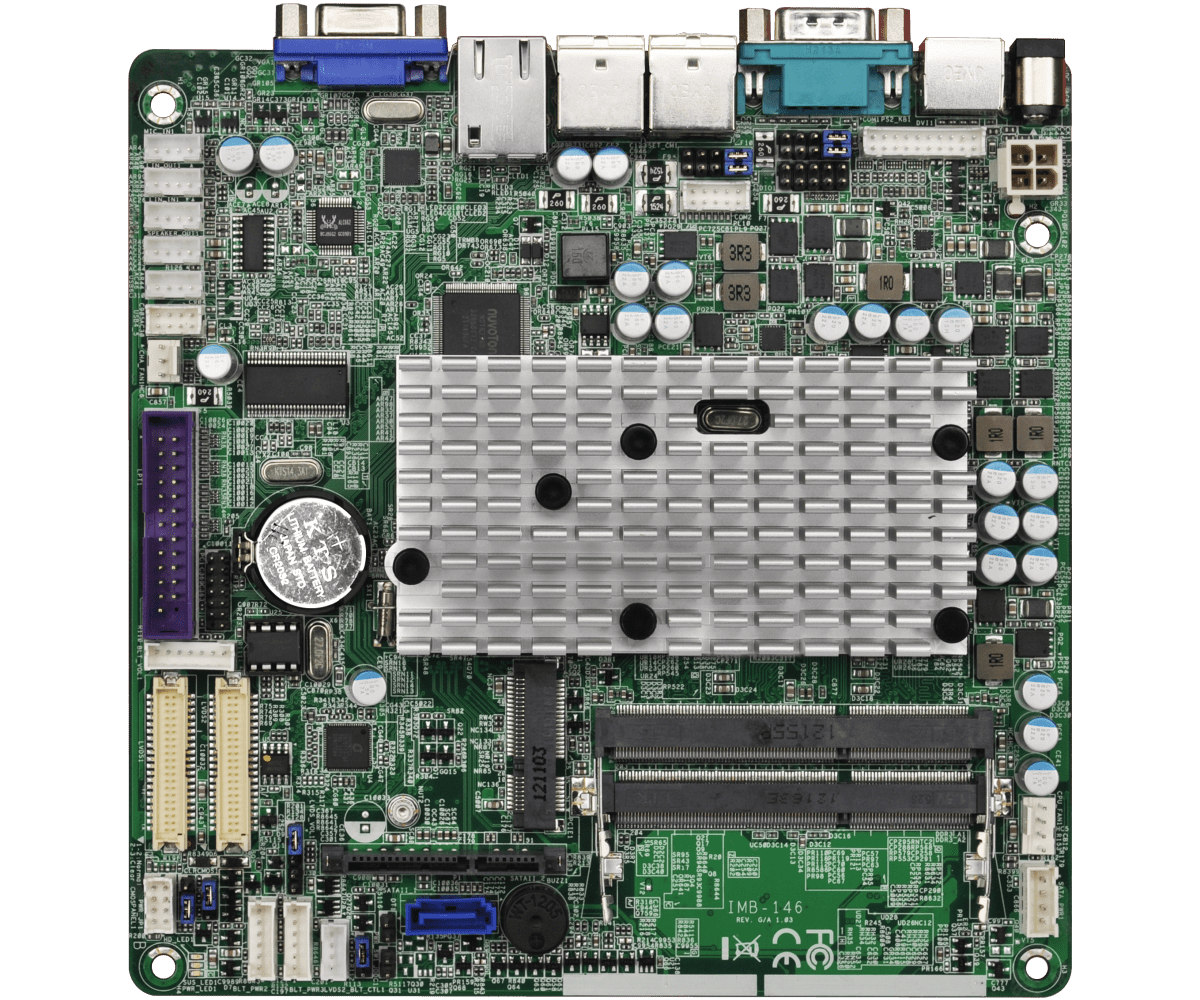

IMB-146 Series Mini-ITX Motherboard

Processor System

Chipset	NM10
BIOS	UEFI
CPU	Intel® Dual-Core Atom™ CedarView Processor D2550 / N2600 / N2800 Supports Hyper-Threading Technology

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Capacity	D2550 / N2800: 4GB N2600: 2GB
Socket	D2550 / N2800: 2 x SO-DIMM N2600: 1 x SO-DIMM
Technology	Single Channel DDR3 800 / 1066 MHz SDRAM

Graphics

DVI	Supports max resolution up to 1920x1200 (option by cable)
MultiDisplay	Yes
VGA	Supports max resolution up to 1920x1200
LVDS	Dual Channel 24-bit, max resolution up to 1920x1200
Controller	Intel® PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0

Expansion Slot

mini-PCIe	1 (Half Size)

Ethernet

Connector	1 x RJ - 45
Controller/ Speed	1 x Realtek RTL8111E-VL with 10/100/1000 Mbps

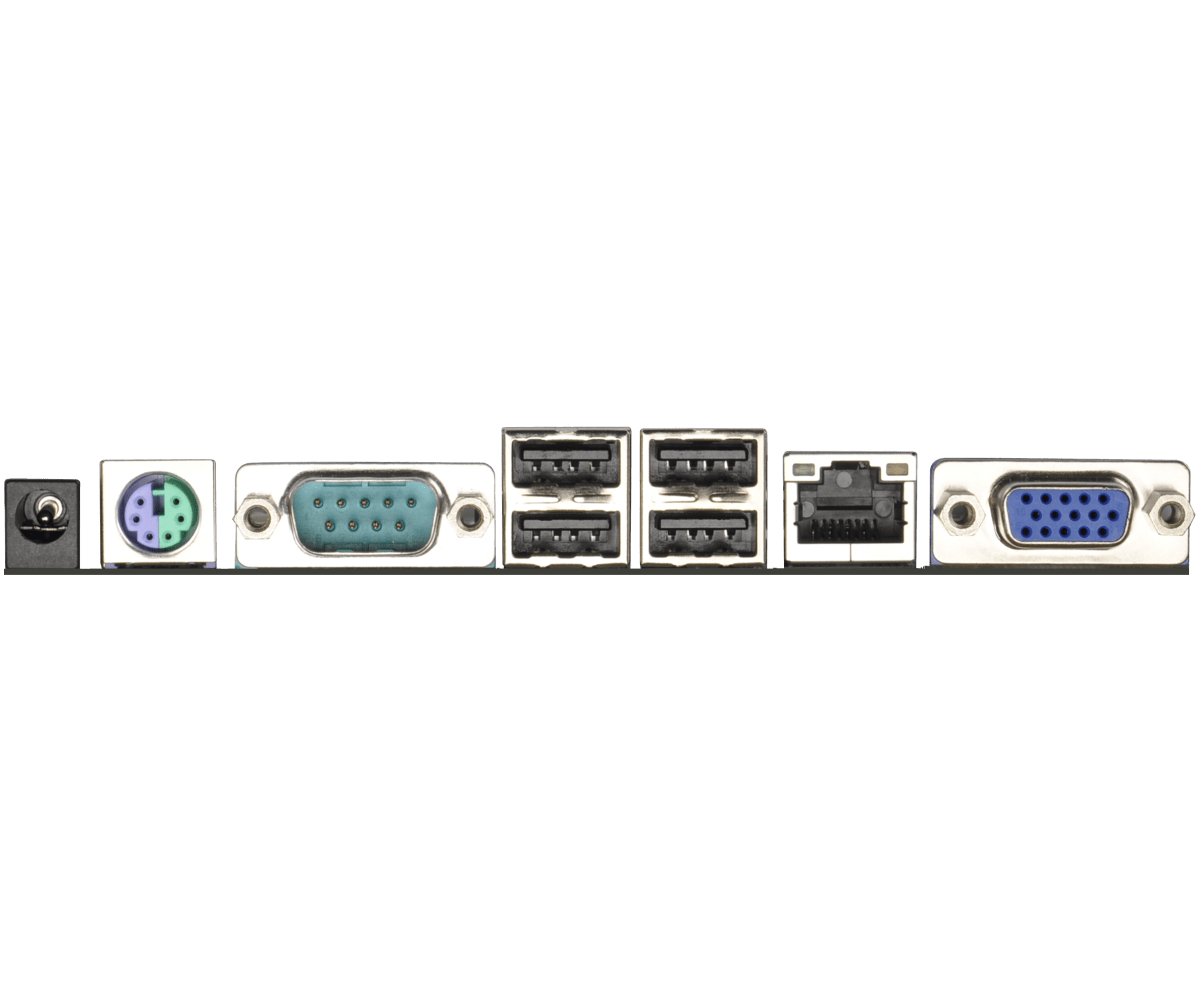

Rear I/O

PS2	1 (Combo)
VGA	1
COM	1 x COM(RS-232)
USB	4 x USB 2.0
Ethernet	1

Internal Connector

Speaker Header
SATA PWR Output	1
Parallel	1
GPIO	4 x GPI + 4 x GPO
COM	1 x COM(RS-232)
LVDS	2
USB	3 x USB 2.0

Storage

SATA	1 x SATA2 (3.0Gb/s) 7-pin + 1x SATA2 (3.0Gb/s) 22pin

Watchdog Timer

Interval	256 Segments, 0, 1, 2, ...255sec
Output	From Super I/O to drag RESETCON#

Power Requirements

Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Input PWR	12V DC-In (4-pin ATX PWR Con) & DC-IN Jack

Environment

Storage Humidity	5% ~ 90%
Operating Humidity	5% ~ 90%
Storage Temp	-40° C ~ 85° C
Operating Temp	0ºC ~ 60ºC

Others

Packing List	1 x Jumper setting guide 1 x Driver DVD 1 x IO shield 1 x SATA cable 1 x SATA power cable 2 x Screw for mini card

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
