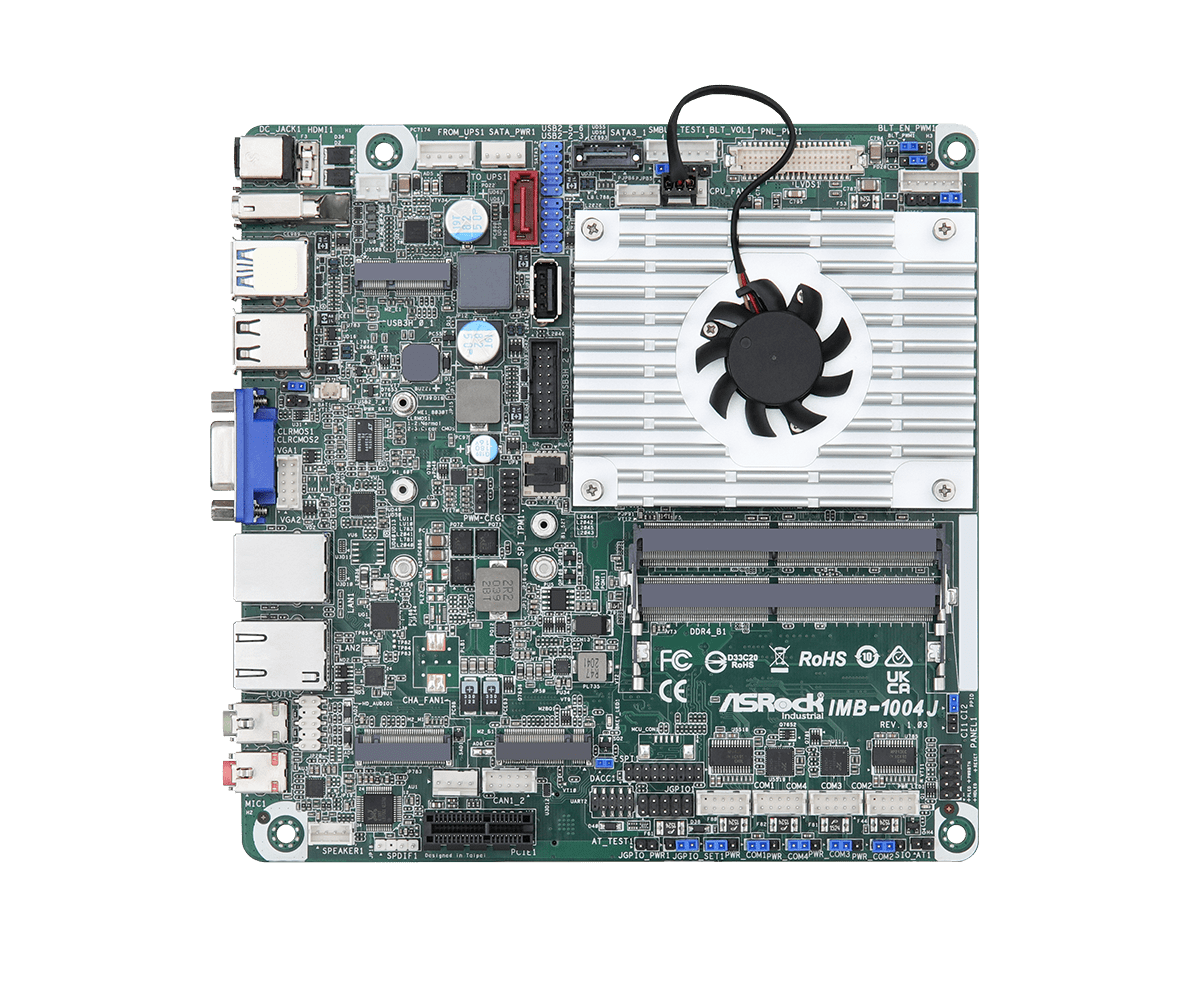

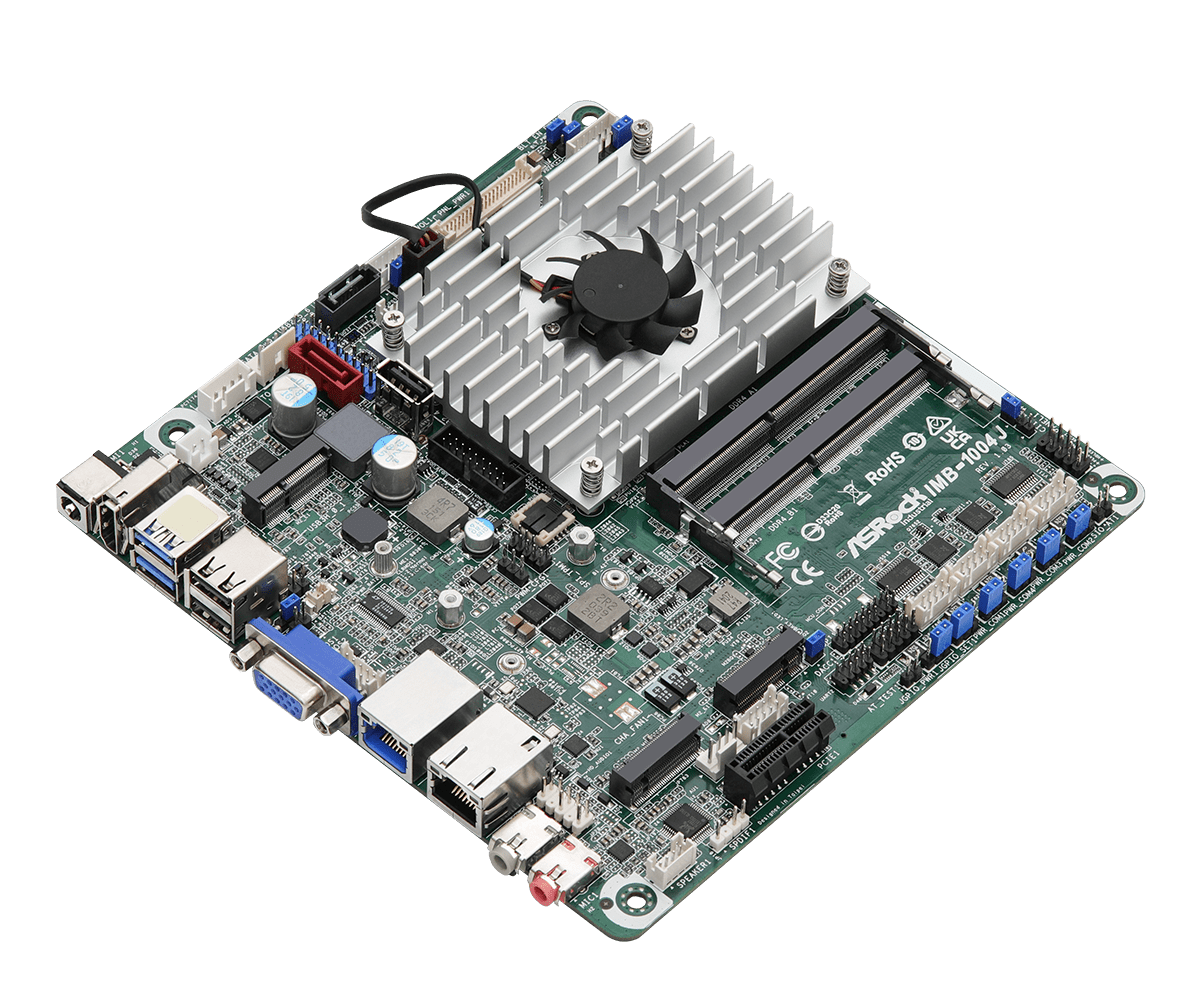

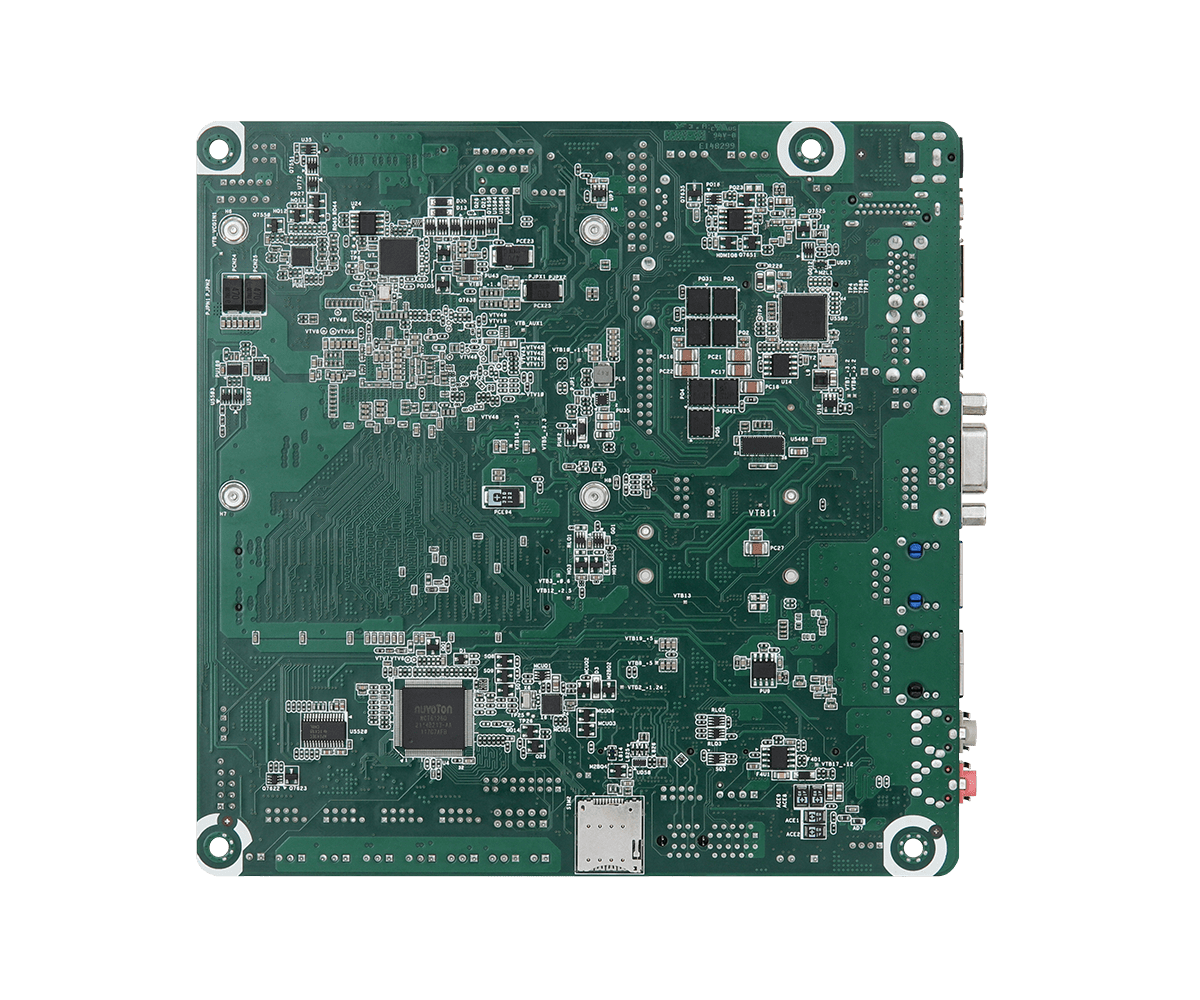

IMB-1004J Mini-ITX Motherboard

Processor System

CPU	Intel® Elkhart Lake SoC Processors J6412, QC, Max Speed Up to 2.6GHz, 10W
Chipset	SoC
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	32GB
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Gen 11 Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1080@60Hz (Connector shared with eDP)
MultiDisplay	Triple Display
VGA	Max resolution up to 1920 x 1200@60Hz
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)

Expansion Slot

PCIe	1 x PCIe x1 (Gen3)
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2/USB 2.0 and SIM for 4G/5G
SIM Socket	1x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ Speed	LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

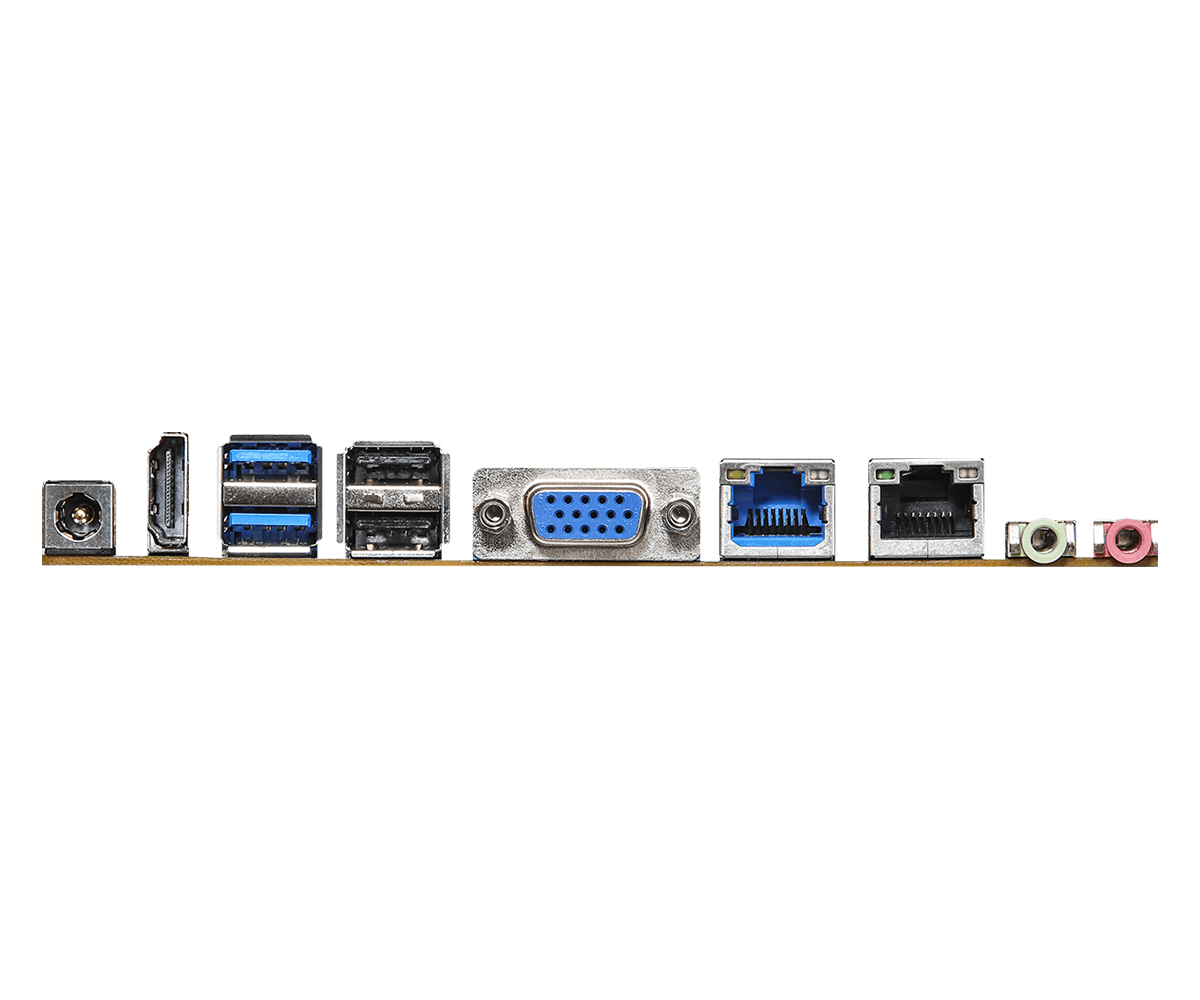

Rear I/O

HDMI	1 x HDMI2.0b
VGA	1
Ethernet	1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB	2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio	2 (Mic-In, Line-Out)
DC Jack	1

Internal Connector

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 header ) 4 x USB 2.0 (2 x 2.54 pitch header) 1 x USB 2.0 (Type A)
COM	2 x COM (RS-232) 2 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
VGA	1
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2(Key M, 2242/2260/2280) with SATA3 and PCIex1 for SSD
SATA	2 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020440020AK) 1 x I/O Shield THIN (13G020440030AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	1 x I/O Shield (13G020440020AK) 1 x I/O Shield THIN (13G020440030AK) 3 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
