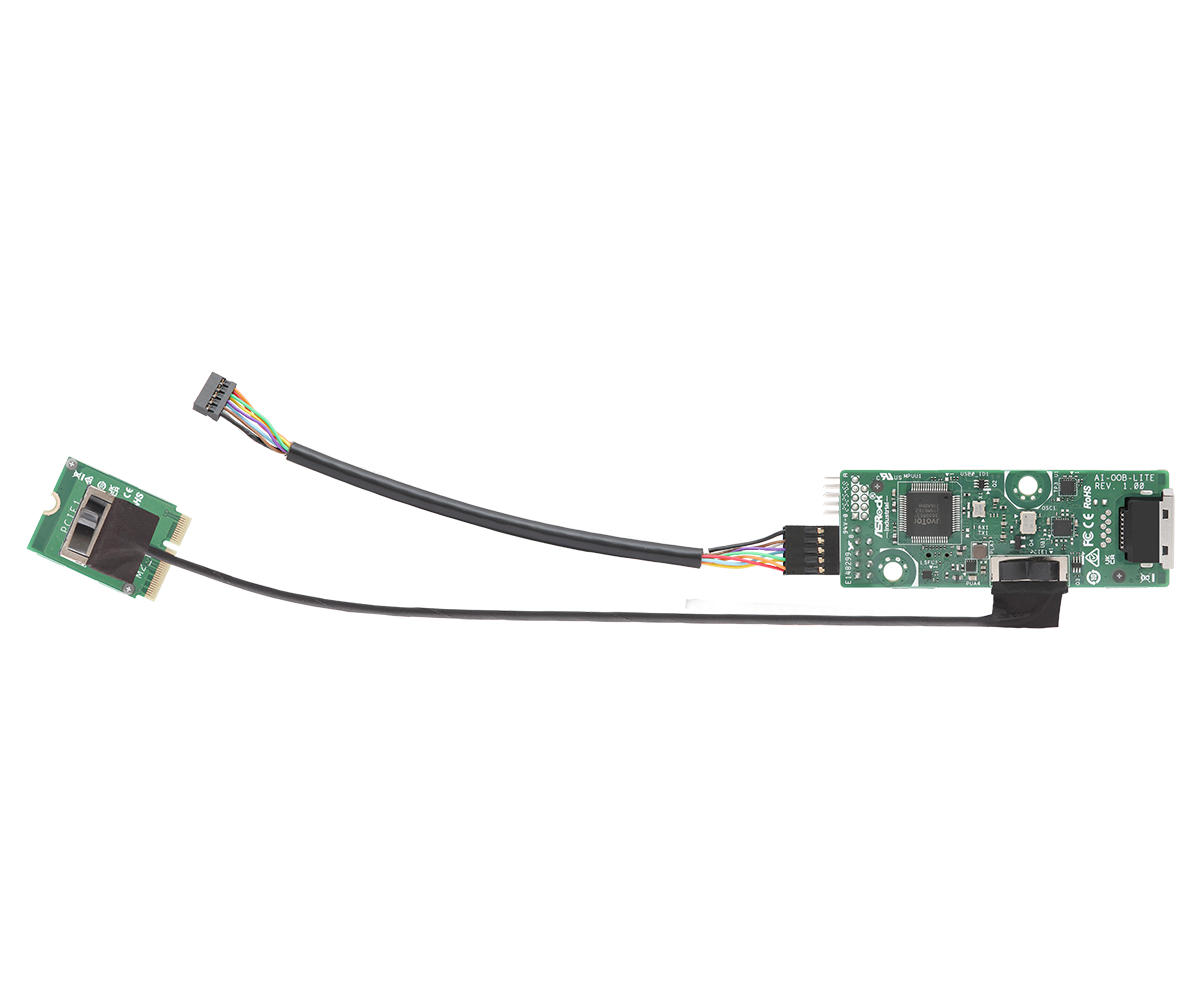

AI-OOB-LITE Kit Out of Band Managament
- [ASRock Industrial Exclusive]
- Support Remote Power On/Off/Scheduling
- Device availability monitoring via heartbeat agent
- 1x RJ45 port supports Intel® I210 Ethernet Connection via NC-SI
- 1 x Gigabit LAN
製品仕様
Specifications
| Form Factor | AI-OOB-LITE: Customized M2E-OOB: M.2 Key E 2230 |
|---|---|
| Function | Out-of-Band Management |
| Dimensions (W x L x H/mm) | AI-OOB-LITE: 26 x 78 x 9.9 M2E-OOB: 22 x 30 x 2.2 |
| Controller / Major IC | Embedded Micro-controller |
| Input Interface/Power | AI-OOB-LITE: +5VSB RJ45(MDI) 20pin Header(PCIe x1, USB 2.0, GPIO x3) M2E-OOB: PCIe x1 USB 2.0 GPIO x3 |
| Output Interface/Power | Remote Power Control 1 x Gigabit LAN* *Note: Must be paired with ASRock Industrial's M2E-OOB expansion card to enable the functionality. |
| Output connector | AI-OOB-LITE: 1 x 2.00mm Panel Header 1 x 2.54mm Panel Header 1 x RJ45 M2E-OOB: 20 pin header x1 |
| Operating Temperature | -20ºC ~ 70ºC(I210-AT) -40ºC ~ 85ºC(I210-IT) |
| Storage Temperature | -40ºC ~ 85ºC |
| Package | AI-OOB-LITE: 1 x AI-OOB-LITE module 1 x Panel Cable (14G000018310AI) 1 x IO bracket (13G03P007000AK) 1 x 2.0 PWR Cable(14G000506610AI) Optional 1 x 2.54 PWR Cable(14G000506510AI) Optional 1 x HTR PWR Cable (14G000617300AI) Optional M2E-OOB: 1 x M2E-OOB module 1 x M2EOOB cable(14G220032010AI) |
上記製品は事前通知がないまま仕様変更する可能性はあります。製品のブランドと製品名は商標としてアスロックインダストリアルが所有、ユザー側より製品の既存仕様に対して変更を行われた場合弊社側一切保証を付けません。
