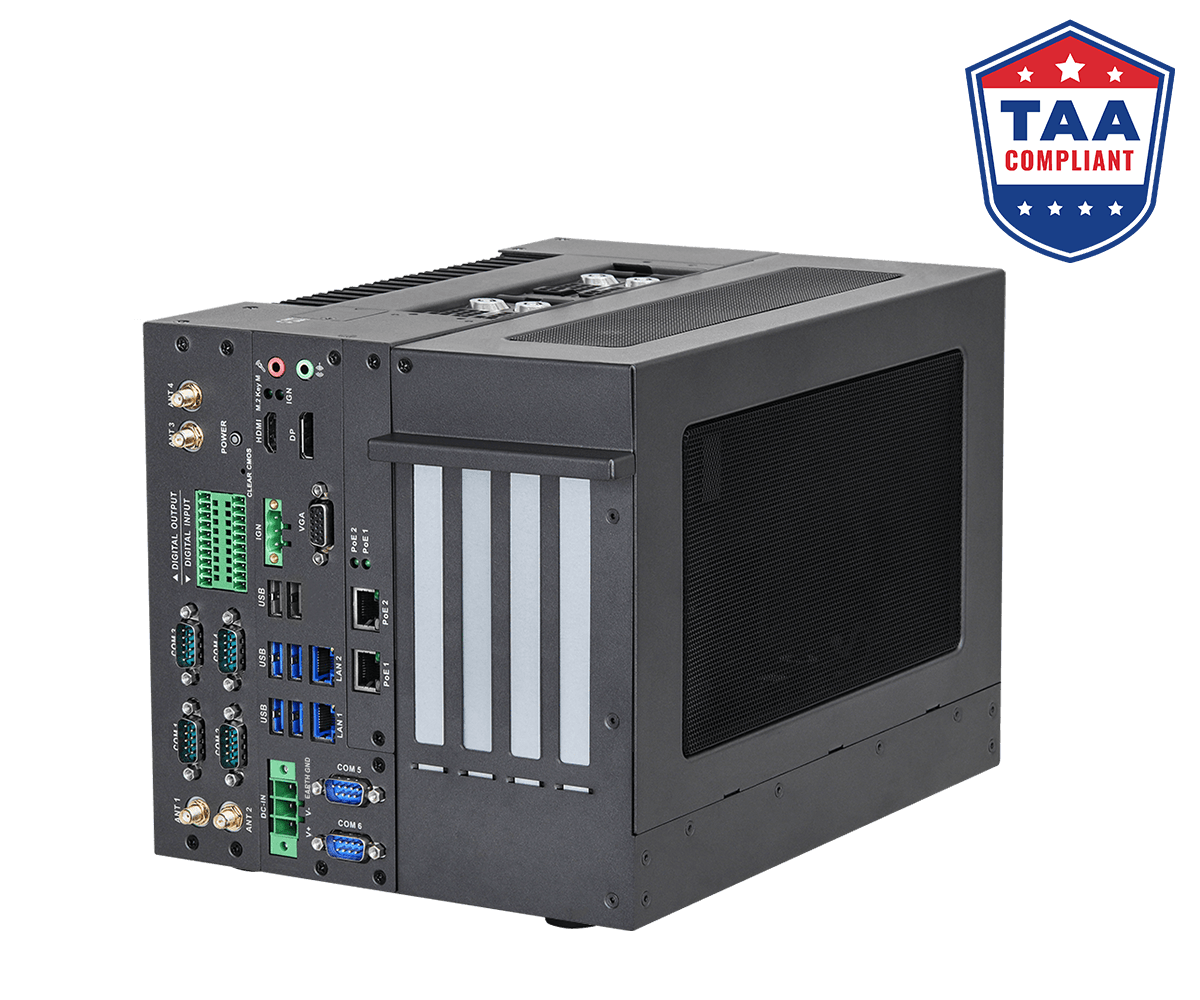

iEPF-9012S-EY4 Intelligent Edge Platform

Processor System

CPU	Intel® 12th Gen Core™, Pentium or Celeron Processors
Chipset	Intel® H610
Socket	LGA 1700

Memory

Technology	Dual Channel DDR4 2933MHz
Capacity	64 GB (32 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphics
DisplayPort	DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz

Expansion Slot

PCIe	1 x PCIe Gen4 x16 , PCIe x16 slot (it locates at the third one from the right hand side) with default power cable can support up to 180W graphic card (275 mm x 113 mm x 60 mm (L x H x D), if remove the card holder, it can be limited on 275 mm x 138 mm x 60 mm) Graphic card can be up to 300W with optional VGA module
mini-PCIe	1 x Full/Half size with PCIe Gen3 x1 and USB 2.0 1 x Full/Half size with PCIe Gen3 x1
RF& Antenna	8 x SMA connector hole reserved
M.2	1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module 1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 /USB2.0 for 4G / 5G
SIM Socket	2 x Nano SIM Card slot (1 connected to Mini PCIe, 1 connected to M.2 Key B)

Audio

Interface	Realtek ALC897, High Definition Audio.

Ethernet

Controller/ Speed	4 x Intel 2.5G LAN(2 support PoE, PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE)
Connector	4 x RJ45

Front I/O

DisplayPort	1
HDMI	1
VGA	1
USB	2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0, 1 x USB2.0 internal connector w/ lock function
Audio	1 x Mic-in, 1 x Line-out
COM	4 x RS232/422/485 2 x RS232
DIO	8DIs/8DOs
Ethernet	4 x 2.5G LAN

Storage

SATA	4 x SATA3 (6Gb/s) 4 x 2.5" HDD/SSD Tray (Default 1 piece)
CFast	1 x Type II socket (Shared with SATA3)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition

Environment

Operating Temp	35W CPU: -40°C~75°C ( -40°F~167°F) 46W~65W CPU: -40°C~55°C ( -40°F~131°F) (with FAN inside, without Add-on Card) (w/ air flow 0.5~0.8 m/s)
Storage Temp	-40°C~85°C ( -40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)
Shock	Operating: 50 G, half sine 11ms duration with SSD
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD	Contact +/-4kV, Air +/-8kV
EMC	EN61000-6-4/-2, CE & FCC Class A
Safety	LVD

Mechanical

Construction	Aluminum heatsink + Metal chassis
Mounting	Desk Mount
Dimensions	201.7mm (W) x 290.8mm (D) x 209.8mm (H) (7.94" x 11.45" x 8.26")
Weight	10kg

Others

OS Support	Windows 10 & Linux
TPM	TPM 2.0

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

• Drivers
• BIOS
• Manual
• Support List

Ordering Information

Model Name	Part Number	Description
Model Name	iEPF-9012S-EY4	Part Number	90PPG280-10000000	Description	W/O CPU, RAM, SSD, ADAPTER
