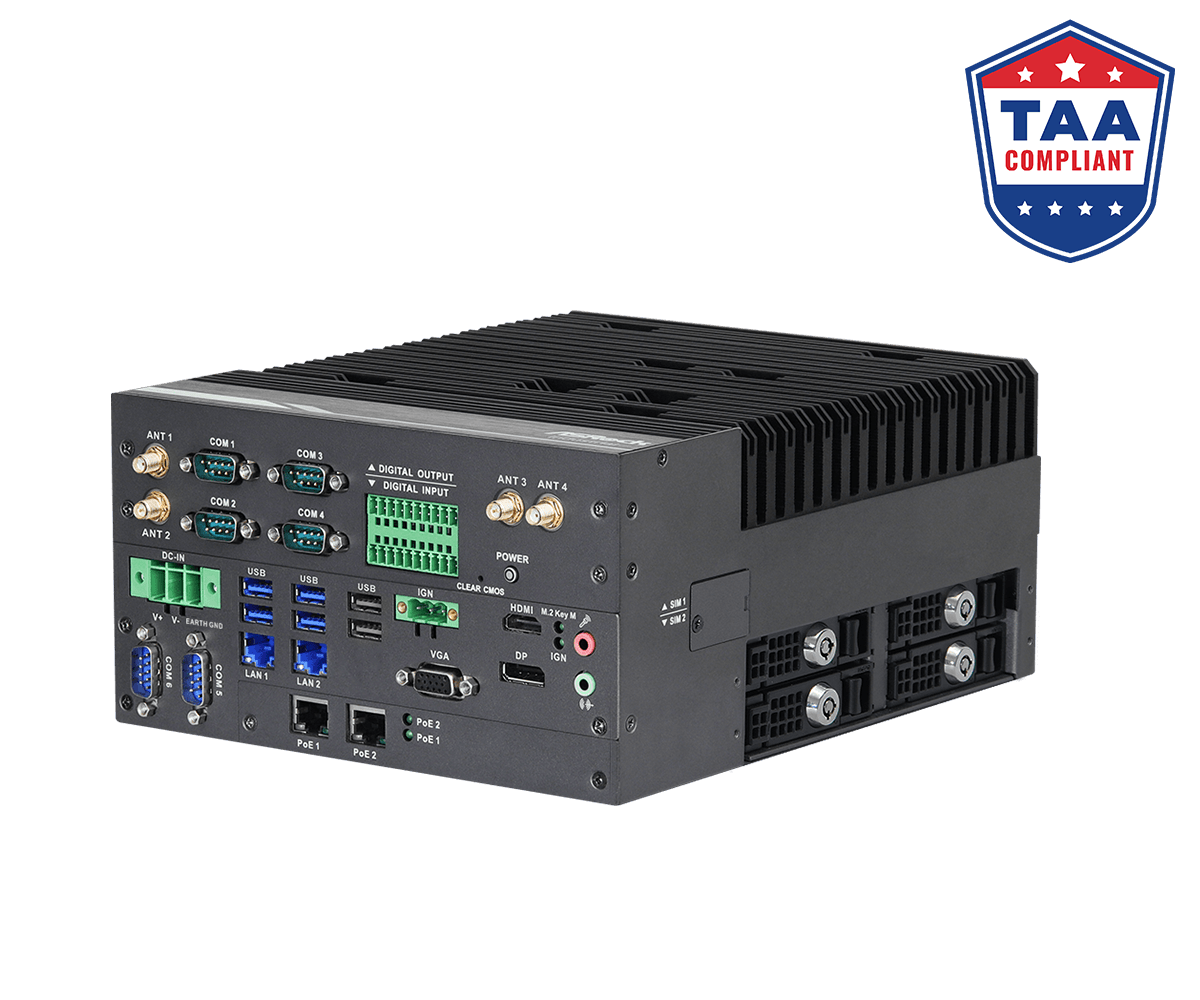

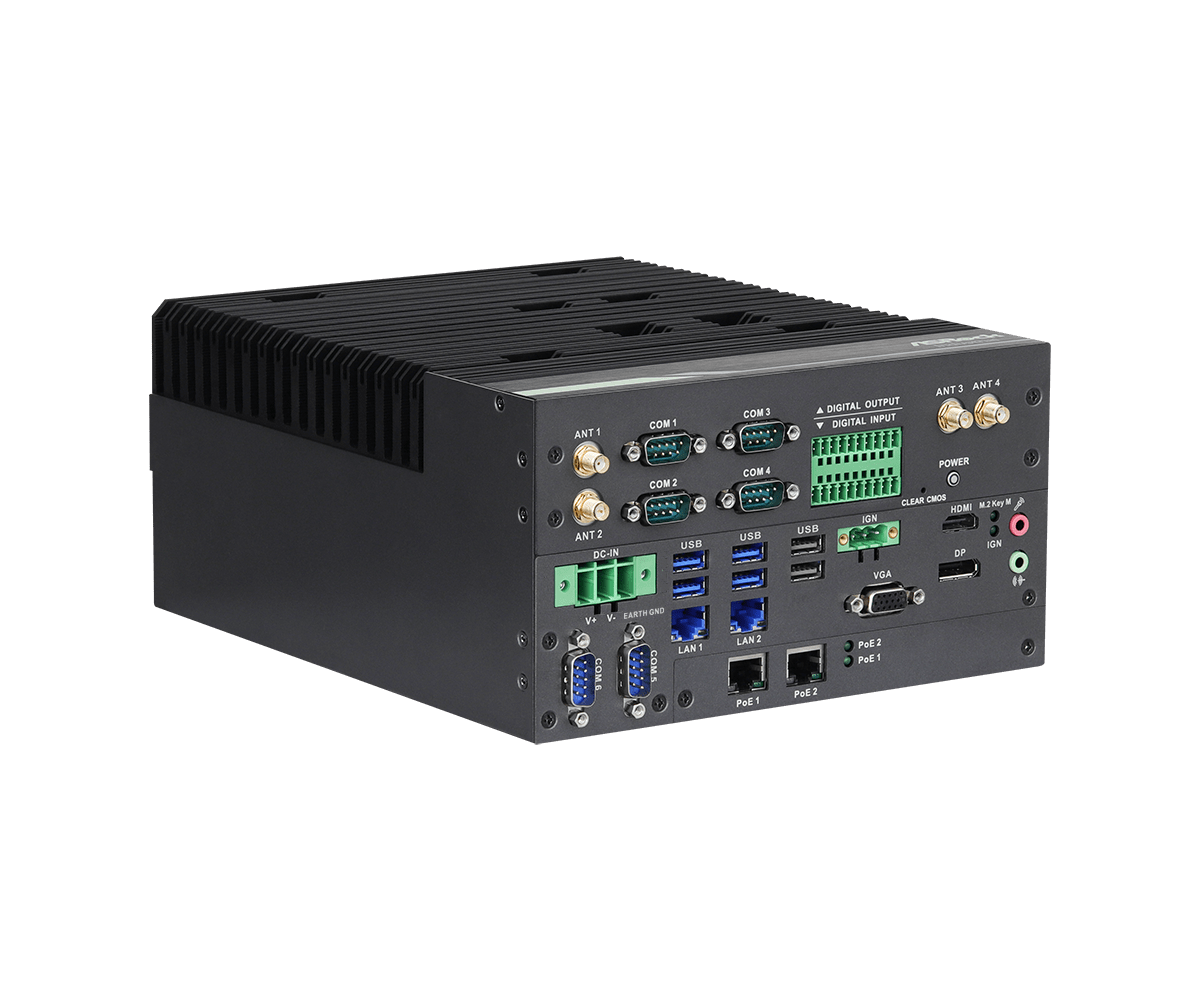

iEP-9012E Intelligent Edge Platform
- Intel® 12th Gen Core™ Processors with H610 Chipset
- 2 x 260-pin DDR4 SO-DIMM up to 64GB (32GB per DIMM)
- 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
- 2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0, 6 x COM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
- 4 x Intel 2.5G LAN (2 support PoE)
- 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
- Support Wireless Time-Sensitive Networking (WTSN)
- TAA Compliant
Overview
-9010/iEP(F)-9010%20KV%201920x1080.jpg)
-9010/Intel%20Solution%20Brief.jpg)
-9010/Intel%20White%20Paper.jpg)
-9010/Edge%20AIoT%20Developer%20Kit%20KV%20960x960.jpg)
-9010/case%20study.jpg)
-9010/Insight.tech%20Article.jpg)
-9010/Insight.tech%20Podcast.jpg)
Specification
Processor System
| CPU | Intel® 12th Gen Core™, Pentium or Celeron Processors |
|---|---|
| Chipset | Intel® H610 |
| Socket | LGA 1700 |
Memory
| Technology | Dual Channel DDR4 2933MHz |
|---|---|
| Capacity | 64 GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| mini-PCIe | 1 x Full/Half size with PCIe Gen3 x1 and USB 2.0 1 x Full/Half size with PCIe Gen3 x1 |
|---|---|
| RF& Antenna | 8 x SMA connector hole reserved |
| M.2 | 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB 2.0 for Wi-Fi/BT module 1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 / USB 2.0 for 4G / 5G |
| SIM Socket | 2 x Nano SIM Card slot (1 connected to Mini PCIe, 1 connected to M.2 Key B) |
Audio
| Interface | Realtek ALC897, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | 4 x Intel 2.5G LAN (2 support PoE, each port supports IEEE 802.3AF PoE, PoE output max.15.4W/port) |
|---|---|
| Connector | 4 x RJ45 |

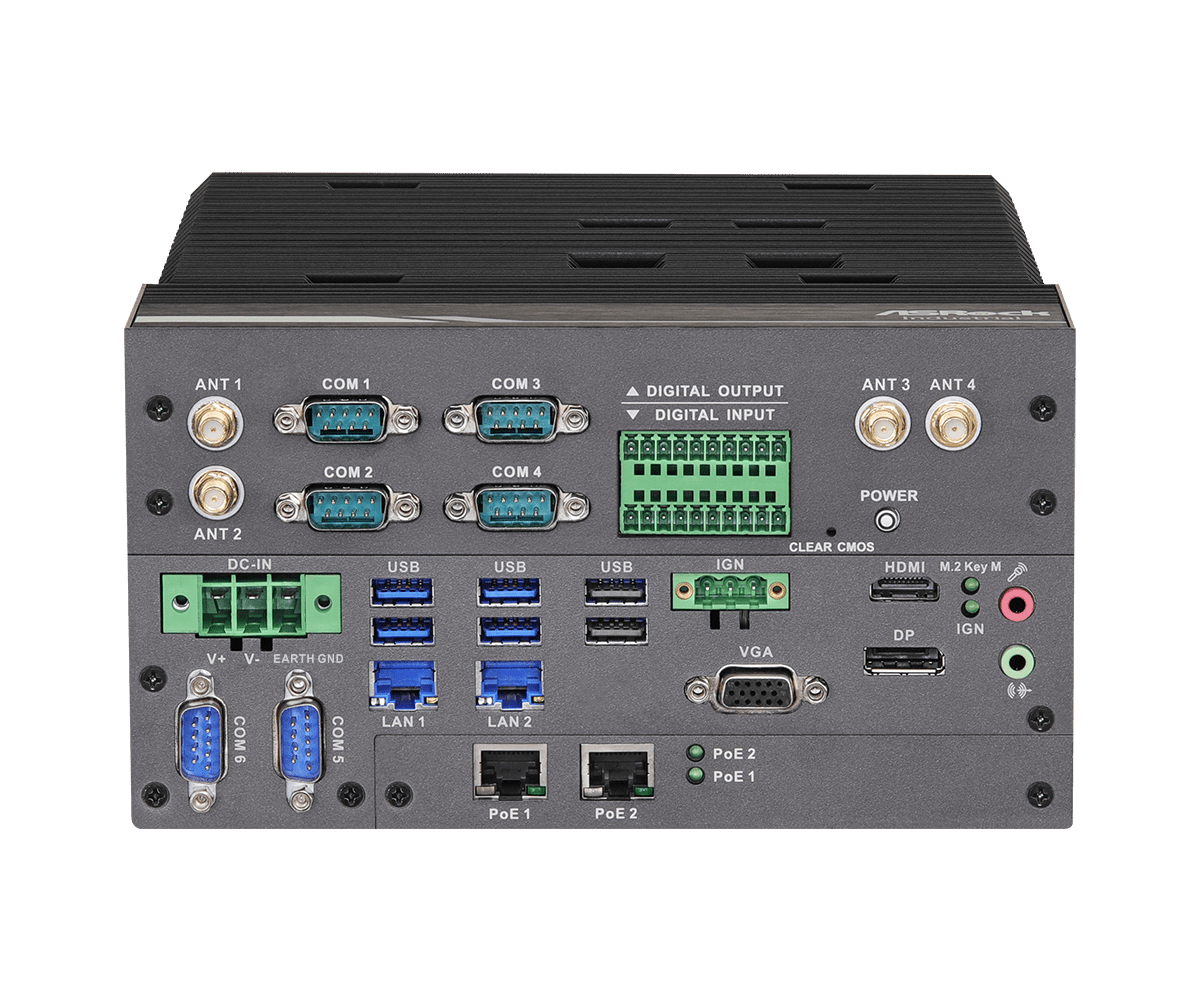

Front I/O
| DisplayPort | 1 |
|---|---|
| HDMI | 1 |
| VGA | 1 |
| Ethernet | 4 x 2.5G LAN |
| USB | 2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0, 1 x USB2.0 internal connector w/ lock function |
| Audio | 1 x Mic-in, 1 x Line-out |
| COM | 4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation Protection, COM5- Isolation Protection, COM6) 2 x RS232 (COM3, COM4) |
| DIO | 8DIs/8DOs |
Storage
| SATA | 4 x SATA3 (6Gb/s) Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order) |
|---|---|
| CFast | 1 x Type II socket (Shared with SATA3) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition |
|---|
Environment
| Operating Temp | 35W CPU: -40°C~70°C ( -40°F~158°F) 46W~65W CPU: -40°C~50°C ( -40°F~122°F) (w/ air flow 0.5~0.8 m/s) |
|---|---|
| Storage Temp | -40°C~85°C ( -40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Shock | Operating: 50 G, half sine 11ms duration with SSD (More stringent than MIL-STD-810H) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H) |
| ESD | Contact +/-4kV, Air +/-8kV |
| EMC | EN61000-6-4/-2, CE & FCC Class A |
| Safety | LVD |
Mechanical
| Construction | Aluminum heatsink + Metal chassis |
|---|---|
| Mounting | Desk Mount |
| Dimensions | 201.7mm (W) x 244.8mm (D) x 109.5mm (H) (7.94" x 9.64" x 4.31") |
| Weight | 6.5kg |
Others
| OS Support | Windows 10 & Linux |
|---|---|
| TPM | TPM 2.0 |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Intel_CSME_Con(v2351.5.49.0) | Information | OS | Win 10 x 64 | Date | 2025-06-30 | Download | ||
| Description | INF driver(v10.1.19165.8332) | Information | Size: 4686 Kib |
OS | Win 10 x 64 | Date | 2025-06-30 | Download | |
| Description | Intel HID Event Filter ver:2.2.2.1 | Information | OS | Win 10 x 64 | Date | 2025-06-26 | Download | ||
| Description | Intel Management Engine driver ver:16.1.25.1917v5 | Information | Size: 710Mib |
OS | Win 10 x 64 | Date | 2024-01-18 | Download | |
| Description | Intel Rapid Storage Technology driver and utility (ver:19.5.1.1040.3) | Information | Size: 49Mib |
OS | Win 10 x 64 | Date | 2024-01-18 | Download | |
| Description | Intel PROSet ver:27.4 | Information | OS | Win 10 x 64 | Date | 2024-01-18 | Download | ||
| Description | Intel I226 LAN Driver (v1.1.3.34) | Information | Size: 1535Kib |
OS | Win 10 x 64 | Date | 2024-01-18 | Download | |
| Description | VGA driver ver: 101.4314 | Information | Size: 602Mib |
OS | Win 10 x 64 | Date | 2024-01-18 | Download | |
| Description | Realtek high definition audio driver ver:9239_FF00 | Information | Size: 317Mib |
OS | Win 10 x 64 | Date | 2024-01-18 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.70 | Update BIOS Under / How to Update | BIOS | Description | 1. Update Intel microcode 2. Update Intel ME version |
Information | Size: 8046 KiB SHA1: EE1648738D897DDEA14768B68FA4AAC22E868931 |
Date | 2024-08-30 | Download | |
| Version | 1.70 | Update BIOS Under / How to Update | Windows | Description | 1. Update Intel microcode 2. Update Intel ME version |
Information | Size: 8836 KiB SHA1: 046D491CC176477BC4B6F7029A50991645D1E877 |
Date | 2024-08-30 | Download | |
| Version | 1.50 | Update BIOS Under / How to Update | BIOS | Description | Improve M.2 compatibility | Information | Size: 7826 KiB SHA1: 7B637844C2BBE18DDA082DA404CA7CB2C4F6BE3B |
Date | 2024-01-19 | Download | |
| Version | 1.50 | Update BIOS Under / How to Update | Windows | Description | Improve M.2 compatibility | Information | Size: 8615 KiB SHA1: F6A90BA71801747FE4655A5568669005356CB371 |
Date | 2024-01-19 | Download | |
| Version | 1.40 | Update BIOS Under / How to Update | BIOS | Description | Support Intel 14th Generation Processors | Information | Size: 7819 KiB SHA1: A48C78A07453A73A7AE4B7D4C9CD2702190957FA |
Date | 2023-12-19 | Download | |
| Version | 1.40 | Update BIOS Under / How to Update | Windows | Description | Support Intel 14th Generation Processors | Information | Size: 8608 KiB SHA1: 3251AF5C735C5D182A5418AB9D7F305A4B95CD13 |
Date | 2023-12-19 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Date | 2023-02-08 | Download | ||
| Version | 1.20 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Date | 2023-02-08 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | Quick Installation Guide | Language | English | Date | 2022-09-29 | Download | |
| Description | User Manual | Language | English | Date | 2024-02-05 | Download |
| Description | Date | Download | |||
|---|---|---|---|---|---|
| Download | CPU Support List | Date | 2023-04-28 | Download |
Ordering Information
Ordering Information
| Model Name | Part Number | Description | |||
|---|---|---|---|---|---|
| Model Name | 90PPG280-20000000 | Part Number | iEP-9012E | Description | W/O CPU, RAM, SSD, ADAPTER |
