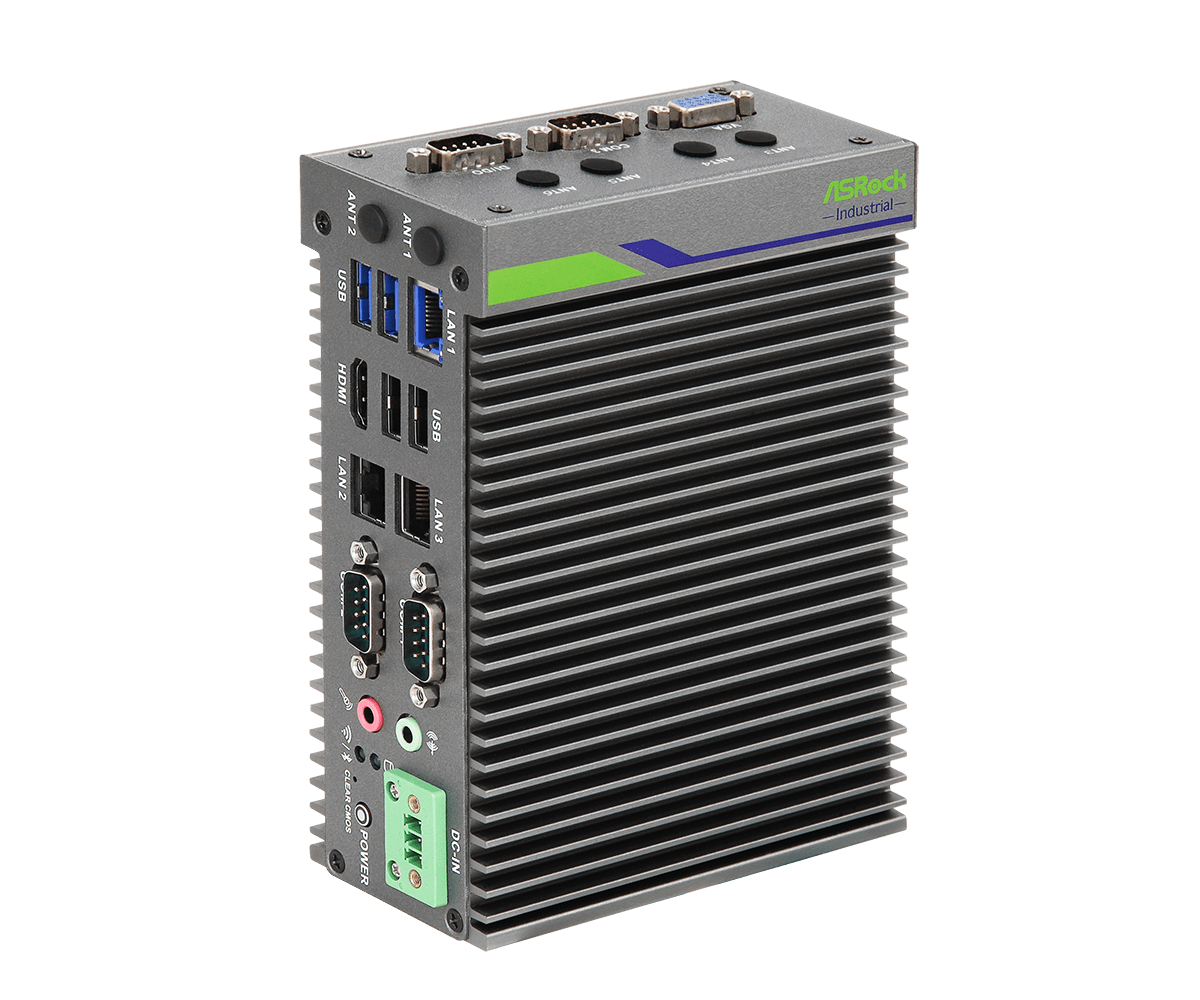

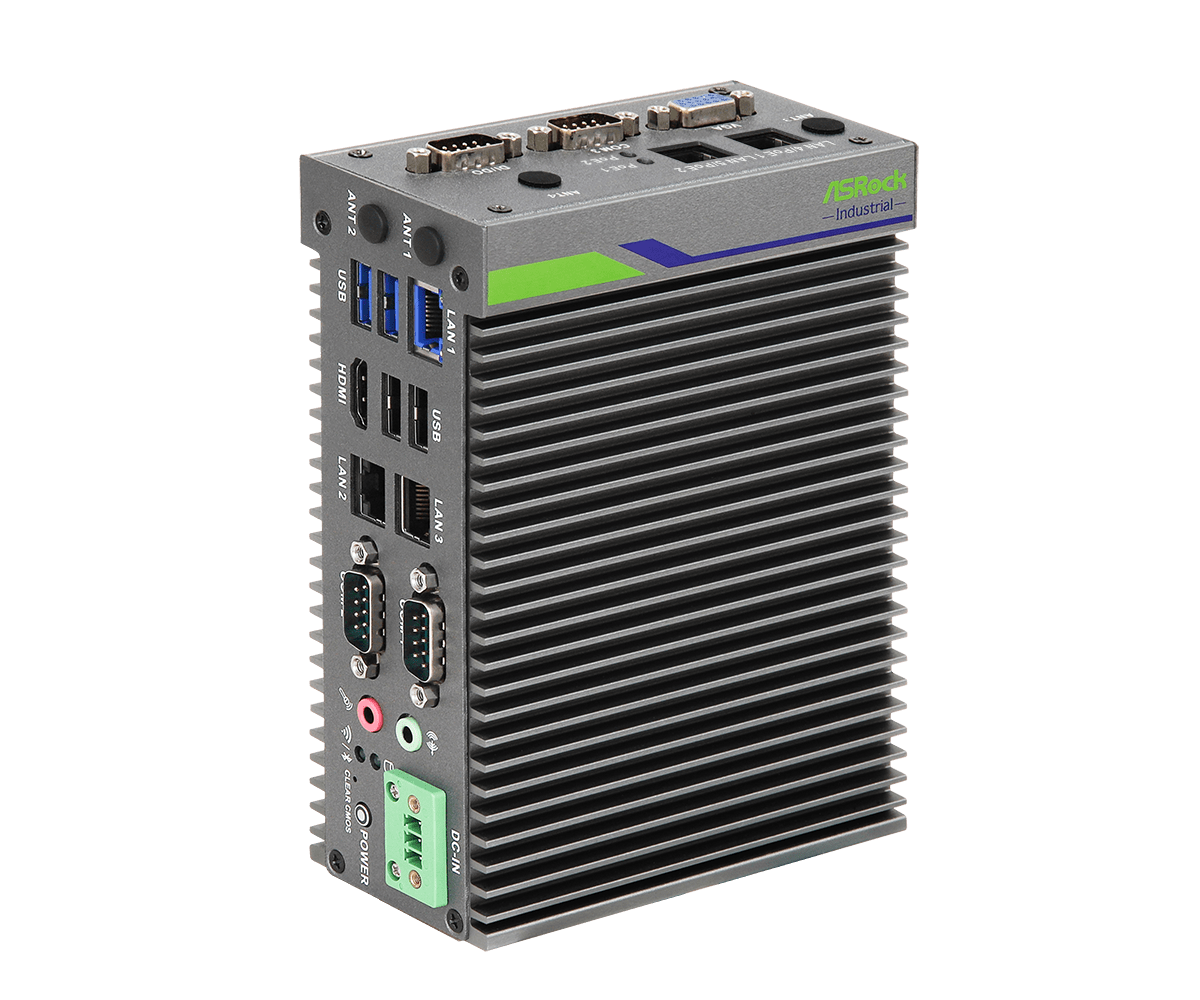

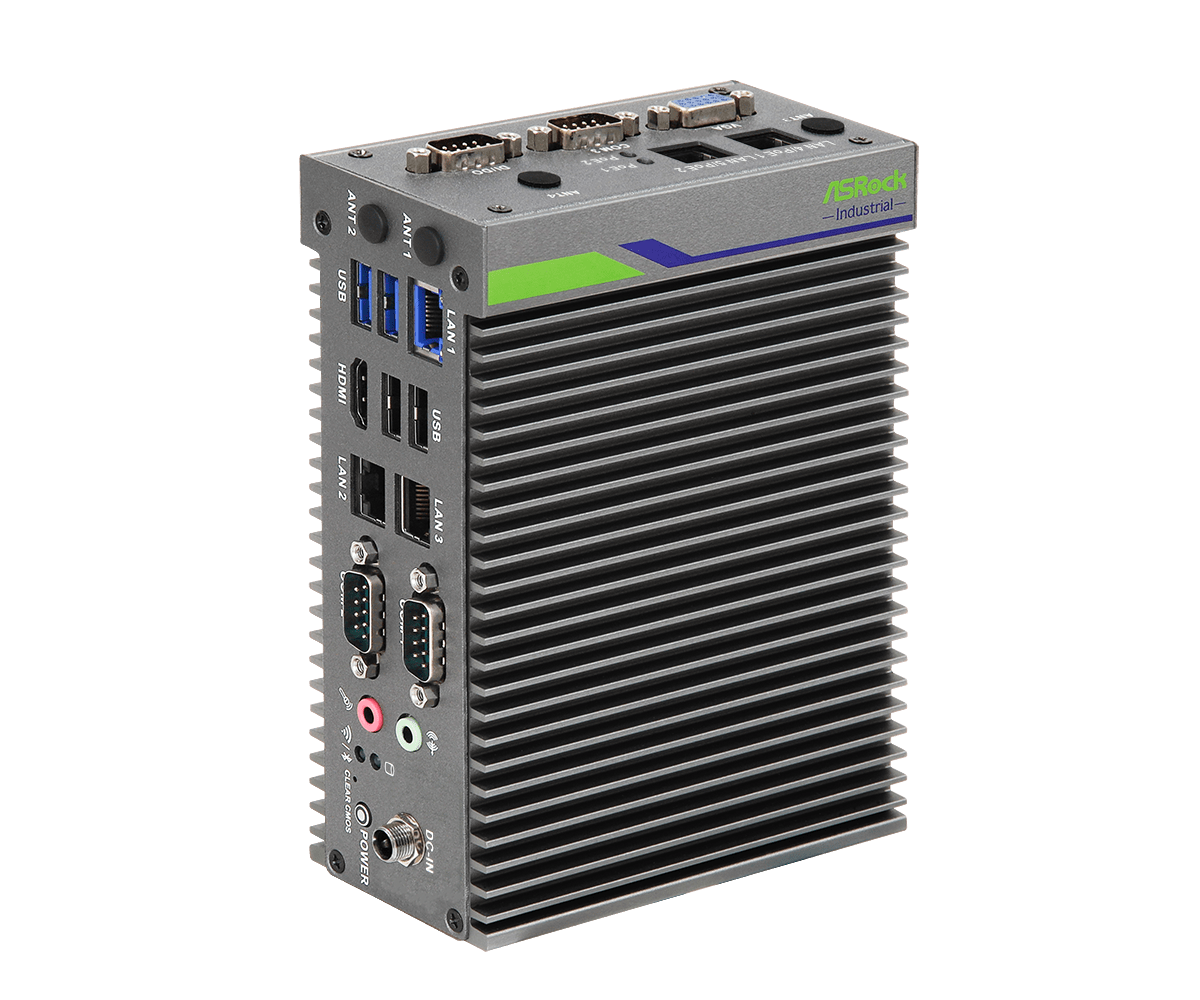

iEP-5000G Series Industrial IoT Controller
- Powerful Intel Atom® x6425RE Processor
- Fan-less and Rugged Design
- Wide Temperature Operation (-40 °C to 70 °C)
- 6-36VDC Wide Range Power Inputs
- Most Flexible IOs and Expansion for Industrial Applications
- Intel® TCC and TSN Support for Real-Time Computing
- DIN Rail or Wall Mount Options
- Support Wireless Time-Sensitive Networking (WTSN)
- Certified on Ubuntu 22.04 LTS
- Certified on Red Hat Enterprise Linux 9.2 - 9.x
- TAA Compliant
Overview
Specification
Processor System
| CPU | iEP-5000G Series : Intel Atom® x6425RE, 4C, 1.9GHz, 12W iEP-5001G Series : Intel Atom® x6212RE, 2C, 1.5GHz, 6W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB (16GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphicse |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| M.2 | 1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 for 4G LTE/5G 1 x M.2 (Key E, 2230) with PCIe Gen3x1 and USB 2.0 for Wireless |
|---|---|
| RF& Antenna | 6 x SMA connector hole reserved for Basic SKU 4 x SMA connector hole reserved for PoE/5LAN SKU |
Audio
| Interface | Realtek ALC897, High Definiton Audio |
|---|
Ethernet
| Controller/ Speed | LAN1/LAN2/LAN3: Maxlinear GPY215 with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU) |
|---|---|
| Connector | RJ-45 |

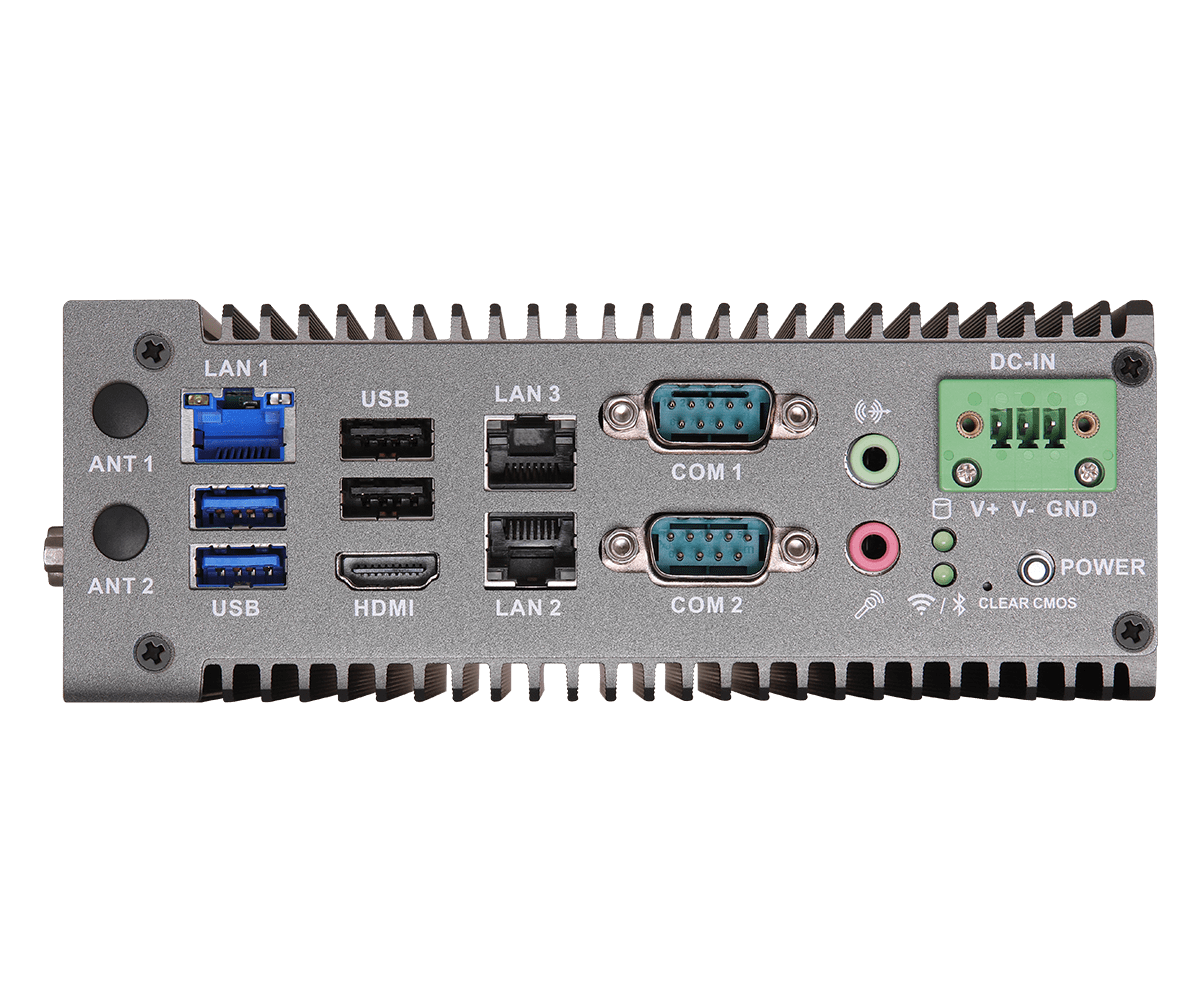

Front I/O
| Audio | 1 x Mic-in 1 x Line-out |
|---|---|
| COM | 2 x RS-232/422/485 |
| Ethernet | 3 x 1G LAN |
| HDMI | 1 x HDMI 2.0b |
| USB | 2 x USB 3.2 Gen2 2 x USB 2.0 |
| LED | 1 x SATA/NVMe Storage LED 1 x Wi-Fi/BT LED |
| DC-IN | 1 x DC Jack (For iEP-500XG-00X) 1 x 3-pin Phoenix type (For iEP-500XG-01X) |
| Clear CMOS | 1 |
| Power Button | 1 (with LED) |
Rear I/O
| SIM Card | 1 x Nano SIM Card slot |
|---|---|
| Micro SD Card | 1 x Micro SD card slot (SD Card specification version 3.01) |

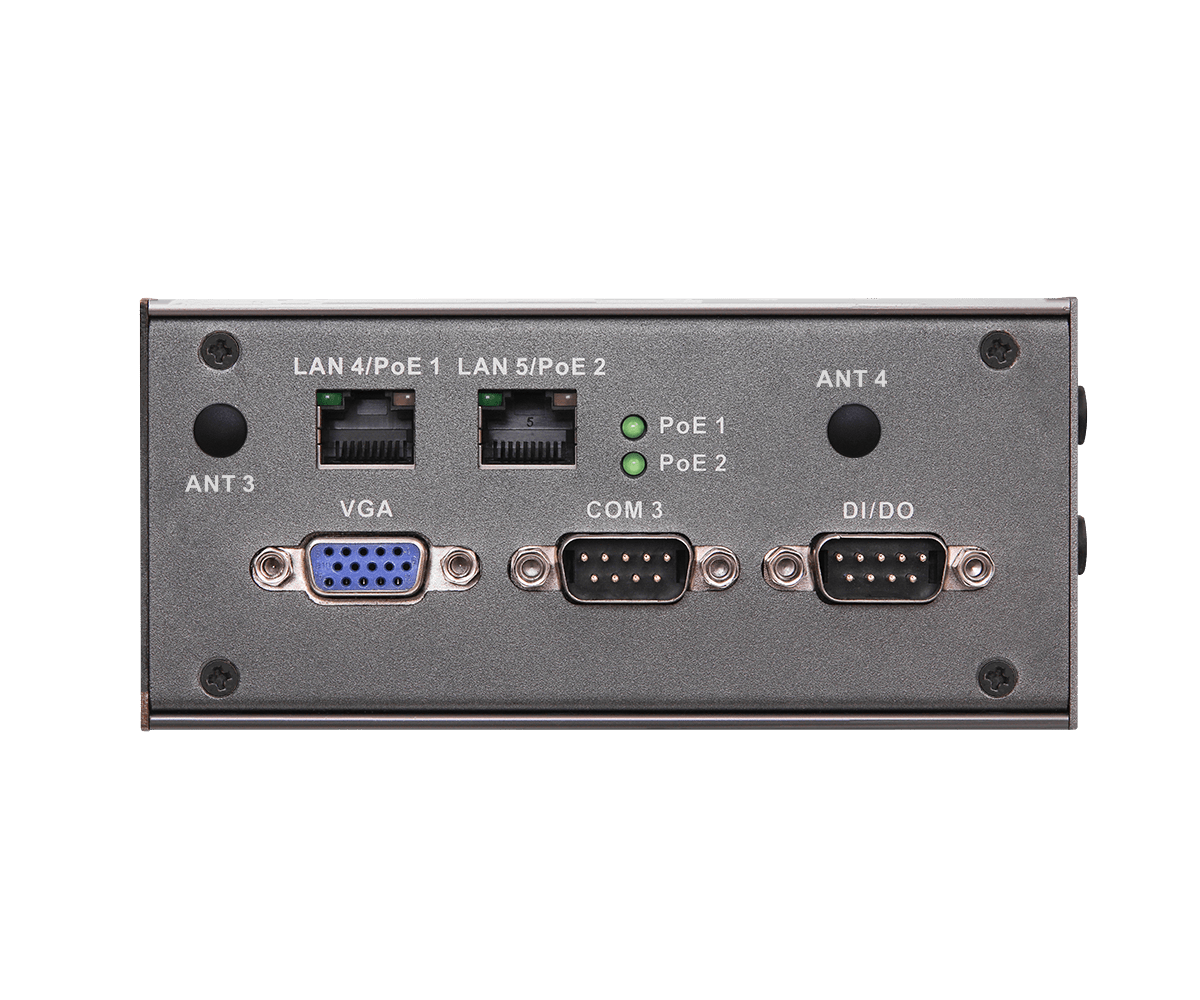

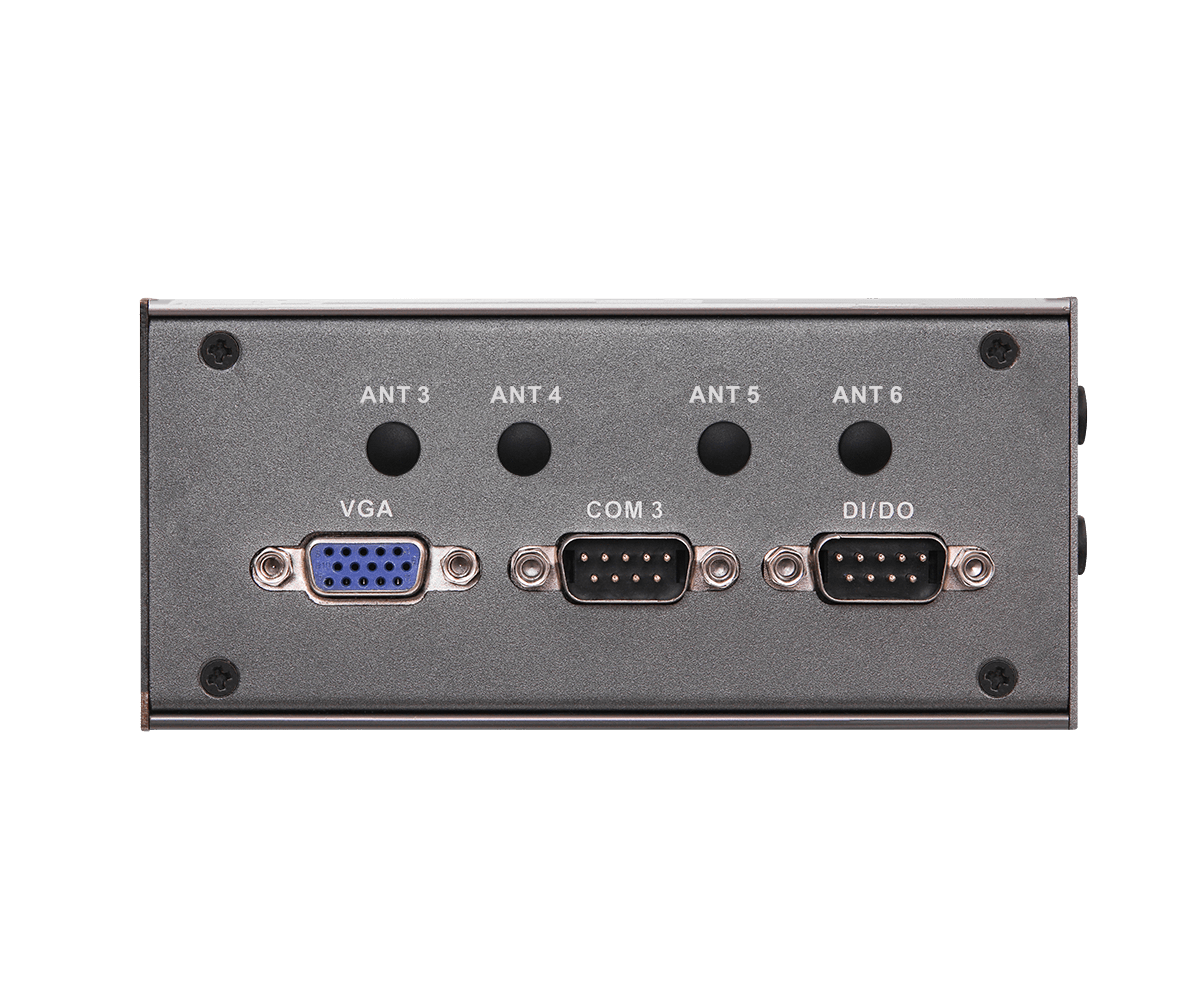

Top I/O
| COM | 1 x RS-232/422/485 |
|---|---|
| VGA | 1 |
| Digital I/O | 4DIs/4DOs |
| Ethernet | 2 x 1G LAN for PoE/5LAN SKU |
| LED | 2 x PoE LED |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with PCIe Gen3x2 and SATA3 |
|---|---|
| SATA | 1 x 2.5" SATA3 SSD (6Gb/s) for Basic SKU (By request) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | For Basic/5LAN SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection |
|---|
Environment
| Operating Temp | For Basic/5LAN SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s |
|---|---|
| Storage Temp | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
Mechanical
| Construction | Aluminum |
|---|---|
| Dimensions (L x W x H) | 58 x 125 x 157 mm |

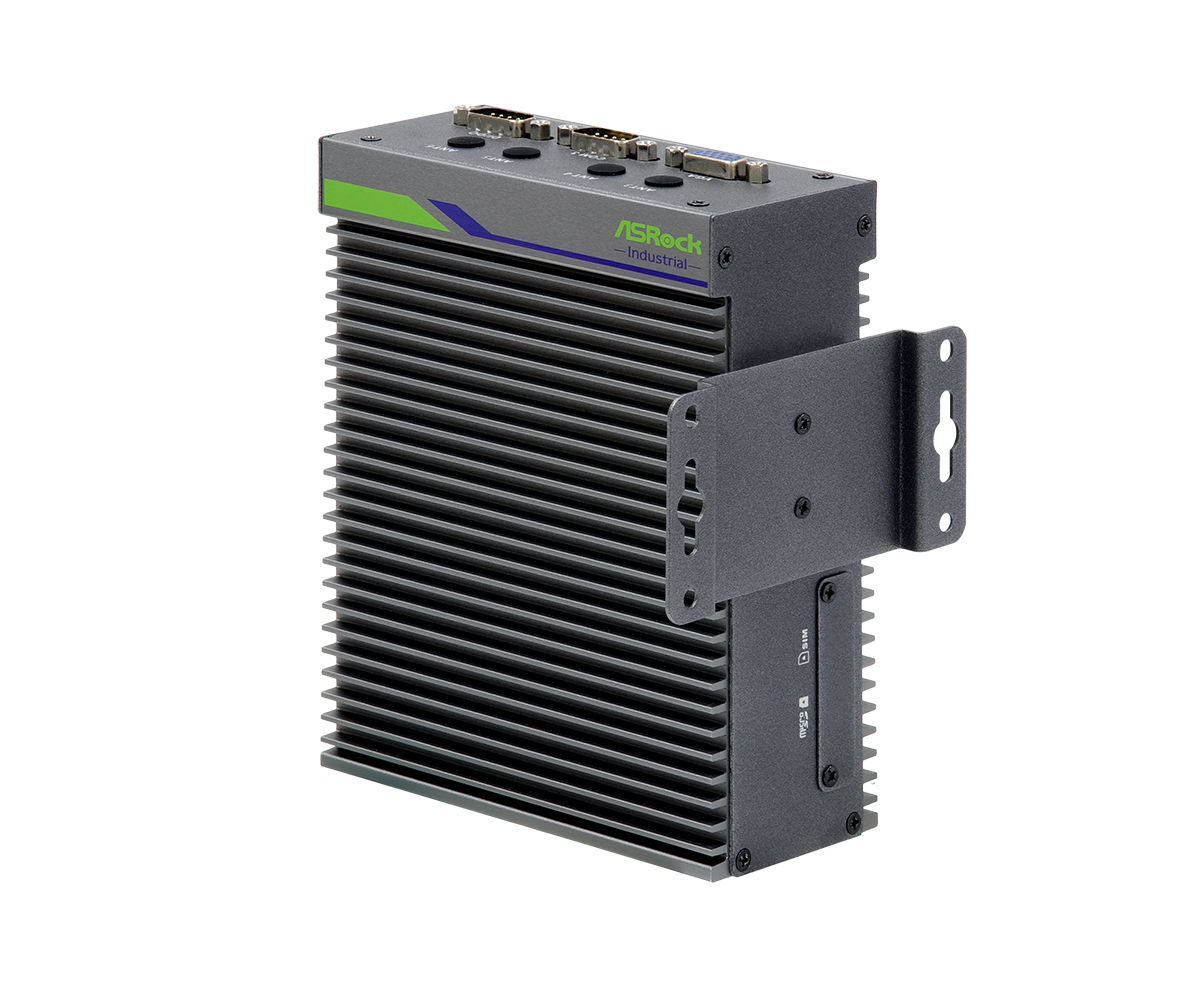

| Mounting | DIN-Rail , Wall Mount (By Request) |
| Weight | Basic SKU: 1.45 kg PoE SKU: 1.75kg 5LAN SKU: 1.65kg |
Standards and Certifications
| Safety | EN 62368-1 (LVD) |
|---|---|
| EMC | EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A |
| EMS | IEC 61000-4-2, ESD protection Level 4 : Contact +/-8 KV, Air +/-15 |
| Shock | IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD |
| Vibration | IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| OS | Ubuntu 22.04 LTS Red Hat Enterprise Linux 9.2 - 9.x |
Others
| OS Support | Windows 10, Liunux |
|---|---|
| Real-Time Enablement | TSN, TCC support under Linux |
| TPM | TPM2.0 |
| Packing List | 1 x 19V/65W Power Adapter (for Basic SKU with DC Jack only) 3 x M2*2 Screw Package 1 x Sink for Memory 1 x Sink for M.2 2280 support 1 x 3-pin phoenix connector (for system with DC-IN phoenix type only) 1 x System QIG |
| Optional Items | (1) 19V/65W Power Adapter for Basic/5LAN SKU (2) 19V/120W Power Adapter for PoE SKU (3) 2.5" HDD bracket kits for Basic SKU (4) Thermal Kits for support 4G LTE/5G module (5) Antenna/SMA Cable for support Wi-Fi module (6) Antenna/SMA Cable for support 4G LTE/5G module (7) DIN Rail Kit (8) Wall Mount Kit |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Bluetooth driver ver:24.50.0-64UWD | Information | Size: 27 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-08-05 | Download | |
| Description | Intel HID Event Filter ver:2.2.2.18 | Information | Size: 801 Kib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-08-05 | Download | |
| Description | [Beta] HD Audio Driver(10007.1_WHQL) | Information | Size: 77 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-08-05 | Download | |
| Description | VGA driver ver: 31.0.101.2141 | Information | Size: 277 Mib Version:31.0.101.2141 SHA256:bd1fd7905bd7330547abc79b20182ac2946f1433f868ad3d1a9392be2d4769a3 Filename:VGA driver ver 31.0.101.2141.zip Release Not |
OS | Win 10 x 64 | Date | 2026-08-05 | Download | |
| Description | INF driver ver:10.1.20398.8776 | Information | Size: 90 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-08-04 | Download | |
| Description | Intel Management Engine driver ver:2618.9.30.0 | Information | Size: 1210 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-08-04 | Download | |
| Description | Onboard VGA Driver (v30.0.101.1069_PR) | Information | Size: 576 KiB |
OS | Win 10 x 64 | Date | 2022-09-01 | Download | |
| Description | Intel PSE Driver (v5.4.1.4516) | Information | Siez: 1320Kib Version: v5.4.1.4516 SHA256: 101bb1b634f02c814a25f60f9fa8acb8ba5b52b847c1eeb664338510e8eb9ba8 Filename: Intel PSE Driver (v5.4.1.4516) Release Note |
OS | Win 10 x 64 | Date | 2023-09-21 | Download | |
| Description | Intel LAN driver (v5.123.21.1212) | Information | Size: 1167 KiB |
OS | Win 10 x 64 | Date | 2022-09-01 | Download | |
| Description | Intel Management Engine driver (v15.40.16.2485_CONS_SW_DCH) | Information | Size: 57 KiB |
OS | Win 10 x 64 | Date | 2022-09-01 | Download | |
| Description | Intel Serial IO driver (v5.123.1.1023) | Information | Size: 1354Kib |
OS | Win 10 x 64 | Date | 2023-09-21 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.80 | Update BIOS Under / How to Update | BIOS | Description | Improve memory compatibility | Information | Size : 6010 KiB |
Date | 2025-08-22 | Download | |
| Version | 1.80 | Update BIOS Under / How to Update | Windows | Description | Improve memory compatibility | Information | Size: 6797 KiB SHA256: f0d4a5287c70b7f17e33cd0346f650944b93c573ae83e1f199bb78d9bbcb6a1e |
Date | 2025-08-22 | Download | |
| Version | 1.70 | Update BIOS Under / How to Update | BIOS | Description | Update SIO ID for ASRI Core API | Information | Size : 5990 KiB |
Date | 2023-07-28 | Download | |
| Version | 1.70 | Update BIOS Under / How to Update | Windows | Description | Update SIO ID for ASRI Core API | Information | Size : 6781 KiB |
Date | 2023-07-28 | Download | |
| Version | 1.60 | Update BIOS Under / How to Update | BIOS | Description | Enhance system compatibility | Information | size : 5990 KiB |
Date | 2023-03-23 | Download | |
| Version | 1.60 | Update BIOS Under / How to Update | Windows | Description | Enhance system compatibility | Information | Size : 6644 KiB |
Date | 2023-03-23 | Download | |
| Version | 1.50 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Size : 5972 KiB |
Date | 2022-10-21 | Download | |
| Version | 1.50 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Size : 6626 KiB |
Date | 2023-02-08 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | Quick Installation Guide | Language | English | Date | 2023-05-05 | Download | |
| Description | User Manual | Language | English | Date | 2023-05-10 | Download |
Ordering Information
Ordering Information
| Model Name | Part Number | Description | |||
|---|---|---|---|---|---|
| Model Name | iEP-5000G-000 | Part Number | 90PXG8D0-00000010 | Description | Basic SKU (DC Jack) CPU : Intel Atom x6425RE processor Adapter : FSP 65W Without Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | iEP-5000G-010 | Part Number | 90PXG8D0-30000000 | Description | Basic SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor Without Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | iEP-5000G-000-FS1 | Part Number | 90PXG8D0-00610012 | Description | Basic SKU (DC Jack) CPU : Intel Atom x6425RE processor Memory : DDR4 3200 SO-DIMM W/T 16GB x2 Storage : M.2 2280 PCIe NVME W/T 128G x1 Mount : DIN-RAIL Kit Adapter : FSP 65W System Operating Temperature is up to -40~70°C. |
| Model Name | iEP-5000G-010-FS1 | Part Number | 90PXG8D0-30610002 | Description | Basic SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor Memory : DDR4 3200 SO-DIMM W/T 16GB x2 Storage : M.2 2280 PCIe NVME W/T 128G x1 Mount : DIN-RAIL Kit Without Adapter System Operating Temperature is up to -40~70°C. |
| Model Name | iEP-5000G-011 | Part Number | 90PXG8D0-40000000 | Description | PoE SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | iEP-5000G-012 | Part Number | 90PXG8D0-50000000 | Description | 5LAN-WIFI SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | iEP-5000G-013 | Part Number | 90PXG8D0-60000000 | Description | 5LAN-5G SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | ADAPTER 65W 19V | Part Number | 04G266000002AI | Description | 65W Adapter for Basic SKU, 5LAN SKU |
| Model Name | ADAPTER 120W 19V | Part Number | 04G266001001AI | Description | 120W Adapter for PoE SKU |
| Model Name | US AC PWR CORD | Part Number | 14G110000212AK | Description | L:1.5M BLACK, for 65W Adapter |
| Model Name | EU AC PWR CORD | Part Number | 14G110000111AK | Description | L:1.5M BLACK, for 65W Adapter |
| Model Name | US AC PWR CORD | Part Number | 14G110001100AK | Description | L:1.5M BLACK, for 120W Adapter |
| Model Name | EU AC PWR CORD | Part Number | 14G110001800AK | Description | L:1.5M BLACK, for 120W Adapter |
| Model Name | DIN RAIL Kits | Part Number | 13G020761000AI | Description | DIN RAIL x1 Screw X2 |
| Model Name | WALL MOUNT Kits | Part Number | 13G020760000AI | Description | WALL MOUNT x1 Screw X4 |
| Model Name | 2.5 HDD BKT ACCESSORIES | Part Number | 13GSAP000000AI | Description | HDD CAGE x1 SATA Cable x1 Screw M3*4mm x4 |
| Model Name | WIFI KITS | Part Number | 90PCA2P0-00000000 | Description | WIFI Module (INTEL/AX210.NGWG.NV/999M85) x1 Antenna x2 SMA Cable 185mm x2 |
| Model Name | 5G KITS | Part Number | 90PCA2P0-00000001 | Description | 5G Module (QUECTEL/RM520NG) x1 Antenna x4 SMA Cable 180mm x2 SMA Cable 220mm x2 5G Module Sink with Thermal PAD x1 |
| Model Name | 4G LTE KITS | Part Number | 90PCA2P0-00000002 | Description | 4G LTE Module (QUECTEL/EM05) x1 Antenna x2 SMA Cable 180mm x1 SMA Cable 220mm x1 5G Module Sink with Thermal PAD x1 |
