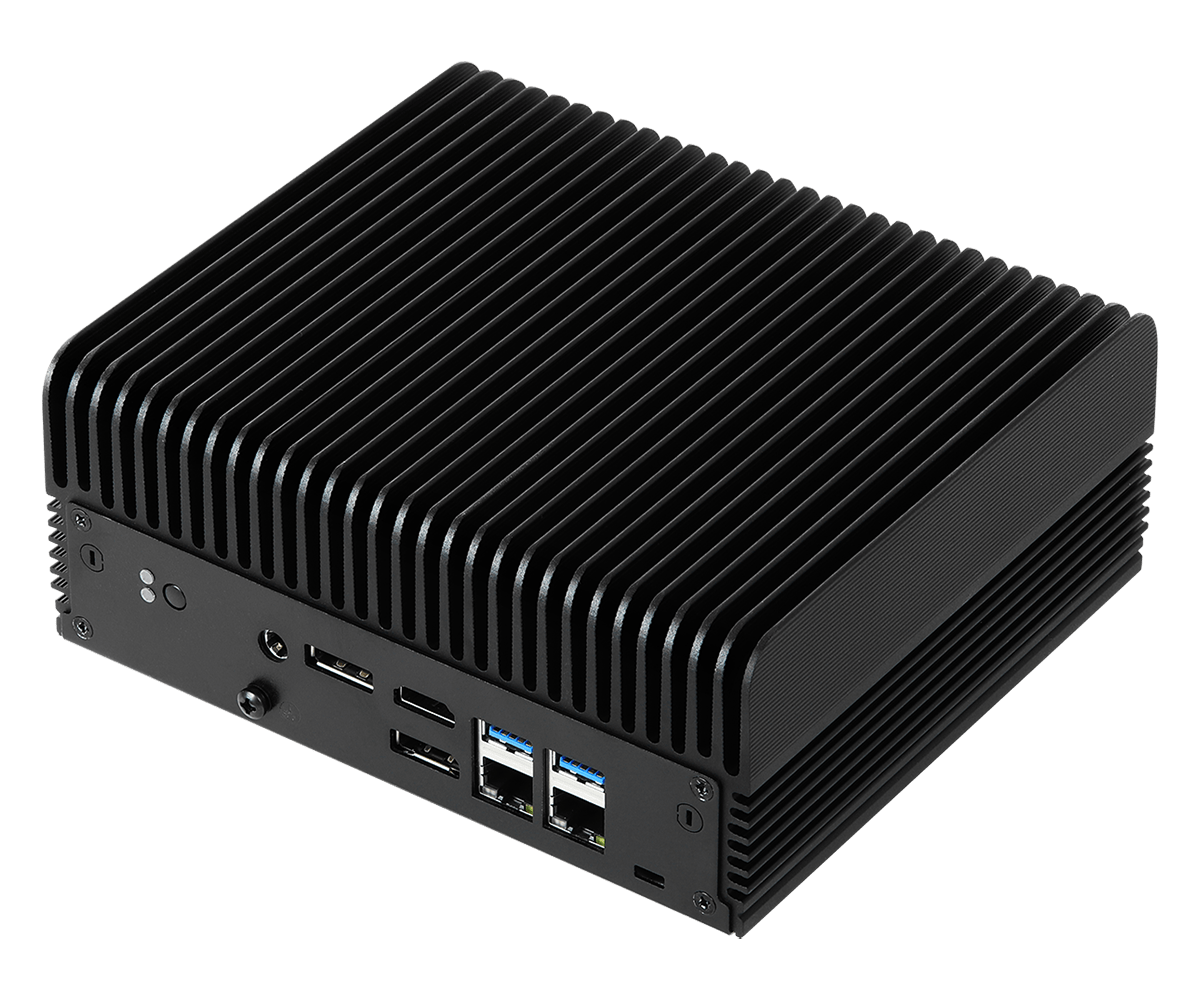

iBOX-V1000M Fanless Embedded BOX PC

Processor System

CPU	AMD Ryzen™ Embedded V-Series (V1605B, QC, up to 3.6GHz)
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	AMD Radeon™ Vega 8 Graphics
HDMI	HDMI 2.0 Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.2a Max resolution up to 4096x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x Key E(2230) with PCIex1 and USB2.0 for Wireless

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector	2 x RJ-45

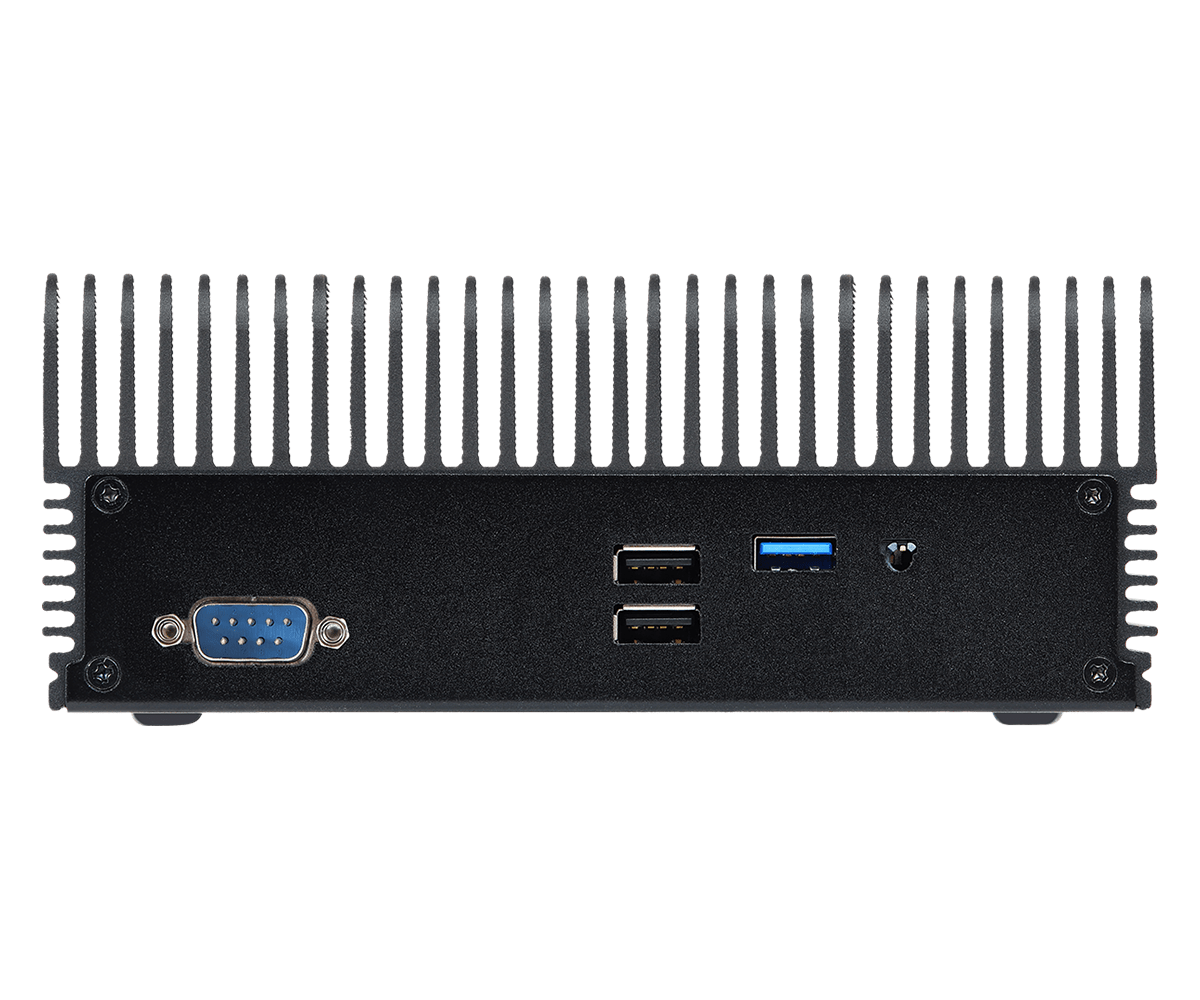

Front I/O

USB	1 x USB 3.2 (Gen1) + 2 x USB 2.0
COM	1 x COM(RS-232/422/485)
Audio	1 x Mic-In & Line-Out Combo Jack

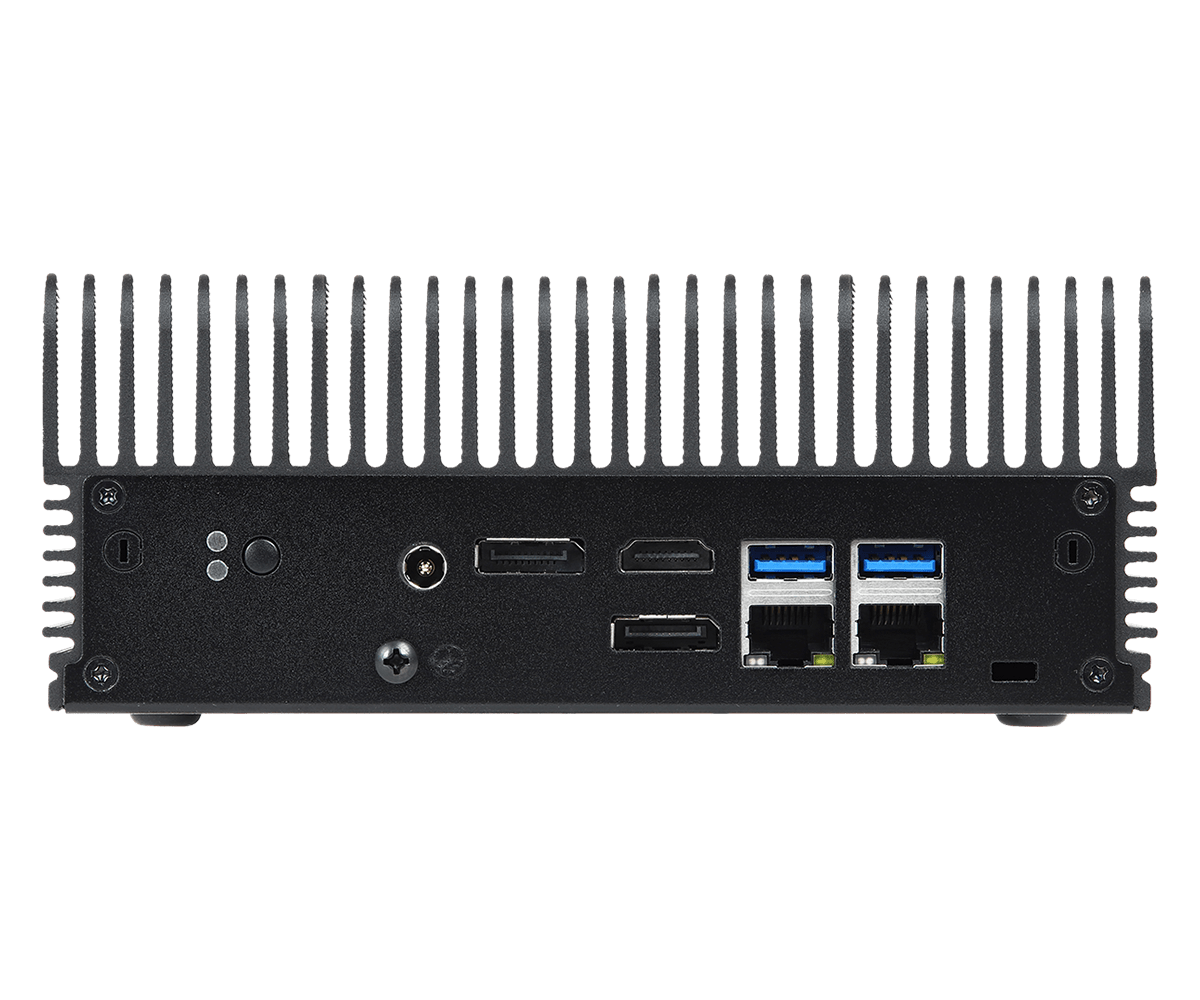

Rear I/O

HDMI	1 x HDMI 2.0
DisplayPort	2 x DP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.2(Gen2)
DC Jack	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket)
SATA	1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 12V/96W Power Adapter
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 40ºC (With extended temp. peripherals)
Storage Temp	-40° C ~ 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mounting bracket, Wall mounting
Dimensions (L x W x H)	171.8 x 150 x 71.5 mm
Weight	Net Weight: 2.2kg

Accessories

Bulk Package	2 x SCREW M2,D=5 (13G020302031AK)
Option	1 x SSD & Memory cooling kit (13G07P014000AI) *Please contact regional Sales for this inquiry

Others

OS Support	Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
