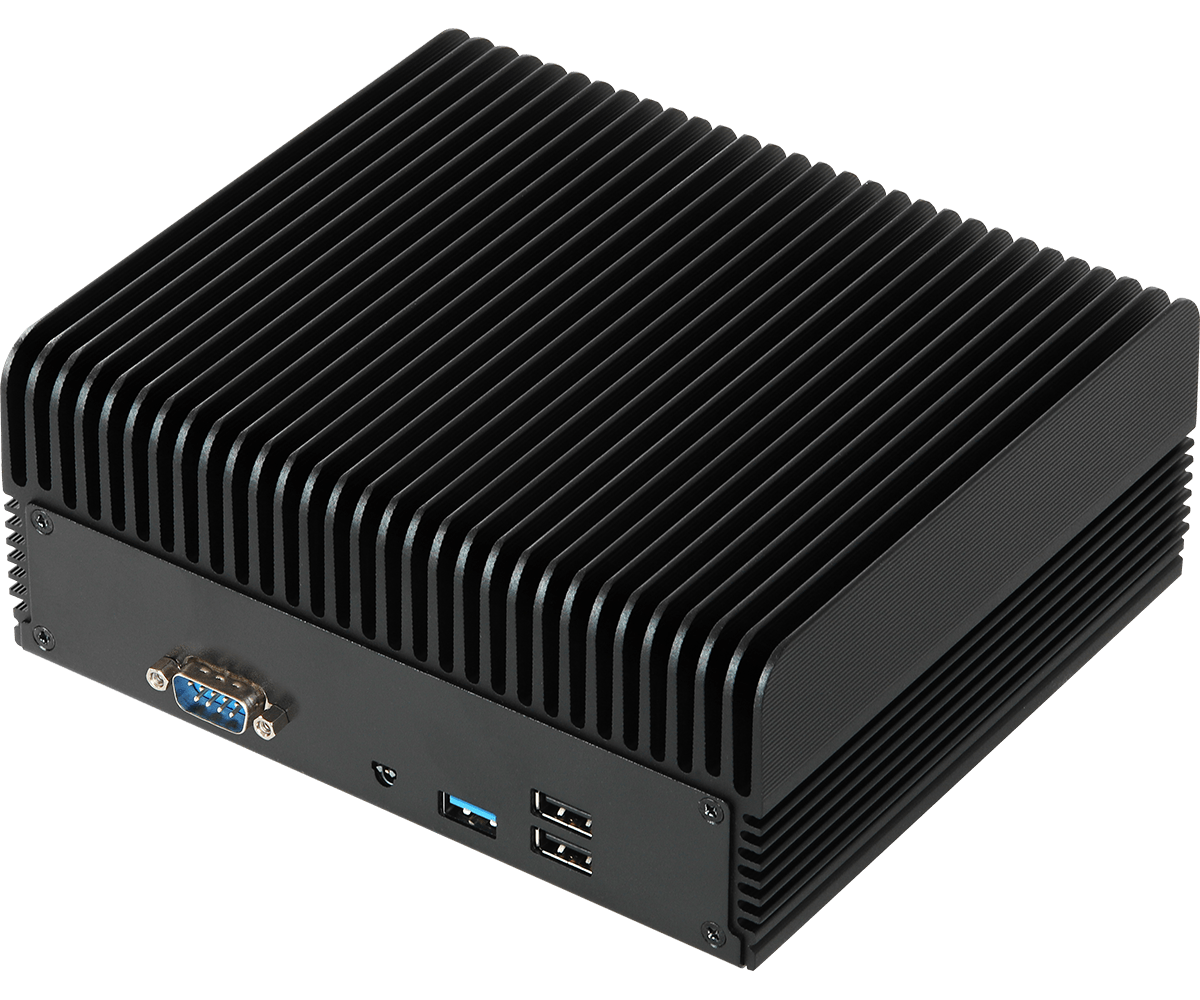

iBOX-8265U Fanless Embedded BOX PC

Processor System

CPU	Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors I5-8265U QC, up to 3.90 GHz
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB
Socket	2 x SO-DIMM

Graphics

HDMI	Supports max resolution up to 4000 x 2000@30Hz
DisplayPort	Supports max resolution up to 3840 x 2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2	1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I2109LM with 10/100/1000 Mbps, supports AMT / vPro LAN2: Realtek RTL811H with 10/100/1000 Mbps
Connector	2 x RJ-45

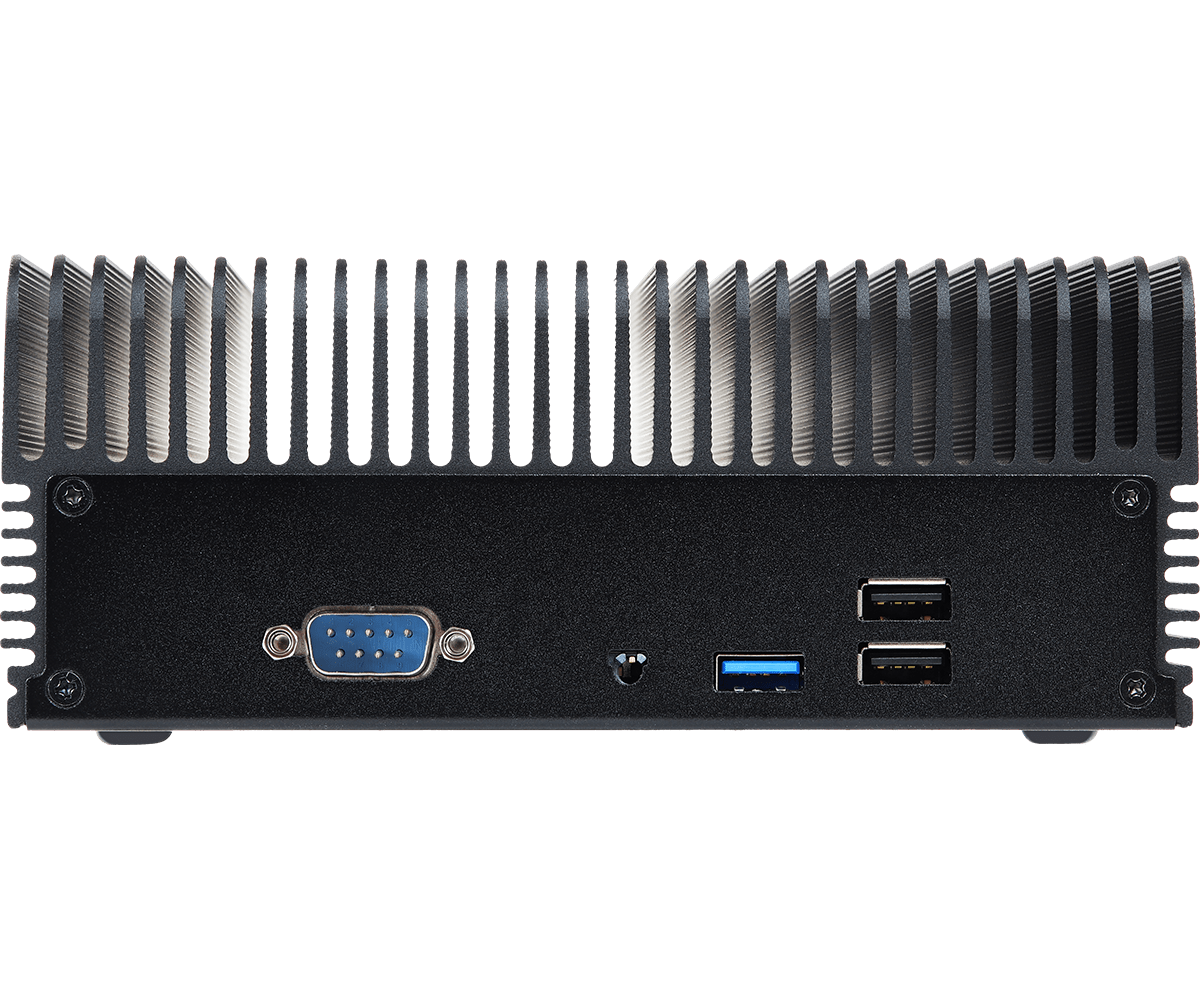

Front I/O

USB	1 x USB 3.1, 2 x USB 2.0
COM	1 x COM (RS-232)
Audio	1 (Mic-in or Line-out)

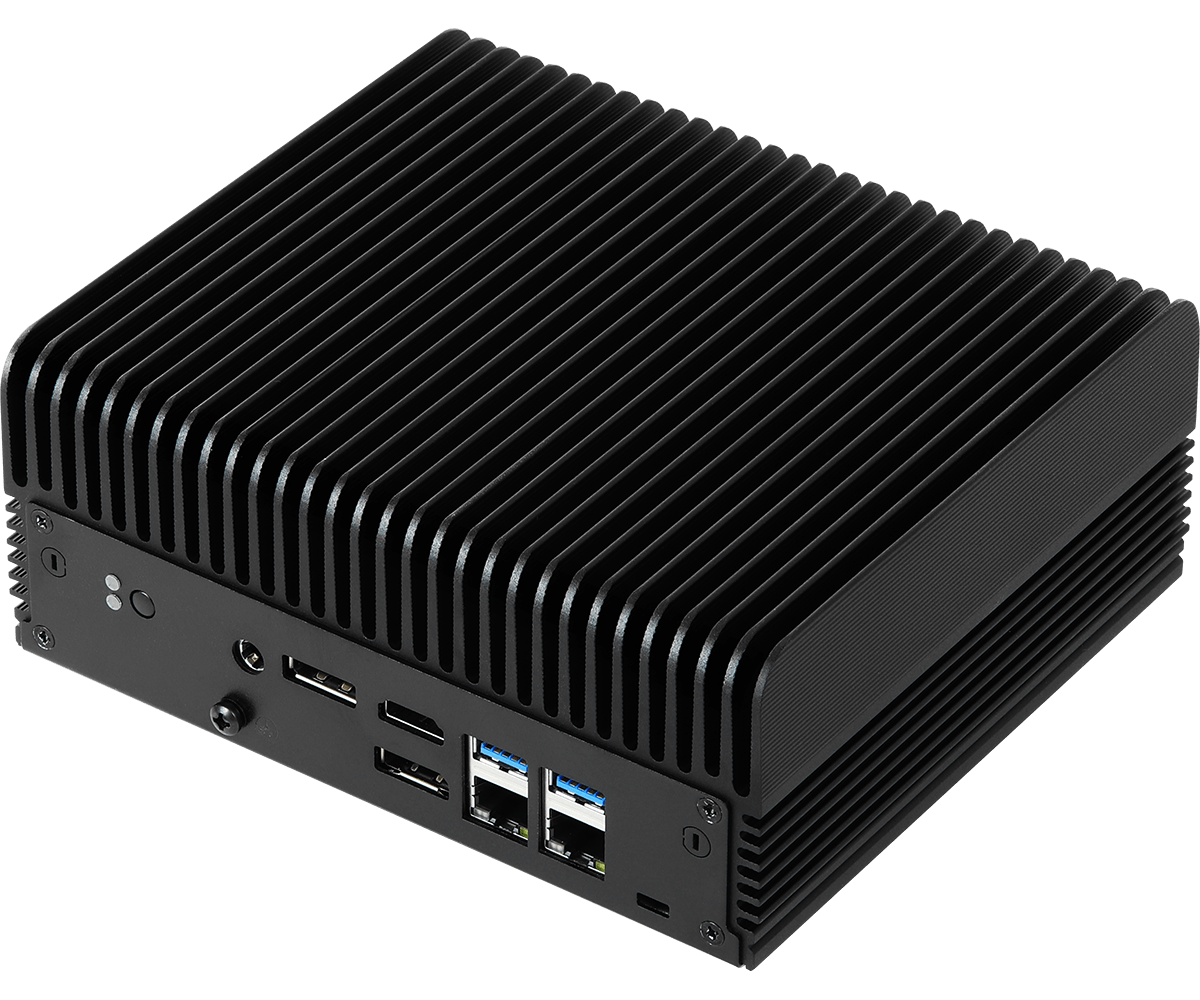

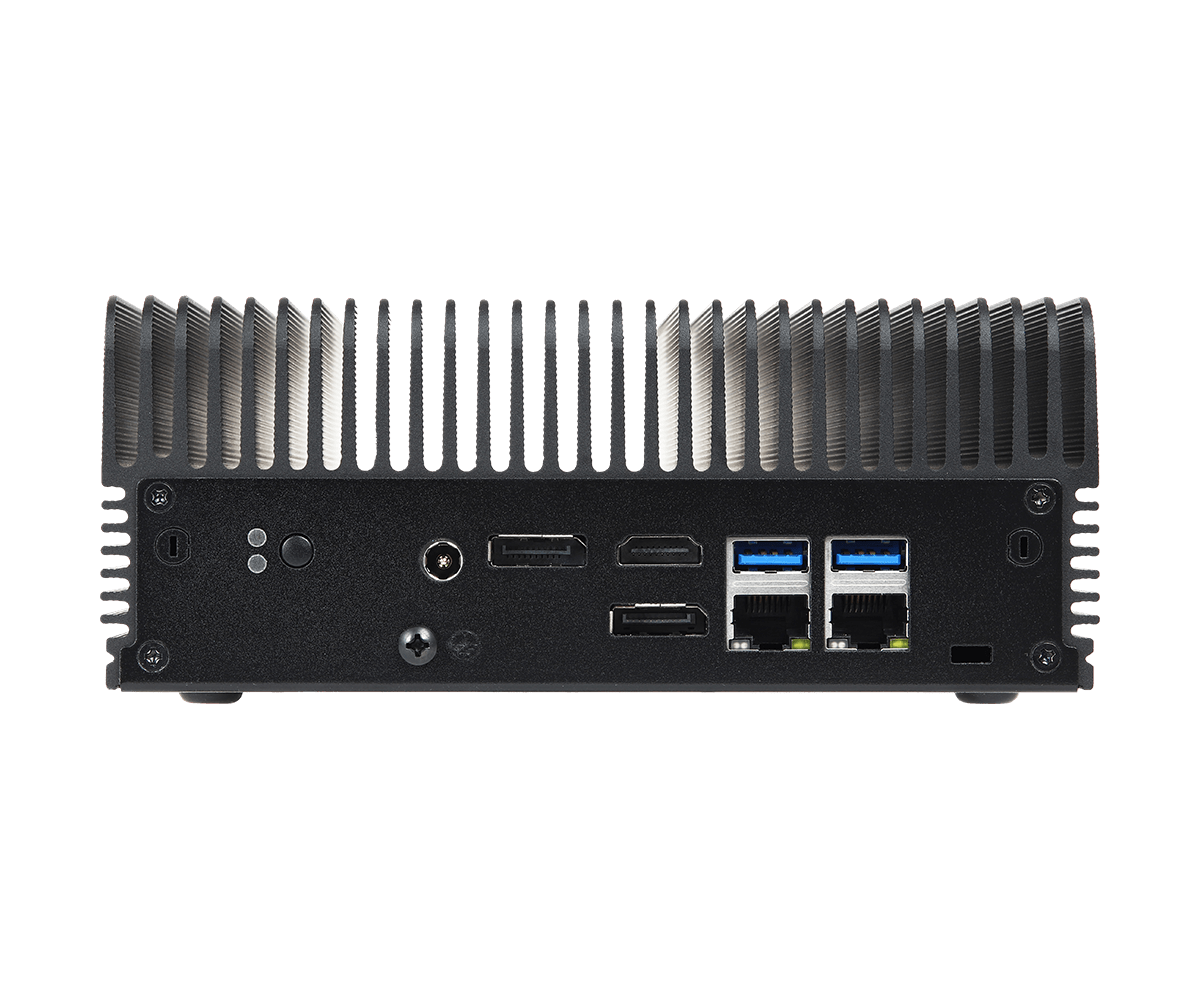

Rear I/O

HDMI	1 x HDMI 1.4
DisplayPort	2 x DP 1.2a
Ethernet	1
USB	2 x USB 3.1
DC Jack	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket)
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 12V/96W Power Adapter
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 40ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mounting bracket, Wall mounting
Dimensions (L x W x H)	171.8 x 150 x 71.5 mm
Weight	Net Weight: 2.2kg

Others

OS Support	Windows 10
TPM	TPM 2.0 onboard IC
Certifications	CE, FCC Class A
Packing List	1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket
Longivity Support	No

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
