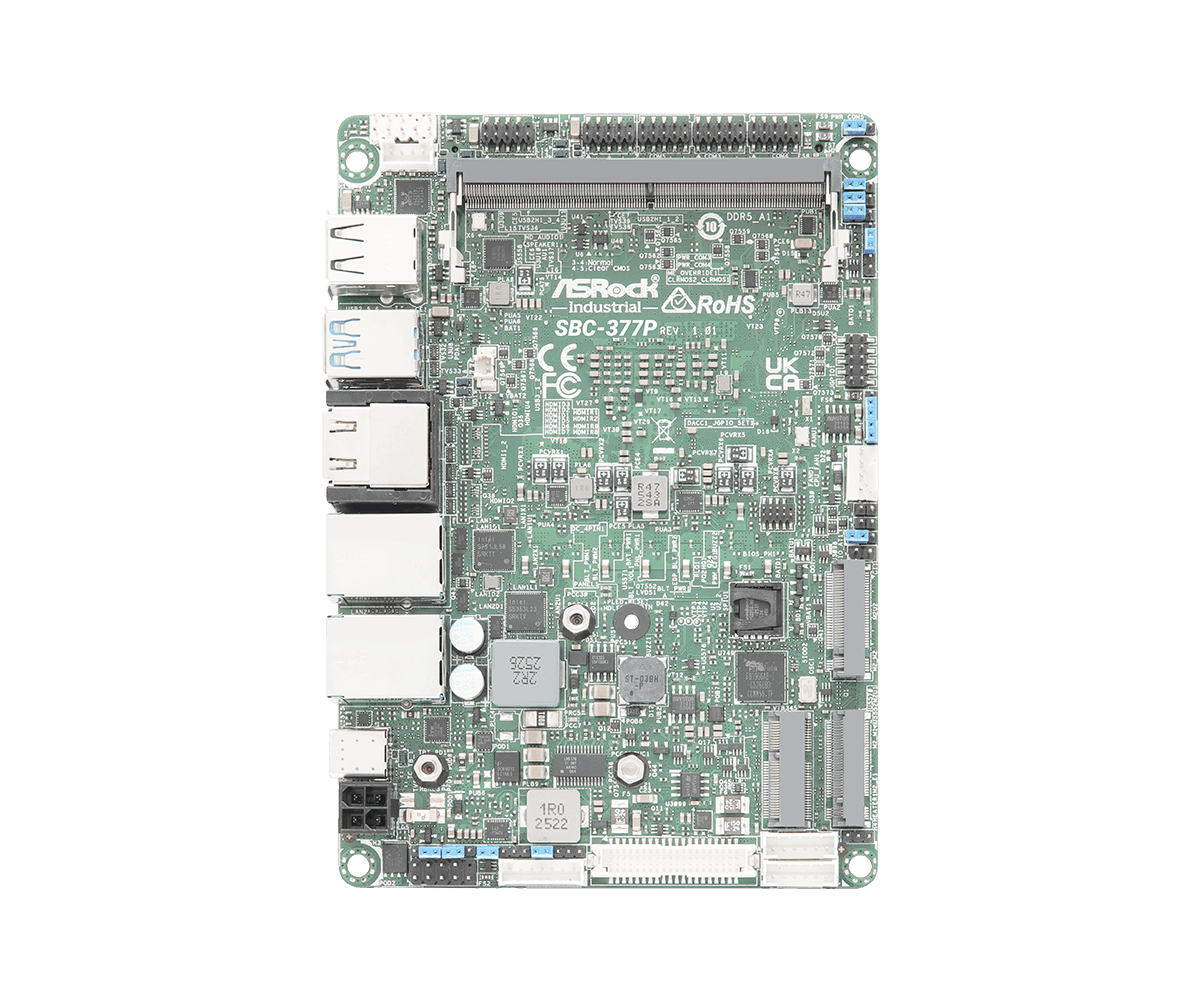

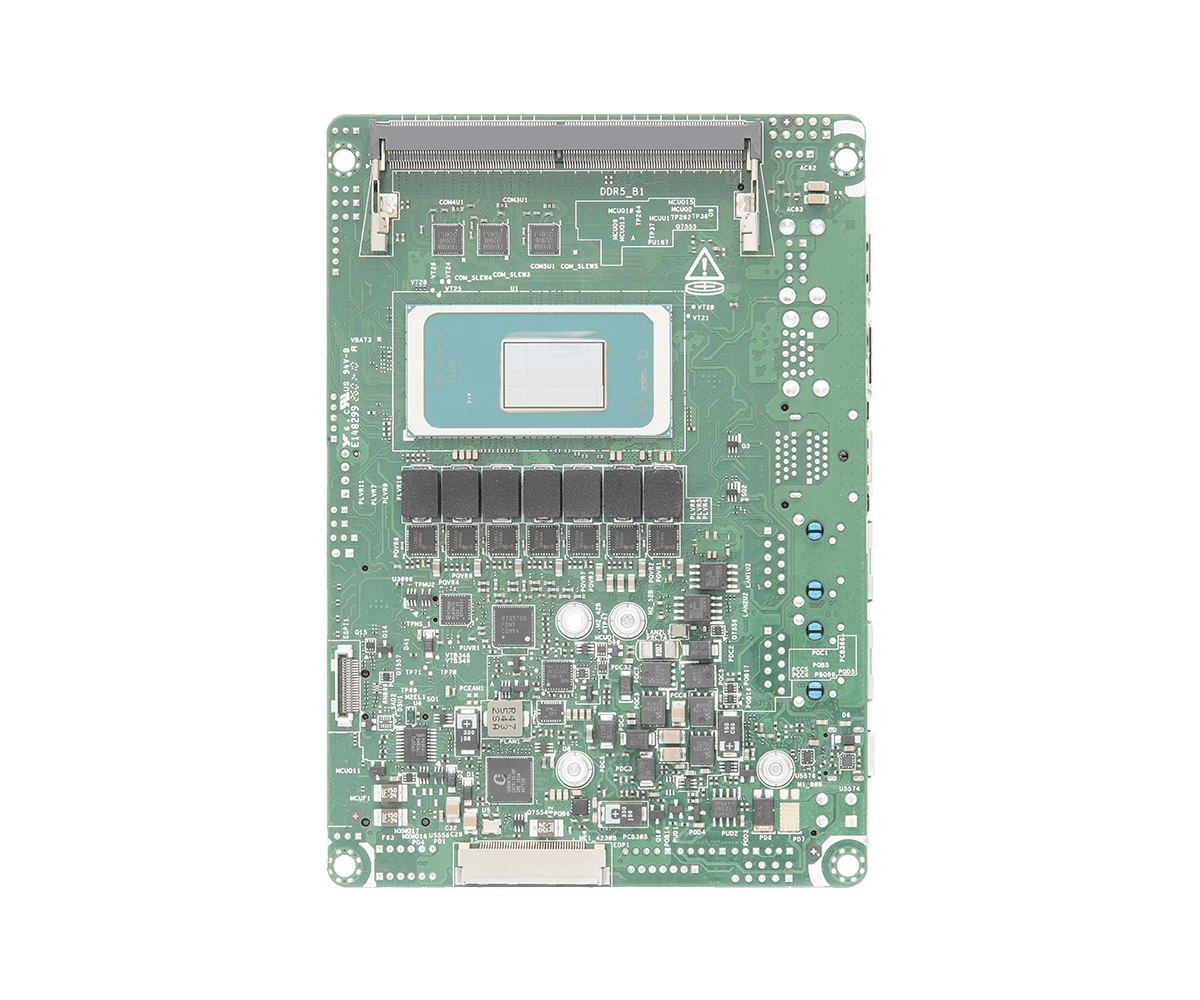

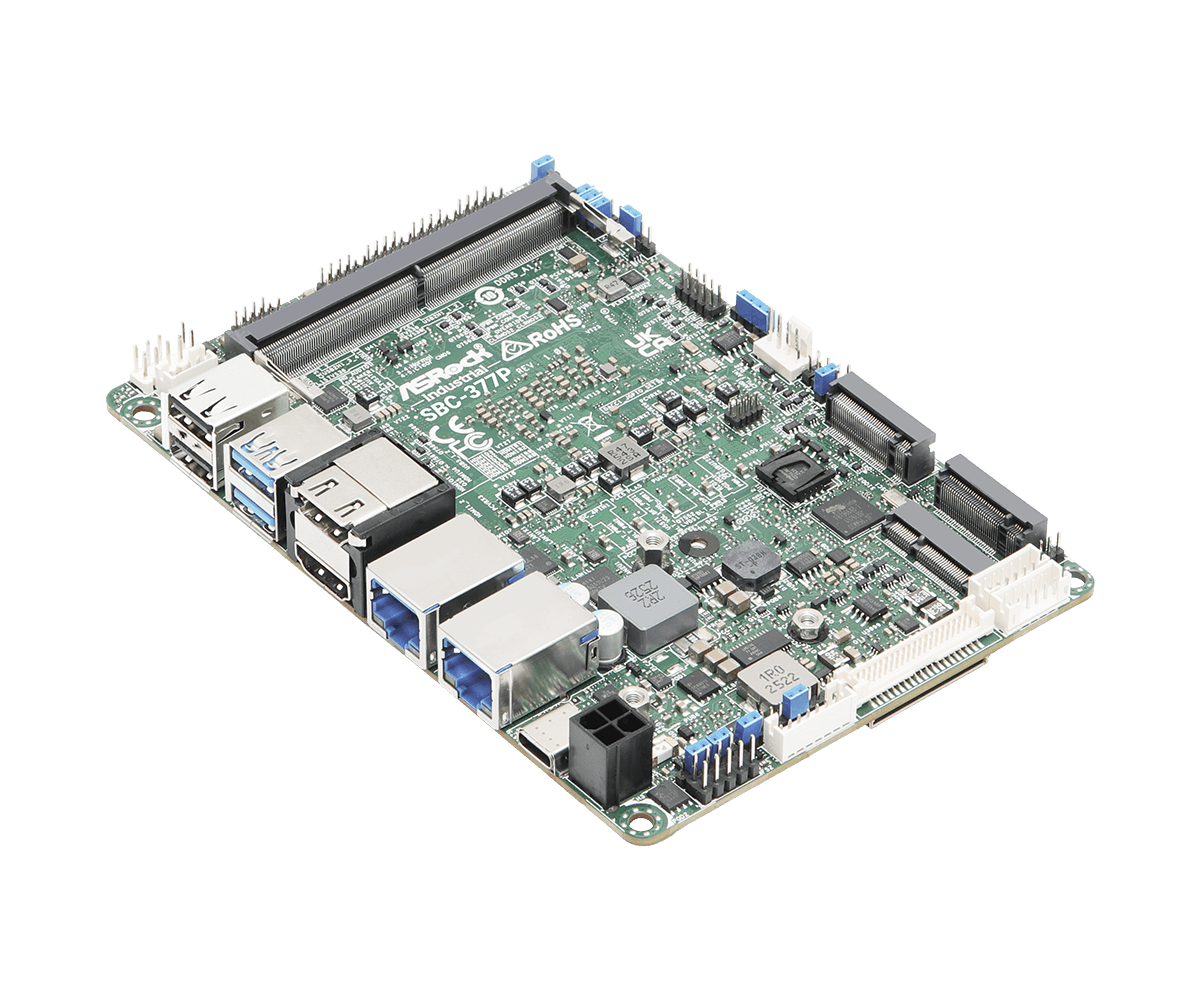

SBC-377P SBC 3.5
- Intel® Core™ Ultra Series 3 Processors (Panther Lake-H) 358H
- 2 x 262-pin SO-DIMM DDR5 7200/6400 MHz, up to 128GB (64GB per DIMM), supports In-Band ECC
- 1 x USB 3.2 Gen2x2, 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 3 x COM
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 1 x DP 1.4a (1 from Type-C), 1 x LVDS or eDP, 1 x eDP 1.5
- Supports VMD RAID 0/1
- 12~36V DC-In PWR/ Supports Type-C PD 100W
Specification
Processor System
| CPU | Intel® Core™ Ultra Series 3 Processors (Panther Lake-H) SBC-377P (Ultra X7 358H, 4P+8E+4LPE, In-Band ECC) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 7200 MHz (Ultra X7 358H) |
|---|---|
| Capacity | 128GB (64GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® Graphics |
|---|---|
| HDMI | HDMI 2.1 Max resolution up to 7680x4320@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | eDP 1.5 Max resolution up to 4096 x 2160@60Hz Max resolution up to 1920 x 1080@60Hz (one eDP single connector shared with LVDS) |
| MultiDisplay | Quad display (Included 1 output from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless |
|---|
Audio
| Interface | Realtek ALC256 HD, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226LM with 10/100/1000/2500 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

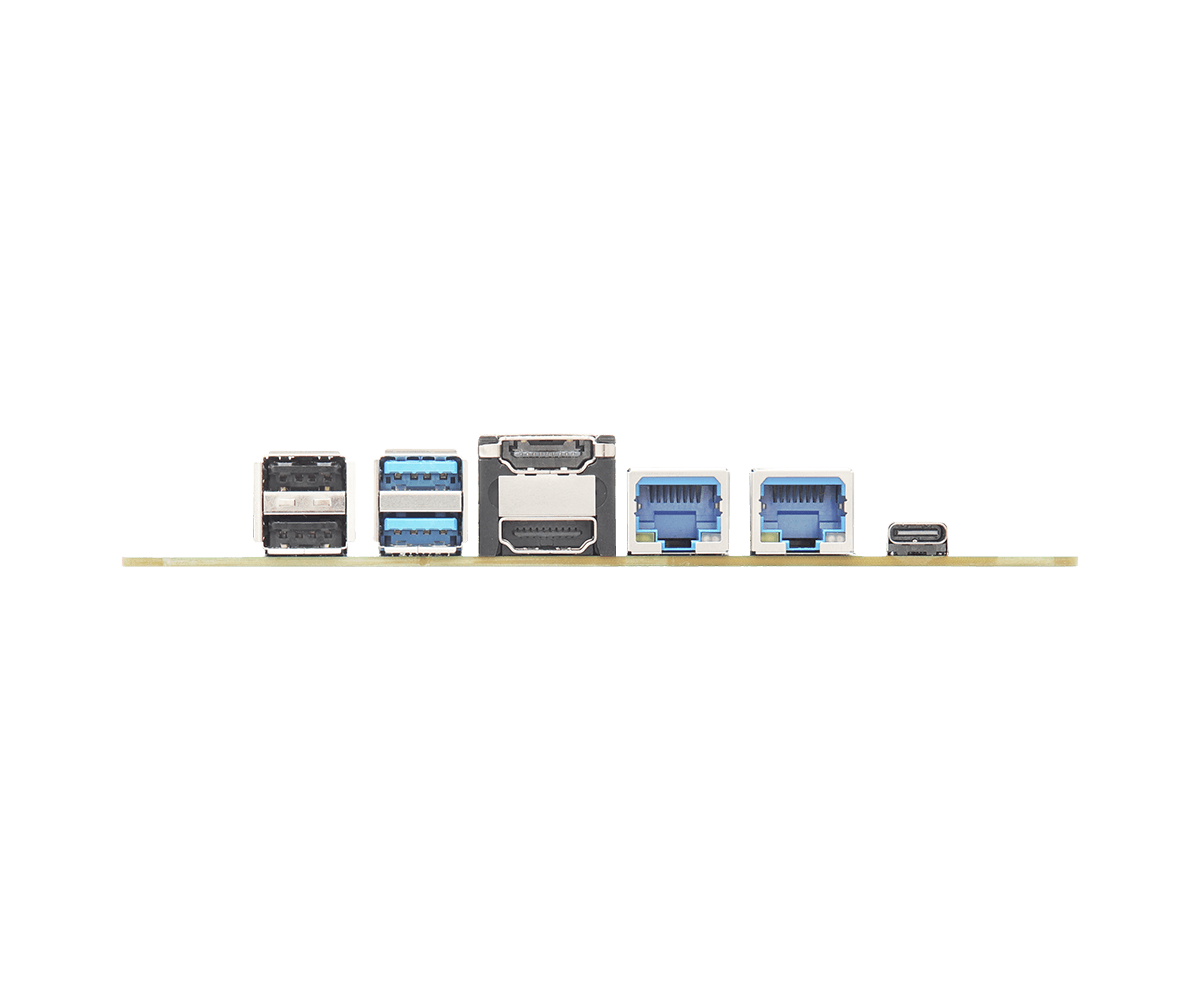

Rear I/O
| HDMI | 2 x HDMI 2.1 |
|---|---|
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 2 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output) |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.00mm pitch header) |
|---|---|
| COM | COM3, COM4, COM5 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| eDP | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM 2.0 onboard IC (Optional) Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/3052) with PCIe Gen4 x4 and USB 2.0 for SSD |
|---|---|
| RAID | Intel® VMD RAID 0/1 **supported by PCIE interface PCIE interface: 2*M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~36V DC-In with 4-pin wafer PWR cable 12V DC-In only (BOM option) 20V/5A, 100W USB Type-C PD (Power Delivery) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
Accessories
| Gift Package | 1 x Heat Spreader for SBC-377 (13G07P075000AI) 3 x SCREW M3*2.5 (13G02P072010AK) 2 x COM Cable (14G000000340AK) 1 x DC-in Cable (14G000000500AK) 1 x 2.00mm MINI JUMPER (12G044200021AK) |
|---|---|
| Bulk Package | 3 x SCREW M3*2.5 (13G02P072010AK) 1 x 2.00mm MINI JUMPER (12G044200021AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
