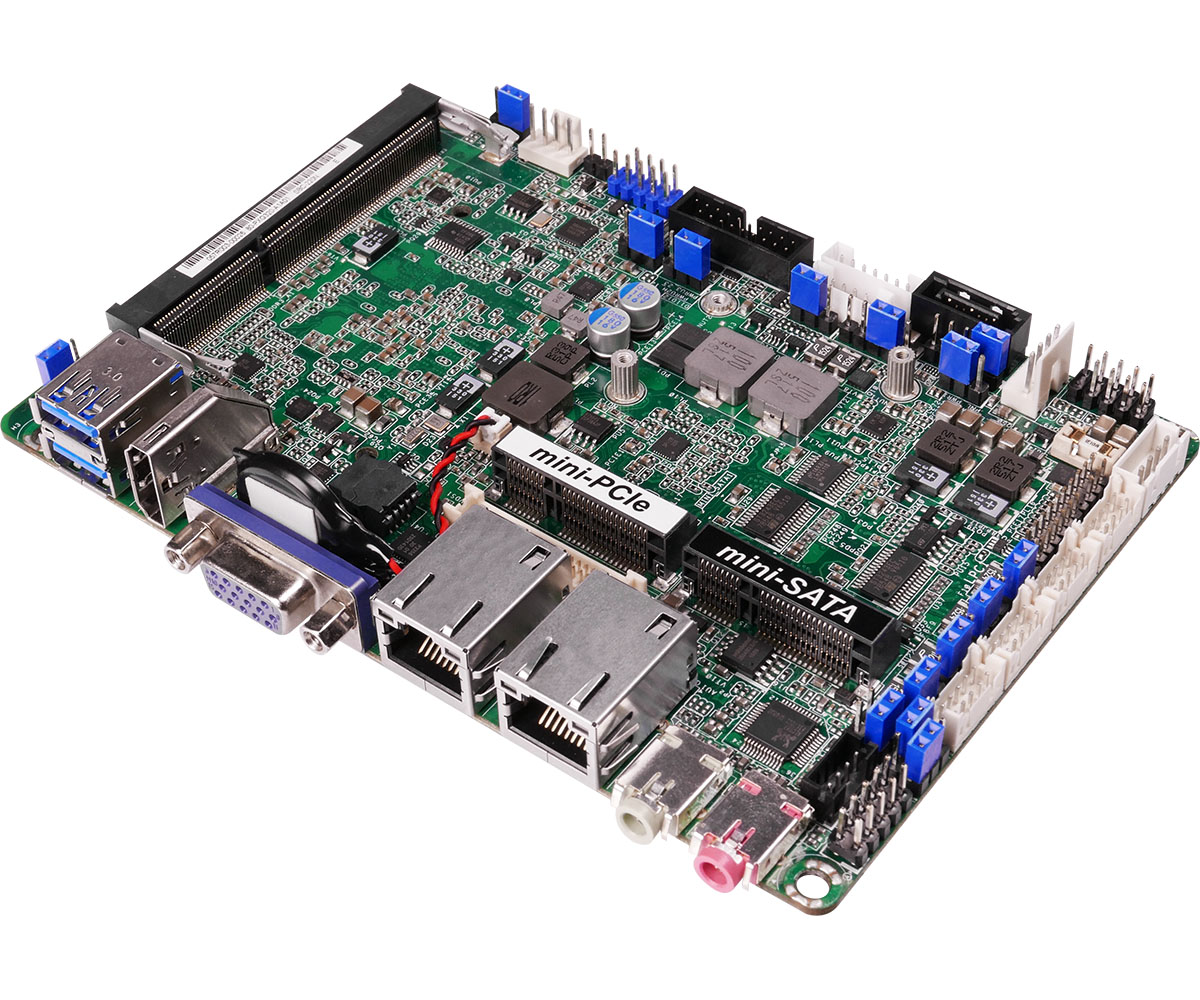

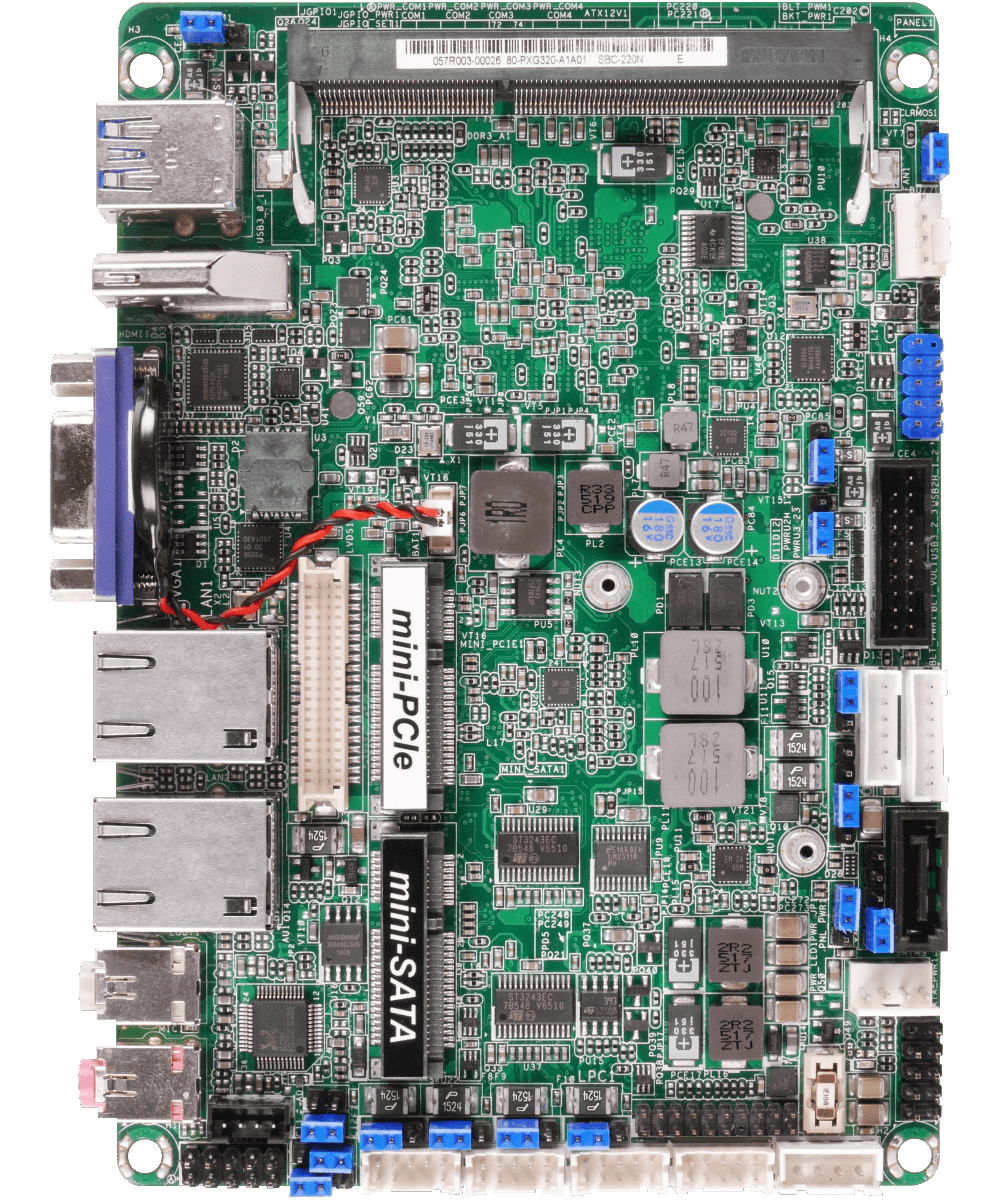

SBC-220B SBC 3.5

Processor System

CPU	Intel® Braswell SoC Processor N3160
Chipset	SoC

Form Factor

Dimensions	3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)

Memory

Technology	Single Channel DDR3L 1333 / 1600 MHz
Capacity	8GB
Socket	1 x SO-DIMM

Graphics

Controller	Intel® Gen8 Intel® Graphics DX 11, OGL3.2
HDMI	Supports max resolution up to 1920 x 1200
VGA	Supports max resolution up to 1920 x 1200
LVDS	Supports max resolution up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

mini-PCIe	1 x Half / Full (supports PCIe x1 & USB device)

Audio

Interface	Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed	2 x Intel® I210 with 10/100/1000 Mbps
Connector	2 x RJ-45

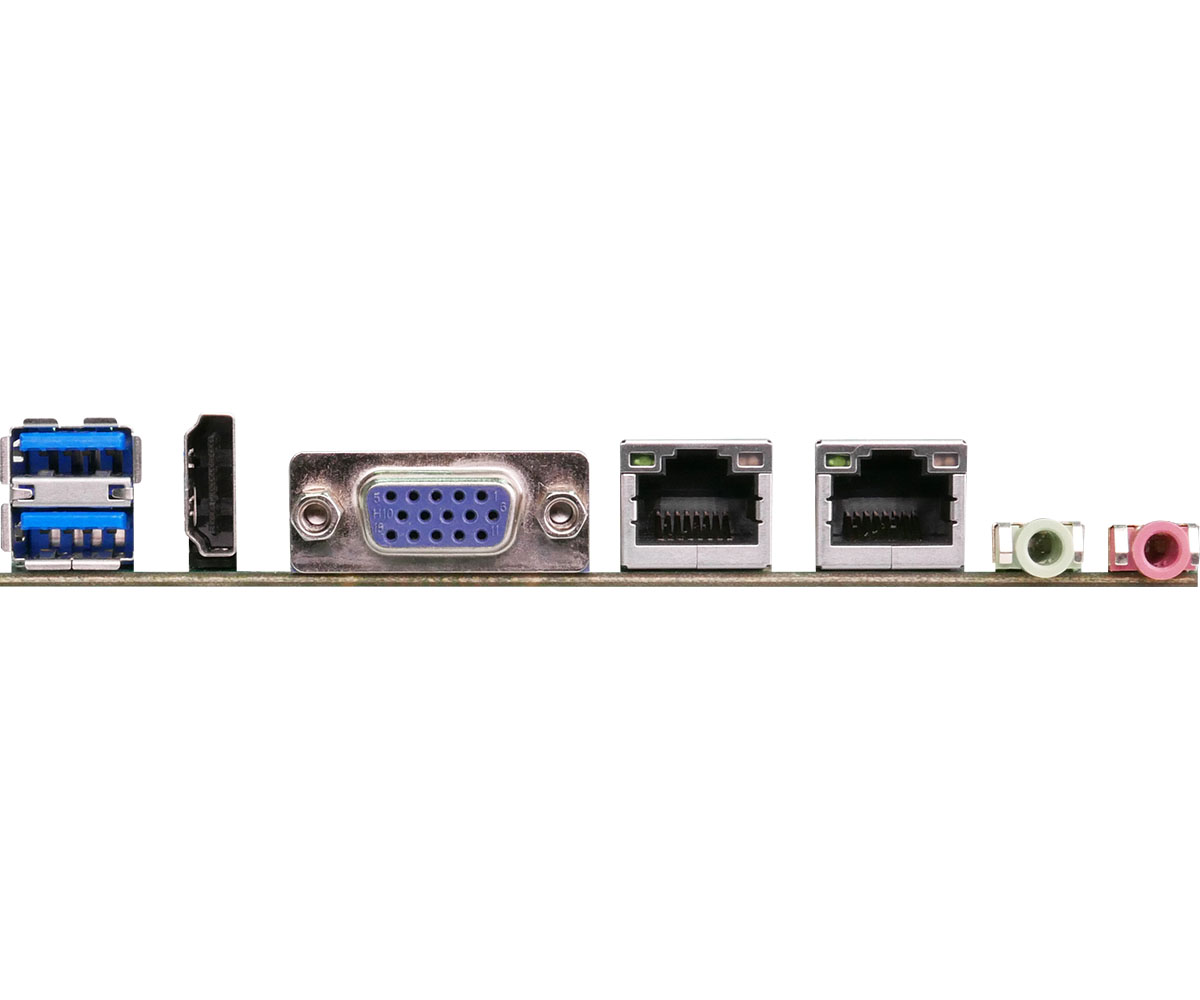

Rear I/O

HDMI	1
VGA	1
Ethernet	2
USB	2 x USB 3.0
Audio	2 (Mic-in, Line-out)

Internal Connector

USB	2 x USB 2.0, 2 x USB 3.0
COM	3 x COM (RS-232), 1 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	1 x Header
LVDS	1 (Co-lay with eDP)
SATA PWR Output	1
Speaker Header	1
eDP	1 (Co-lay with LVDS)

Storage

SATA	1 x SATA3 (6.0Gb/s)
mSATA	1 x Full (supports SATA3 & USB device)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	+12V ~ +24V DC-in
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x HEATSINK 147*102.2mm (13G070194000AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK) 1 x DC power jack,L=150 (14G000600900AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
