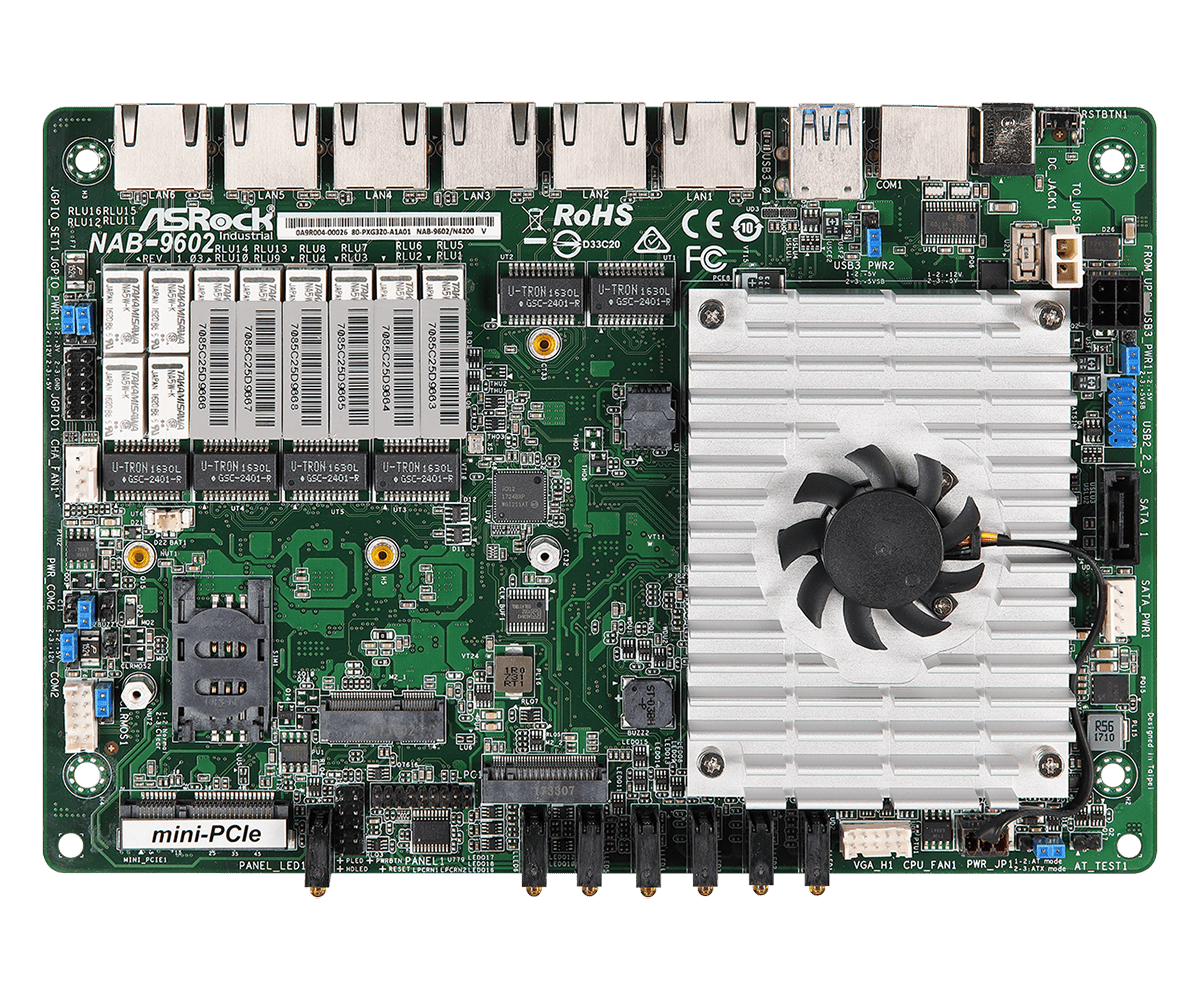

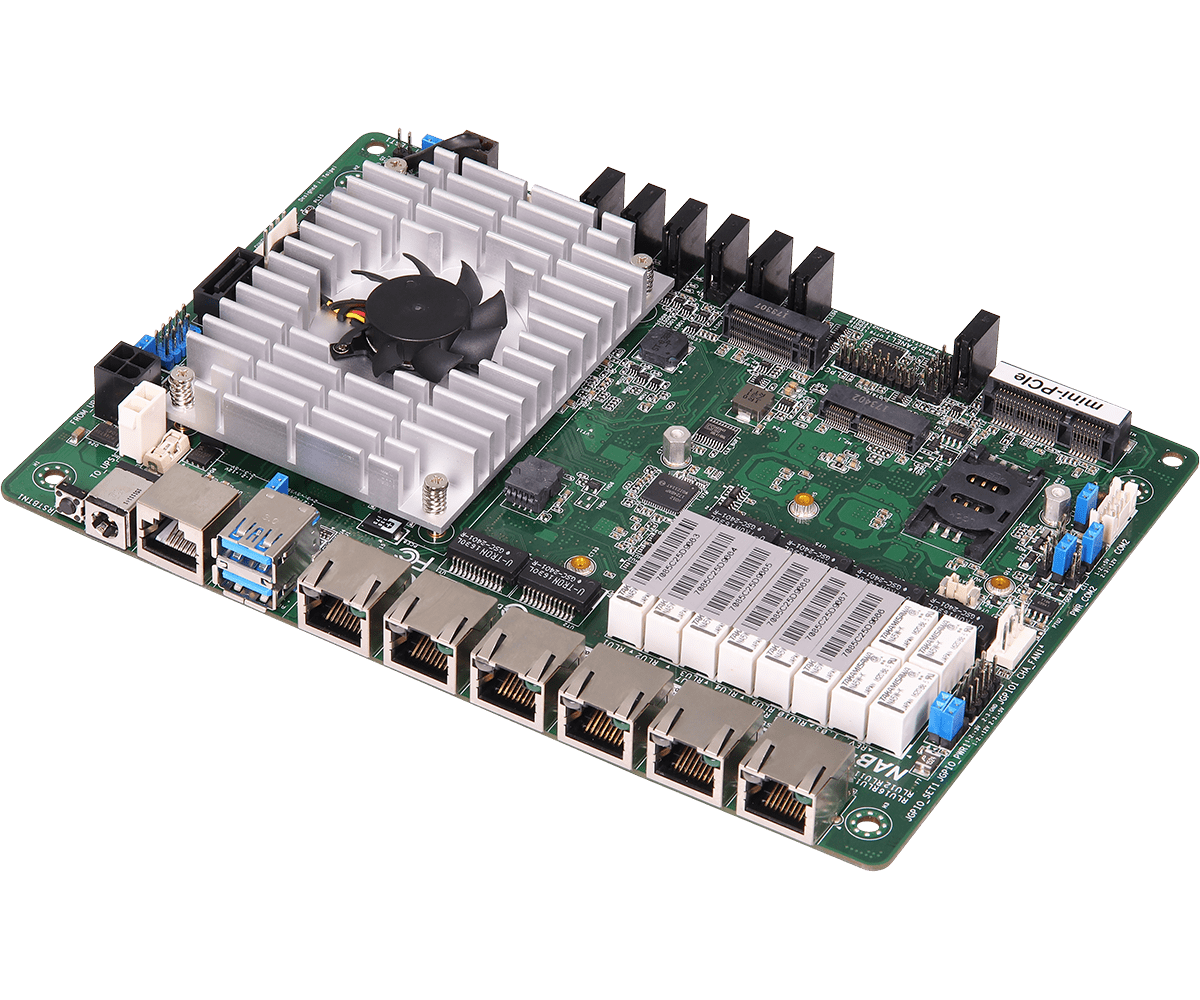

NAB-9602 NAB Motherboard

Processor System

CPU	Intel® Apollo Lake SoC Processor N4200, QC, 1.10GHz, 6W
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	NAB (7.9-in x 5.5-in, 20.1 cm x 14.0 cm)

Memory

Technology	Single Channel DDR3L 1866 MHz
Capacity	8GB
Socket	1 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
VGA	1 x Header (Supports max. resolution 1920 x 1200)

Expansion Slot

mini-PCIe	1x Full size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket	1

Audio

Interface	N/A

Ethernet

Controller/ Speed	6 x Intel I211 with 10/100/1000 Mbps
Connector	6 x RJ-45

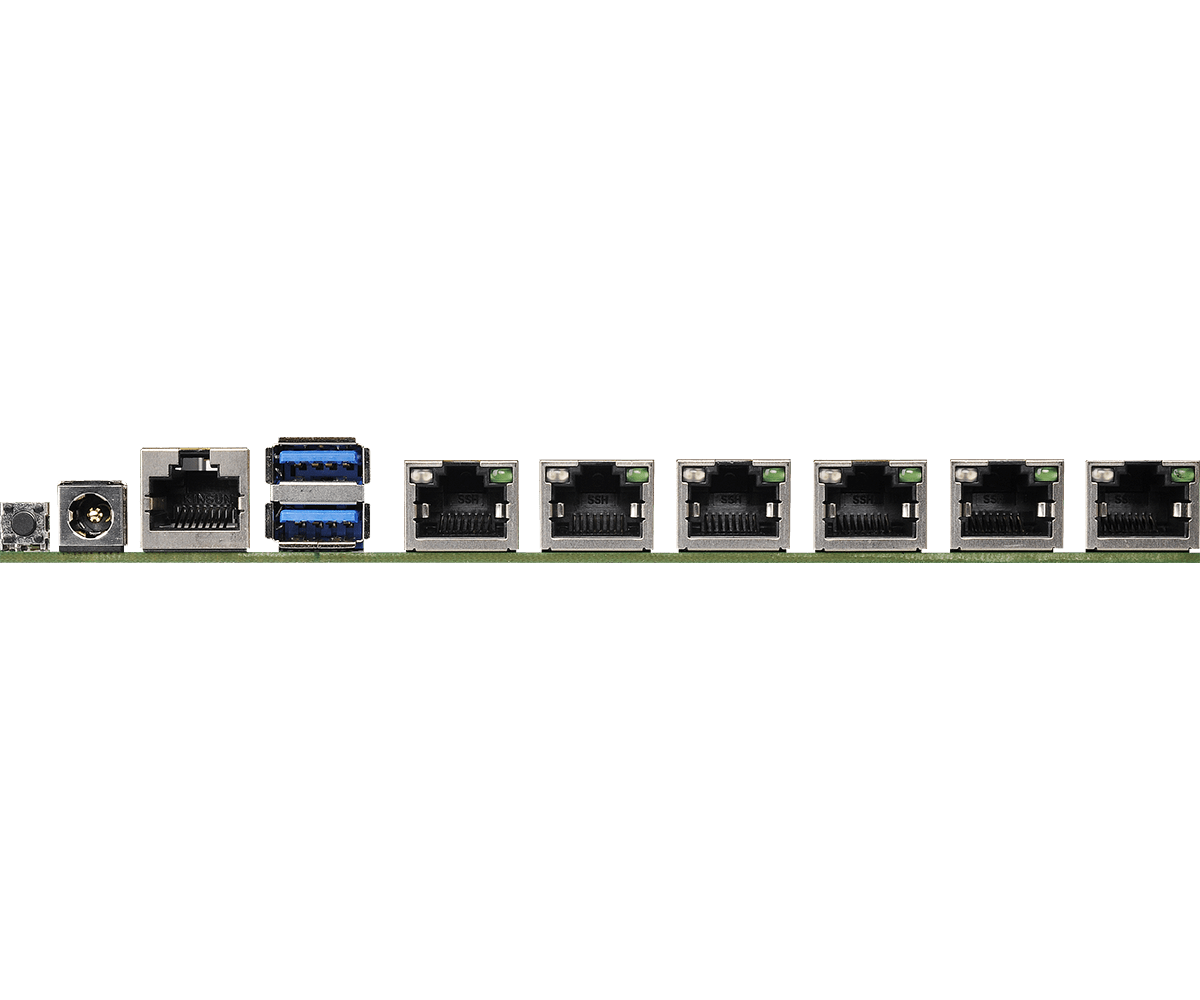

Rear I/O

Ethernet	6 x INTEL 1 Gigabit LAN
USB	2 x USB 3.0
DC Jack	1
Serial Port	1 x console (RS232)

Internal Connector

USB	2 x USB 2.0
COM	1 x COM (RS232)
GPIO	4 x GPI + 4 x GPO
TPM	1 x Onboard TPM 2.0 IC
VGA	1
SATA PWR Output	1

Storage

M.2	1 x M.2 (K ey M, 2242/2260/2280) with SATA3 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-in Jack 4-pin ATX PWR
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
