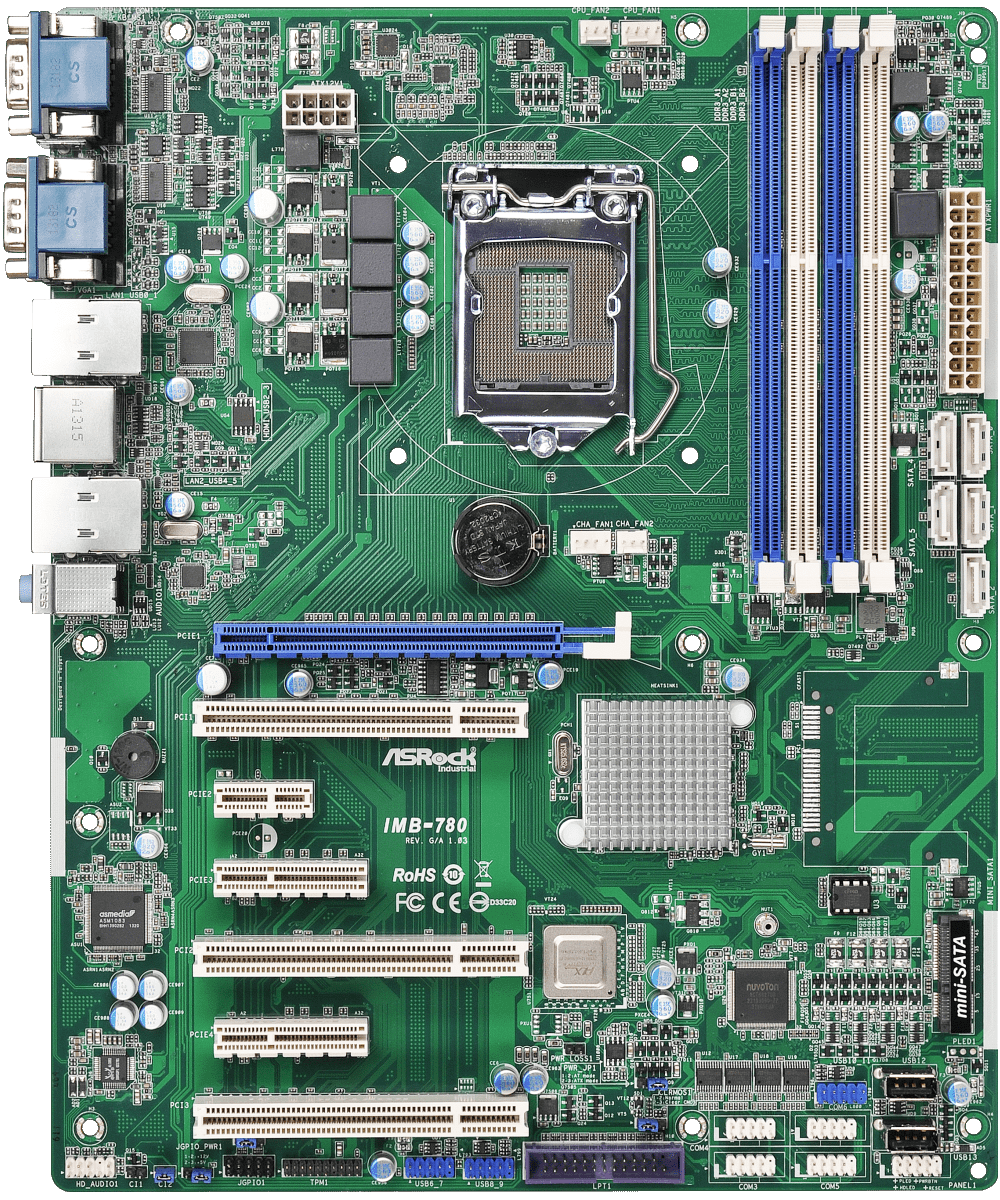

IMB-780 ATX Motherboard

Processor System

CPU	Socket LGA1155 for Intel Core i7 / i5 / i3 / Celeron (Haswell)
Chipset	Intel® Q87
BIOS	UEFI

Form Factor

Dimensions	ATX (9.6-in x 12-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	32GB
Socket	4 x Long-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
DisplayPort	Supports max resolution 2560 x 1600
VGA	Supports max resolution 2048 x 1536
MultiDisplay	Triple Display
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200

Expansion Slot

PCIe	1 (x16)+2 (x4)+ 1 (x1)
PCI	3

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out, Mic-in, Line-in

Ethernet

Controller/ Speed	LAN1:Intel I210 with 10/100/1000 Mbps, LAN2: Intel I217LM with 10/100/1000 Mbps (with v-Pro support)
Connector	2 x RJ-45

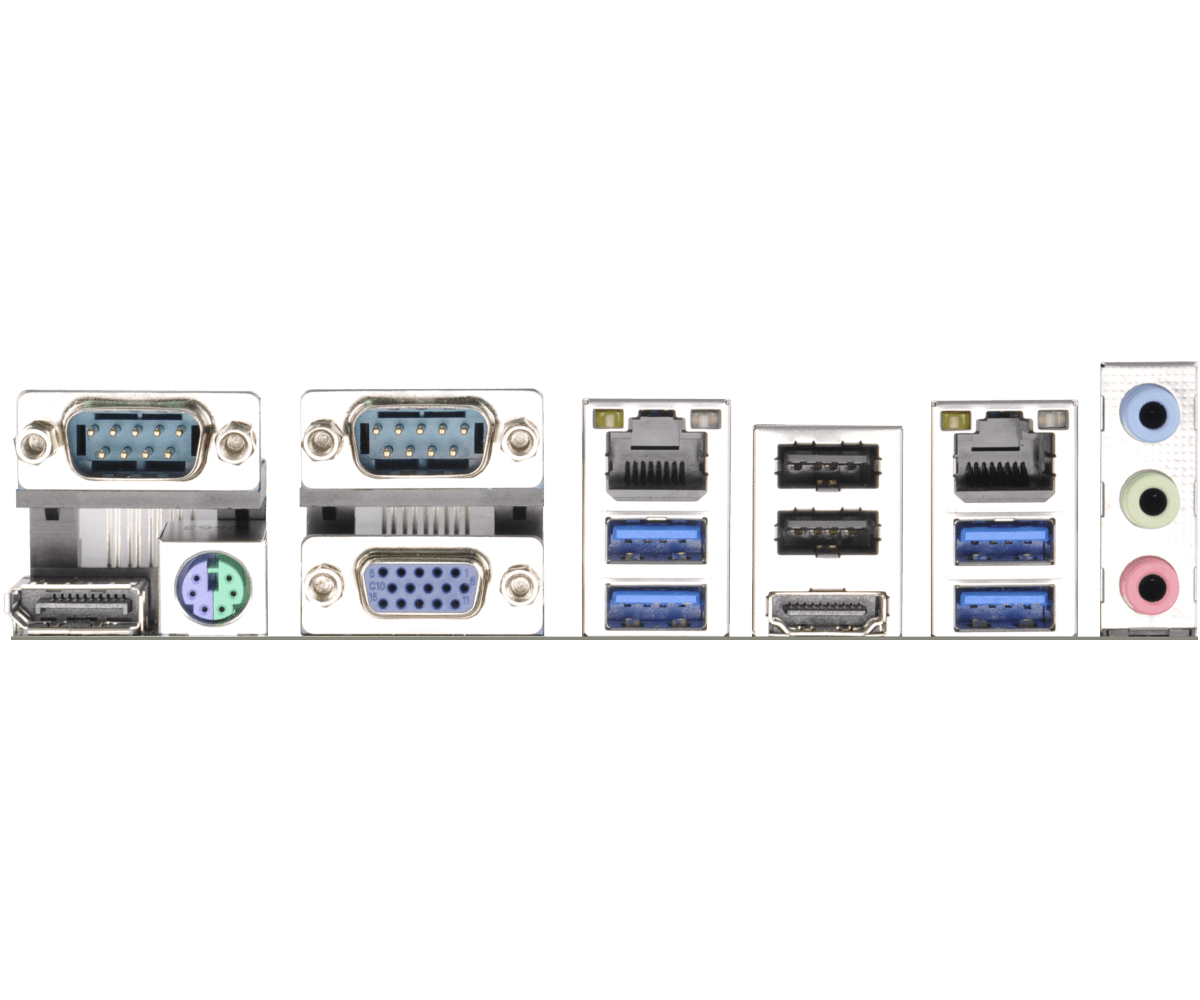

Rear I/O

DisplayPort	1
VGA	1
Ethernet	2
USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant)
Audio	3 (Mic-In, Line-Out, Line-In)
COM	2 x COM (RS-232/422/485)
PS2	1 x PS / 2 combo
HDMI	1

Internal Connector

USB	6 (3 x USB Header 2.54mm pitch) 2 Vertical Type A USB Connector
COM	4 x COM (RS-232)
Parallel	1
GPIO	4 x GPI + 4 x GPO

Storage

mSATA	1 x Full size with SATA2
SATA	5 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020188000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x I/O Shield (13G020188000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
