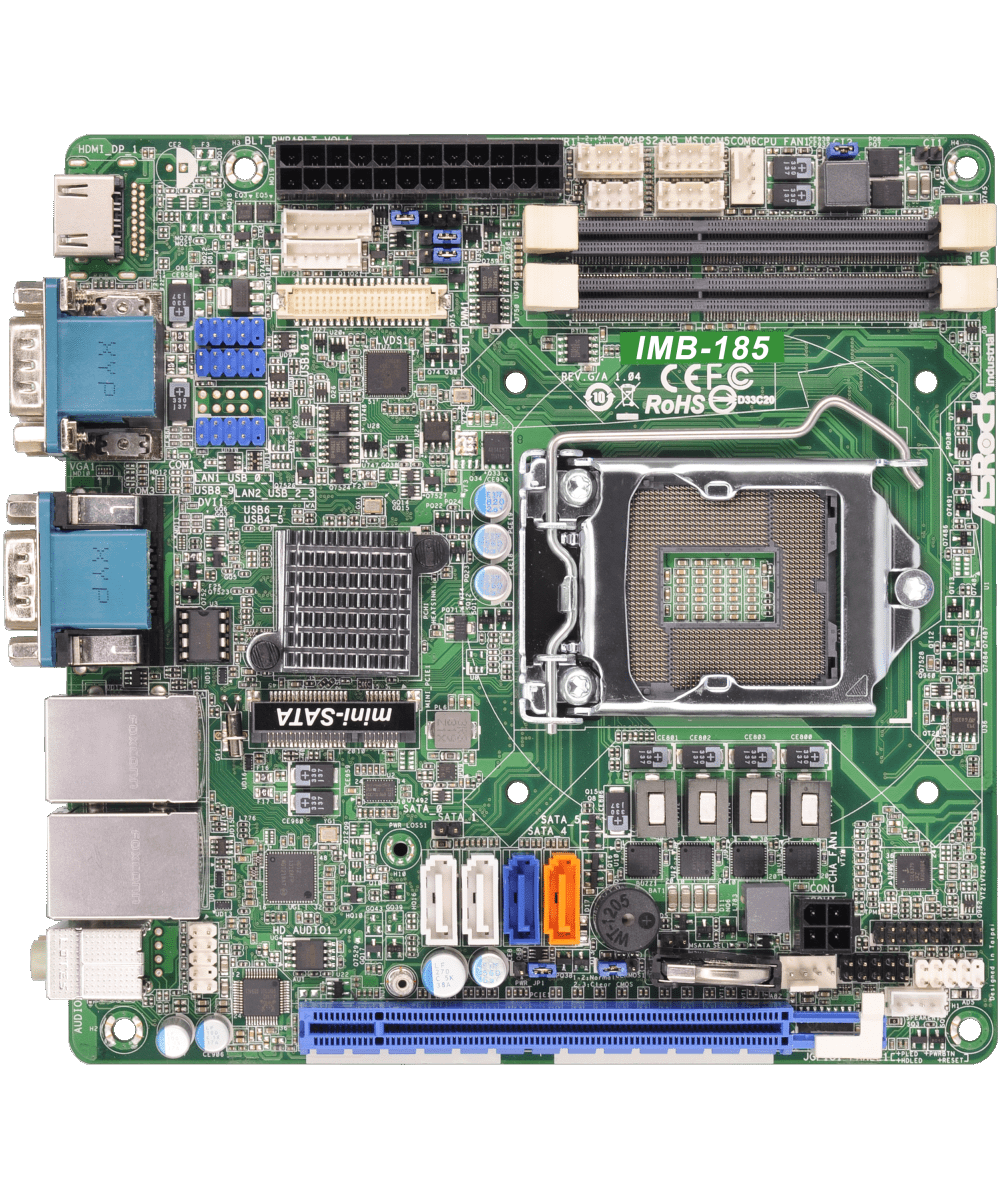

IMB-185 Mini-ITX Motherboard

Processor System

CPU	Supports Intel® 4th Gen (Haswell-S) Core™ Processors
Chipset	Intel® H81

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Dual Channel DDR3L 1333 / 1600MHz
Capacity	16GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports max resolution up to 4096 x 2304
VGA	Supports max resolution 1920 x 1200
LVDS	1
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x16

Audio

Interface	Realtek ALC888S, High Definition Audio. Mic-in / Line-out

Ethernet

Controller/ Speed	LAN1: Intel® I217V with 10/100/1000 Mbps LAN2: Intel® I210 with 10/100/1000Mbps

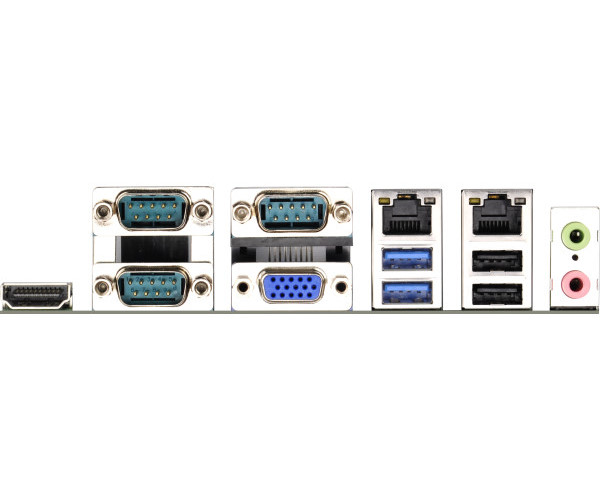

Rear I/O

HDMI	1
Ethernet	2
USB	2 x USB 3.0, 2 x USB 2.0
Audio	2 (Mic-in, Line-out)
COM	3 x COM (RS-232/422/485)
VGA	1

Internal Connector

USB	6 x USB 2.0
COM	4 x COM (RS-232), 2 x COM (RS-232/422/485)
GPIO	4 x GPI, 4 x GPO
TPM	1 x Header
LVDS	1
VGA	1
Speaker Header	1

Storage

SATA	2 x SATA3, 2 x SATA2
mSATA	1 x Full size with SATA2

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (4 + 24)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020183000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020183000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
