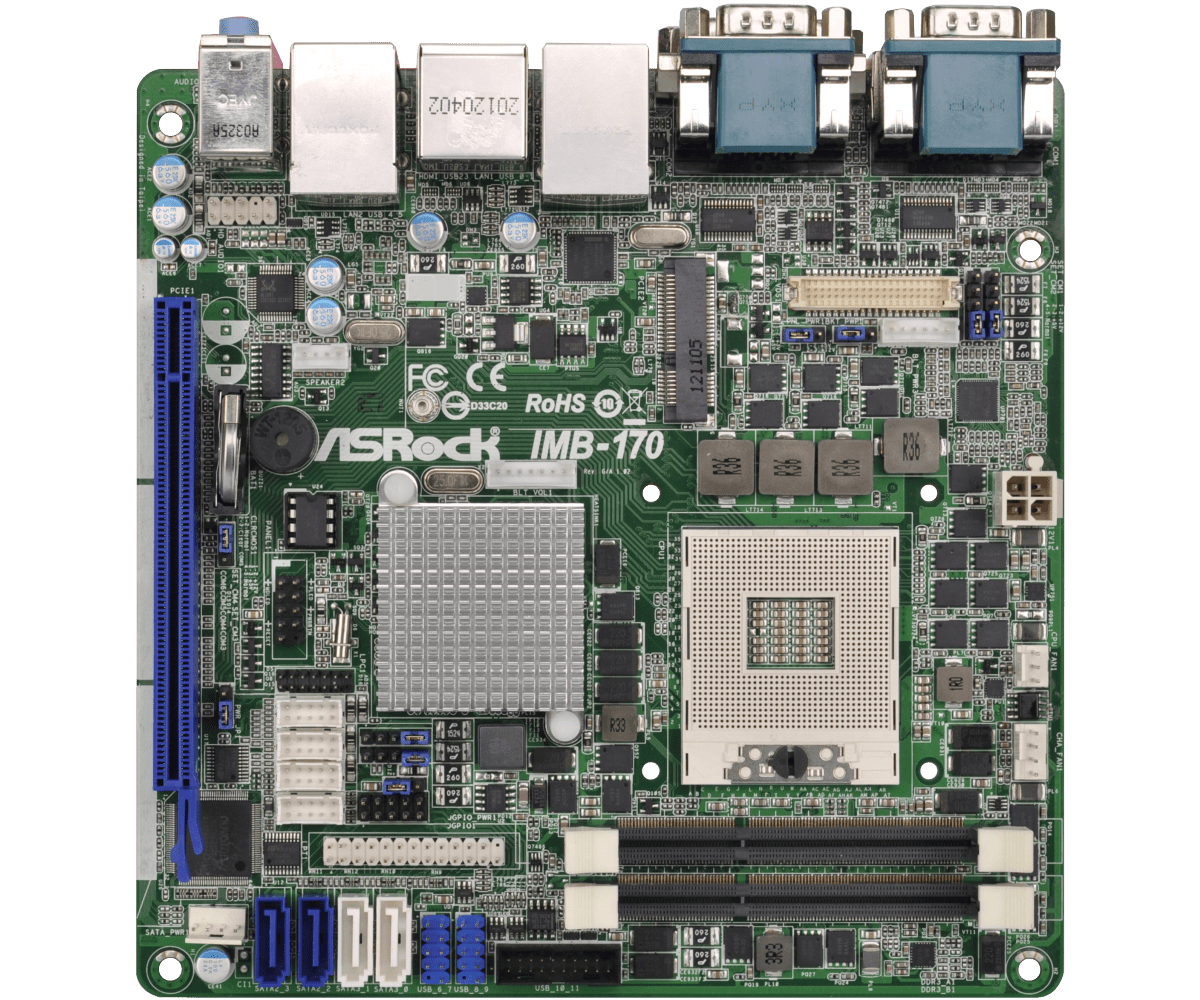

IMB-170 Mini-ITX Motherboard

Processor System

CPU	Socket G2 (rPGA988B) for Intel® Core i7 / i5 / i3 / Celeron® (Sandy Bridge and Ivy Bridge)
Chipset	QM77
BIOS	UEFI

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Socket	2 x SO-DIMM
Capacity	16GB

Graphics

Controller	Intel® HD Graphics (By CPU)
DVI	Supports max resolution up to 1920x1200
HDMI	Supports HDMI, max resolution up to 1920x1200
LVDS	Dual Channel 24-bit, max resolution up to 1920x1200@60Hz
DisplayPort	Supports max resolution up to 2560x1600
MultiDisplay	Yes

Expansion Slot

mini-PCIe	1 (Full Size)
PCIe	1 (IVY Bridge: Gen3; Sandy Bridge: Gen2)

Ethernet

Controller/ Speed	LAN1:Intel® 82583V with 10/100/1000 Mbps, LAN2:Intel® 82579LM with 10/100/1000 Mbps
Connector	1 x RJ - 45

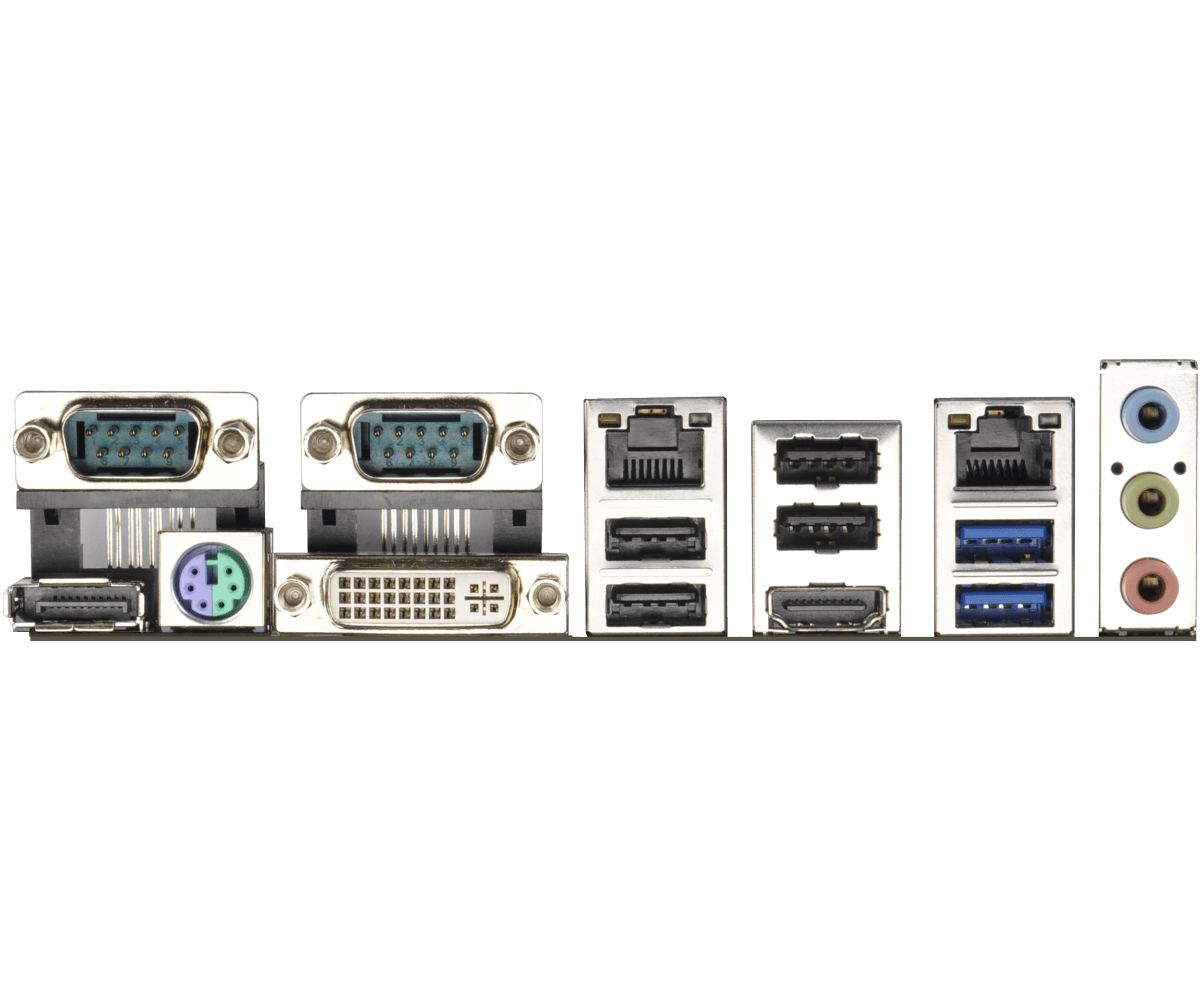

Rear I/O

DVI	1 (DVI-I)
HDMI	1
DisplayPort	1
Ethernet	2
USB	6 (4 x USB 2.0, 2 x USB 3.0)
Audio	3 (Mic-in, Line-out, Line-in)
COM	2 x COM(RS-232/422/485)
PS2	1 (Combo)

Internal Connector

USB	6 (4 x USB 2.0, 2 x USB 3.0)
COM	4 x COM(RS-232)
GPIO	4 x GPI +4 x GPO
LVDS	1
Speaker Header	1
SATA PWR Output	1

Storage

SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-In (4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
