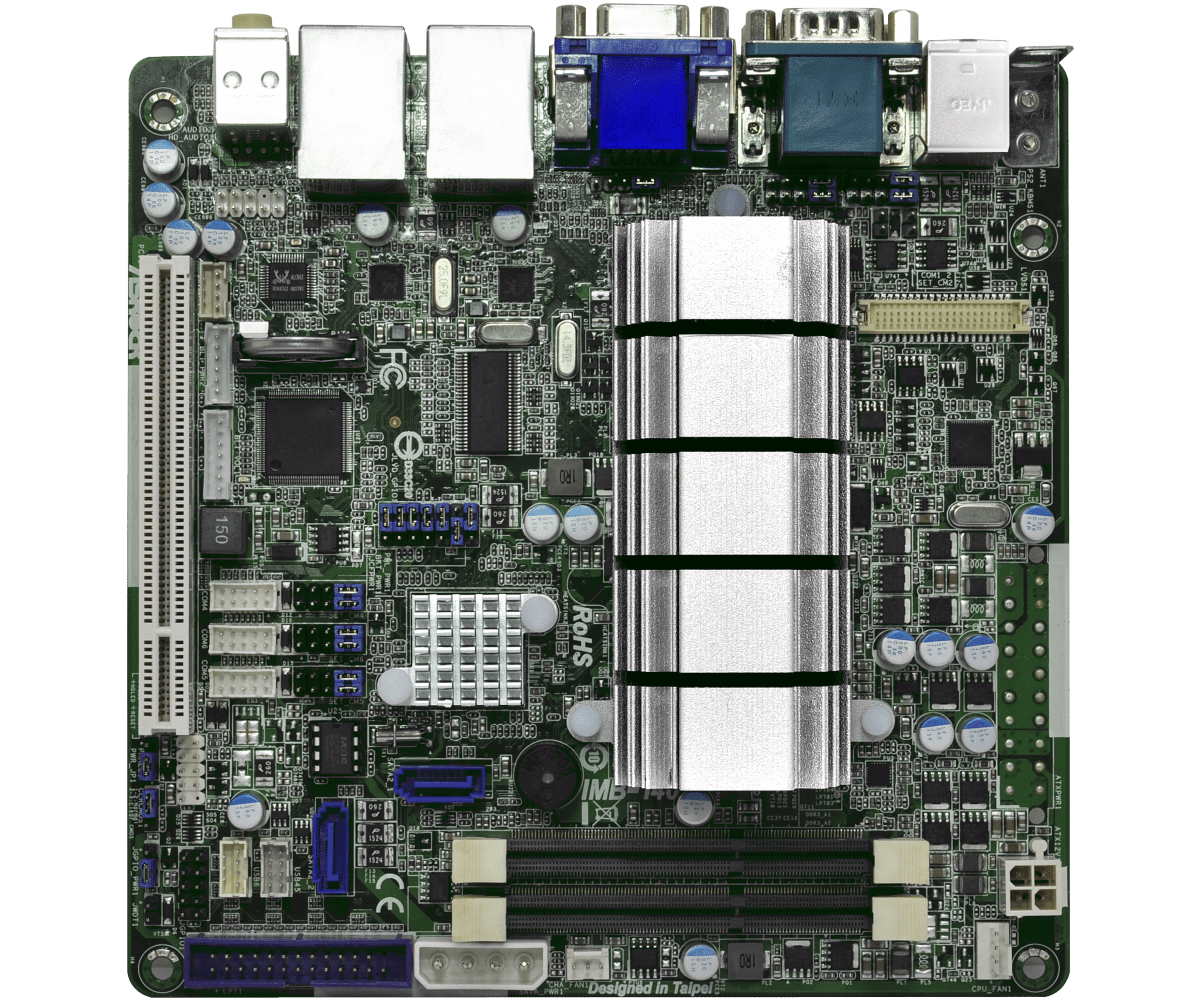

IMB-140 Series Mini-ITX Motherboard
- Intel® Dual-Core Atom™ CedarViewProcessor D2550/N2600/N2800
- Intel® NM10 Express Chipset
- Integrated Intel® PowerVR SGX545, DirectX 9.0, Pixel Shader 3.0
- Supports DDR3 1066MHz, 2 x SO-DIMM, up to 4GB system memory
- 1 x COM (RS-232/422/485), 4 x COM (RS-232)
- 1 x D-Sub, 1 x HDMI, 1 x Dual Channel 24-bit LVDS
- 7 x USB 2.0, 2 x SATA2
- 1 x PCI, 1 x mini-PCIe
- Gigabit LAN : 2 x Realtek RTL8111E-VL
- 1 x CF Socket
Specification
Processor System
| CPU | Intel® Dual-Core Atom™ CedarView Processor D2550 / N2600 / N2800 Supports Hyper-Threading Technology |
|---|---|
| Chipset | NM10 |
| BIOS | UEFI |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
|---|
Memory
| Technology | Single Channel DDR3 800 / 1066 MHz SDRAM |
|---|---|
| Socket | D2550 / N2800: 2 x SO-DIMM N2600: 1 x SO-DIMM |
| Capacity | D2550 / N2800: 4GB N2600: 2GB |
Graphics
| Controller | Intel® PowerVR SGX545, Support DirectX9 compliant Pixel Shader v3.0 and OGL 3.0 |
|---|---|
| VGA | Supports max resolution up to 1920x1200 |
| LVDS | Dual Channel 24-bit, max resolution up to 1920x1200 |
| HDMI | Supports HDMI, max resolution up to 1920x1200 |
| MultiDisplay | Yes |
Expansion Slot
| PCI | 1 |
|---|---|
| mini-PCIe | 1 (Full Size) |
Ethernet
| Controller/ Speed | 2 x Realtek RTL8111E-VL with 10/100/1000 Mbps |
|---|---|
| Connector | 1 x RJ - 45 |

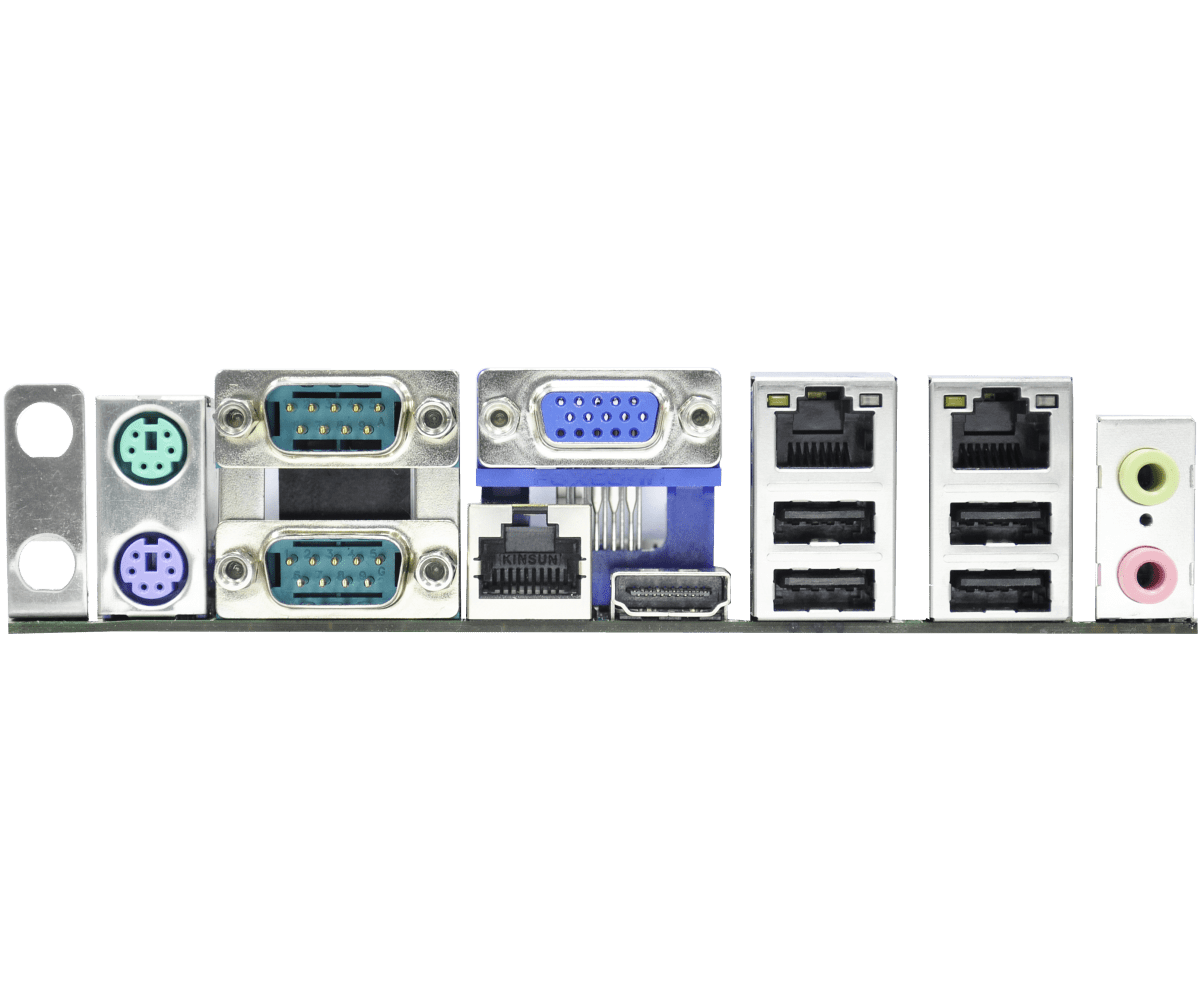

Rear I/O
| VGA | 1 |
|---|---|
| HDMI | 1 |
| Ethernet | 2 |
| USB | 4 x USB 2.0 |
| Audio | 2 (Mic-in, Line-out) |
| COM | 1 x COM(RS-232/422/485) + 1 x COM(RS232) |
| PS2 | 2 (1 x keyboard, 1 x mouse) |
Internal Connector
| USB | 3 x USB 2.0 |
|---|---|
| LVDS | 1 |
| COM | 3 x COM(RS-232) |
| Parallel | 1 |
| GPIO | 4 x GPI + 4 x GPO |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| SATA | 2 x SATA2 (3.0Gb/s) |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V DC-In (4-pin ATX PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Others
| Packing List | 1 x Jumper setting guide 1 x Driver DVD 1 x IO shield 3 x COM cable 2 x SATA cable 1 x SATA power cable 1 x DC-IN power cable 2 x Screw for mini card |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | VGA driver ver:1.15 | Information | OS | XP | Date | 2020-07-03 | Download | ||
| Description | VGA driver ver:8.0.0.1.1082 | Information | OS | Win 7 | Date | 2020-07-03 | Download | ||
| Description | Intel Rapid Storage Technology driver and utility ver:10.1.0.1008_ad | Information | OS | Win 7 | Date | 2020-07-03 | Download | ||
| Description | SATA Driver (For systems to get the drivers from USB stick during Windows installation) | Information | OS | XP | Date | 2020-07-03 | Download | ||
| Description | Realtek Lan driver ver:5782 | Information | OS | XP | Date | 2020-07-03 | Download | ||
| Description | Realtek Lan driver ver:7049 | Information | OS | Win 7 | Date | 2020-07-03 | Download | ||
| Description | Realtek Teaming driver ver:2.0.2.0 | Information | OS | Win 7 | Date | 2020-07-03 | Download | ||
| Description | INF driver ver:9.2.2.1034 | Information | OS | Win 7 , XP | Date | 2020-07-03 | Download | ||
| Description | Realtek audio driver ver:6554 | Information | OS | Win 7 , XP | Date | 2020-07-03 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.40 | Update BIOS Under / How to Update | BIOS | Description | Improve SIO code. | Information | Date | 2020-07-03 | Download | ||
| Version | 1.40 | Update BIOS Under / How to Update | DOS | Description | Improve SIO code. | Information | Date | 2020-07-03 | Download | ||
| Version | 1.40 | Update BIOS Under / How to Update | Windows | Description | Improve SIO code. | Information | Date | 2020-07-03 | Download | ||
| Version | 1.30 | Update BIOS Under / How to Update | BIOS | Description | 1. Update COM ports function. 2. Update CLK Gen code. |
Information | Date | 2020-07-03 | Download | ||
| Version | 1.30 | Update BIOS Under / How to Update | DOS | Description | 1. Update COM ports function. 2. Update CLK Gen code. |
Information | Date | 2020-07-03 | Download | ||
| Version | 1.30 | Update BIOS Under / How to Update | Windows | Description | 1. Update COM ports function. 2. Update CLK Gen code. |
Information | Date | 2020-07-03 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2020-07-03 | Download | |
| Description | Jumpers and headers setting guide | Language | English | Date | 2020-07-03 | Download |
