EOL

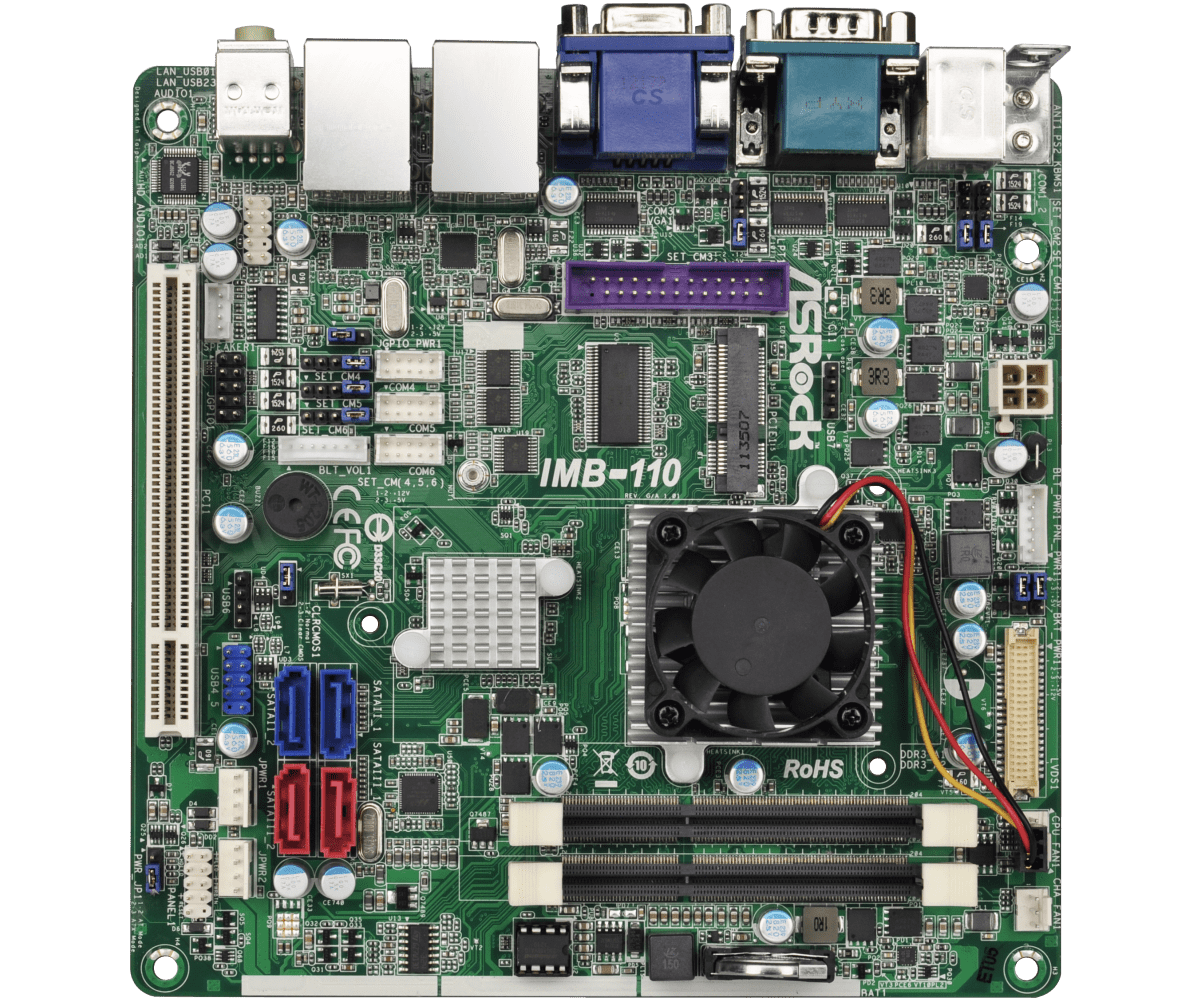

IMB-110 Series Mini-ITX Motherboard
- Intel® Atom™ PineView Processor D525/D425/N455
- Intel® NM10 Express Chipset
- Integrated Intel® Graphics Media Accelerator 3150, DirectX 9.0
- Supports DDR3 800MHz, 2 x SO-DIMM, up to 4GB system memory
- 3 x COM (RS-232/422/485), 3 x COM (RS-232)
- 1 x D-Sub, 1 x Single Channel 18-bit LVDS
- 8 x USB 2.0, 2 x SATA3, 2 x SATA2
- 1 x PCI, 1 x mini-PCIe
- Gigabit LAN : 2 x Realtek RTL8111E-VL
Specification
Processor System
| CPU | Intel® Dual-Core Atom™ PineView Processor D525 / D425 / N455 Supports Hyper-Threading Technology |
|---|---|
| Chipset | NM10 |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
|---|
Memory
| Technology | D525/D425: Single Channel DDR3 800 MHz SDRAM N455: Single Channel DDR3 667 MHz SDRAM |
|---|---|
| Capacity | D525 / D425: 4 GB N455: 2 GB |
| Socket | 2 x SO-DIMM |
Graphics
| Controller | Intel® Graphics Media Accelerator 3150 Pixel Shader 2.0, DirectX 9.0 |
|---|---|
| VGA | D525/D425: supports max. resolution 2048x1536 @ 60Hz N455: supports max. resolution 1400x1050 @ 60Hz |
| LVDS | Single Channel 18-bit, max resolution up to 1366 x 768 |
| MultiDisplay | Yes |
Expansion Slot
| PCI | 1 |
|---|---|
| mini-PCIe | 1 (Full Size) |
Ethernet
| Controller/ Speed | 10/100/1000 Mbps |
|---|---|
| Connector | 2 x Realtek RTL8111E-VL |

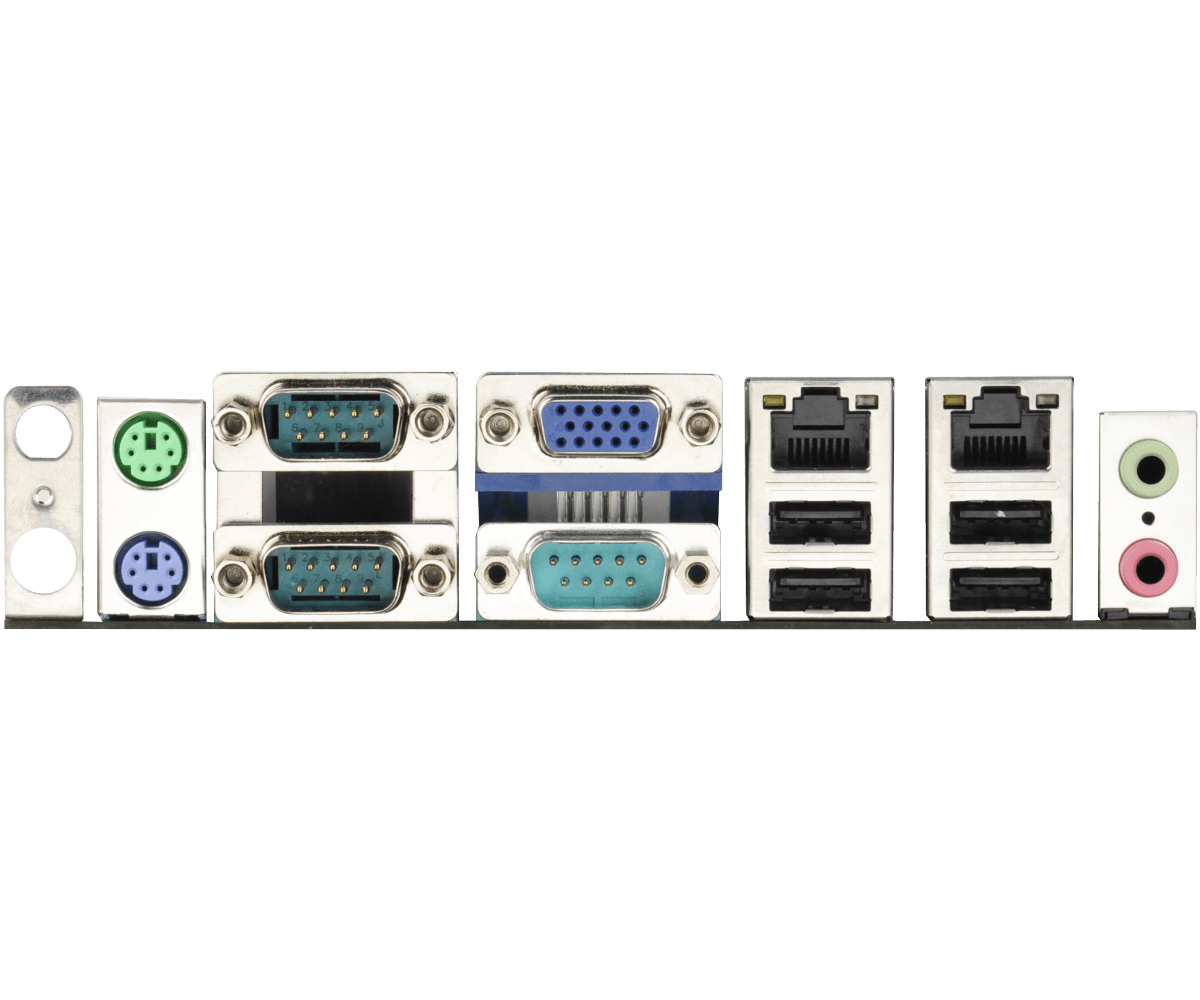

Rear I/O
| VGA | 1 |
|---|---|
| Ethernet | 2 |
| USB | 4 x USB 2.0 |
| Audio | 2 (Mic-in, Line-out) |
| COM | 3 x COM (RS-232/422/485) |
| PS2 | 2 |
Internal Connector
| USB | 4 x USB 2.0 |
|---|---|
| COM | 3 x COM (RS-232) |
| Parallel | 1 |
| GPIO | 4 x GPI + 4 x GPO |
| LVDS | 1 |
| SATA PWR Output | 2 |
| Speaker Header | 1 |
Storage
| SATA | 2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Support RAID 0/1 |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9-19V DC-In (4-pin ATX PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
