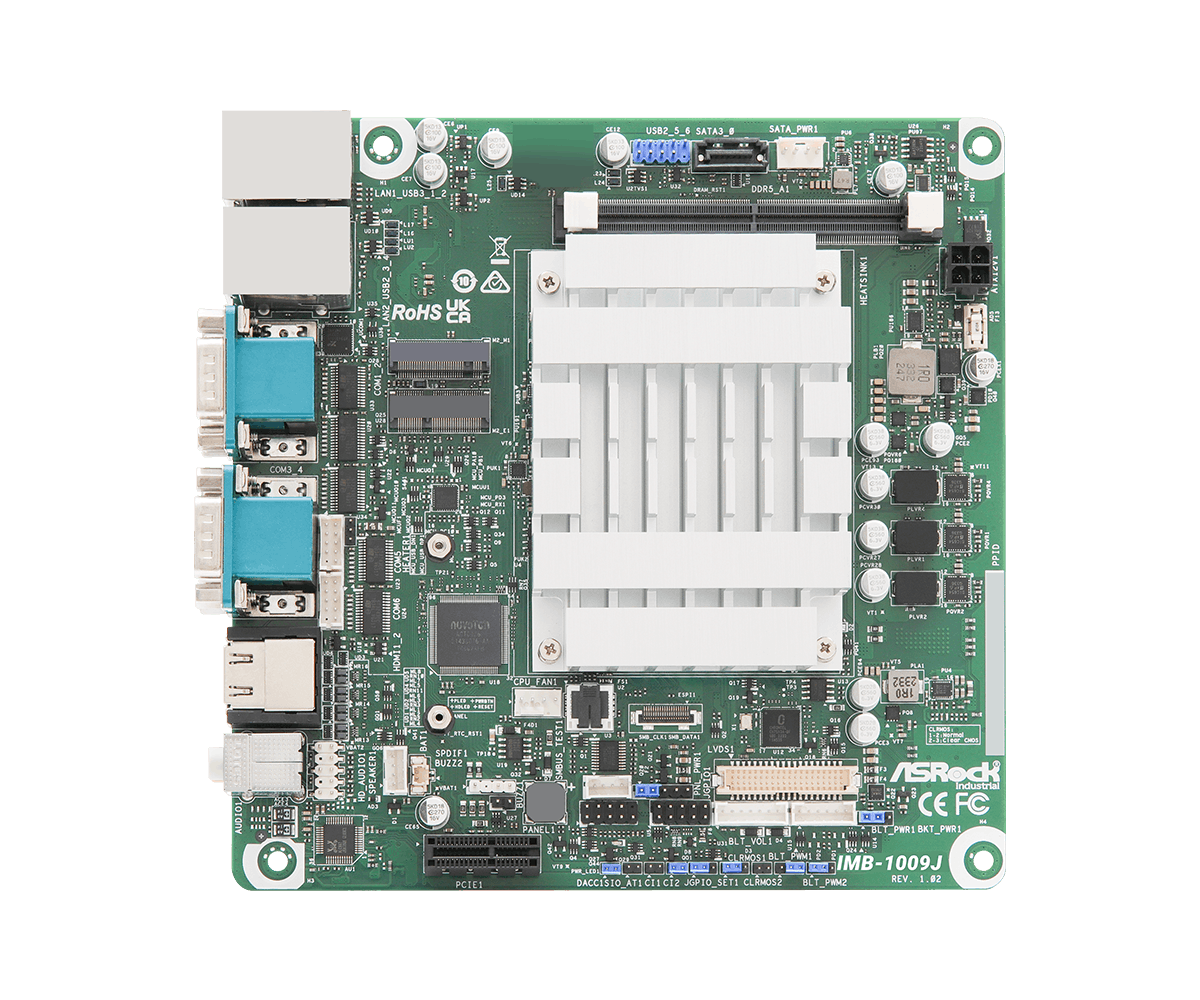

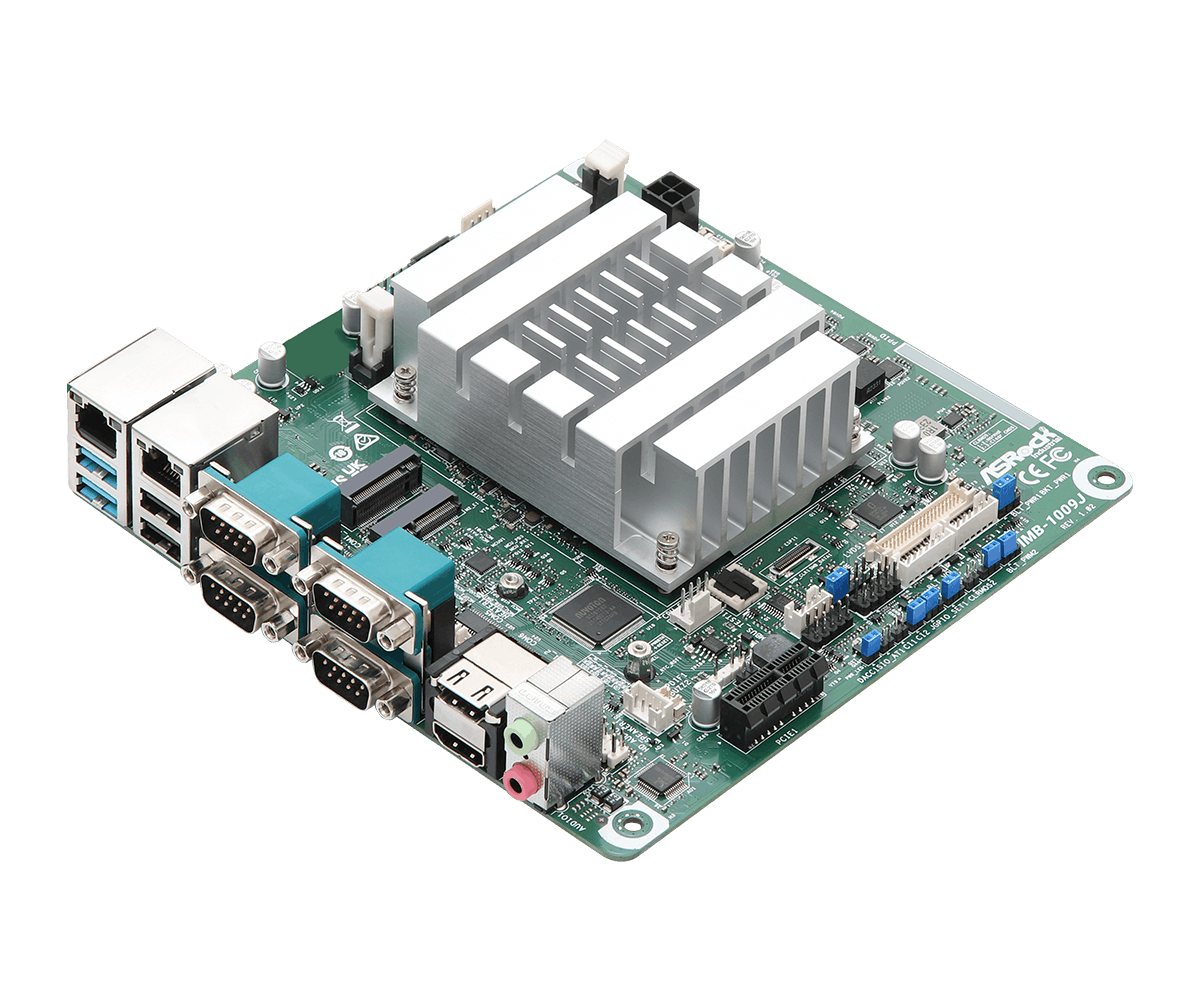

IMB-1009J Mini-ITX Motherboard

Processor System

CPU	Intel® Twin Lake Processors IMB-1009J (N150, QC, Max Speed Up to 3.6GHz, 6W)
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.0 cm)

Memory

Technology	Single Channel DDR5 4800 MHz
Capacity	32GB
Socket	1 x 262-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphics
HDMI	HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP	Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay	Triple display

Expansion Slot

PCIe	1 x PCIe x1 (Gen3)
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface	Realtek ALC897 HD, High Definition Audio.Mic-in, Line-out

Ethernet

Controller/ Speed	LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector	2 x RJ-45

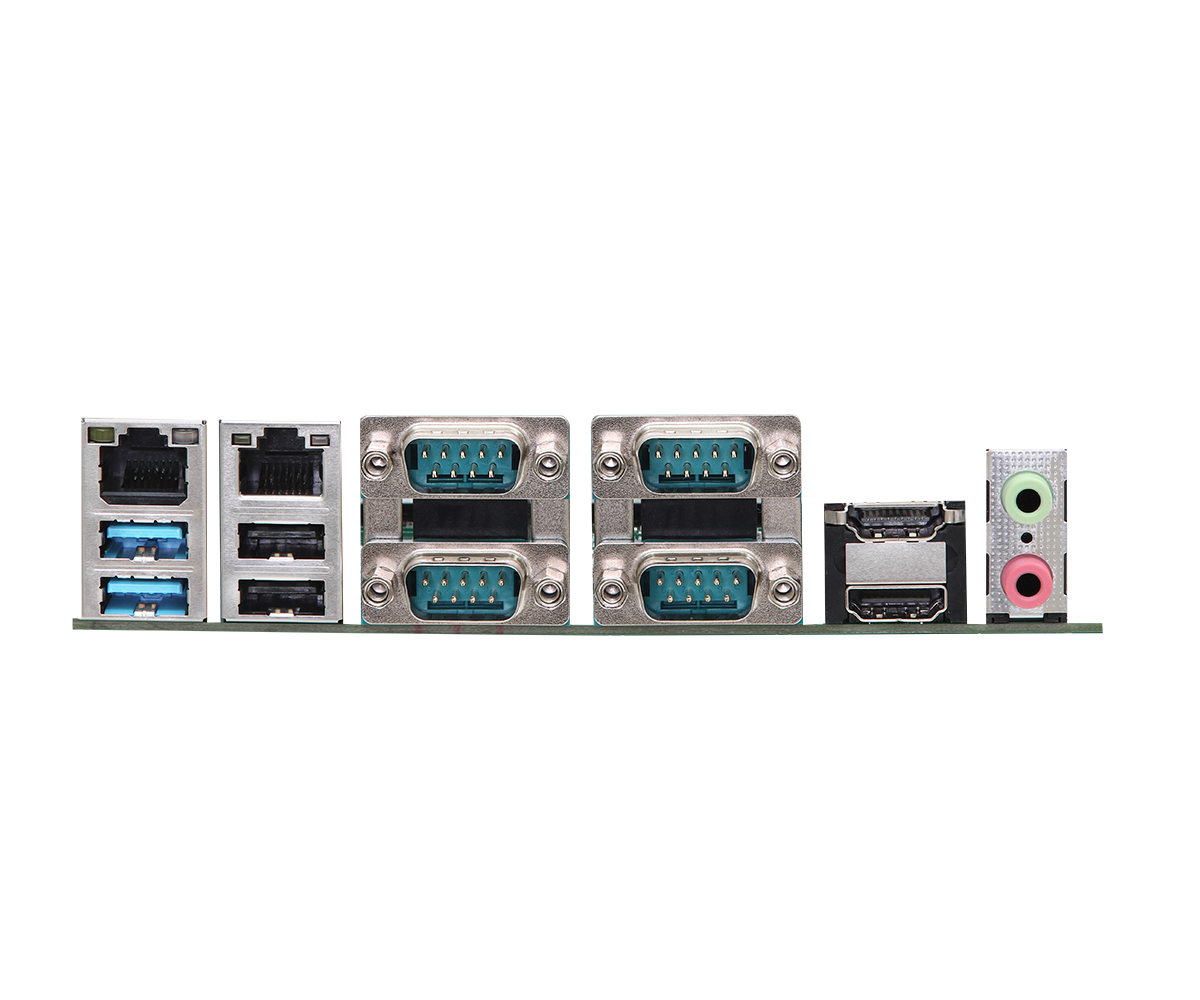

Rear I/O

HDMI	2 x HDMI 2.0b
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.2 Gen2 2 x USB 2.0
Audio	2 (Mic-In, Line-Out)
COM	COM1 (RS-232/422/485) COM2, COM3, COM4 (RS-232)

Internal Connector

USB	2 x USB 2.0 (1 x 2.54 pitch header)
COM	COM5, COM6 (RS-232)
GPIO	4 x GPI, 4 x GPO
LVDS	1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

Security

TPM	Intel® PTT

Storage

M.2	1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x1 or SATA3 for SSD
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-In with 4-pin plug PWR cable
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G02P050000AK) 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x SATA Power Cable (14G000100410AK) 1 x SATA Cable (14G00010107DAK) 1 x 2.00mm MINI JUMPER (12G044200021AK)
Bulk Package	1 x I/O Shield (13G02P050000AK) 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x 2.00mm MINI JUMPER (12G044200021AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
